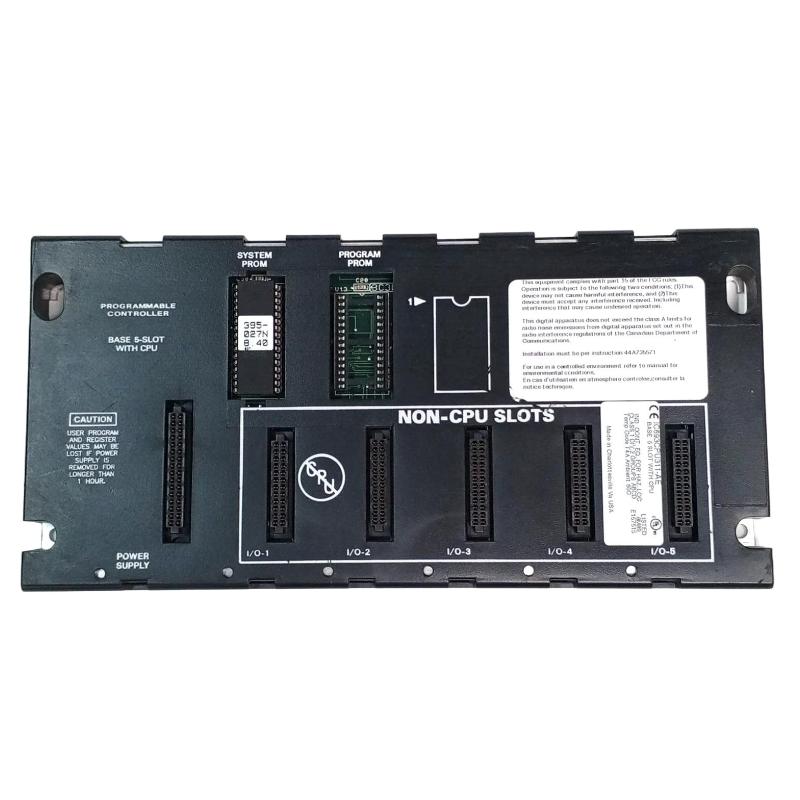

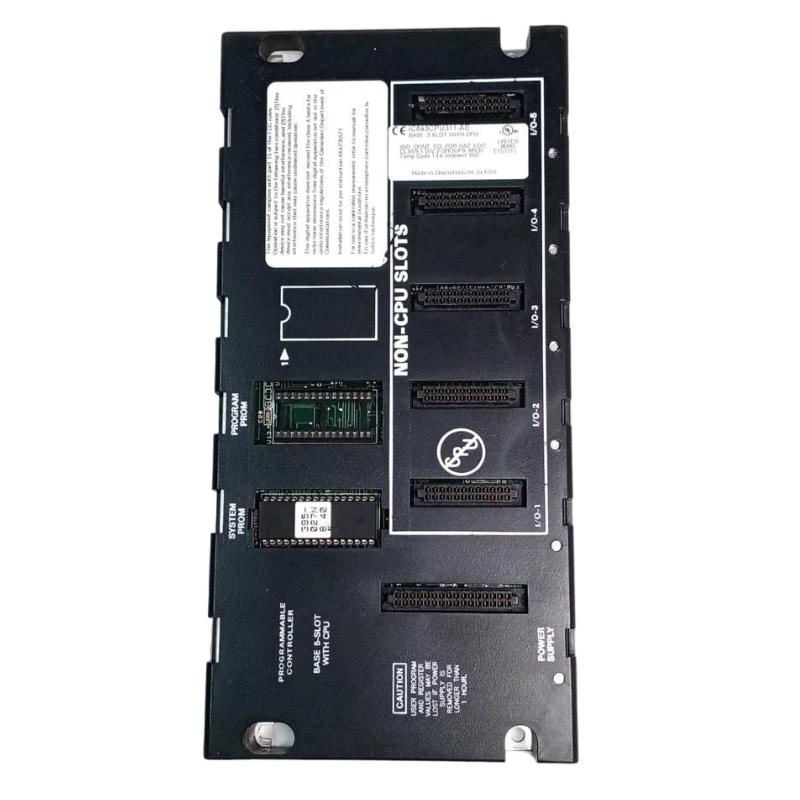

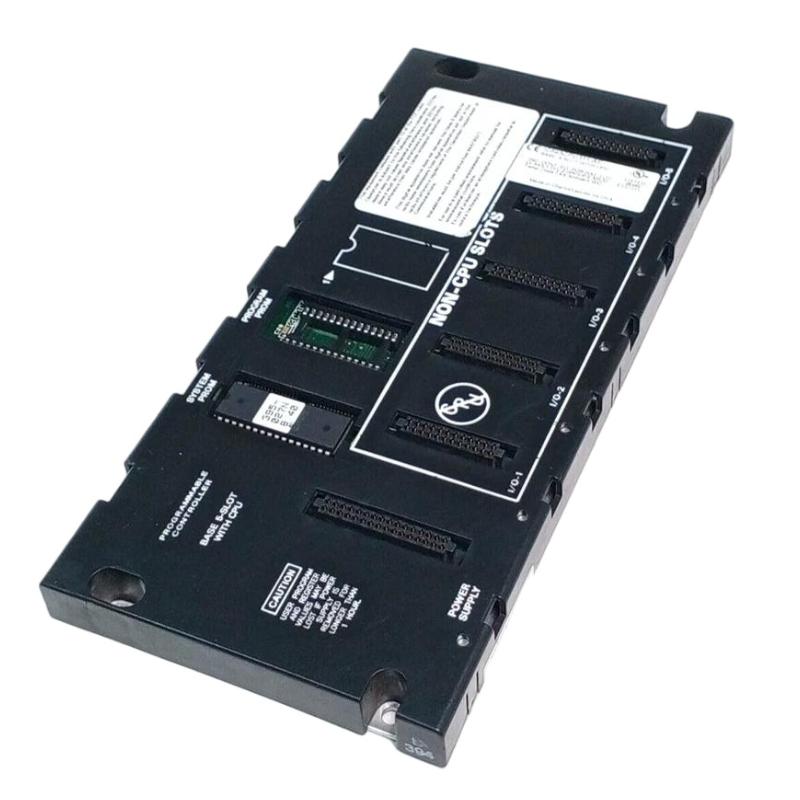

GE IC693CPU311 5-Slot Socket With CPU

Overview

The GE IC693CPU311 is a 5-slot CPU module for the Series 90-30 PLC system, combining the central processing unit with integrated sockets for peripheral modules. It provides reliable control, fast processing, and seamless communication with connected modules, ideal for industrial automation applications.

General Information

Part Number: IC693CPU311

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Type: CPU Module with 5-Slot Socket

Mounting: DIN rail or panel mount within Series 90-30 chassis

Construction: Industrial-grade housing with robust electronic components

Compatibility: Compatible with GE Series 90-30 PLC modules and peripherals

Power Specifications

Supply Voltage: 5 V DC from PLC backplane

Power Consumption: ≤ 15 W

Input Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for CPU status, fault, and power

Communication & Interface

Interface Type: Serial and network communication with peripheral modules

Supported Protocols: GE proprietary protocols, Modbus, and standard industrial communication protocols

Diagnostics: Real-time fault detection, status monitoring, and diagnostics reporting

Operator Interface: LED indicators and onboard configuration switches

Compatibility Features: Seamless integration with Series 90-30 peripheral modules and communication devices

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 156 × 102 × 30 mm

Weight: 0.907 kg

Reliable Control, Maximum Performance!
