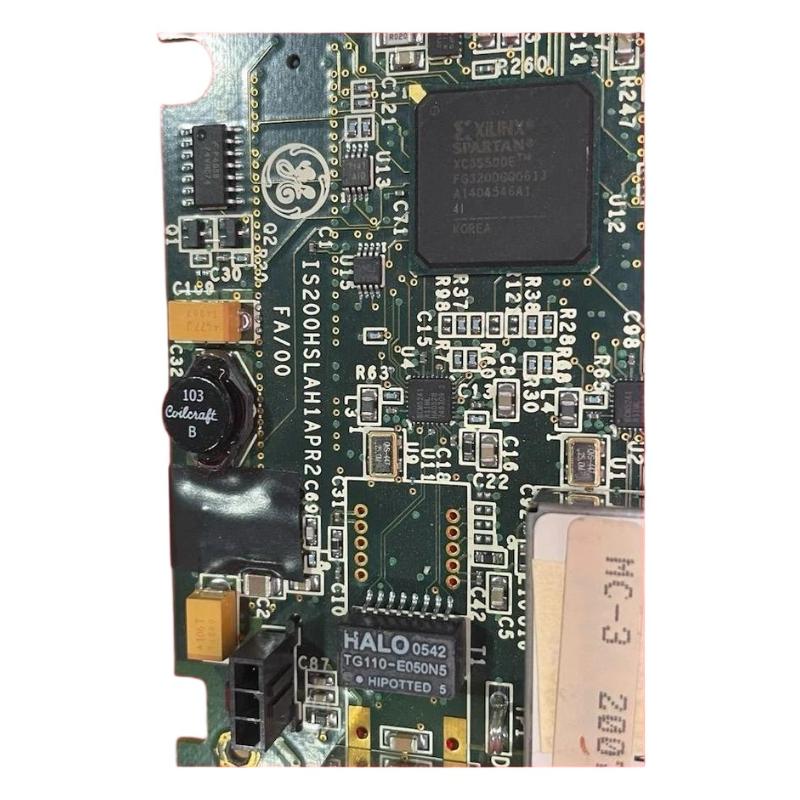

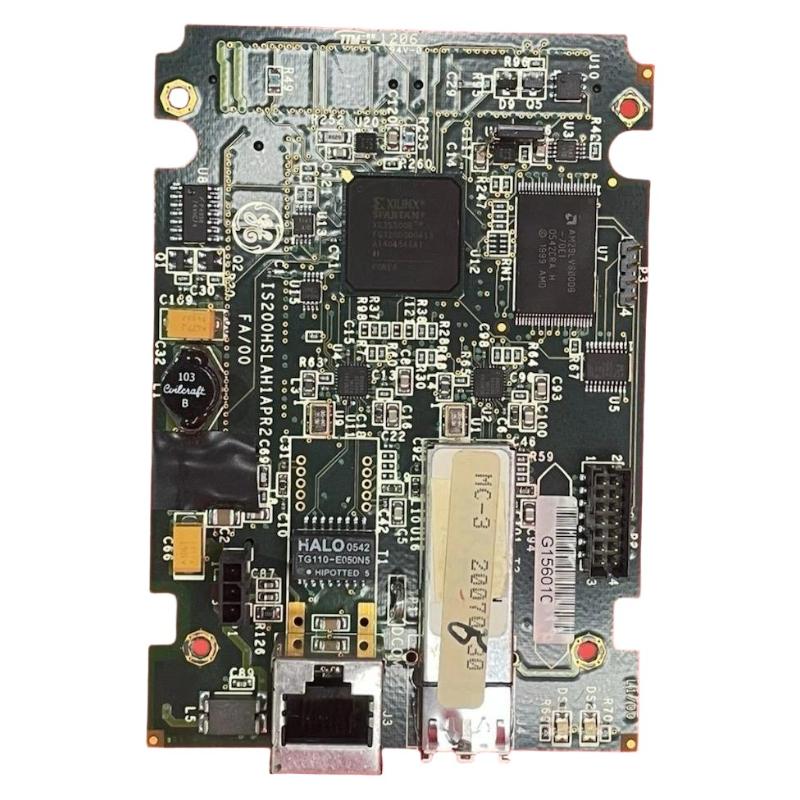

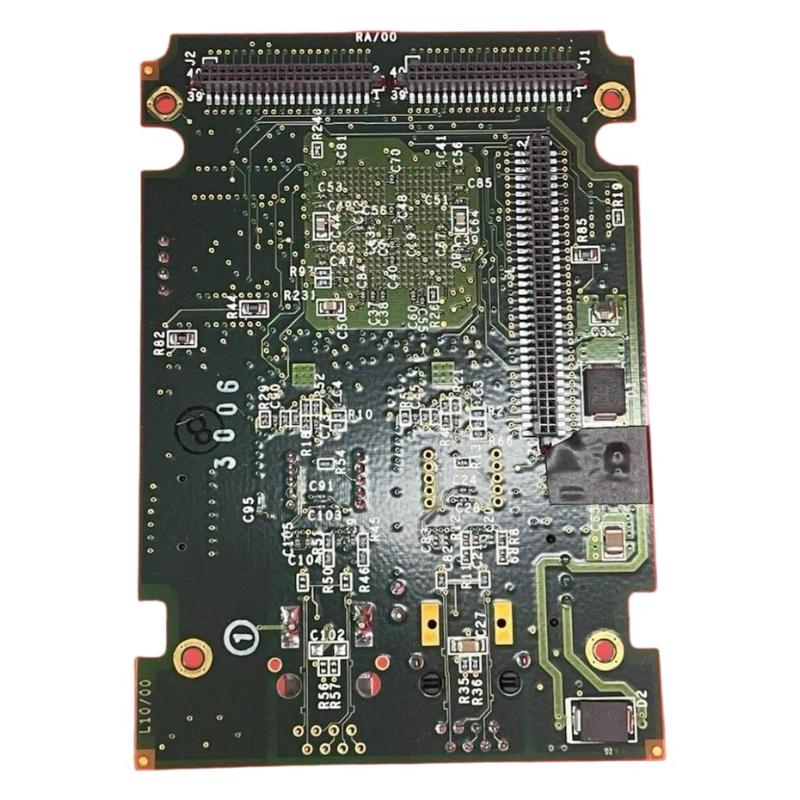

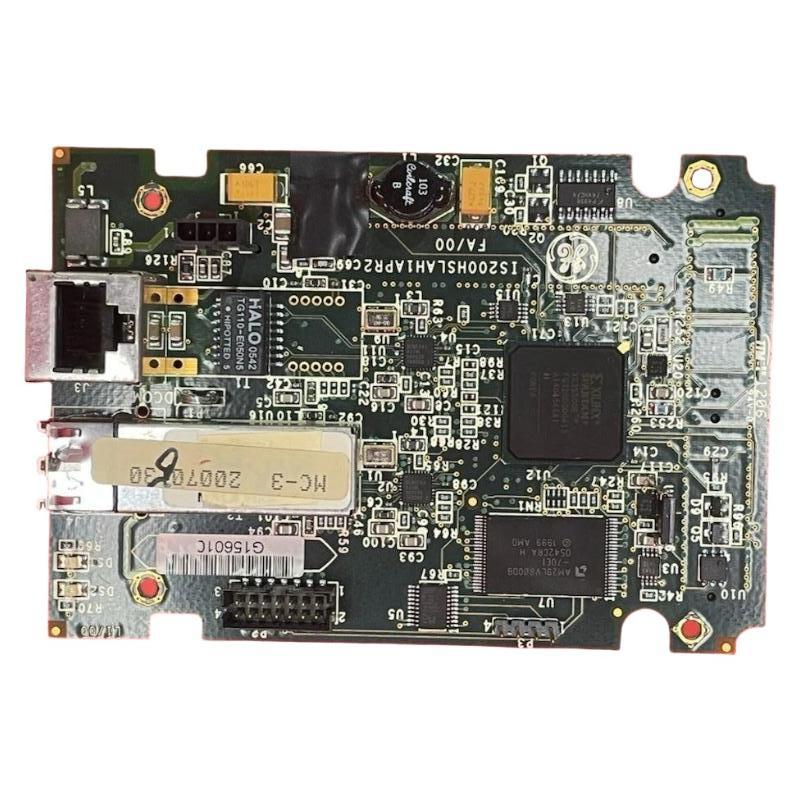

GE IS200HSLAH1A High-Speed Serial Link Interface Board

Overview

The GE IS200HSLAH1A is a High-Speed Serial Link (HSSL) Interface Board for the Mark VI control system. It enables fast and reliable communication between controllers and field devices, ensuring high-speed data transfer and synchronized system operation.

General Information

Part Number: IS200HSLAH1A

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: Mark VI

Type: High-Speed Serial Link Interface Board

Mounting: Panel or chassis installation

Technology: Industrial-grade serial communication interface supporting high-speed data transfer and system diagnostics

Power Specifications

Supply Voltage: 5 V DC typical (from system backplane)

Power Consumption: ~5 W

Input: Powered via Mark VI system backplane

Protection: ESD and surge protection

Indicators: None

Communication & Interface

Bus Network: High-Speed Serial Link (HSSL)

Data Rate: Up to 1 Mbps (system dependent)

Bus Coupler Role: Facilitates high-speed communication between Mark VI controllers and field devices

Diagnostics: Monitors link integrity, transmission errors, and system status

Operator Interface: None

Reset Features: Supports system-level resets

I/O & Channels

Relay Channels: None

External Load Support: Not applicable; board functions as communication interface

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 76.2 × 114.3 × 5.08 mm

Weight: 0.75 kg
