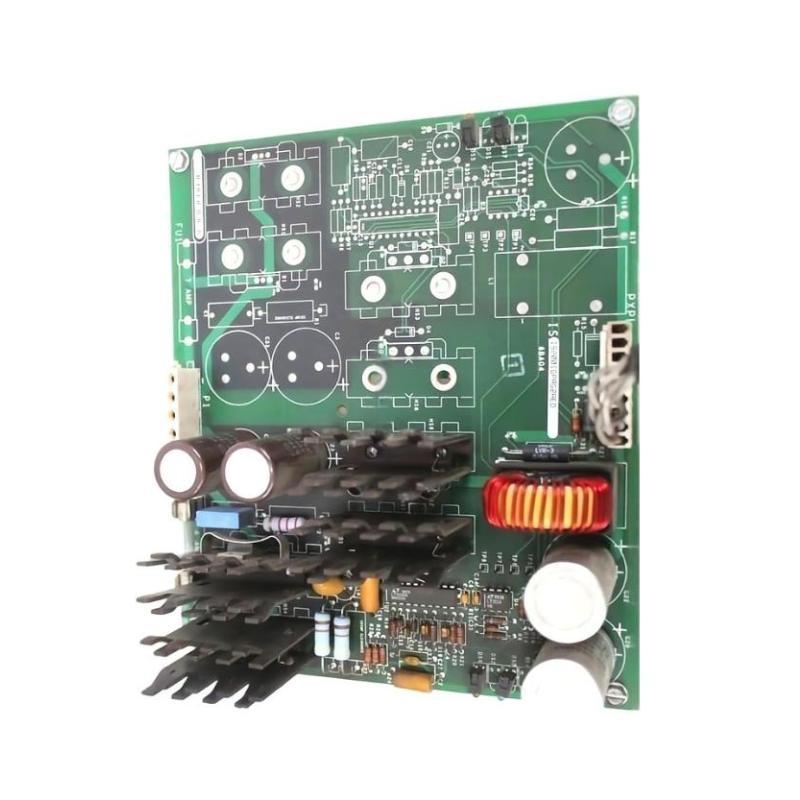

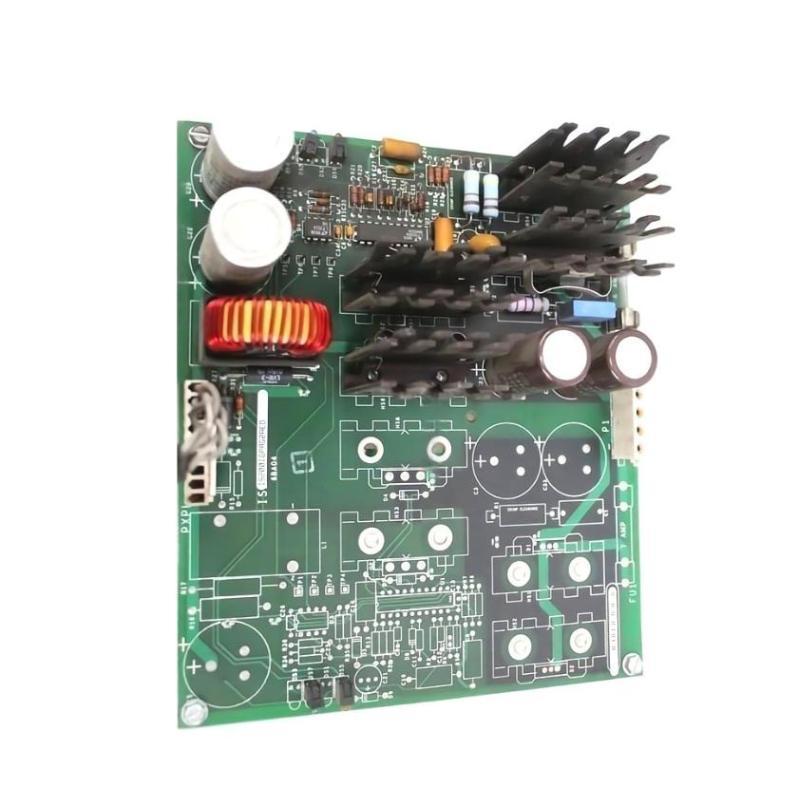

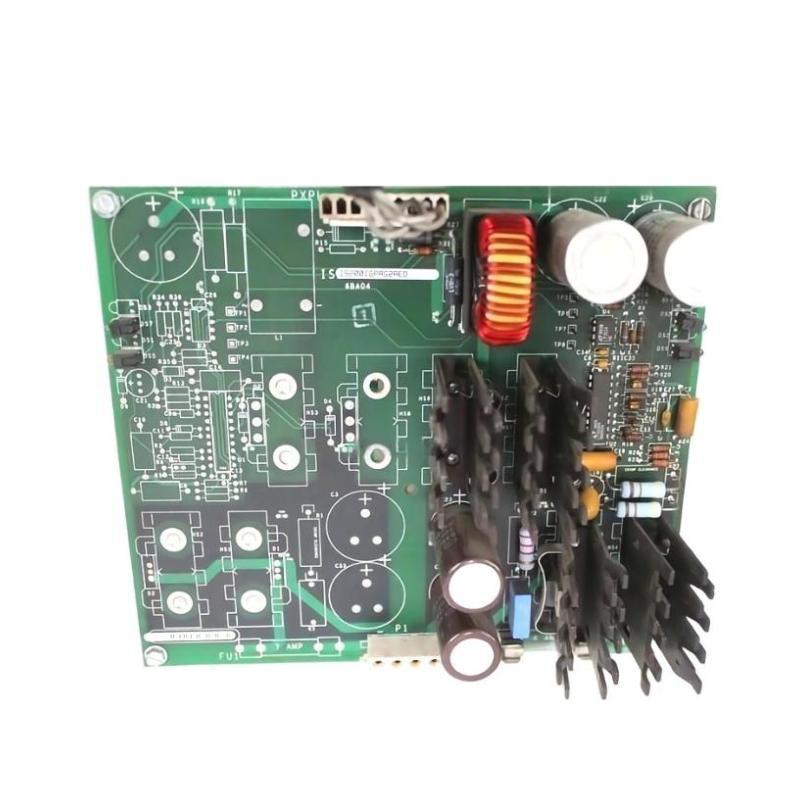

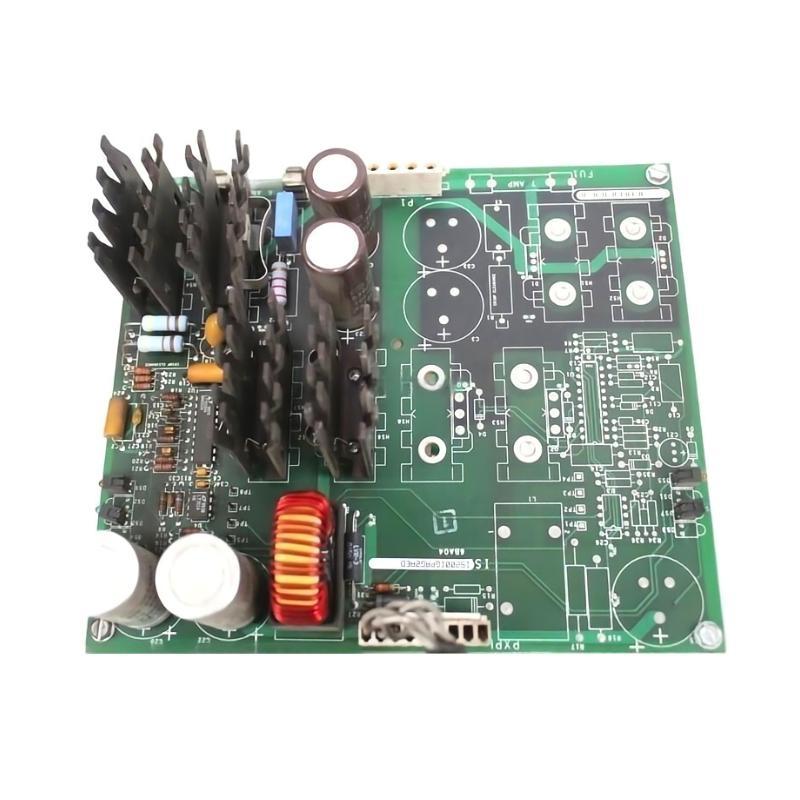

GE IS200IGPAG2A Gate Drive Power Board

Overview

The GE IS200IGPAG2A is a Gate Drive Power Board for the Mark VI control system. It manages gate drive signals for power electronics, ensuring precise switching, efficient energy transfer, and reliable performance in industrial automation applications.

General Information

Part Number: IS200IGPAG2A

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: Mark VI

Type: Gate Drive Power Board

Mounting: Panel or chassis installation

Technology: Industrial-grade PCB for high-current gate drive control and power management

Power Specifications

Supply Voltage: As per Mark VI system requirements

Power Consumption: Dependent on connected load

Input: Powered via Mark VI backplane

Protection: ESD, overcurrent, and surge protection

Indicators: None

Communication & Interface

Bus Network: Interfaces with Mark VI control system

Data Rate: System-dependent

Bus Coupler Role: N/A; functions as a gate drive and power control component

Diagnostics: Monitors internal signals and gate drive performance

Operator Interface: Not applicable

Reset Features: Supports system-level resets

I/O & Channels

Relay Channels: None

External Load Support: Supports connected power electronics and gate drive circuits

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 280 × 190 × 35 mm

Weight: 1.3 kg
