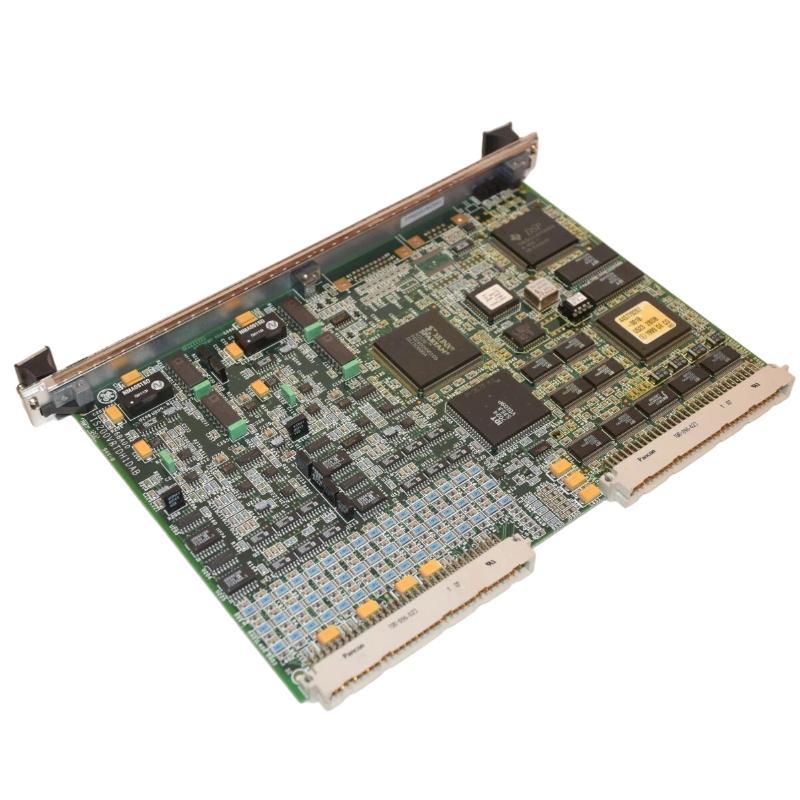

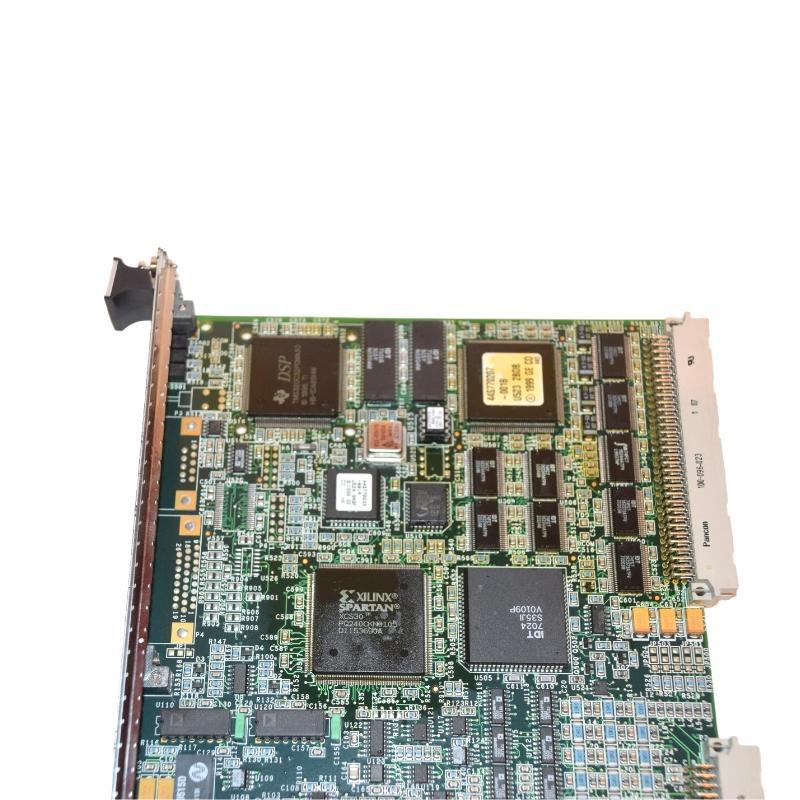

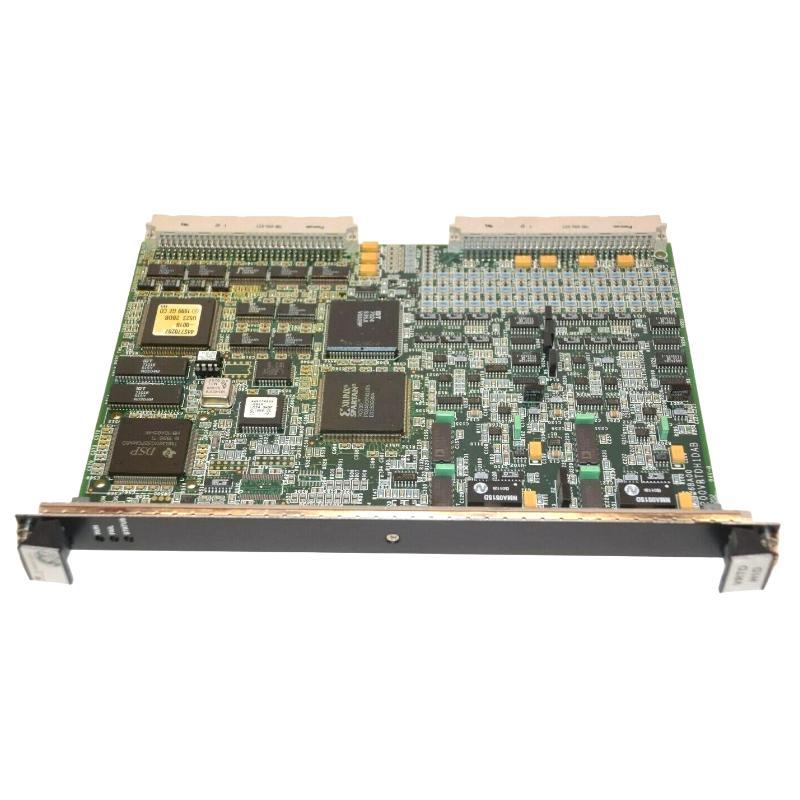

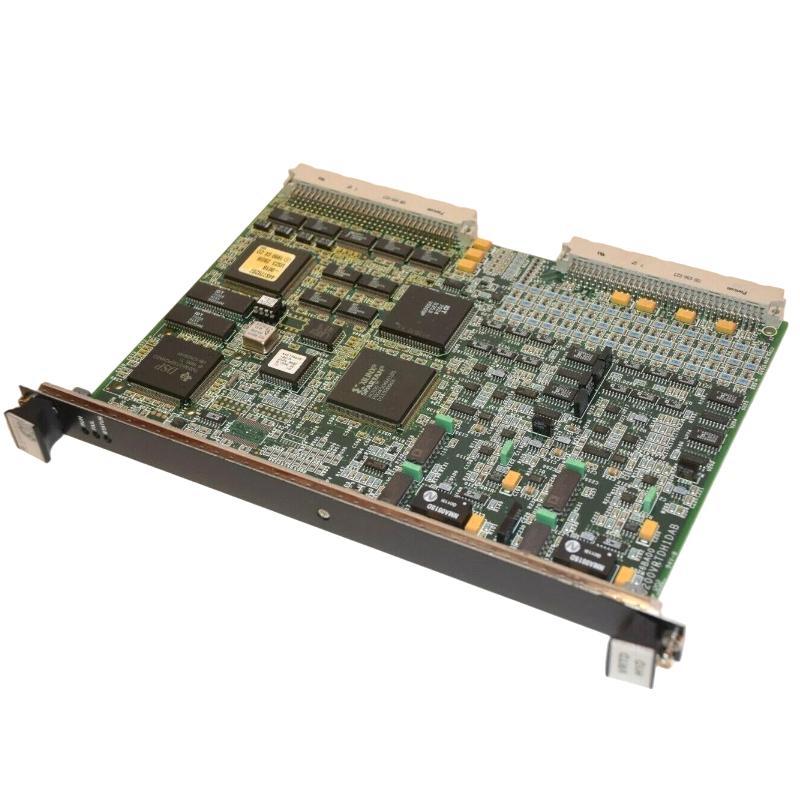

GE IS200VRTDH1D RTD Input Board

Overview

The GE IS200VRTDH1D is an RTD input board designed for industrial automation and turbine control systems. It processes resistance temperature detector (RTD) signals with high accuracy, enabling reliable temperature monitoring and control for critical industrial applications.

General Information

Part Number: IS200VRTDH1D

Manufacturer: GE

Brand / Country of Origin: GE / USA

Type: RTD Input Board

Application: Industrial temperature monitoring and control systems

Mounting: Rack-mounted PCB installation

Technology: RTD signal acquisition and temperature processing architecture

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input Power Source: System backplane powered

Protection Features: Overcurrent and surge protection support

Status Indicators: LED indicators for board operation and diagnostics

Communication & Interface

Input Interface: RTD temperature sensor input channels

Function Support: Temperature signal acquisition and monitoring

Diagnostics: Real-time sensor monitoring and fault detection

Compatibility: Designed for GE industrial control platforms

Configuration Method: Hardware and software-based configuration support

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial enclosure installation

Environmental Resistance: Suitable for industrial vibration and operating conditions

Dimensions & Weight

Dimensions (L × W × H): 280 × 33 × 220 mm

Weight: 0.476 kg
