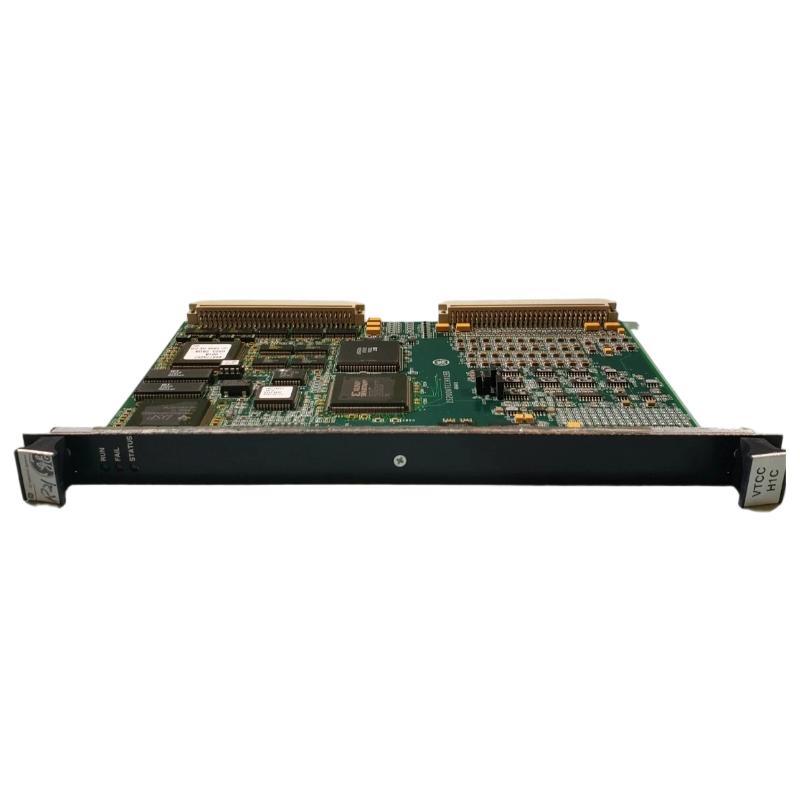

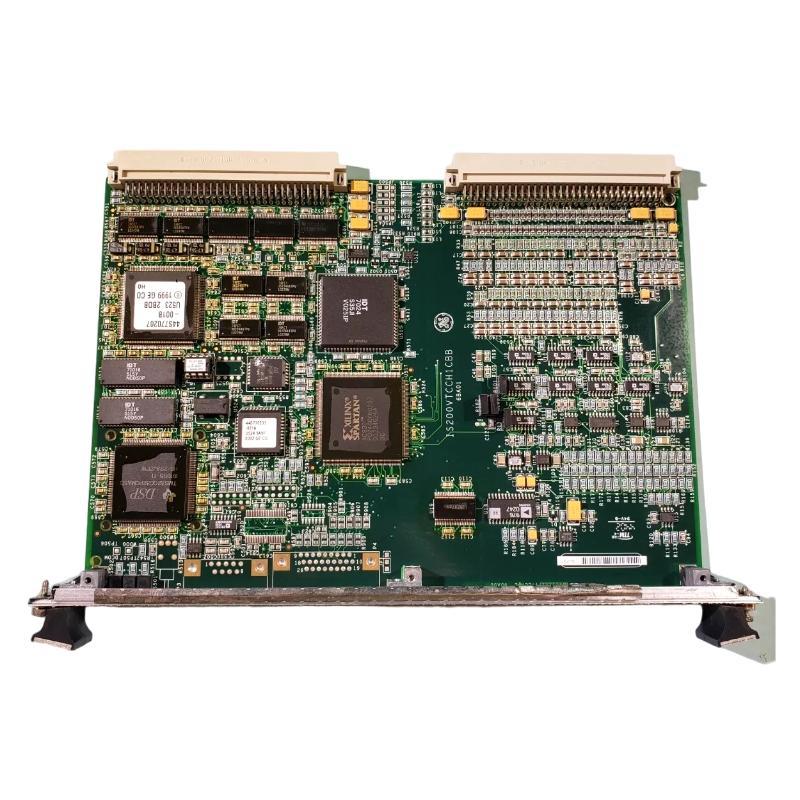

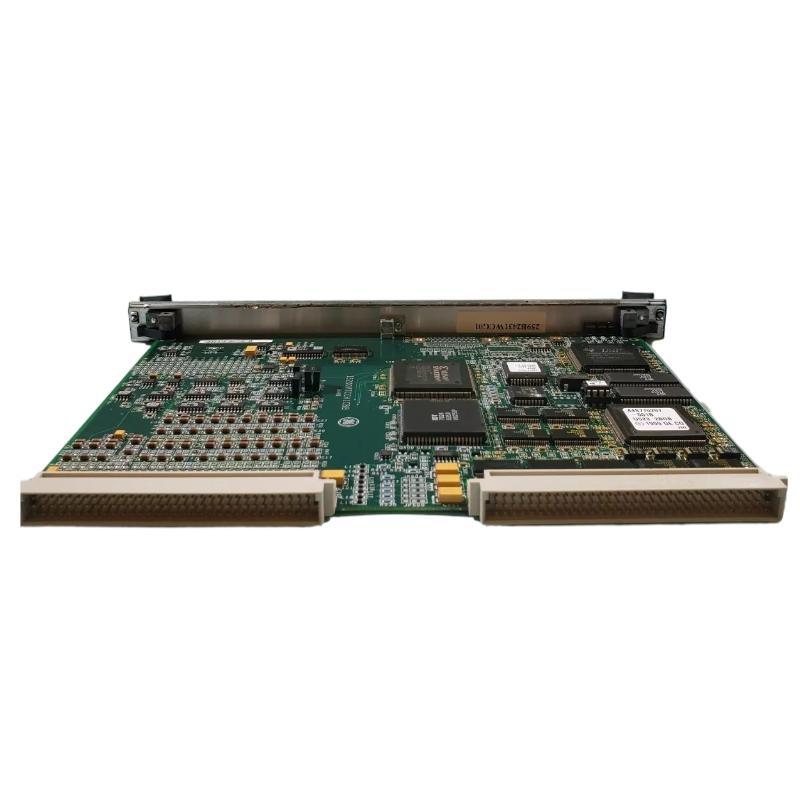

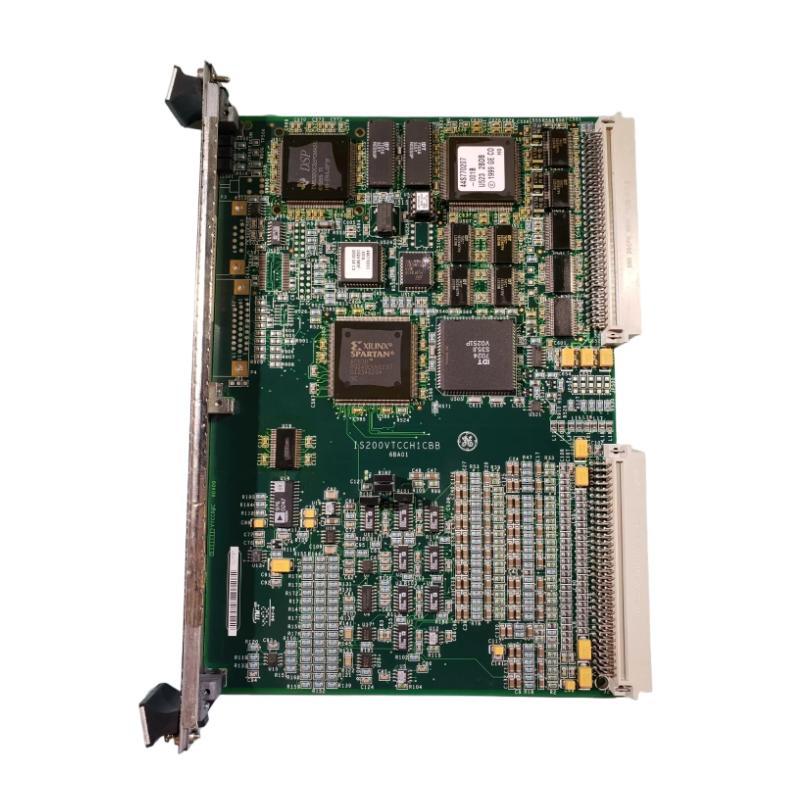

GE IS200VTCCH1C Thermocouple Processor Board

Overview

The GE IS200VTCCH1C is a thermocouple processor board designed for industrial temperature measurement and control systems. It processes thermocouple input signals with high accuracy, enabling stable temperature monitoring and reliable data acquisition in GE Mark VI control environments. The module is suitable for demanding industrial and turbine applications requiring precise thermal control.

General Information

Part Number: IS200VTCCH1C

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: Thermocouple Processor Board

Mounting: Installed in Mark VI control rack system

Technology: Thermocouple signal conditioning and digital temperature processing circuitry

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power electronic module design

Protection Features: Input isolation and signal conditioning protection

Indicators: System status and diagnostic LEDs via control system

Communication & Interface

Input Type: Thermocouple temperature sensor inputs

Function: Converts and processes temperature signals for control and monitoring

Diagnostics: Fault detection, open-circuit monitoring, and signal validation

Operator Interface: Accessible through GE Mark VI control system

Reset Capability: Supported via system-level reset functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for turbine and industrial control environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions: 82.6 × 41.9 mm

Weight: Approximately 0.45 kg

Reliable Temperature Processing for Critical Industrial Systems!
