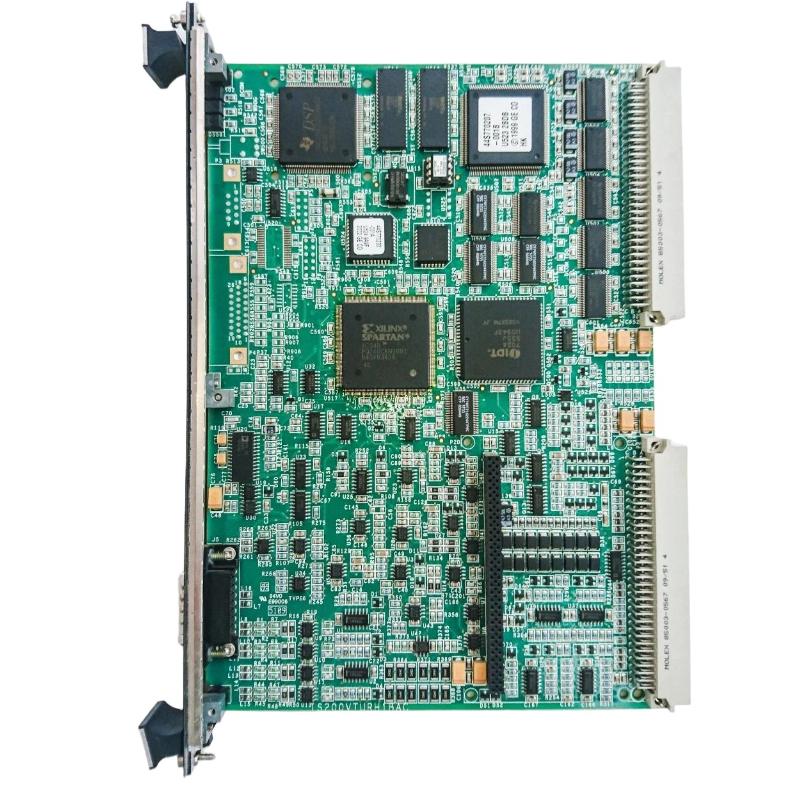

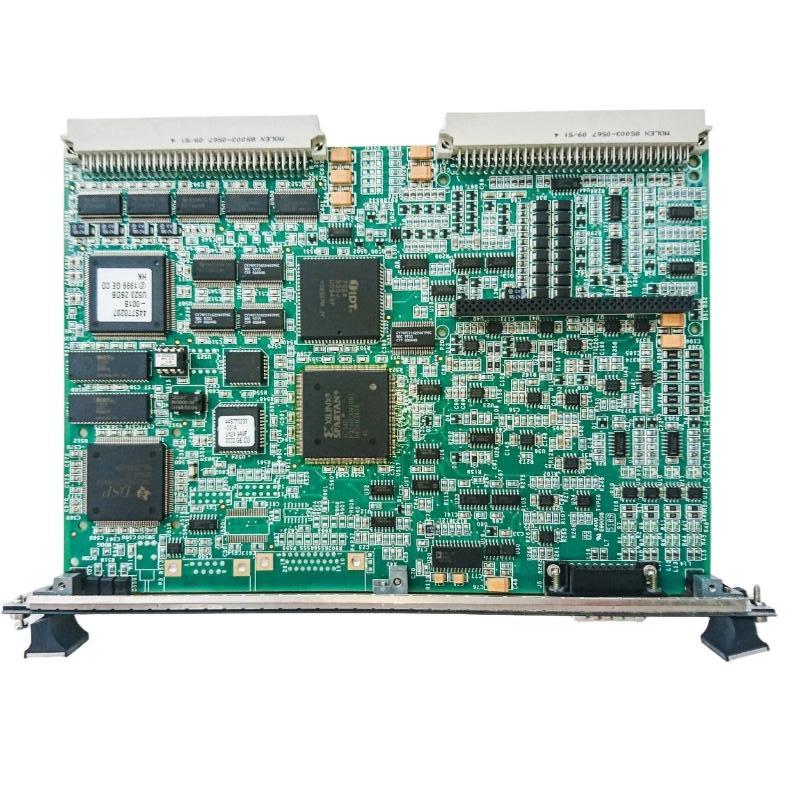

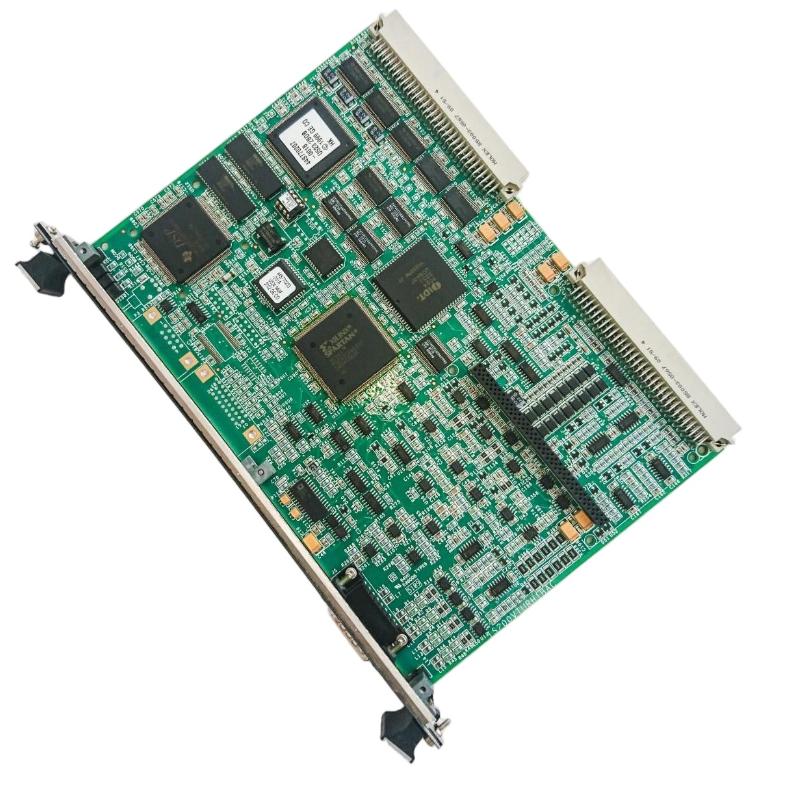

GE IS200VTURH1B VME Main Turbine Protection Board

Overview

The GE IS200VTURH1B is a VME-based main turbine protection board designed for industrial turbine control and monitoring systems. It provides reliable protection functions, real-time signal processing, and robust communication with the turbine control system. The module ensures safe and efficient operation of turbines by detecting faults, monitoring critical parameters, and triggering protective actions when necessary.

General Information

Part Number: IS200VTURH1B

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: VME Main Turbine Protection Board

Mounting: Installed in VME rack-based control systems

Technology: High-speed digital processing and turbine protection circuitry

Power Specifications

Supply Voltage: Powered via VME backplane

Power Consumption: Low-power electronic design

Protection Features: Integrated electrical isolation and fault protection

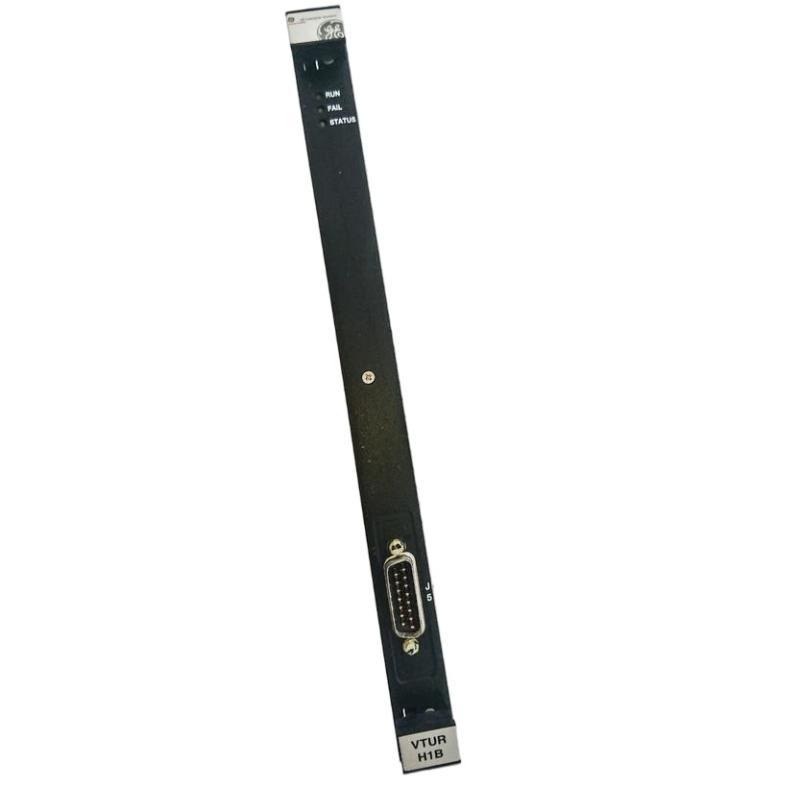

Indicators: Diagnostic and status LEDs visible through system interface

Communication & Interface

Interface Type: VME bus communication within Mark VI system

Function: Provides turbine protection, monitoring, and system feedback

Diagnostics: Real-time fault detection and operational status monitoring

Operator Interface: Accessed through GE Mark VI system controller

Reset Capability: Supported via system-level reset and recovery functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for turbine and industrial control environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions (L × W × H): 340 × 220 × 25 mm

Weight: Approximately 0.295 kg

Reliable Turbine Protection for Continuous Industrial Operation!
