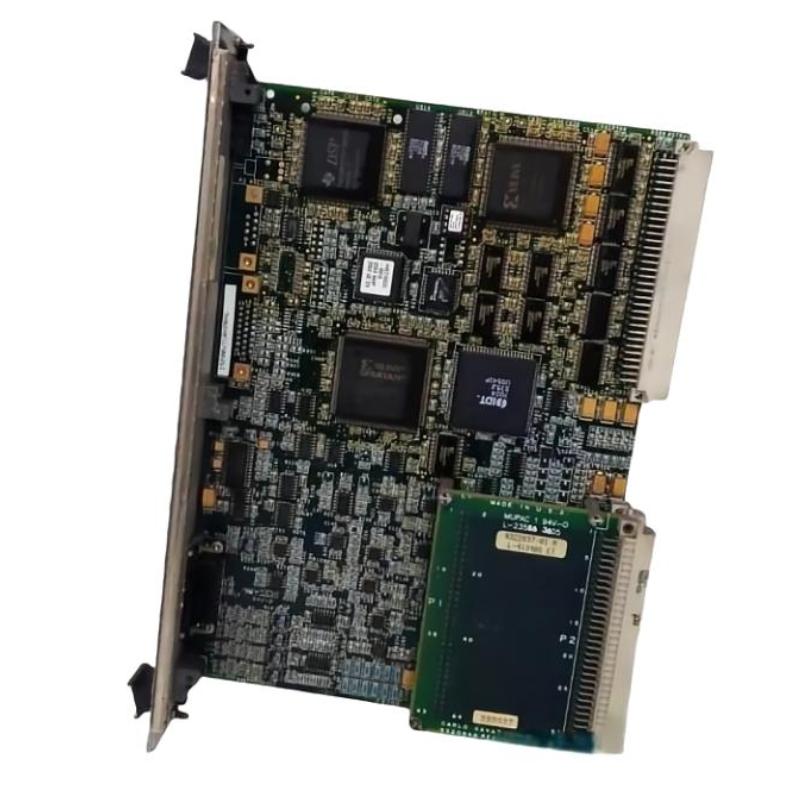

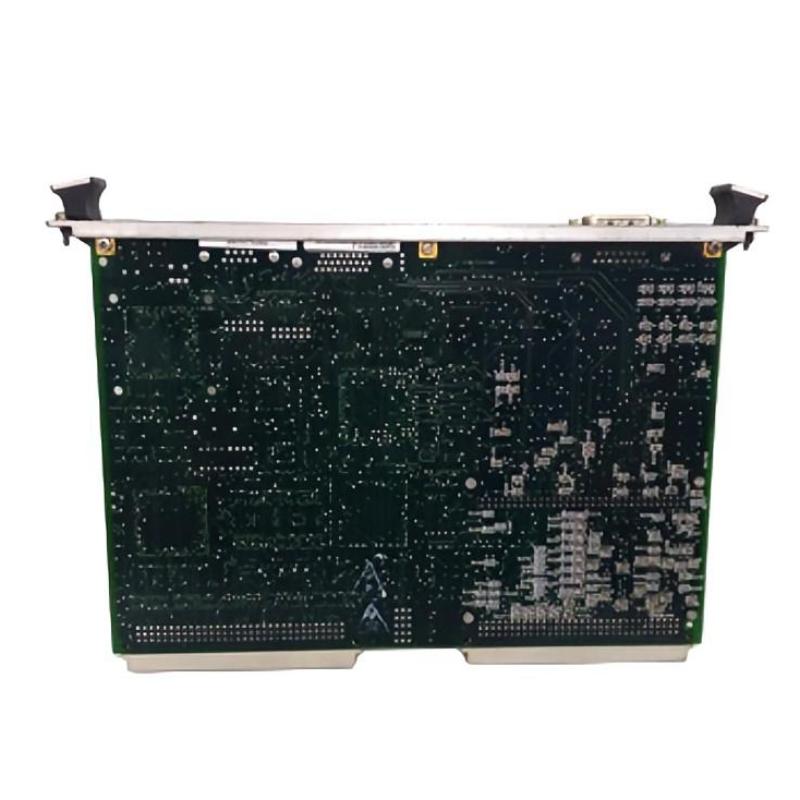

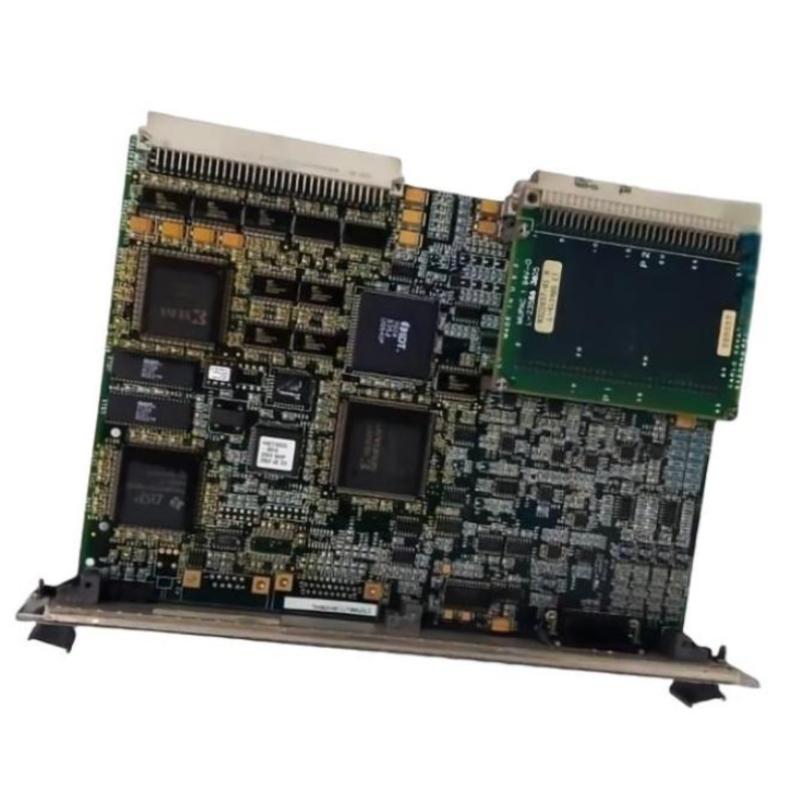

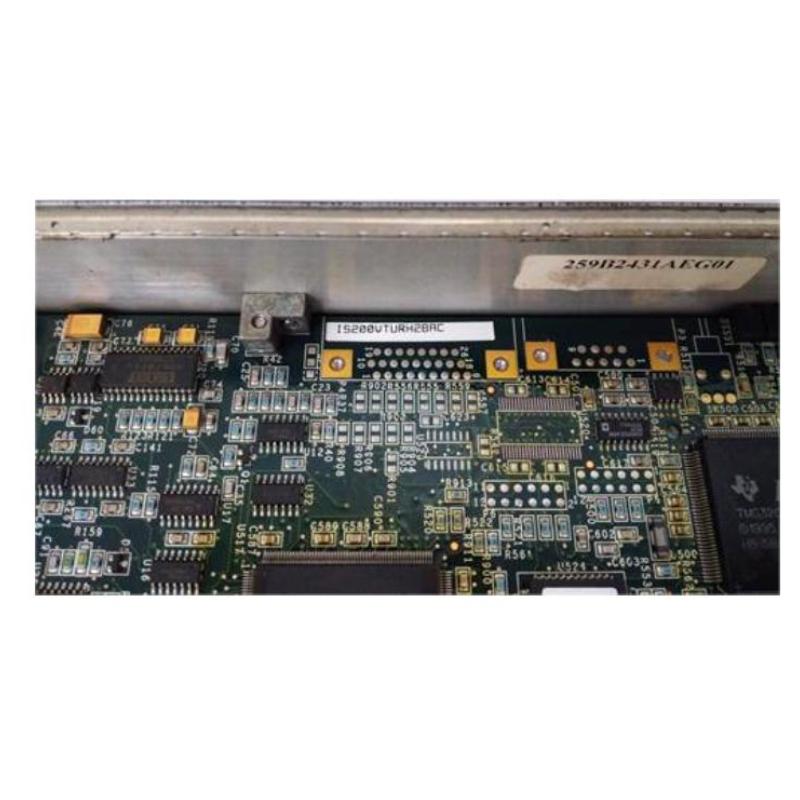

GE IS200VTURH2B VME Main Turbine Protection Board

Overview

The GE IS200VTURH2B is a VME-based main turbine protection board designed for industrial turbine control and protection systems. It provides high-reliability monitoring, fault detection, and protective control functions to ensure safe turbine operation. The module is engineered for critical environments where continuous supervision and rapid response to abnormal conditions are required.

General Information

Part Number: IS200VTURH2B

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: VME Main Turbine Protection Board

Mounting: Installed in VME rack-based control systems

Technology: High-speed digital protection and signal processing circuitry

Power Specifications

Supply Voltage: Powered via VME backplane

Power Consumption: Low-power electronic design

Protection Features: Electrical isolation, fault detection, and circuit protection

Indicators: System status and diagnostic LEDs via control interface

Communication & Interface

Interface Type: VME bus communication within Mark VI system

Function: Provides turbine protection, monitoring, and control feedback

Diagnostics: Real-time fault detection and system health monitoring

Operator Interface: Accessed through GE Mark VI system controller

Reset Capability: Supported via system-level reset and recovery functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for turbine and heavy industrial environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions (L × W × H): 340 × 220 × 25 mm

Weight: Approximately 0.295 kg

Built for Critical Turbine Protection Performance!
