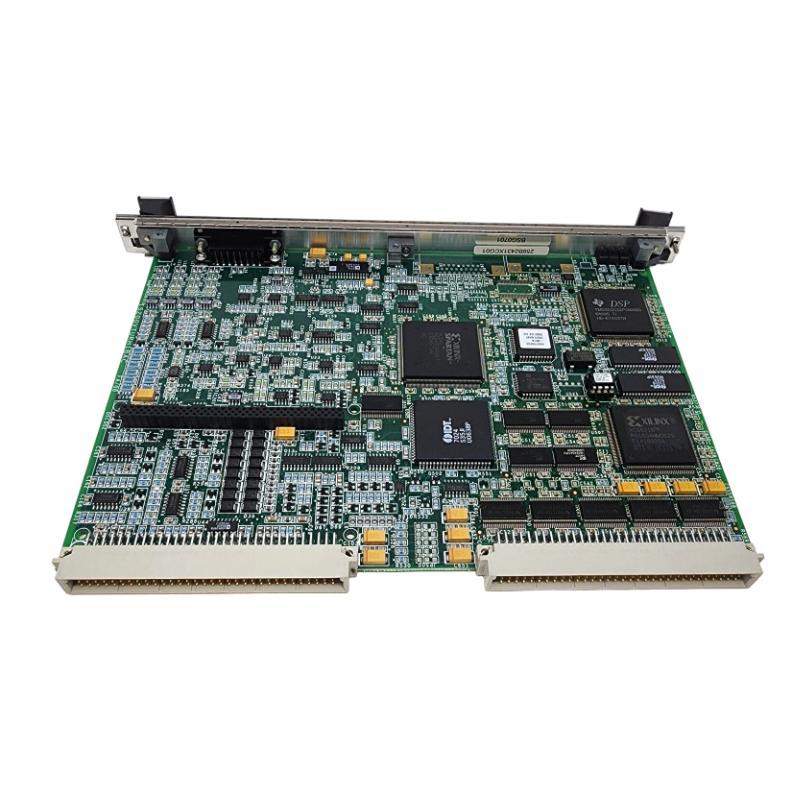

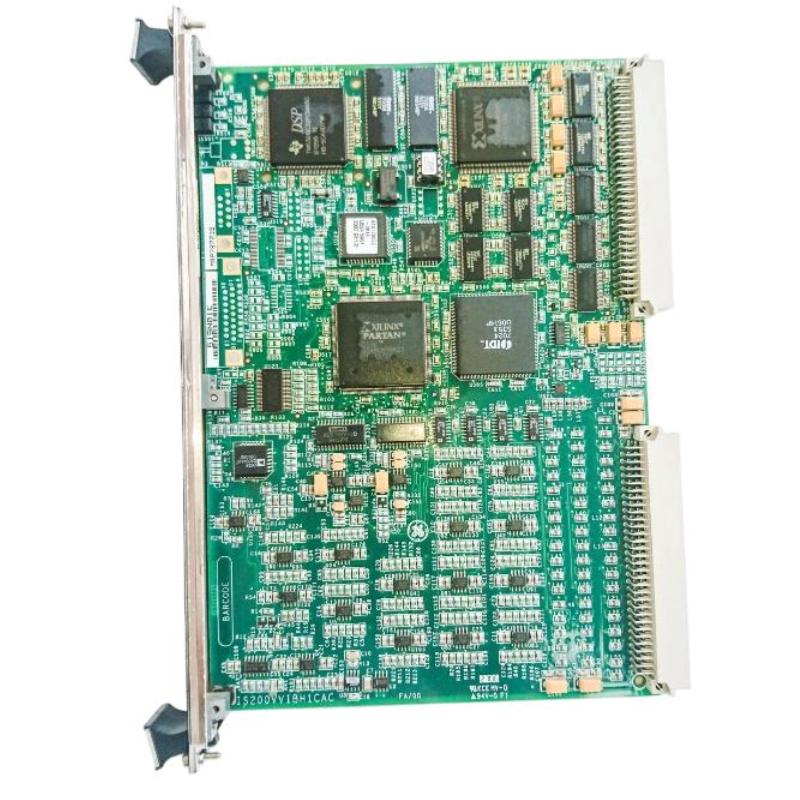

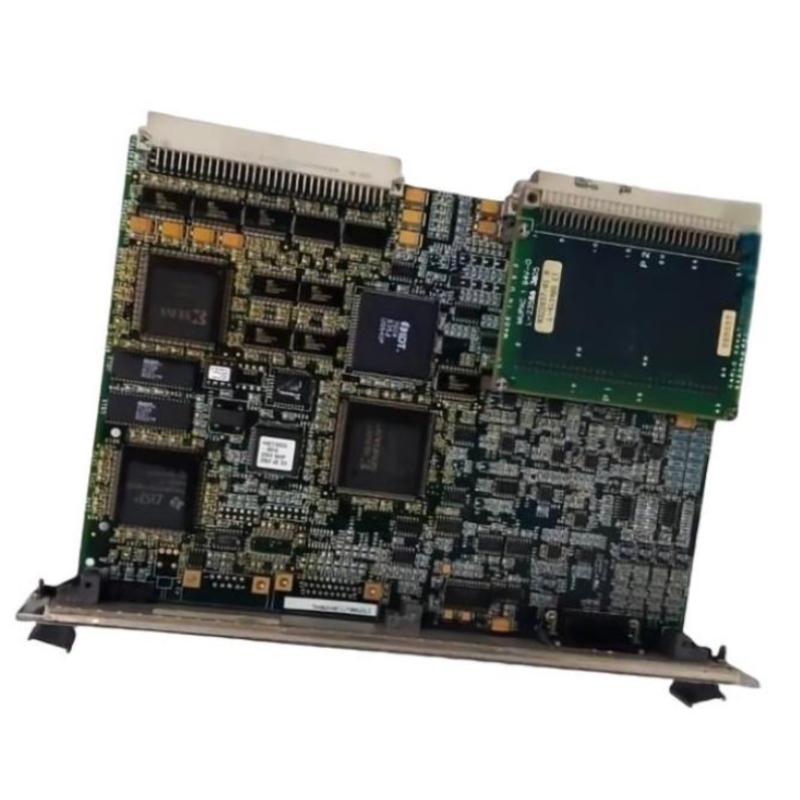

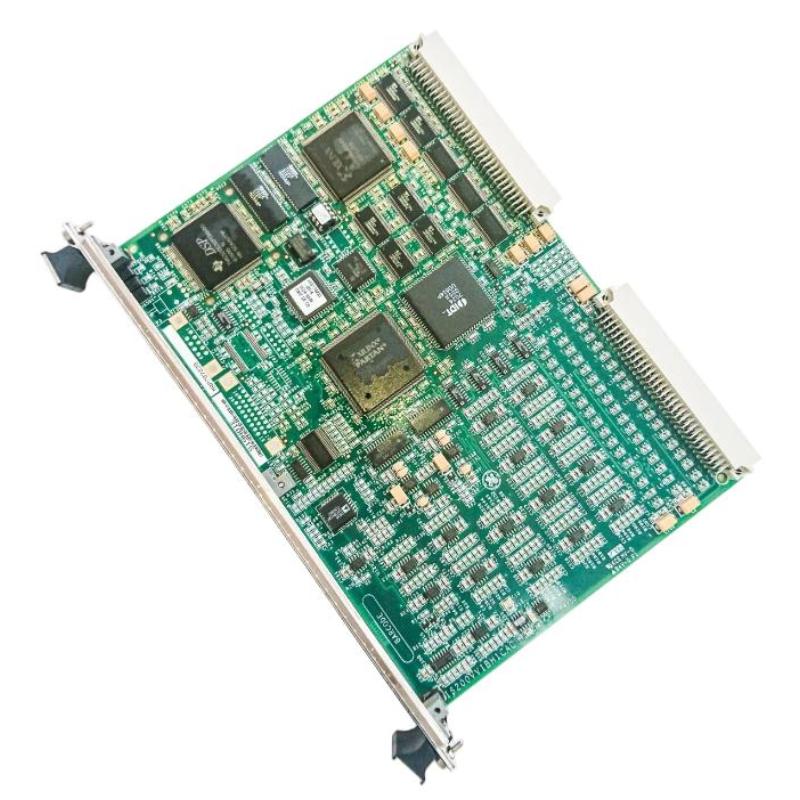

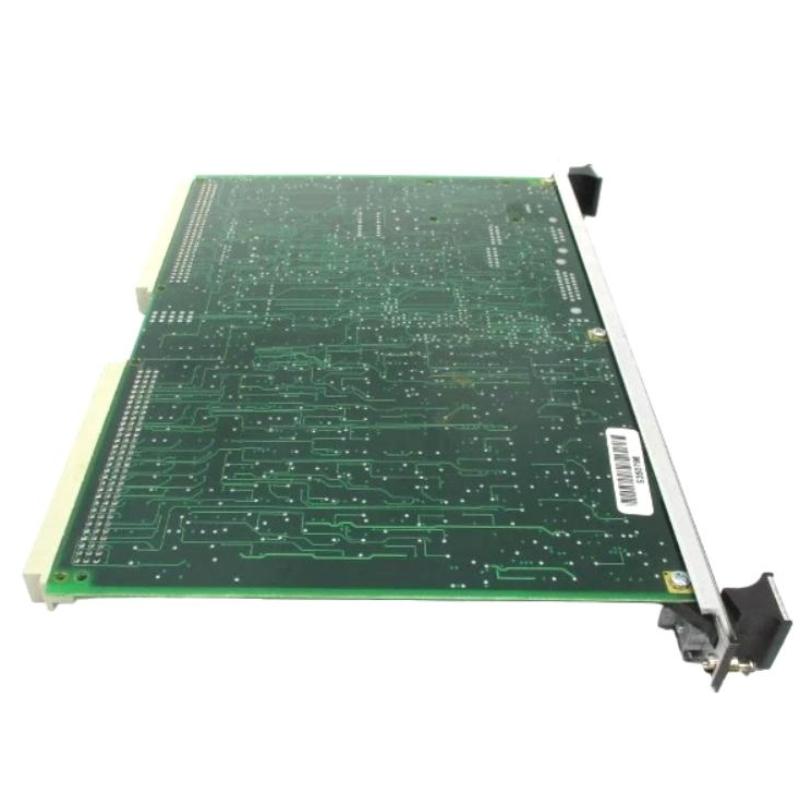

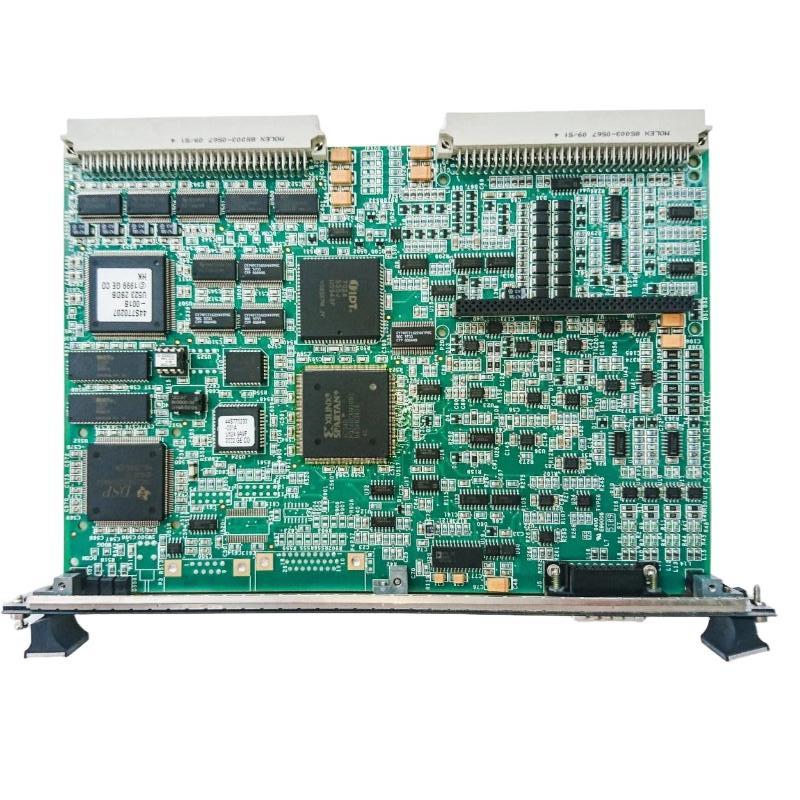

GE IS200VVIBH1 Vibration Monitoring Board

Overview

The GE IS200VVIBH1 is a vibration monitoring board designed for industrial machinery and turbine control systems. It provides real-time vibration measurement, signal processing, and reliable monitoring to protect equipment from mechanical faults. The board ensures early detection of anomalies, enabling preventive maintenance and reducing downtime in critical industrial applications.

General Information

Part Number: IS200VVIBH1

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: Vibration Monitoring Board

Mounting: Installed in VME or Mark VI control rack systems

Technology: High-speed digital vibration sensing and processing circuitry

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low-power electronic module design

Protection Features: Electrical isolation and signal protection

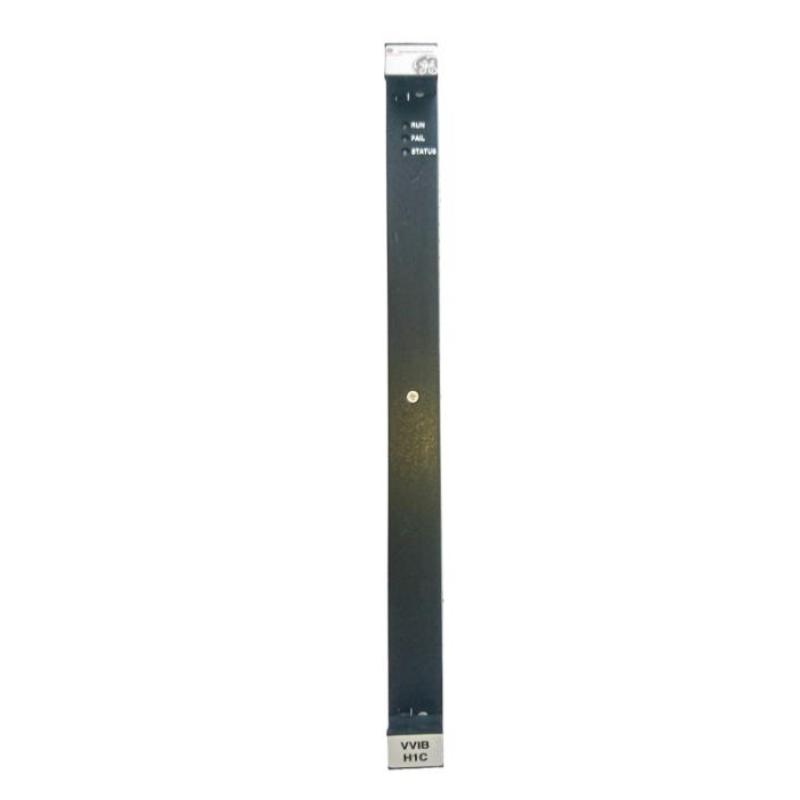

Indicators: Diagnostic and status LEDs visible through system interface

Communication & Interface

Interface Type: Digital interface for Mark VI control system integration

Function: Monitors vibration signals, processes data, and provides system alerts

Diagnostics: Fault detection, vibration trend analysis, and system health monitoring

Operator Interface: Accessible via GE Mark VI system controller

Reset Capability: Supported through system-level reset functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial turbine and heavy machinery environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions (L × W × H): 240 × 110 × 25 mm

Weight: Approximately 0.5 kg
