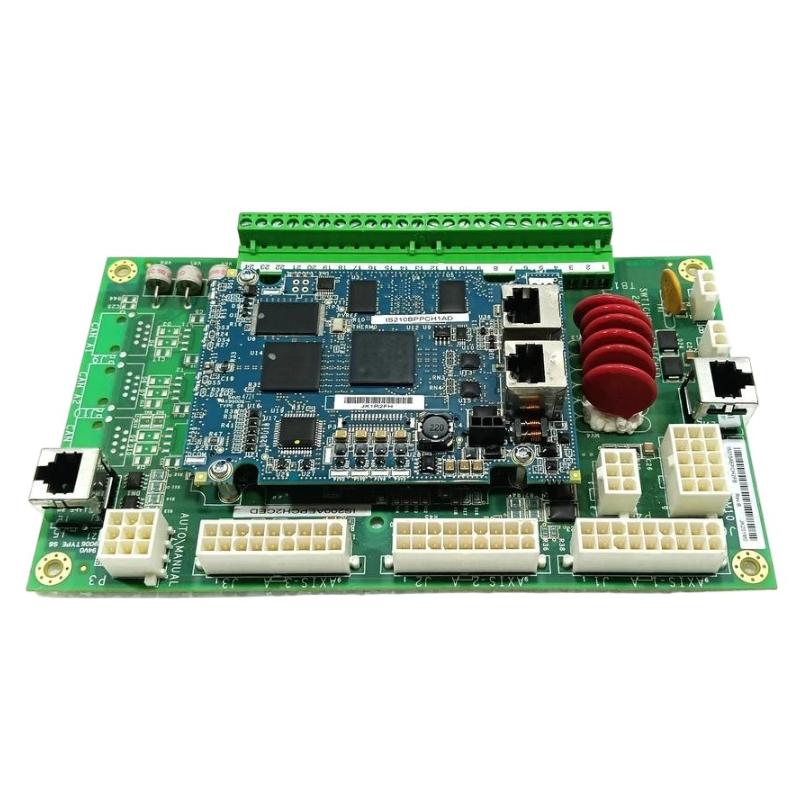

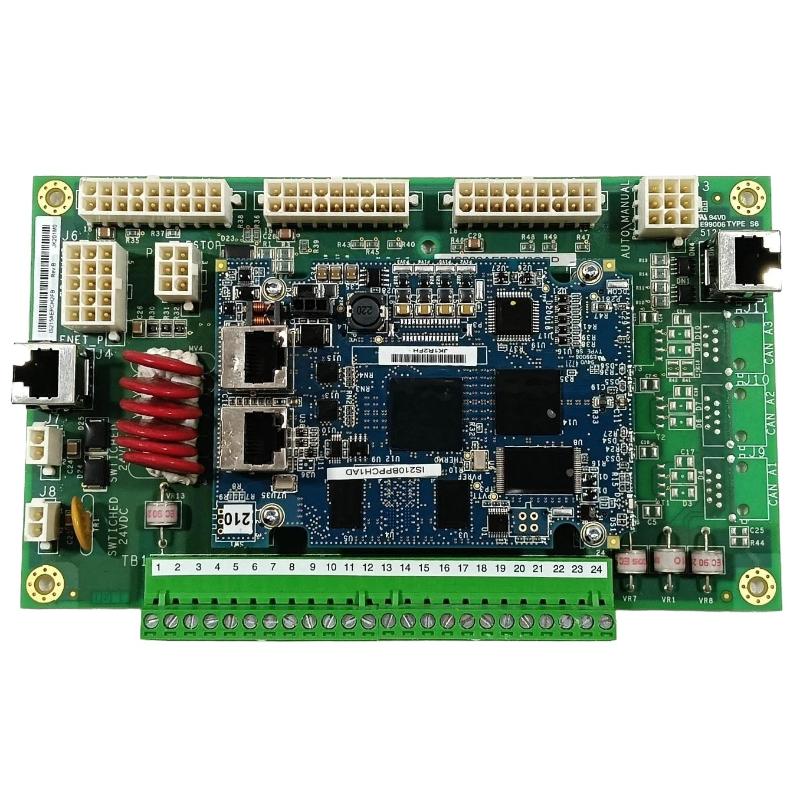

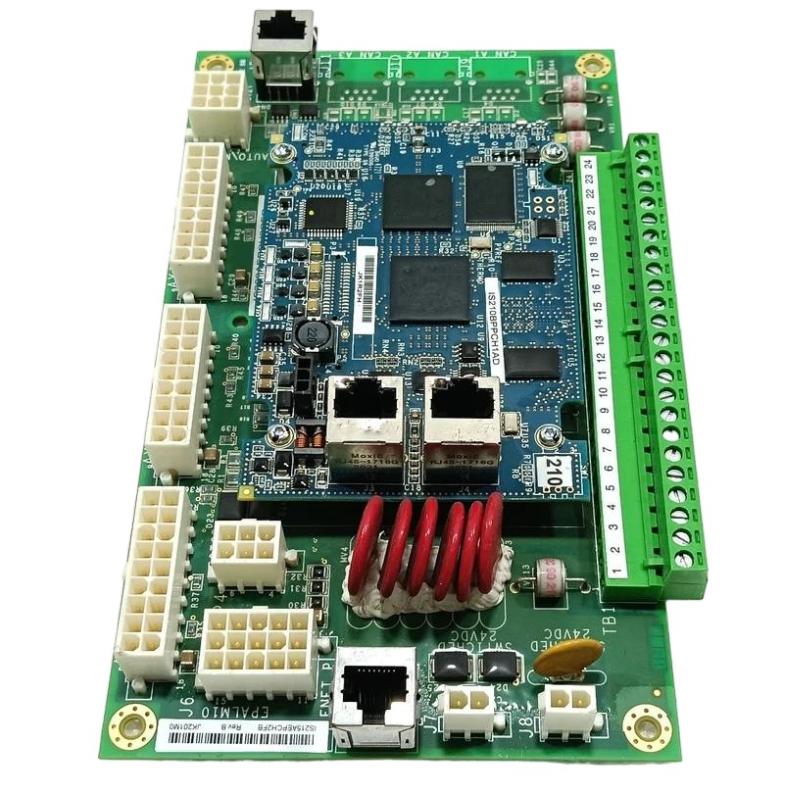

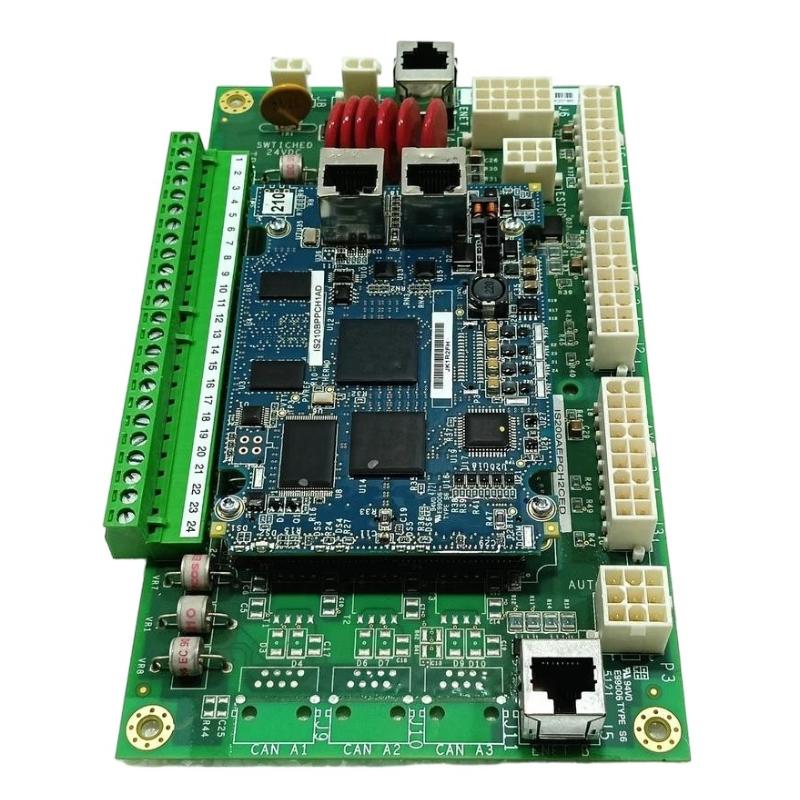

GE IS210BPPCH1AD Processor Board

Overview

The GE IS210BPPCH1AD is a processor board designed for GE Mark VI control systems. It provides reliable real-time processing for turbine control and industrial automation applications, ensuring stable system performance, precise control execution, and coordinated operation of critical processes.

General Information

Part Number: IS210BPPCH1AD

Manufacturer: GE

Brand / Country of Origin: GE / United States

Type: Processor Board

Application: Turbine control processing and industrial automation systems

Mounting: Rack-mounted installation within GE Mark VI control chassis

Technology: Embedded industrial processor board for real-time control and system diagnostics

Power Specifications

Input Voltage: 5 V DC (backplane powered)

Power Consumption: Low power consumption via system backplane

Protection Features: Internal circuit protection and fault isolation

Status Indicators: LED indicators for system status and diagnostics

Communication & Interface

Interface Type: GE Mark VI backplane connection

System Compatibility: GE Mark VI turbine control systems

Function: Executes real-time control logic and system processing tasks

Diagnostics: Built-in monitoring and fault detection

Configuration Requirements: Software-based configuration via GE system tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5–95% RH, non-condensing

Vibration Resistance: Industrial-grade reliability for continuous operation

Protection Rating: IP20 when installed in control rack

Dimensions & Weight

Dimensions (L × W × H): 200 × 100 × 25 mm

Weight: 0.58 kg

Stable Performance for Mission-Critical Control Applications!
