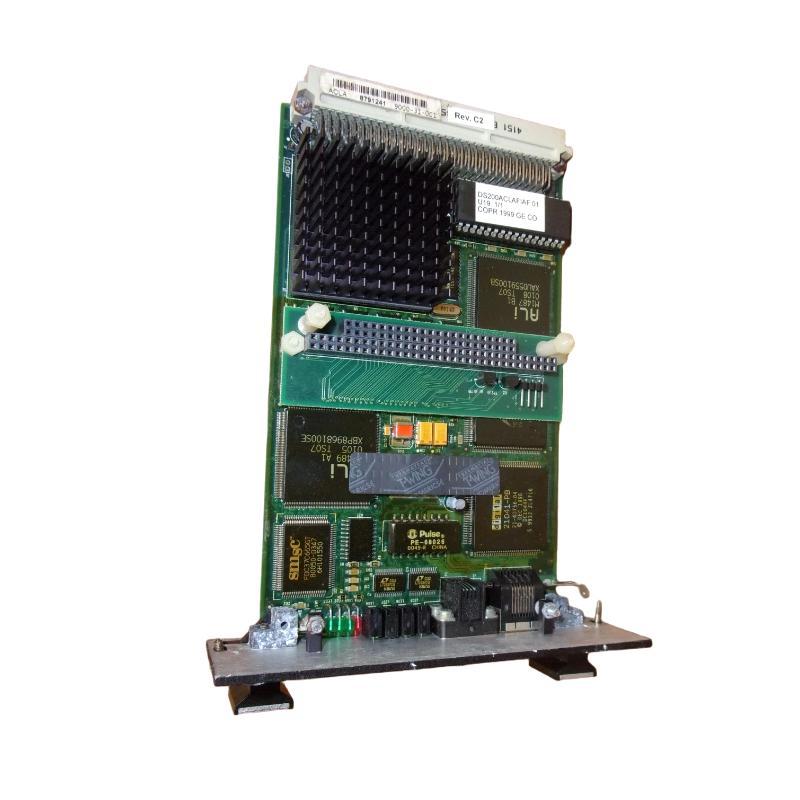

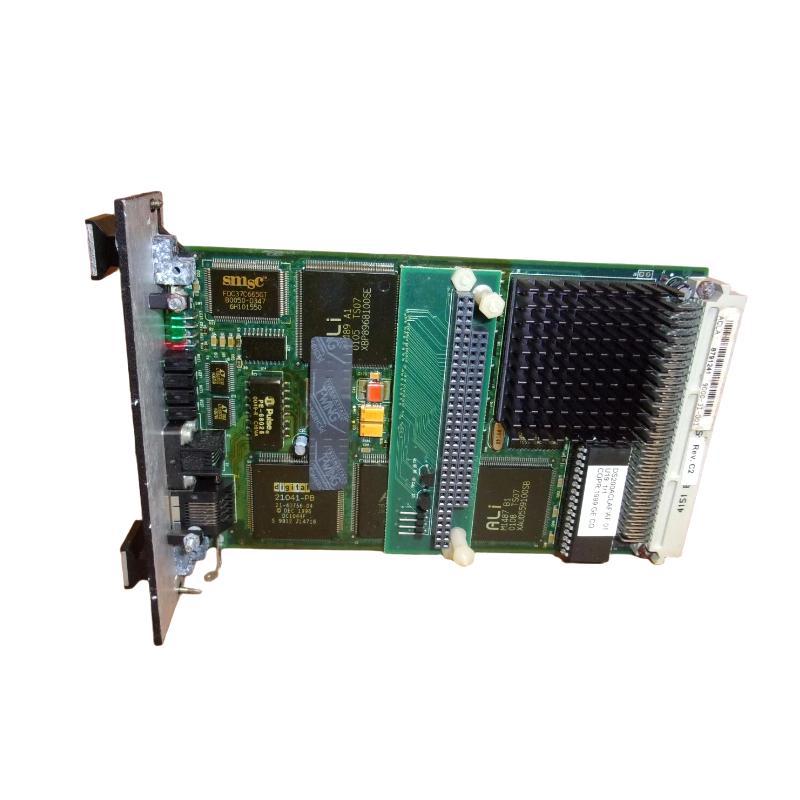

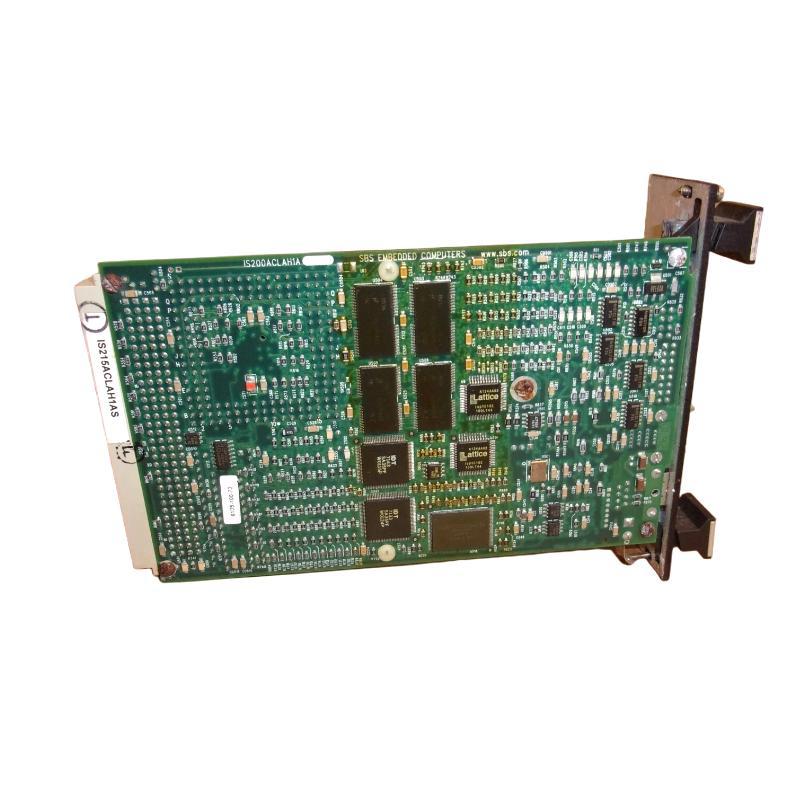

GE IS215ACLAH1AD Application Control Layer Module

Overview

The GE IS215ACLAH1AD is an Application Control Layer (ACL) module designed for GE Mark VI control systems. It provides high-performance control processing and coordination for turbine and industrial automation applications, ensuring reliable execution of control logic and seamless integration across system layers.

General Information

Part Number: IS215ACLAH1AD

Manufacturer: GE

Brand / Country of Origin: GE / United States

Type: Application Control Layer (ACL) Module

Application: Turbine control and industrial automation systems

Mounting: Rack-mounted installation within GE Mark VI control chassis

Technology: Embedded industrial control module with real-time processing and system coordination capabilities

Power Specifications

Input Voltage: 5 V DC (backplane powered)

Power Consumption: Low power load via system backplane

Protection Features: Integrated circuit protection and fault isolation

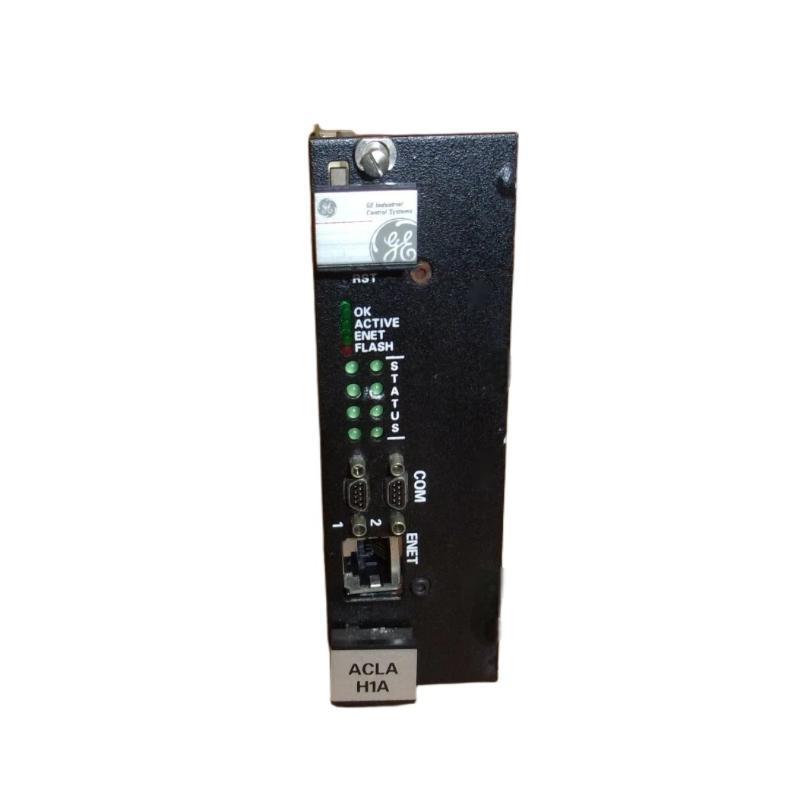

Status Indicators: LED indicators for module status and operational monitoring

Communication & Interface

Interface Type: GE Mark VI backplane connection

System Compatibility: GE Mark VI turbine control and automation platforms

Function: Executes control logic, coordinates system layers, and supports real-time operations

Diagnostics: Built-in monitoring and fault detection

Configuration Requirements: Software-based configuration via GE system tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5–95% RH, non-condensing

Vibration Resistance: Industrial-grade reliability for continuous operation

Protection Rating: IP20 when installed in control rack

Dimensions & Weight

Dimensions (L × W × H): 280 × 120 × 22 mm

Weight: 0.65 kg
