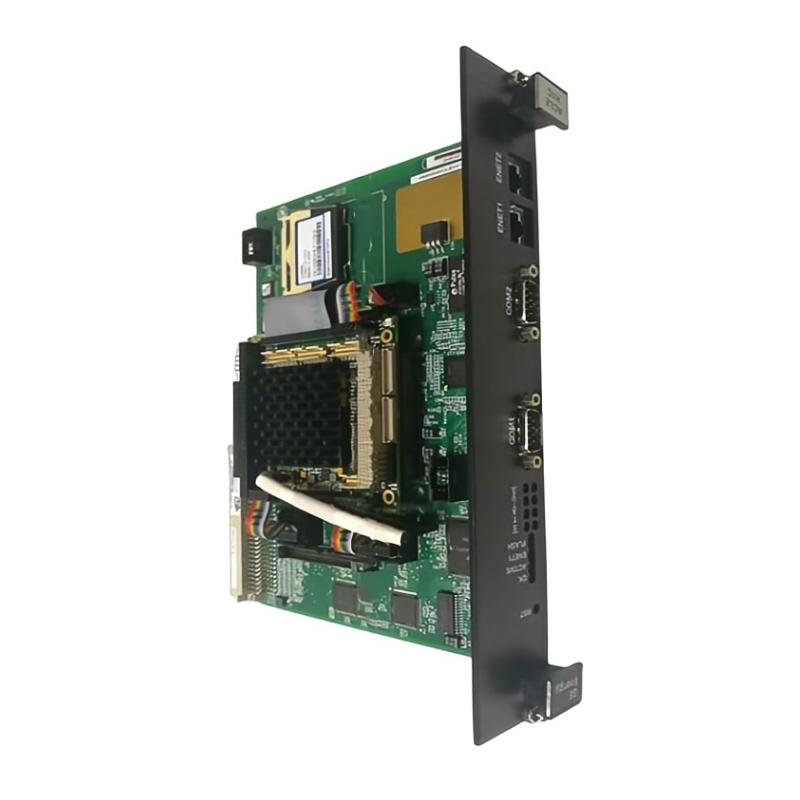

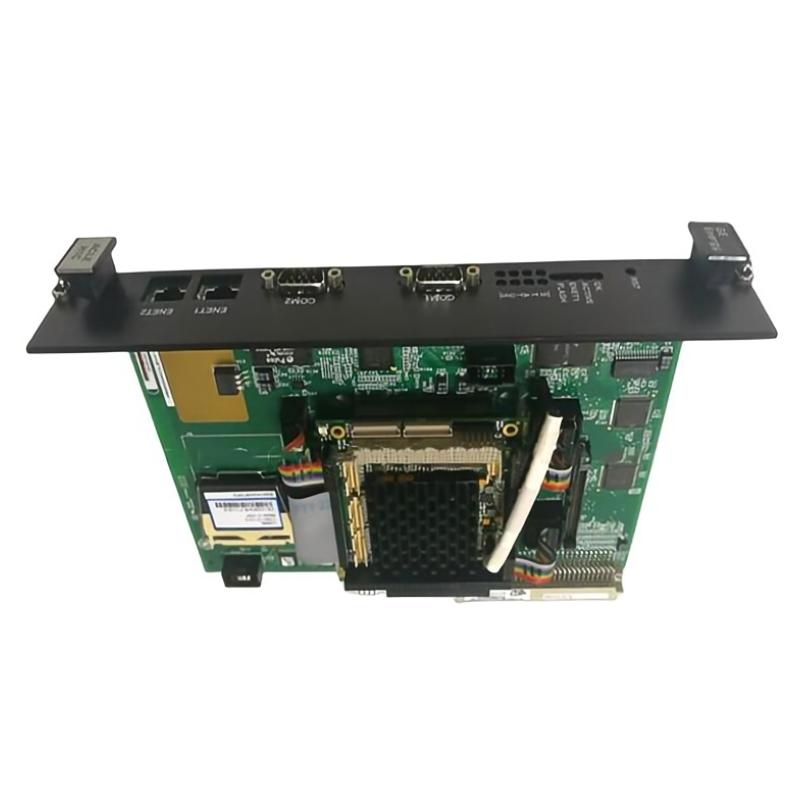

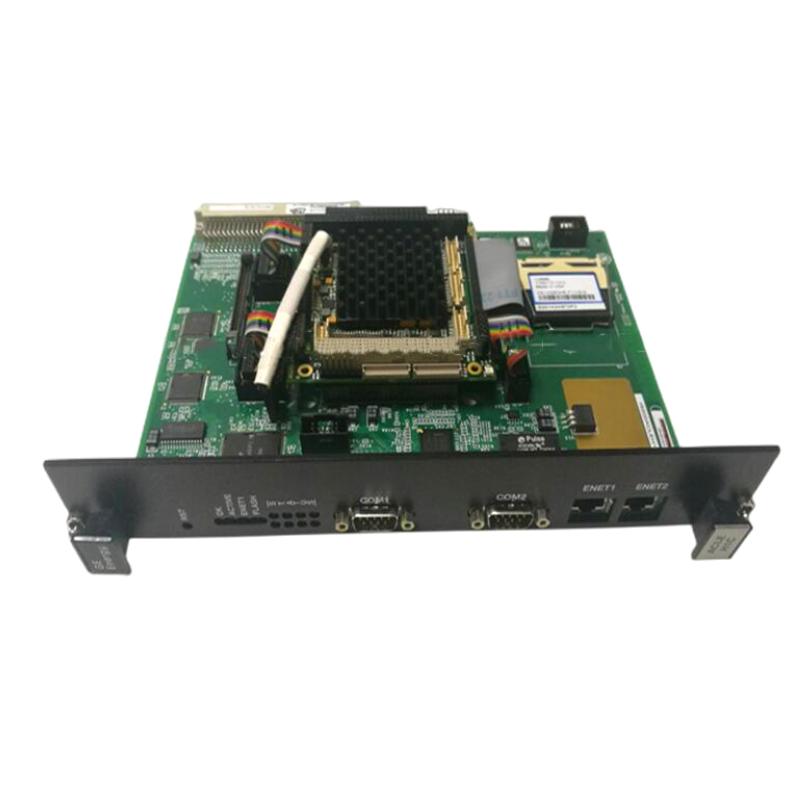

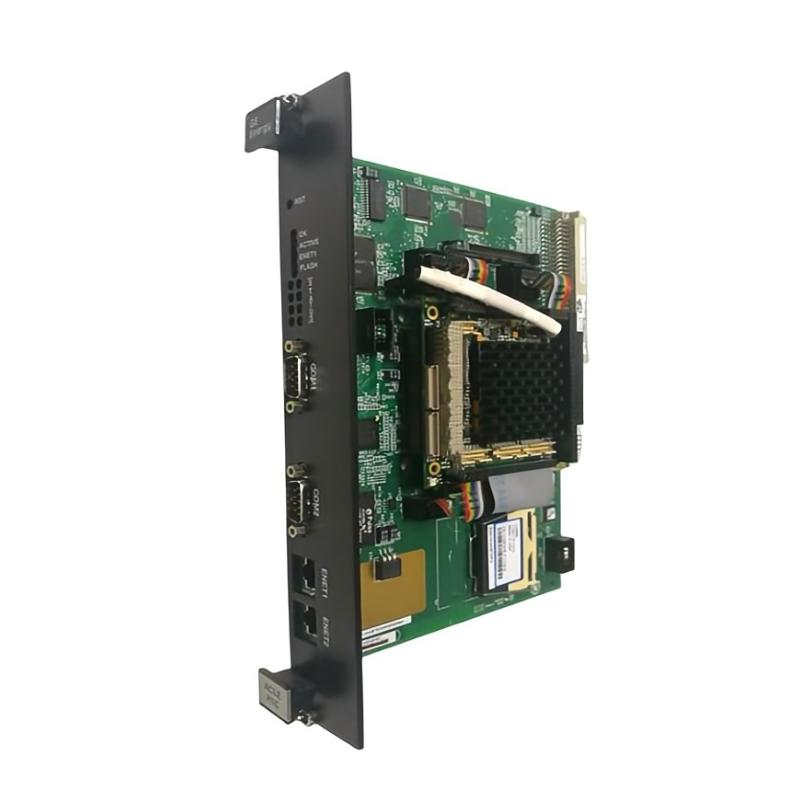

GE IS215ACLEH1C Application Control Layer Module

Overview

The GE IS215ACLEH1C is an Application Control Layer (ACL) module designed for GE Mark VI control systems. It provides advanced control processing and coordination functions for turbine control and industrial automation systems, ensuring stable execution of control logic and efficient system-level communication.

General Information

Part Number: IS215ACLEH1C

Manufacturer: GE

Brand / Country of Origin: GE / United States

Type: Application Control Layer (ACL) Module

Application: Turbine control and industrial automation systems

Mounting: Rack-mounted installation within GE Mark VI control chassis

Technology: Embedded industrial control module supporting real-time processing and layered system coordination

Power Specifications

Input Voltage: 5 V DC (backplane powered)

Power Consumption: Low power consumption via system backplane

Protection Features: Internal circuit protection and fault isolation

Status Indicators: LED indicators for module status and operational health

Communication & Interface

Interface Type: GE Mark VI backplane connection

System Compatibility: GE Mark VI turbine control platforms

Function: Executes application-level control logic and system coordination tasks

Diagnostics: Built-in system monitoring and fault detection

Configuration Requirements: Software-based configuration via GE engineering tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5–95% RH, non-condensing

Vibration Resistance: Industrial-grade durability for continuous operation

Protection Rating: IP20 when installed in control rack

Dimensions & Weight

Dimensions (L × W × H): 280 × 120 × 22 mm

Weight: 0.65 kg

Precision Control for Mission-Critical Industrial Performance!
