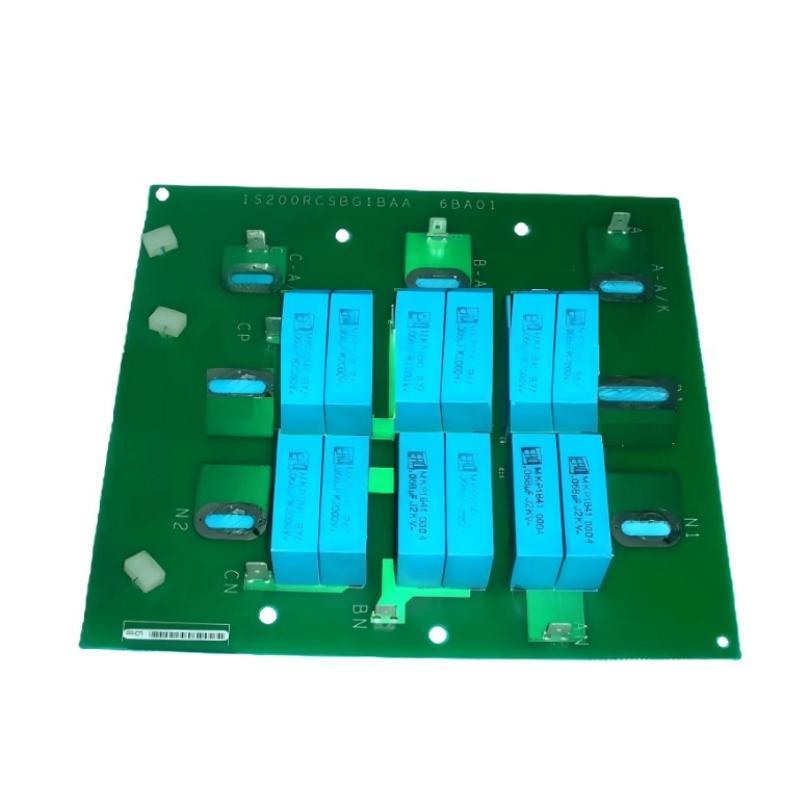

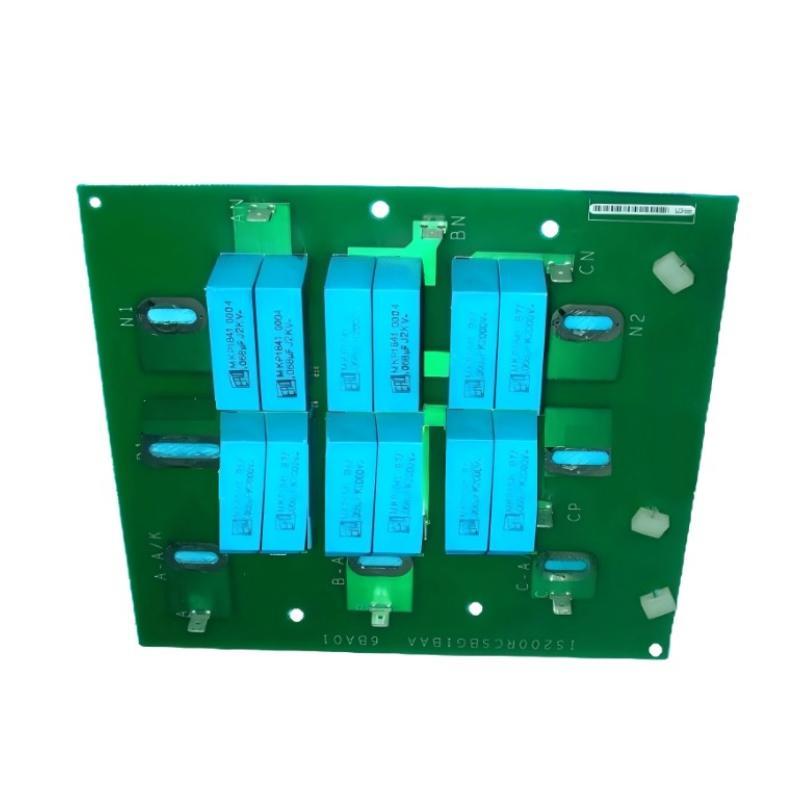

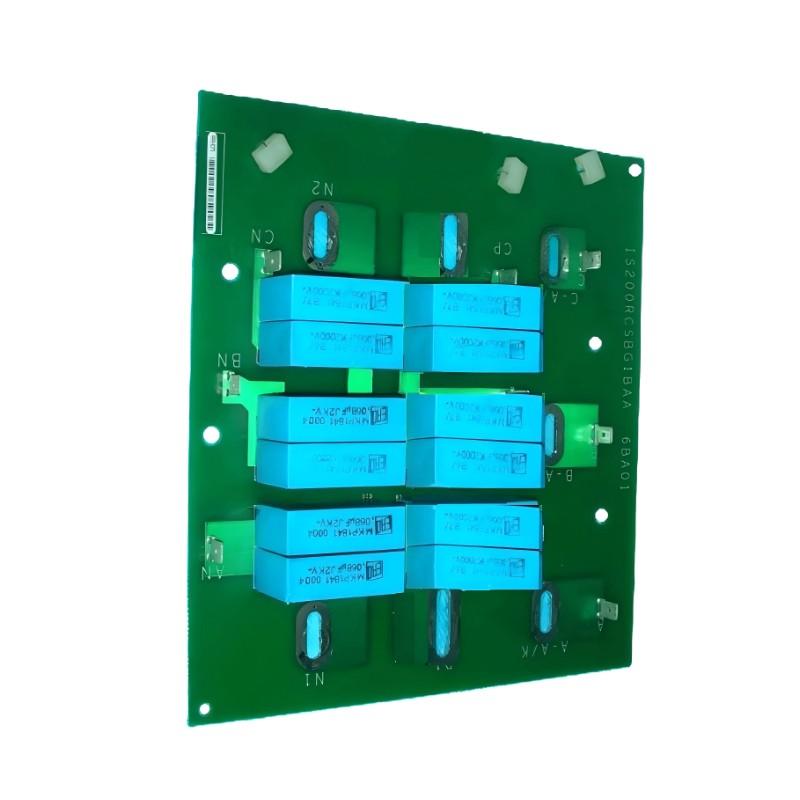

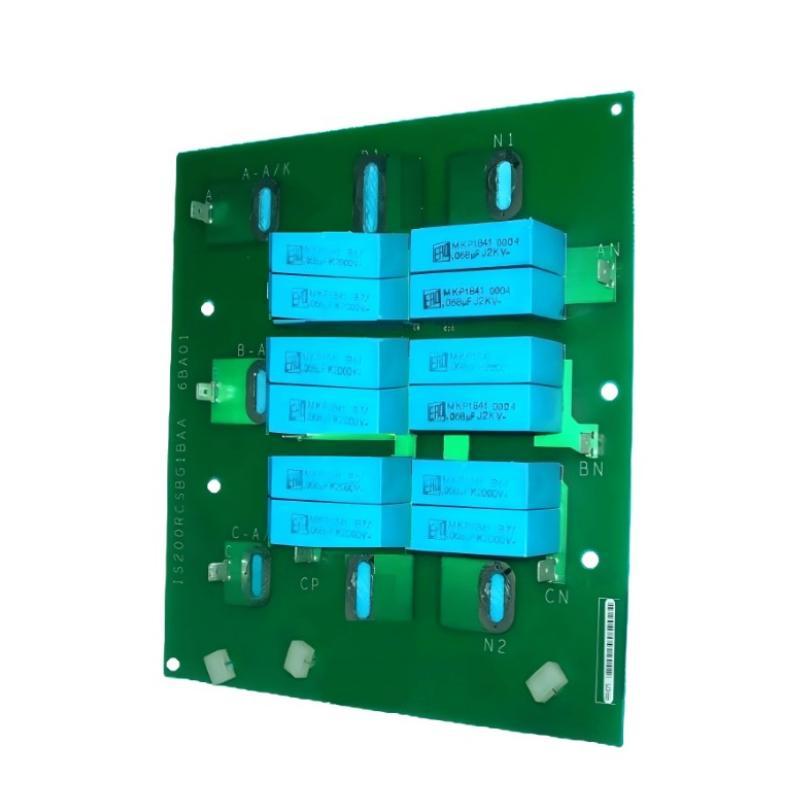

GE IS200RCSBG1BAA RC Buffer Plate

Overview
The GE IS200RCSBG1BAA is an RC buffer plate used in industrial control and turbine systems to stabilize electrical signals and reduce noise interference. It provides filtering and damping functions that help protect sensitive control circuitry, ensuring smooth and reliable operation within GE Mark VI-based architectures.

General Information
Part Number: IS200RCSBG1BAA

Manufacturer: General Electric

Brand: GE

Country of Origin: United States

Product Type: RC Buffer Plate

Function: Signal filtering, buffering, and noise suppression

Mounting Type: Control rack or cabinet installation

Application: Industrial turbine control and signal conditioning systems

Power Specifications
Input Voltage: System backplane powered

Power Consumption: Low power operation depending on system configuration

Protection: RC filtering network for transient suppression and noise reduction

Design: Industrial-grade passive/active filtering circuitry

Status Indicators: System-level monitoring via controller diagnostics

Communication & Interface
Interface Type: Backplane system connection

Function: Signal stabilization and buffering for control circuits

Compatibility: GE Mark VI / industrial turbine control platforms

Diagnostics: System-integrated monitoring support

Integration: Enhances signal integrity within control and protection networks

Environmental
Operating Temperature: 0 to 55 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Suitable for industrial turbine environments

Installation Requirement: Enclosed control cabinet or rack-mounted system

Dimensions & Weight
Dimensions (H × W × D): 260 × 140 × 35 mm

Weight: 0.85 kg

Stable signal conditioning for reliable industrial system performance.
