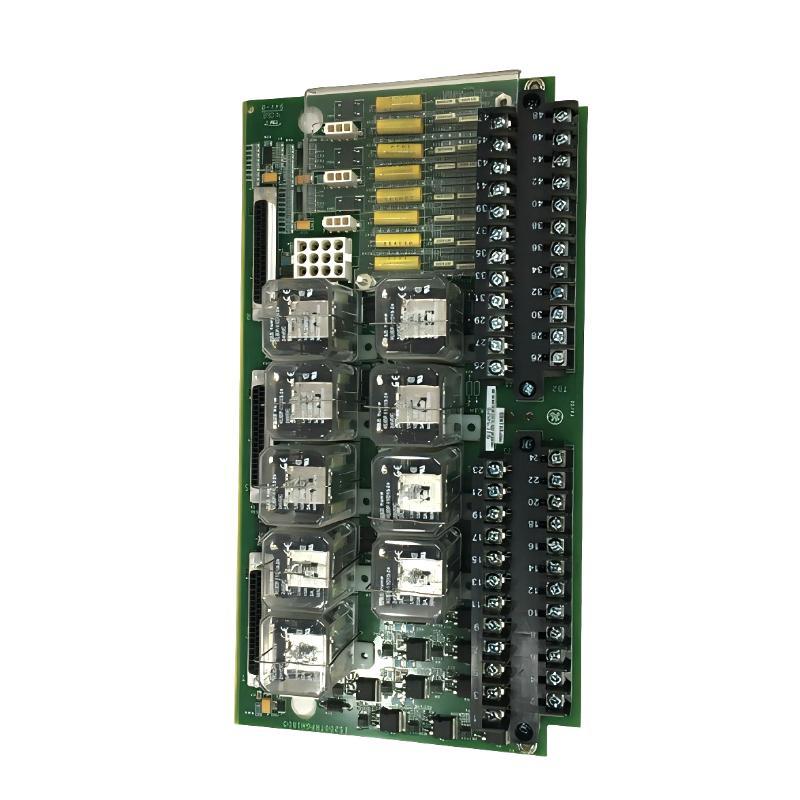

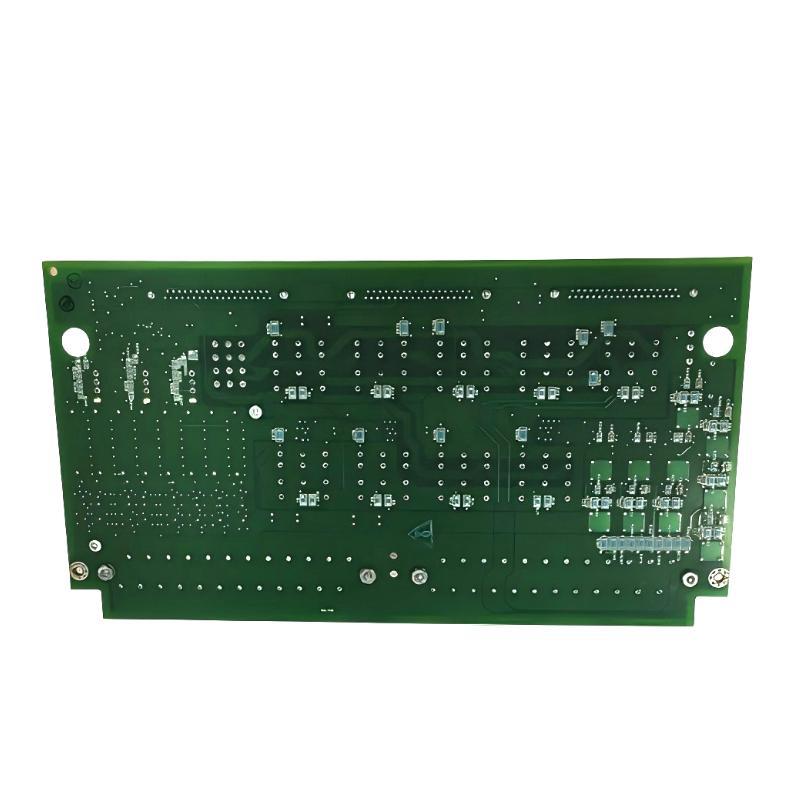

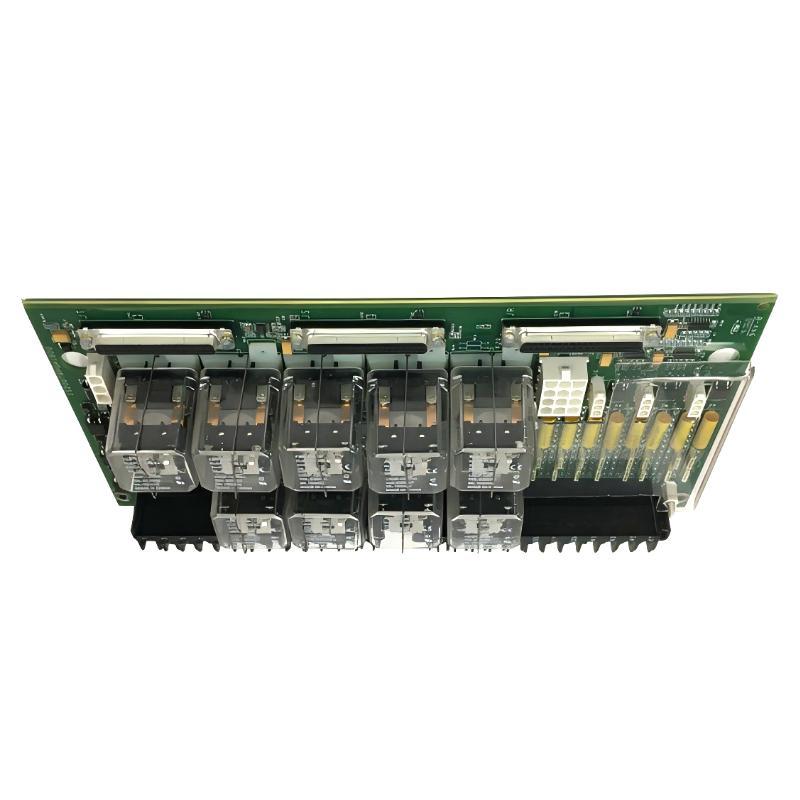

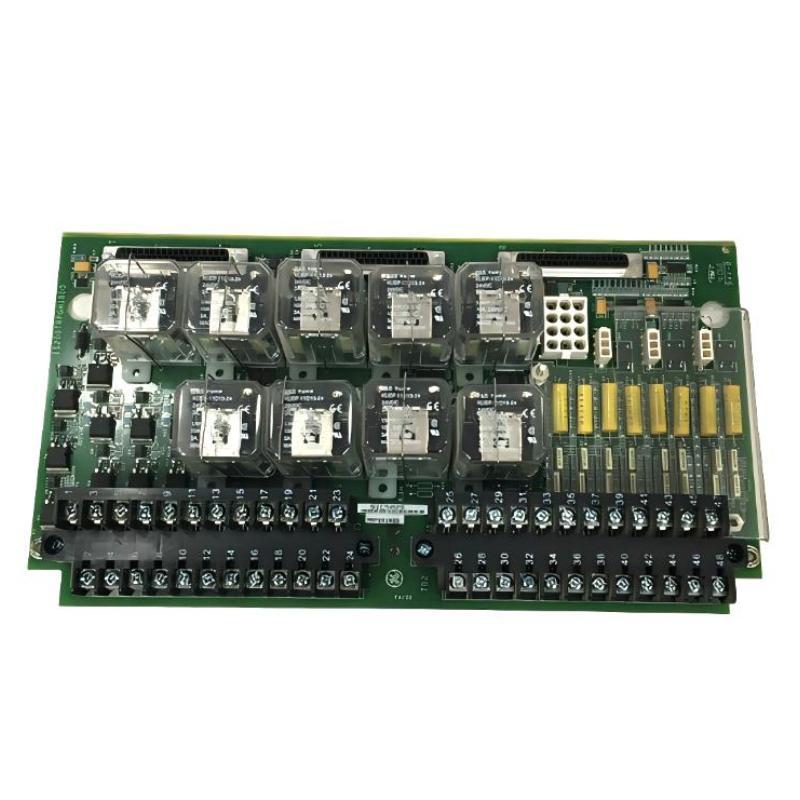

GE IS210TRPGH1B Trip DIN Rail Module

Overview
The GE IS210TRPGH1B Trip DIN Rail Module is an industrial protection and control component designed for turbine and high-reliability automation systems. It is commonly used within GE Mark VI control architectures to manage trip functions, system protection logic, and safety-related control operations in demanding industrial environments.

General Information
Part Number: IS210TRPGH1B

Manufacturer: GE (General Electric)

Brand: GE (General Electric)

Country of Origin: United States

Series: Mark VI / Industrial Control Series

Type: Trip / Protection DIN Rail Module

Function: Safety trip signal processing and system protection control

Application: Turbine control systems, industrial safety systems, power generation automation

Power Specifications
Supply Voltage: Powered via control system backplane

Power Consumption: Low-power industrial control module

Backplane Power: Required for operation within Mark VI system architecture

Protection: Industrial-grade isolation and fault tolerance design

Status Indication: LED indicators for trip status and system health

Communication & Interface
System Interface: GE Mark VI control system backplane integration

Signal Processing: Trip signal input/output handling for safety logic

Control Role: Executes protection and emergency shutdown logic

Diagnostics: Built-in fault detection and system status reporting

Configuration: System-level configuration via Mark VI control tools

Environmental
Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Humidity Range: 5% to 95% non-condensing

Vibration Resistance: High-reliability industrial environment rated

Protection Class: IP20 (cabinet or rack installation required)

Dimensions & Weight
Dimensions (H × W × D): 220 × 110 × 40 mm

Weight: 0.42 kg

Engineered for Critical Protection – Built for High-Reliability Industrial Systems!
