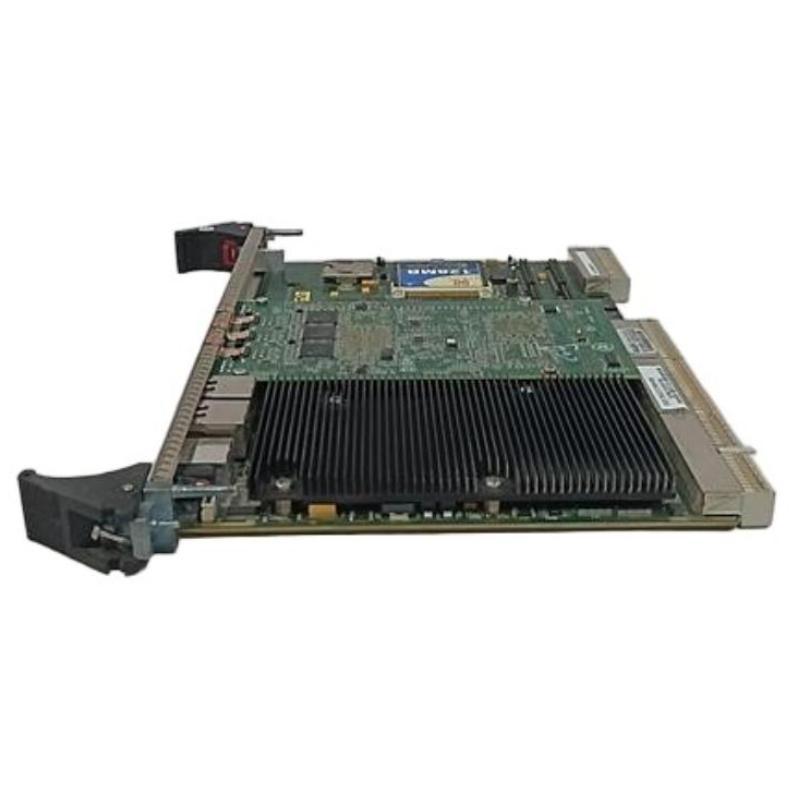

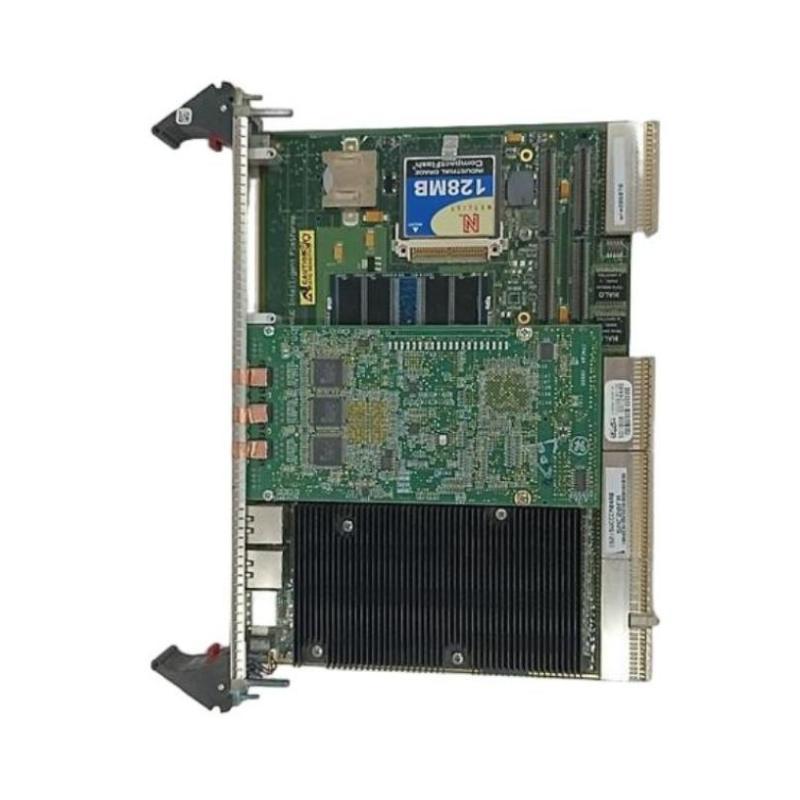

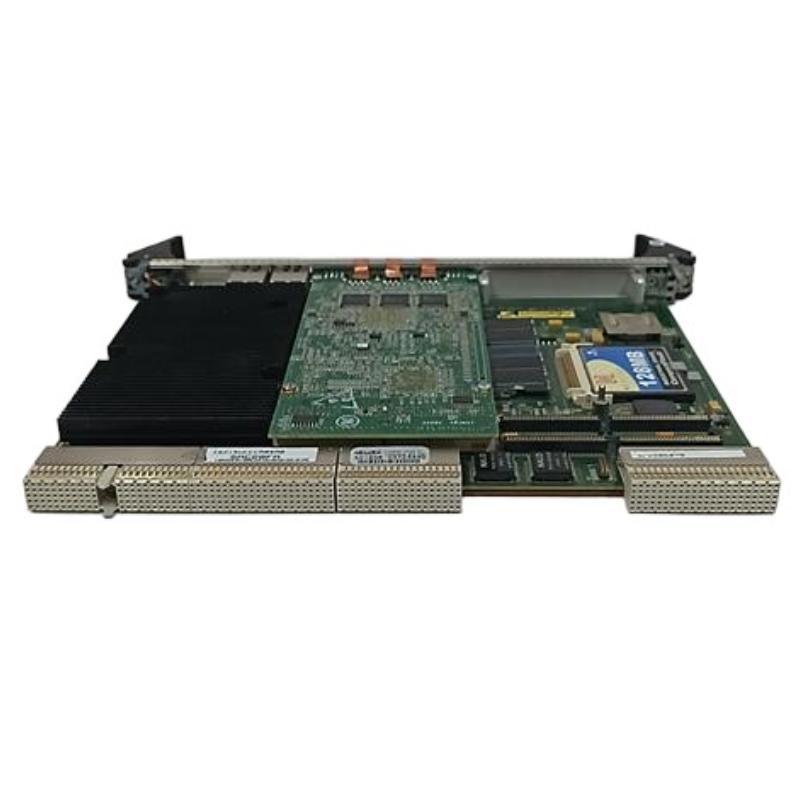

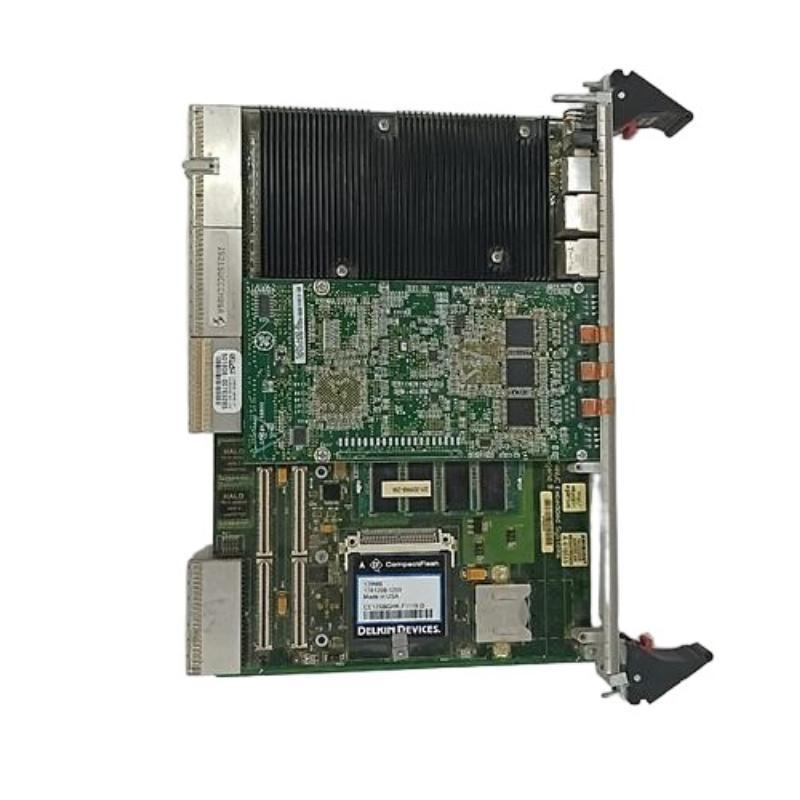

GE IS215UCCCM04A Compact PCI Controller Board

Overview
The GE IS215UCCCM04A Compact PCI Controller Board is an industrial control module designed for GE Mark VI/Mark VIe turbine control systems. It provides high-performance computing and communication functions, supporting real-time control, data processing, and system coordination in power generation and industrial automation environments.

General Information
Part Number: IS215UCCCM04A

Manufacturer: GE (General Electric)

Brand: GE (General Electric)

Country of Origin: United States

Series: Mark VI / Mark VIe Control System

Type: Compact PCI Controller Board

Function: Real-time control processing and system coordination

Application: Turbine control systems, industrial automation, power generation control platforms

Power Specifications
Supply Voltage: Powered via CompactPCI backplane

Power Consumption: Low-power embedded industrial computing module (system dependent)

Backplane Power: Required for CompactPCI chassis operation

Protection: Industrial-grade electrical isolation and system protection design

Status Indication: LED indicators for board status and system operation

Communication & Interface
System Interface: CompactPCI backplane interface

Processing Function: Executes real-time control and coordination logic

Data Handling: High-speed industrial data processing and communication

Diagnostics: Built-in system health monitoring and fault detection

Configuration: Managed via GE turbine control engineering software tools

Environmental
Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Humidity Range: 5% to 95% non-condensing

Vibration Resistance: Industrial power generation environment standard

Protection Class: IP20 (rack-mounted CompactPCI installation required)

Dimensions & Weight
Dimensions (H × W × D): 175 × 105 × 20 mm

Weight: 0.45 kg

High-Performance Control Computing – Built for Critical Industrial Systems!
