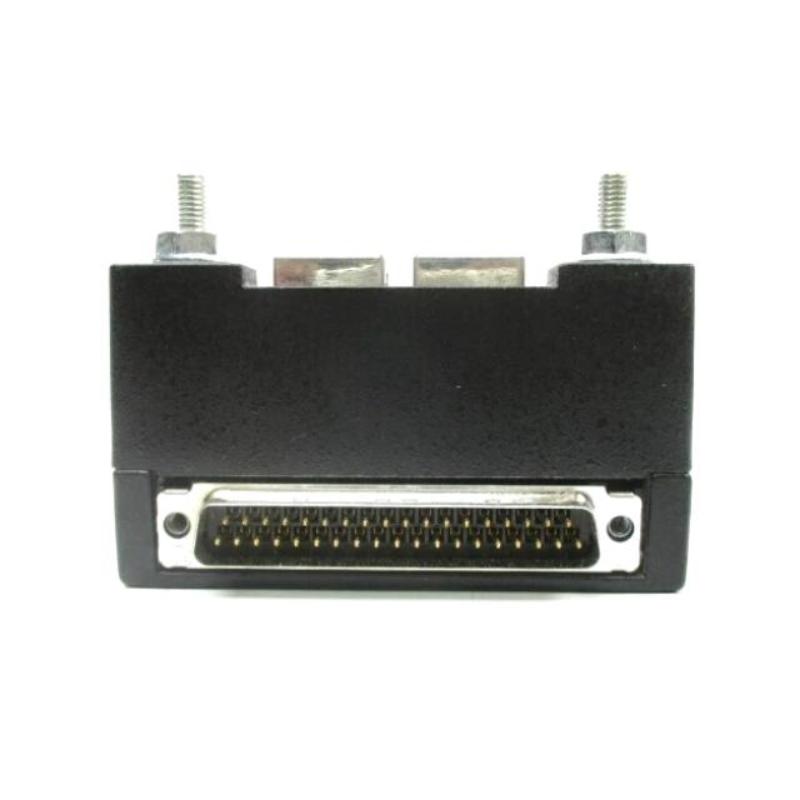

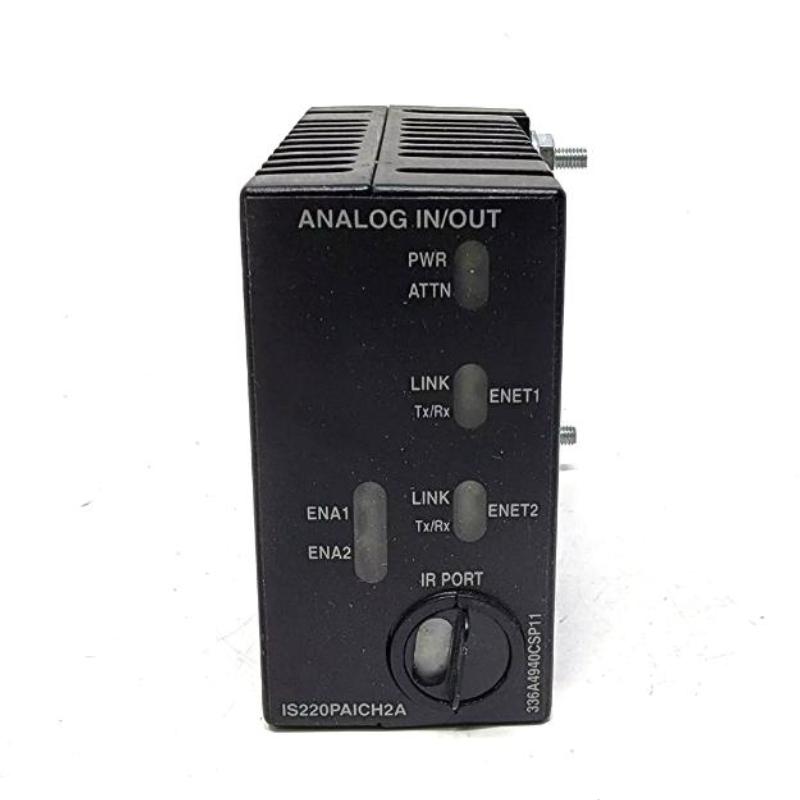

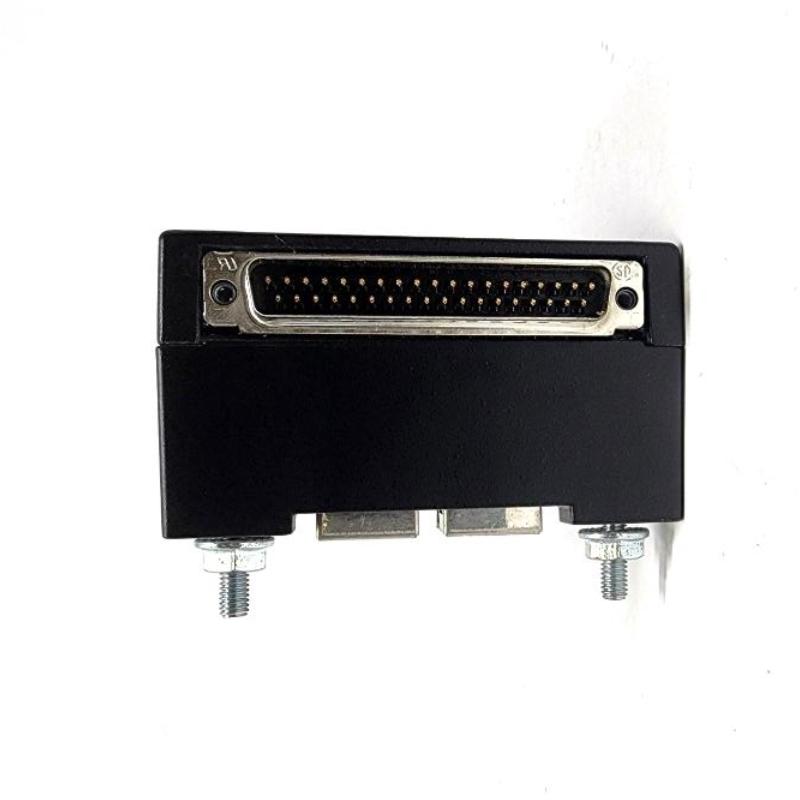

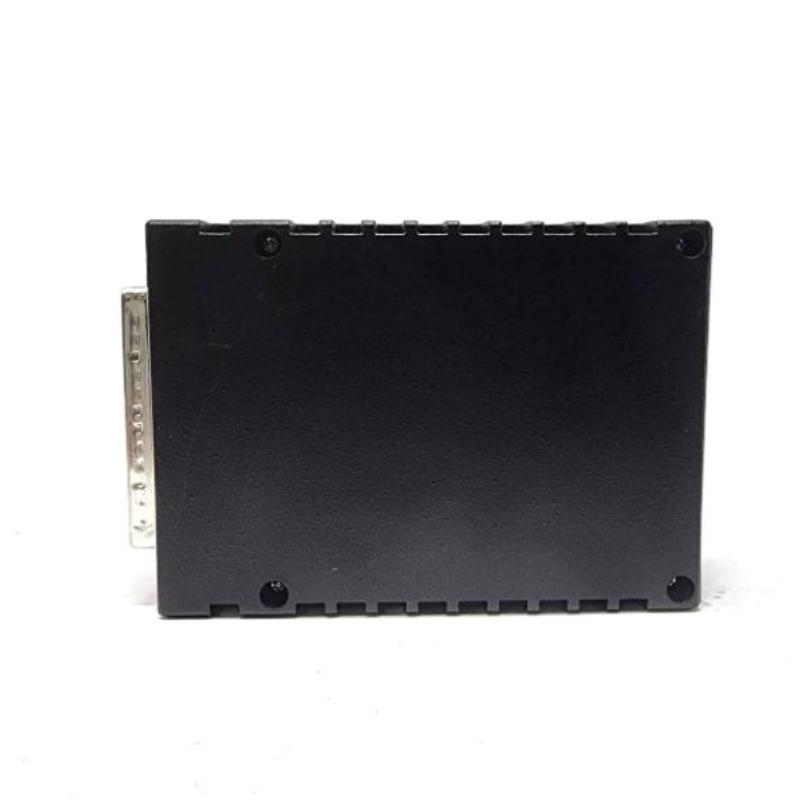

GE IS220PAICH2A 336A4940CSP11 Analog Input/Output Module

Overview

The GE IS220PAICH2A 336A4940CSP11 is an analog input/output module designed for advanced industrial control applications. It provides reliable acquisition and generation of analog signals for process monitoring and actuator control, ensuring accurate and stable performance in distributed automation systems.

General Information

Part Number: IS220PAICH2A / 336A4940CSP11
Manufacturer: GE (General Electric)
System Series: Mark VIe
Brand: GE
Country of Origin: USA
Type: Analog Input/Output Module
Function: Dual-purpose analog signal input and output processing
Installation: Control rack or system-mounted module
Compatibility: GE Mark VIe control system architecture
Technology: High-resolution A/D and D/A conversion with embedded diagnostics

Power Specifications

Supply Voltage: 28 V DC (system dependent)
Power Consumption: Typically ≤ 10 W
Input Power Source: System backplane or external DC supply
Protection: Over-voltage, over-current, and reverse polarity protection
Status Indication: LED indicators for power, channel activity, and fault status

Communication & Interface

Signal Interface: Analog input and output channels
Input Types: 4–20 mA / voltage signals (configurable)
Output Types: 4–20 mA analog outputs
Data Transfer: High-speed backplane communication with controller
Channel Isolation: Galvanic isolation between channels
Diagnostics: Loop monitoring, fault detection, and signal validation
System Integration: Fully integrated into GE Mark VIe distributed control architecture

Environmental

Operating Temperature: 0 to +65 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial turbine control standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 82.6 × 41.9 × 121 mm
Weight: 0.907 kg
