GE IS220PDIAH1A Fuel-Burning Engine

Overview

The GE IS220PDIAH1A is a digital input module designed for industrial automation and turbine control systems. It is used to acquire discrete field signals from sensors, switches, and protection devices, enabling accurate status monitoring and reliable system-level control in real-time applications.

General Information

Part Number: IS220PDIAH1A
Manufacturer: GE (General Electric)
System Series: Mark VIe
Brand: GE
Country of Origin: USA
Type: Digital Input Module
Function: Discrete signal acquisition and monitoring
Installation: Rack-mounted control system module
Compatibility: GE Mark VIe distributed control system
Technology: High-speed digital signal processing with diagnostic capability

Power Specifications

Supply Voltage: 28 V DC (system dependent)
Power Consumption: Typically ≤ 8 W
Input Power Source: System backplane or external DC supply
Protection: Over-voltage, over-current, and reverse polarity protection

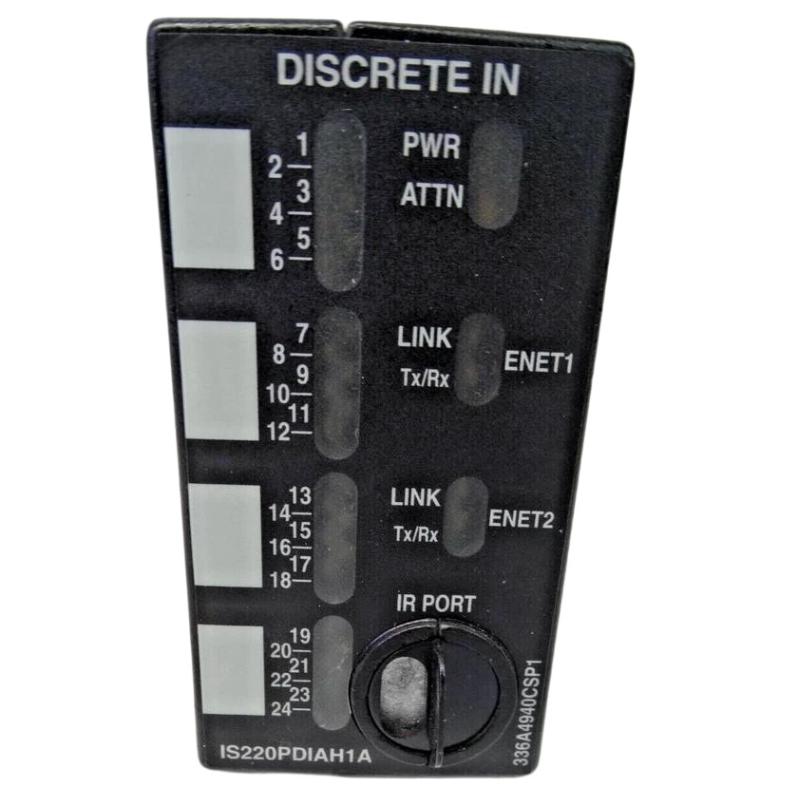

Status Indication: LED indicators for power, channel status, and fault

Communication & Interface

Input Type: Digital ON/OFF signals
Signal Sources: Switches, sensors, protection relays
Data Transfer: High-speed backplane communication with controller
Channel Isolation: Electrical isolation per input channel
Diagnostics: Signal validation, open-circuit detection, fault reporting
System Integration: Fully integrated with GE Mark VIe architecture

Environmental

Operating Temperature: 0 to +65 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial turbine control standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 178 × 20 × 159 mm
Weight: 0.8 kg

Reliable signal acquisition for critical industrial control systems!
