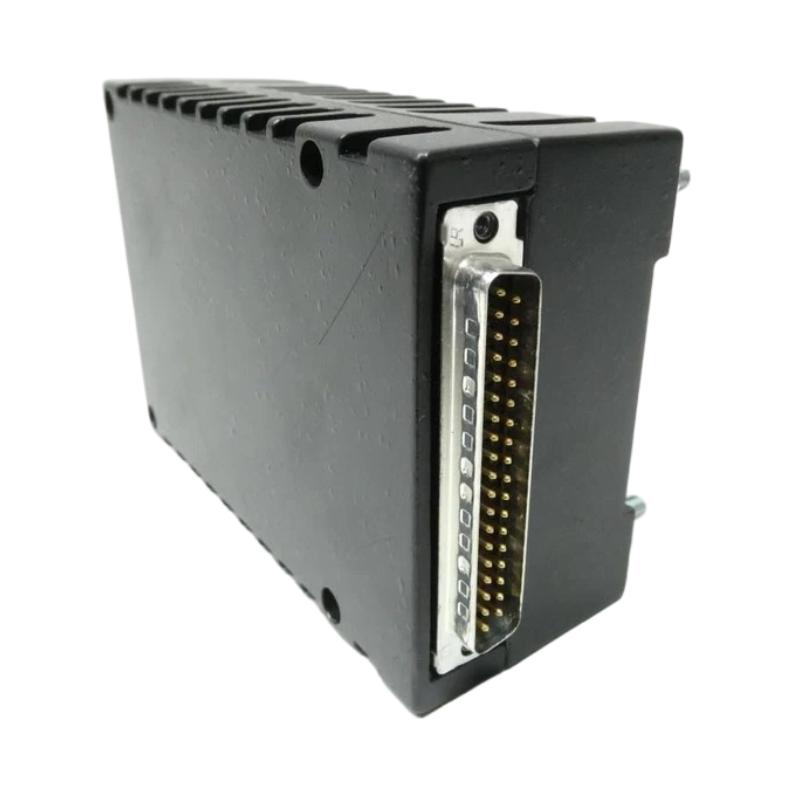

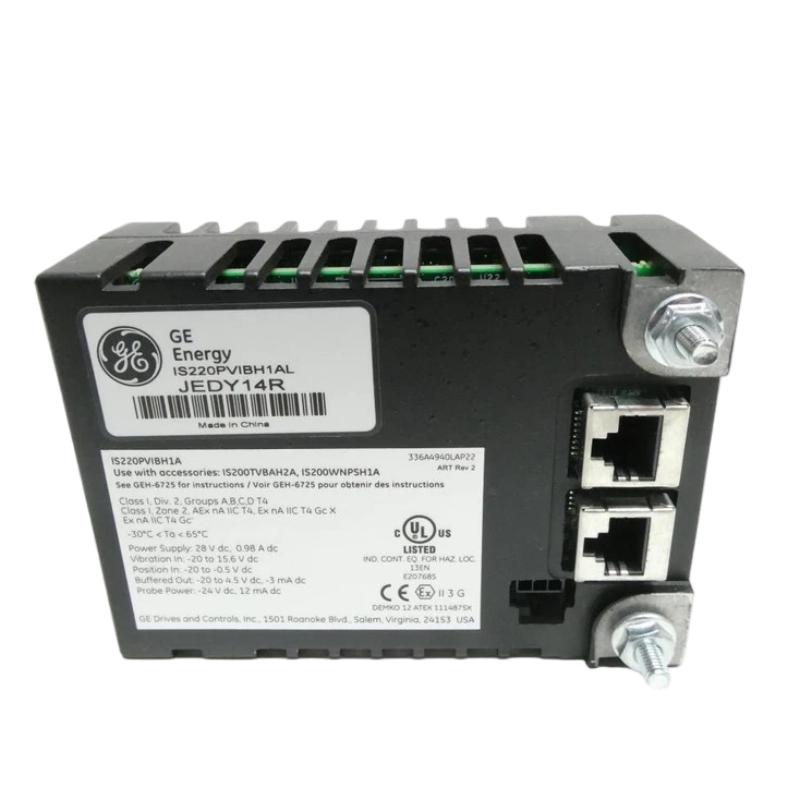

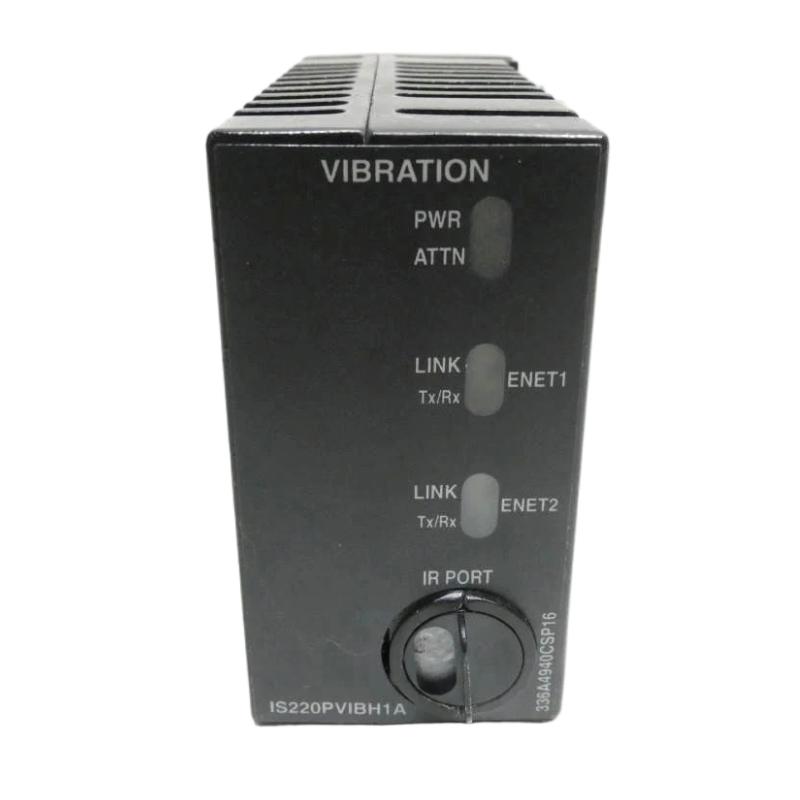

GE IS220PVIBH1AL Electrical Vibration Module

Overview

The GE IS220PVIBH1AL is an electrical vibration module designed for GE Mark VIe control systems. It provides accurate vibration signal acquisition and processing for continuous condition monitoring of rotating equipment. The module helps improve equipment reliability by supporting early fault detection and predictive maintenance.

General Information

Part Number: IS220PVIBH1AL

Manufacturer: GE

Brand: GE

Country of Origin: USA

Series: Mark VIe Control System

Product Type: Electrical Vibration Module

Mounting Type: Panel or cabinet installation

Function: Acquires and processes vibration signals for equipment monitoring and protection

Design: Industrial-grade vibration monitoring module for critical machinery

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power electronic module

Power Source: Internal control system power supply

Protection: Overvoltage, overload, and electrical noise protection

Start-Up: Automatic initialization during system startup

Communication & Interface

Interface Type: Mark VIe system communication interface

Input Type: Electrical vibration sensor inputs

Signal Processing: High-speed vibration data acquisition and analysis

Diagnostics: Integrated self-diagnostics and sensor status monitoring

System Integration: Compatible with GE Mark VIe distributed control systems

Environmental

Operating Temperature: -30 to 65 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Designed for industrial power generation environments

Protection Rating: Suitable for installation inside industrial control cabinets

Installation Environment: Indoor industrial enclosure required

Dimensions & Weight

Dimensions (H × W × D): 160.5 × 102 × 45 mm

Weight: 0.7 kg
