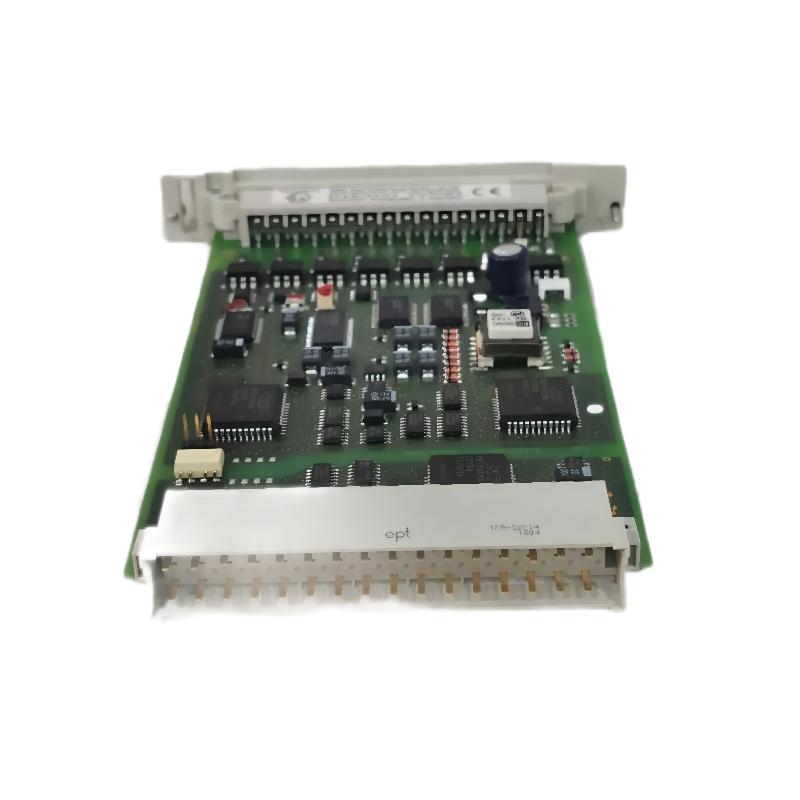

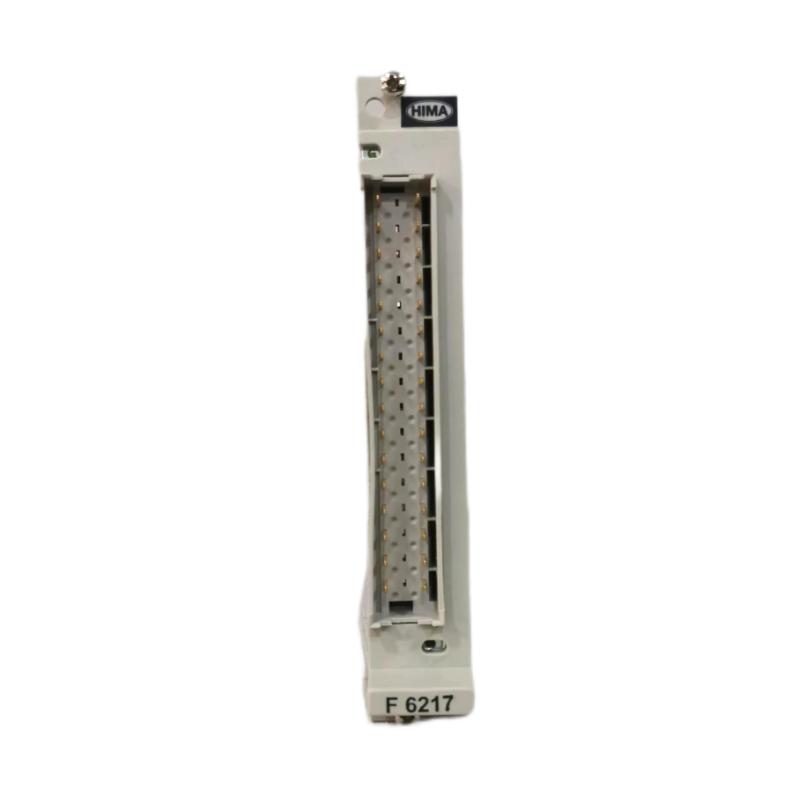

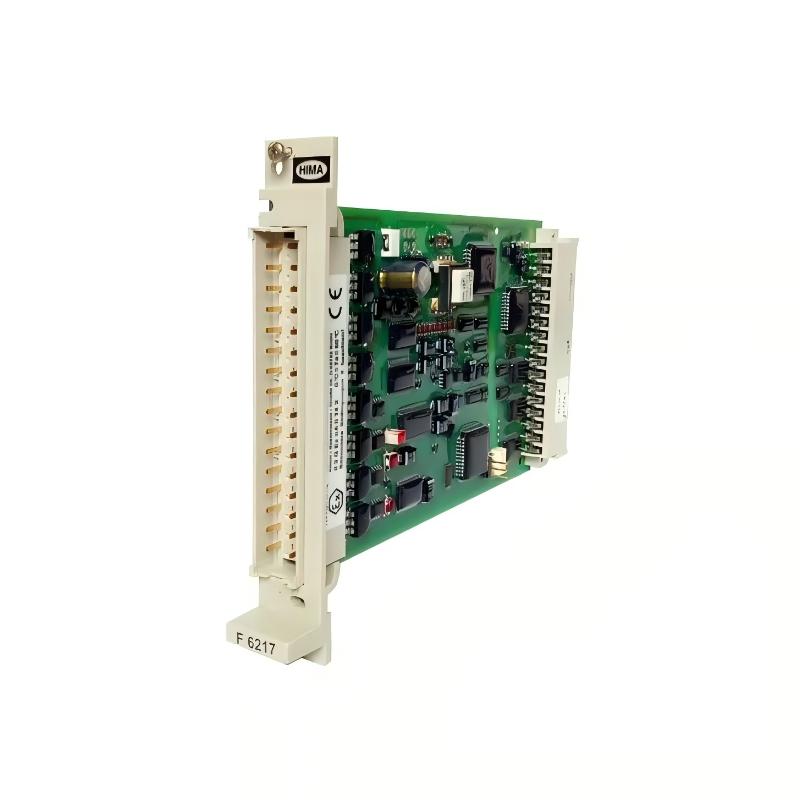

HIMA F6217 984621702 | Digital Input Module Quality Selection

Overview

The HIMA F6217 is a reliable 16-channel digital input module designed for HIQuad and other HIMA safety systems. It provides secure acquisition of discrete field signals and is widely used in safety-related applications such as ESD, BMS, and turbine control. The module incorporates extensive internal diagnostics to ensure high system availability and fault tolerance.

General Information

Part Number: 984621702
Model: F6217
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Input Module (DI)
Mounting: Plug-in module for HIMA backplane racks
Input Voltage: 24 V DC typical
Signal Type: Dry contact / transistor signal depending on configuration

Power Specifications

Supply Voltage: Provided via system backplane
Module Consumption: Low internal logic power consumption
Input Protection: Built-in surge protection and short-circuit tolerance
Diagnostics: Internal health monitoring, channel fault detection

Communication & Interface

System Interface: Backplane communication with HIMA controller
Channel Count: 16 digital input channels
Input Type: 24 V DC logic signals
Input Filtering: Debounce and noise filtering included
Indicators: Front-panel LEDs for channel and module status

I/O & Channels

Number of Channels: 16 DI
Logic Level: 24 V DC
Isolation: Galvanic isolation between field and system circuits
Response Time: Fast digital signal processing suitable for safety systems

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation)
Application Environment: Industrial, safety-critical control systems

Dimensions & Weight

Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~0.28 kg

All products are guaranteed 100% new and original, with immediate stock availability and 24-hour customer service.
