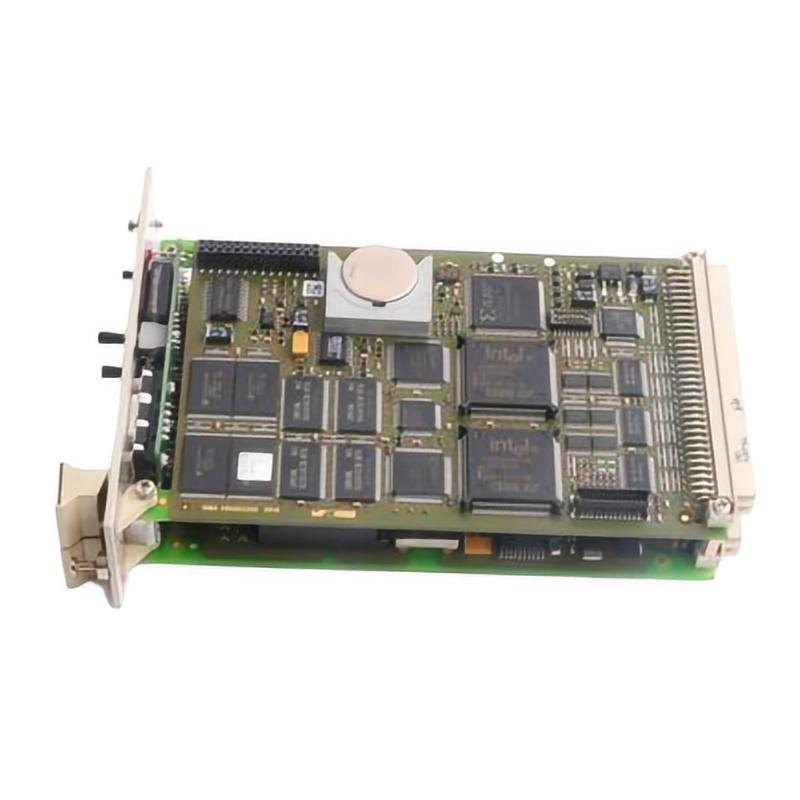

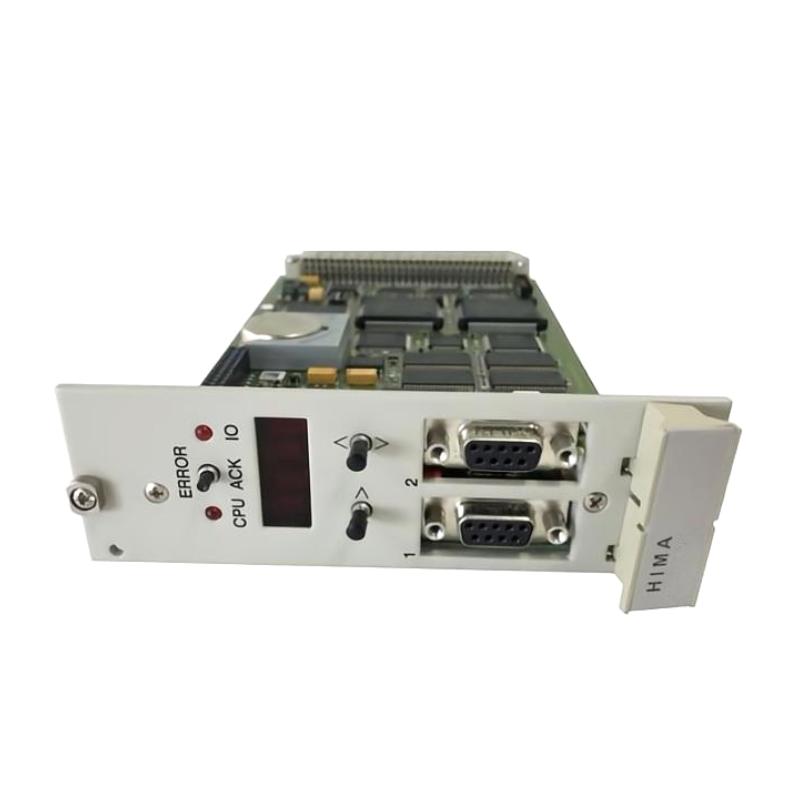

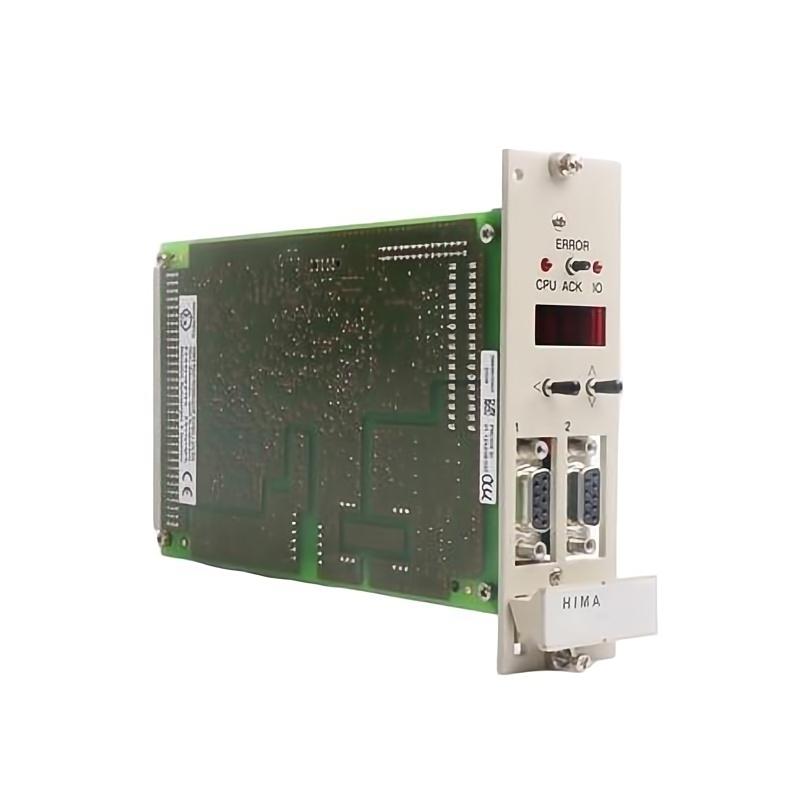

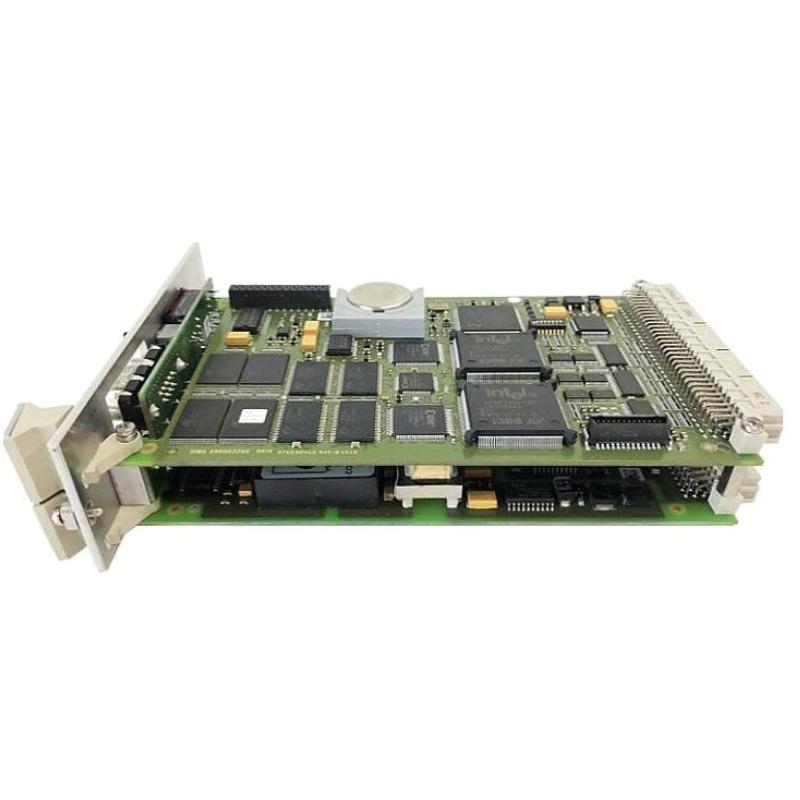

HIMA F-CPU 01 | Safety CPU / Controller Efficient delivery

Overview

The HIMA F-CPU 01 is a central processing unit used in HIMA HIMAX and other safety automation systems. It manages safety logic execution, processes input/output signals, and coordinates fail-safe control operations for industrial safety applications.

General Information

Part Number: F-CPU 01
Manufacturer: HIMA
Series: HIMAX / Safety Controller
Type: Safety CPU / Controller Module
Mounting: Rack or panel-mounted inside safety control cabinet
Function: Executes safety logic, monitors I/O modules, and interfaces with system peripherals

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered through controller backplane or external supply
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for power, status, and fault

Communication & Interface

Interfaces: Safety bus connection to HIMAX modules and other controllers
I/O Handling: Coordinates input and output signals from safety modules
Diagnostics: On-board LED indicators, system error reporting, and self-test routines
Operator Interface: LEDs and optional reset/test buttons
Reset Features: Supports hardware and system-level reset

Environmental

Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or installed within industrial cabinet

Dimensions & Weight

Dimensions (L × W × H): 160 × 120 × 90 mm
Weight: ~ 1.2 kg

All products are genuine and unused, with ready stock and professional service.
