Overview

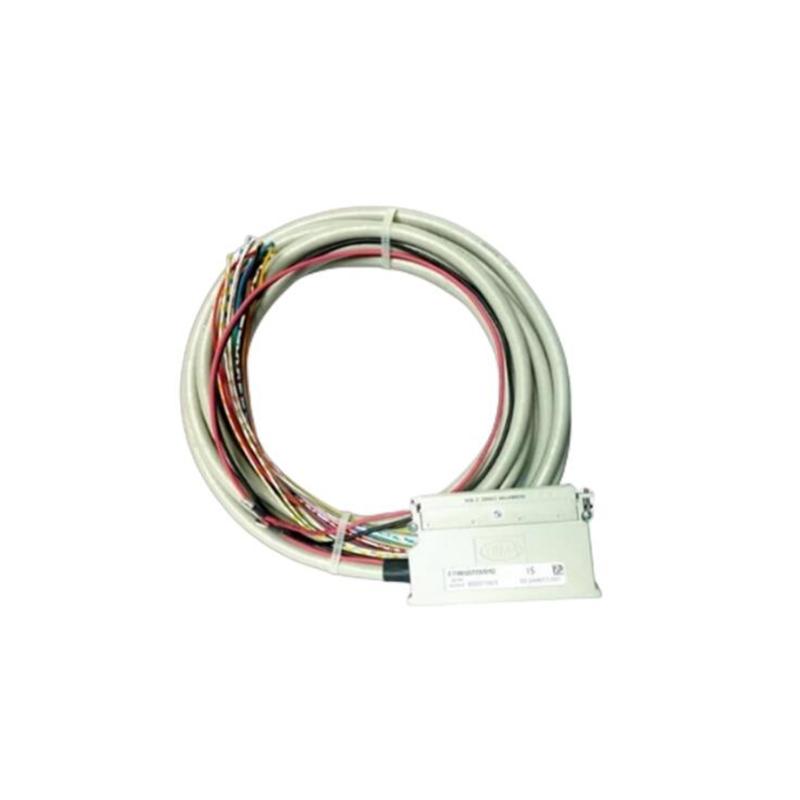

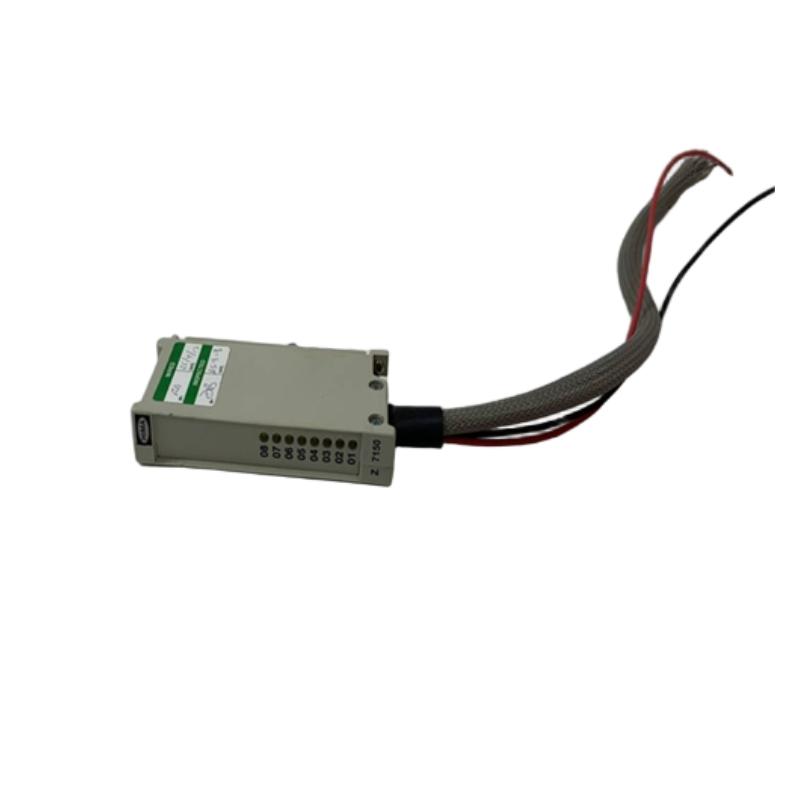

The HIMA Z7150/3349/W5/24P2 is a two-pole plug used in HIMA HIMax and HIQuad safety instrumented systems. It provides secure and reliable electrical connections between modules, ensuring signal integrity and fault-free operation in safety-critical environments.
General Information
Part Number: Z7150/3349/W5/24P2
Manufacturer: HIMA
Brand / Country of Origin: HIMA / Germany
Type: Two-Pole Electrical Plug
Series: HIMax / HIQuad Compatible
Mounting: Plugs into module interface or system backplane
Technology: Industrial-grade, high-reliability connector with safety certification
Power Specifications
Voltage Rating: 24 V DC
Current Rating: Suitable for standard I/O module connections
Protection: Contact isolation, short-circuit resistance, high-reliability insulation
Indicators: Not applicable (passive connector)
Communication & Interface
Function: Provides electrical continuity for module power or signal lines
Interface Type: Two-pole connection
Diagnostics: Supports system-level monitoring through connected modules
Configuration: Installed as part of standard HIMax / HIQuad module assembly
Reset Options: Not applicable for plug-only component
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for use inside industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 50 × 20 × 15 mm
Weight: ~0.05 kg
