Overview

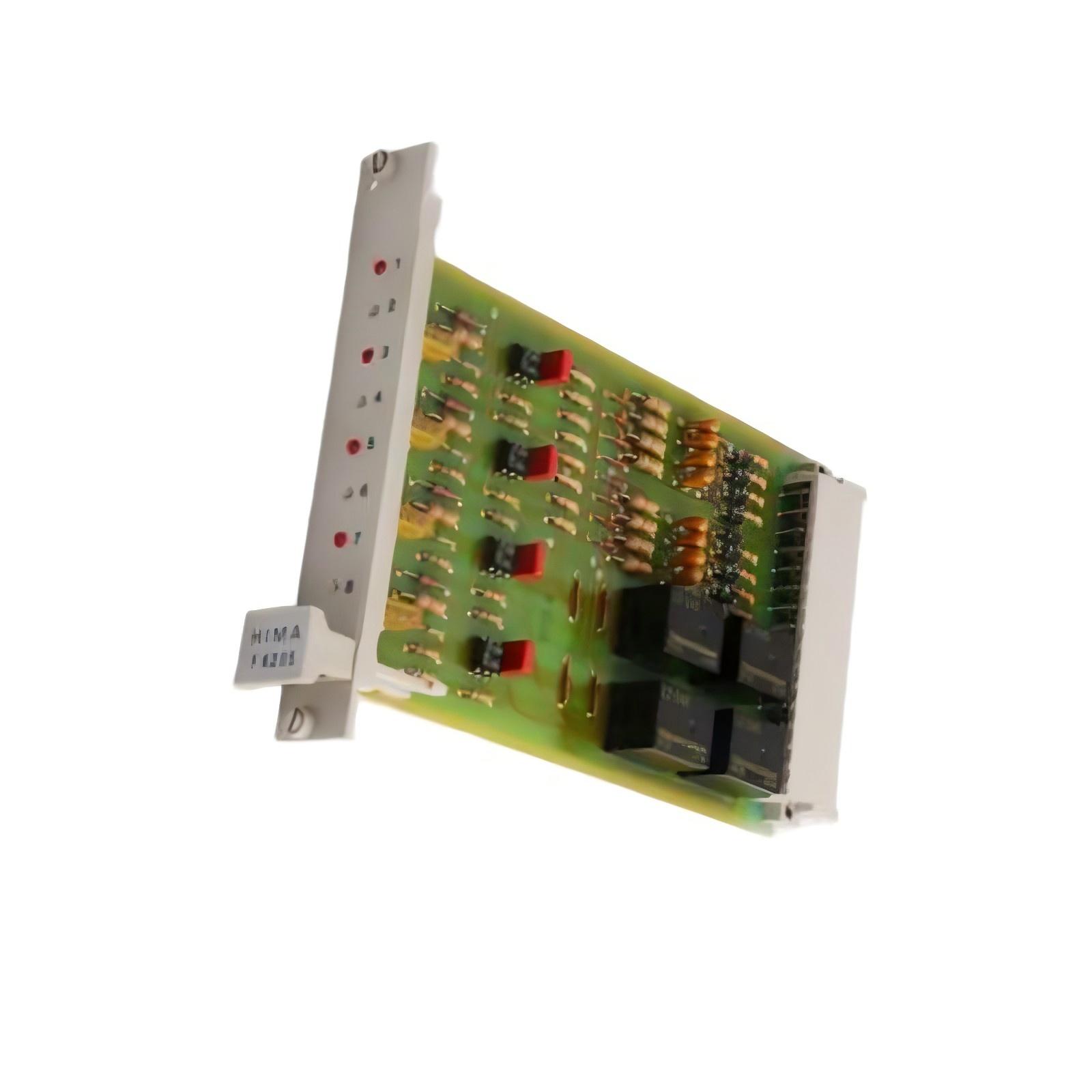

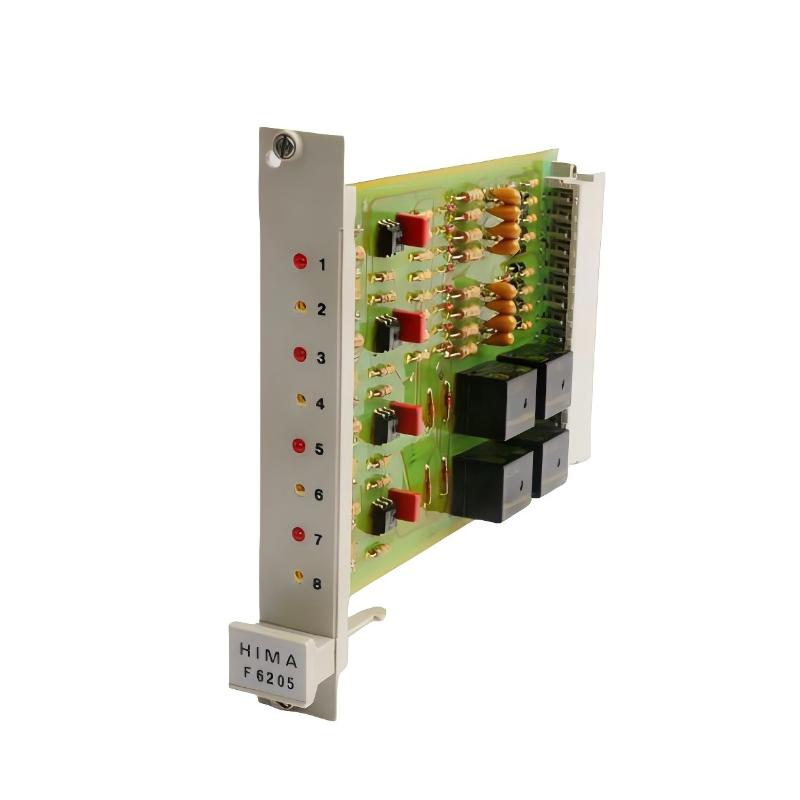

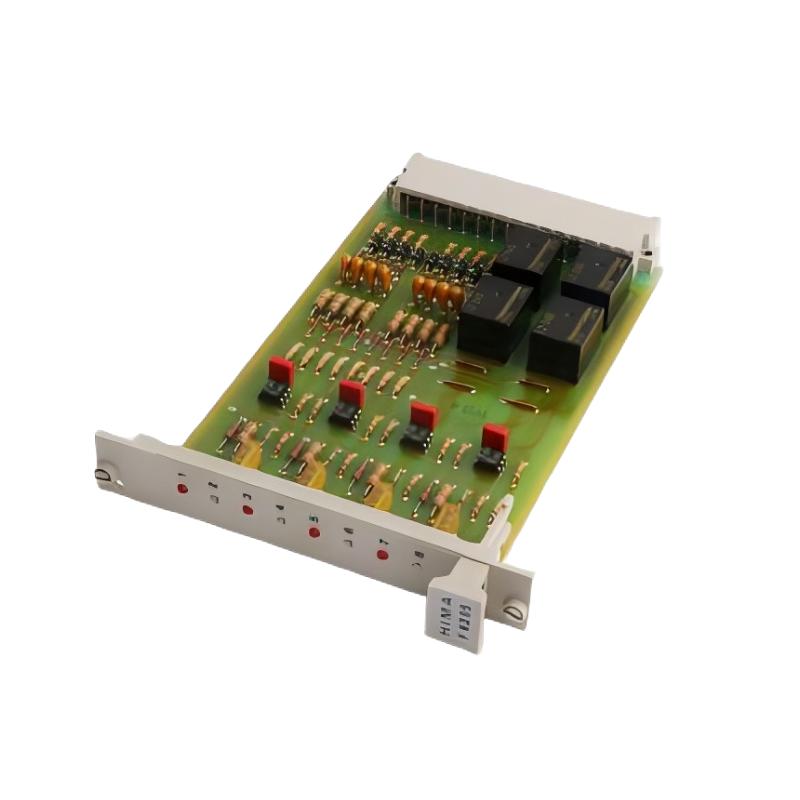

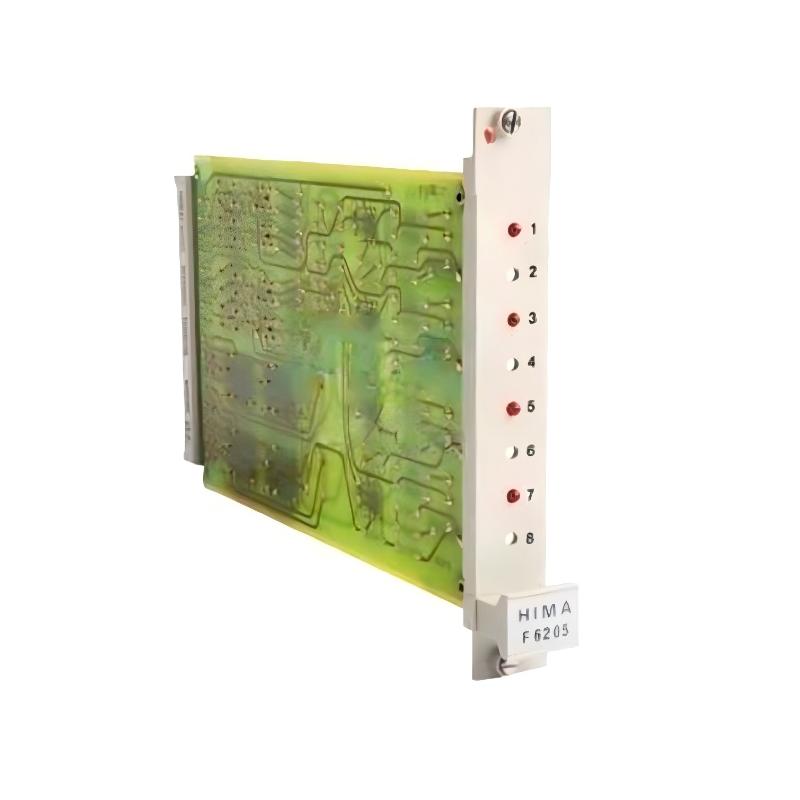

The HIMA F6205 is an analog input module designed for HIMax and HIQuad safety instrumented systems. It provides reliable and isolated measurement of analog signals from field devices such as transmitters, ensuring accurate data acquisition for safety-critical applications.
General Information
Part Number: F6205
Manufacturer: HIMA
Brand / Country of Origin: HIMA / Germany
Series: HIMax / HIQuad
Type: Analog Input Module
Mounting: Installed on HIMA rack or baseplate system
Technology: Safety-certified analog input with channel isolation and embedded diagnostics
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 6 W
Power Source: Redundant backplane supply supported
Protection: Over-voltage, surge protection, and short-circuit protection
Indicators: LEDs for module status, channel activity, and fault
Communication & Interface
Input Type: Analog signals (current or voltage, depending on configuration)
Channels: Multiple isolated channels for analog measurement
Signal Conditioning: Filtering, scaling, and isolation for accurate reading
Diagnostics: Open-circuit detection, abnormal signal monitoring, and self-test capability
Configuration: Managed through HIMA engineering and safety configuration tools
Reset Options: Software reset supported via system controller
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation in standard industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 20 × 125 mm
Weight: ~0.25 kg
