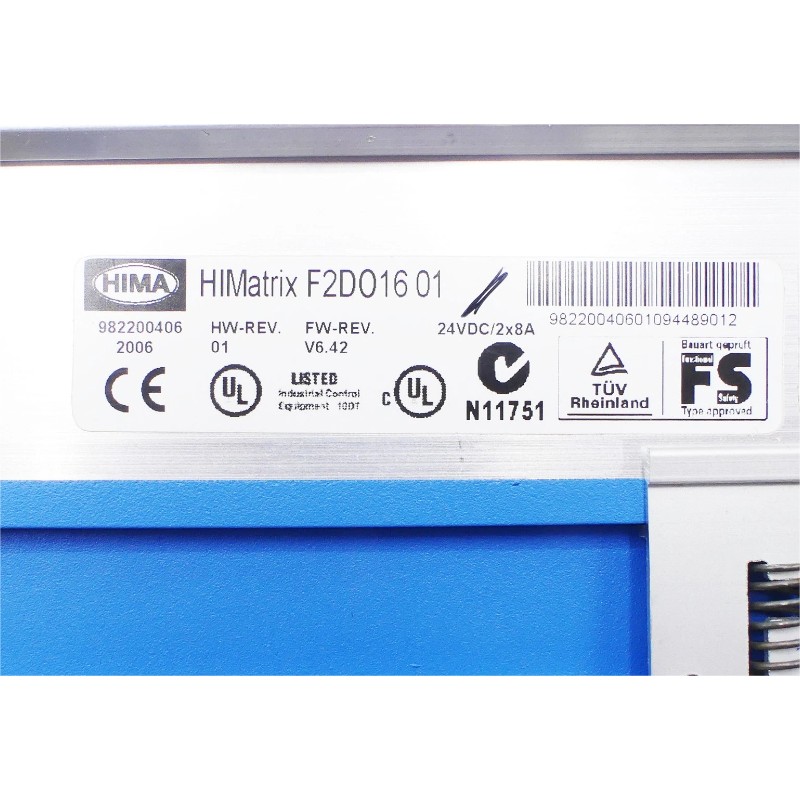

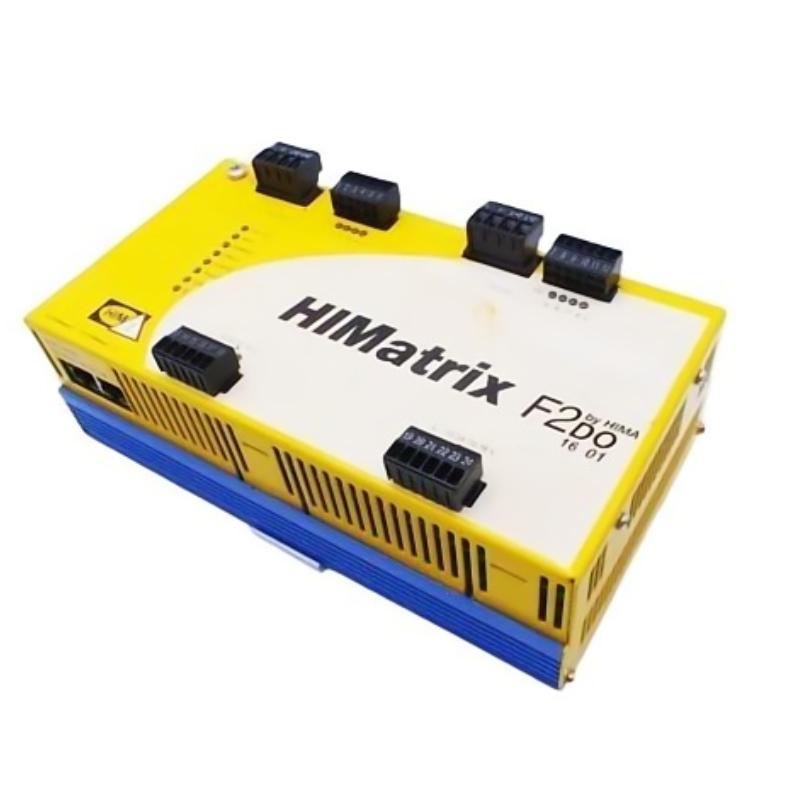

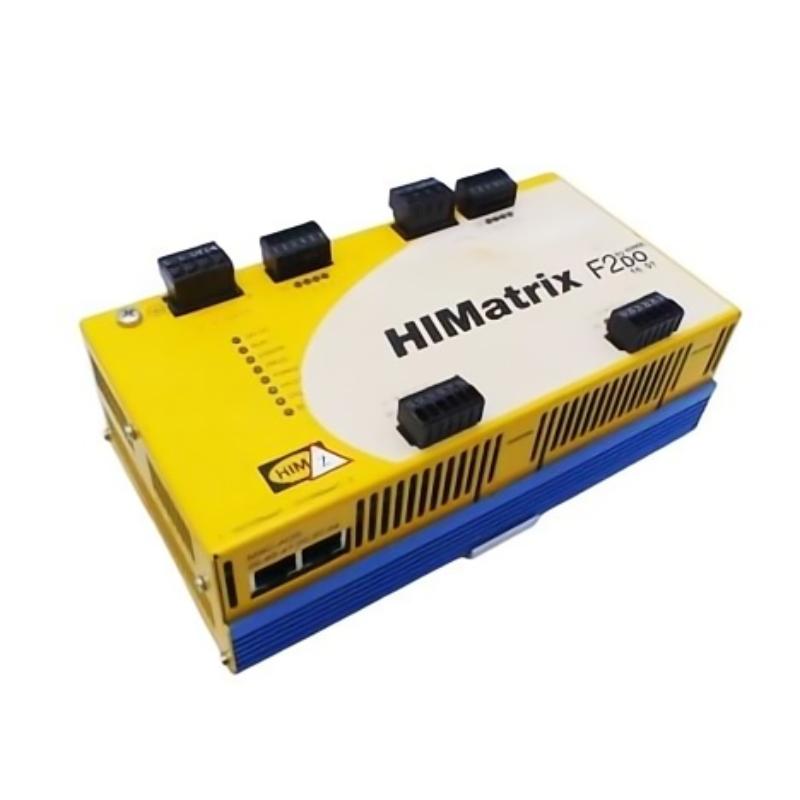

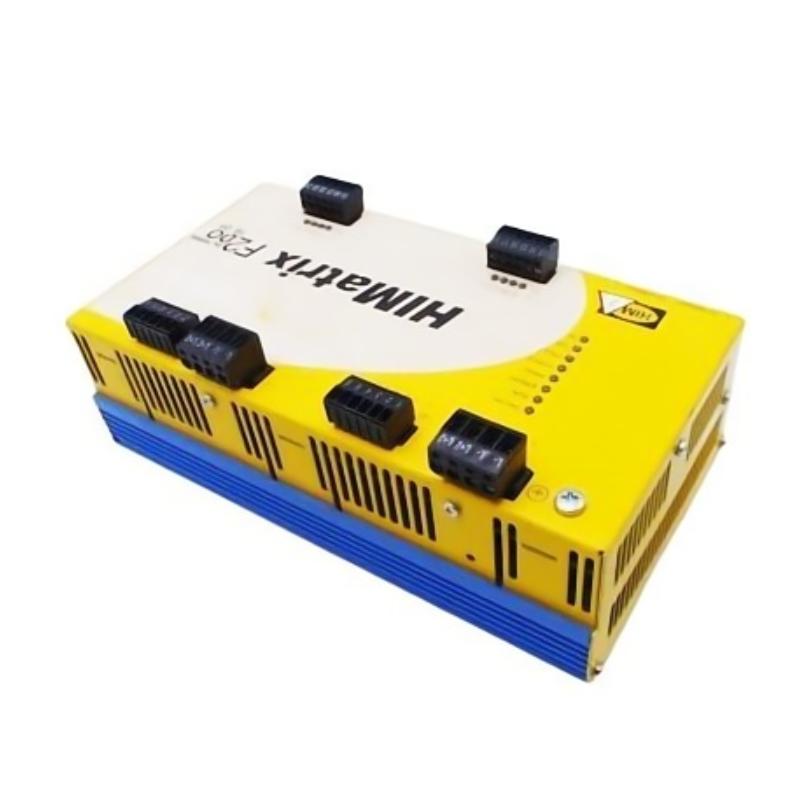

Hima F2 DO 16 01 Remote I/O Module (HIMatrix System)

Overview

The Hima F2 DO 16 01 is a digital output remote I/O module designed for the HIMatrix safety and automation system. It delivers reliable signal control and communication for critical safety applications, ensuring precise and fail-safe operation in industrial environments.

General Information

Part Number: F2 DO 16 01

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F2

Type: Remote I/O Module / Digital Output

Mounting: DIN rail or cabinet installation within HIMatrix system

Technology: Safety-rated digital outputs, diagnostic support, fail-safe operation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via HIMatrix backplane

Protection: Short-circuit and overvoltage protection

Indicators: LEDs for module status, channel activity, and fault detection

Communication & Interface

Interface Ports: Backplane connection to HIMatrix system

Module Role: Provides 16 digital output channels for control of actuators or signaling devices

Diagnostics: Channel supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports system and module-level reset

I/O & Channels: 16 digital outputs; fail-safe signaling for critical safety applications

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 207 × 114 × 66 mm

Weight: 0.9 kg
