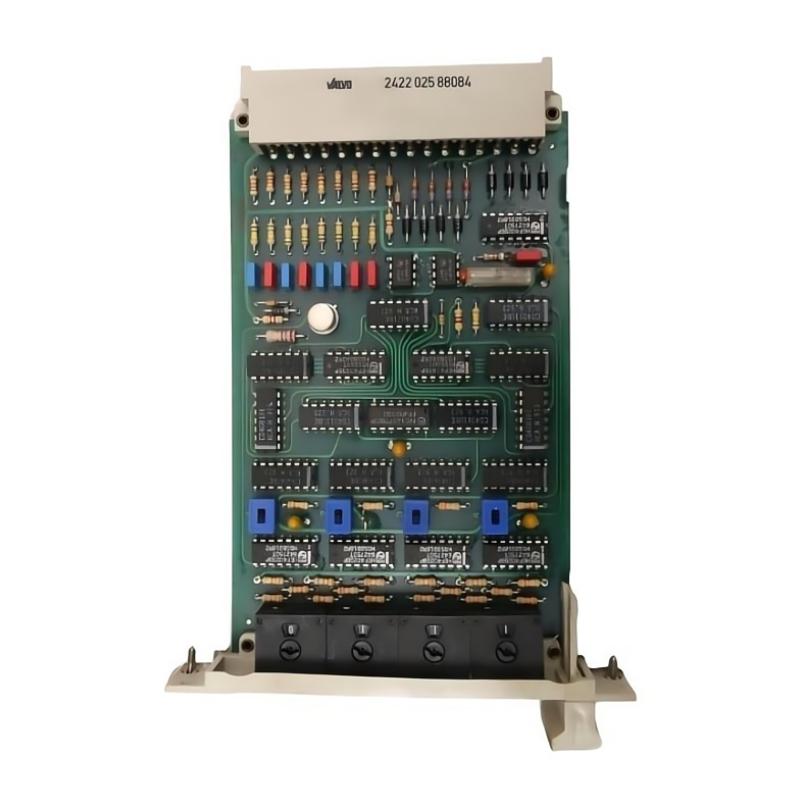

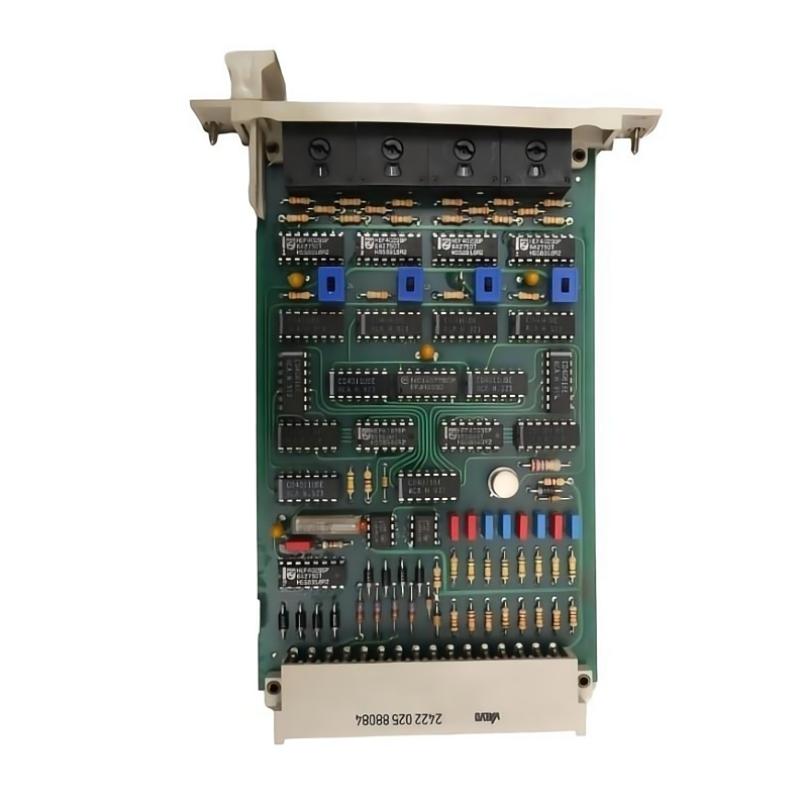

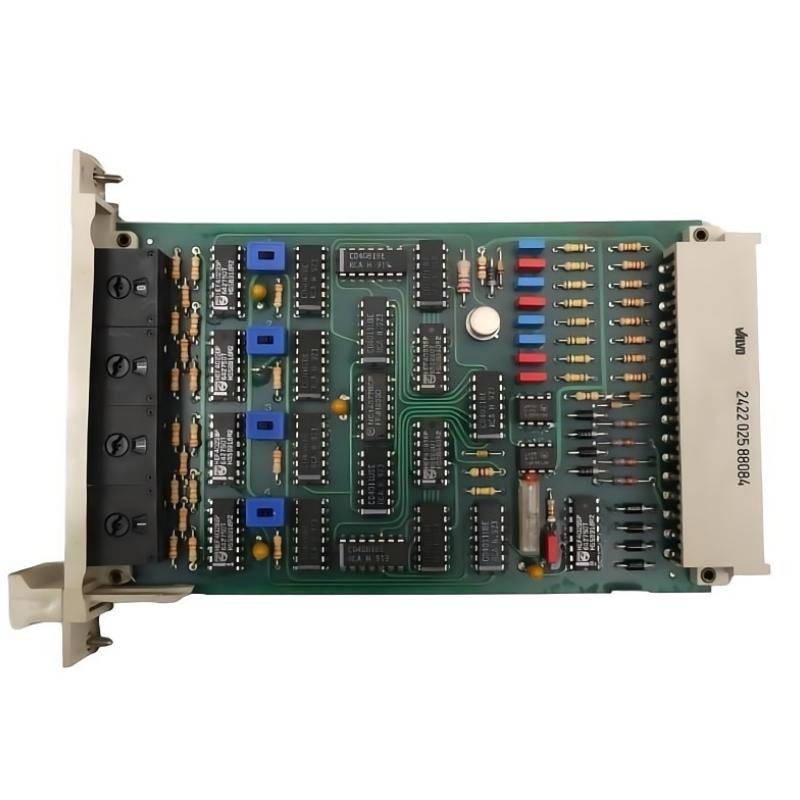

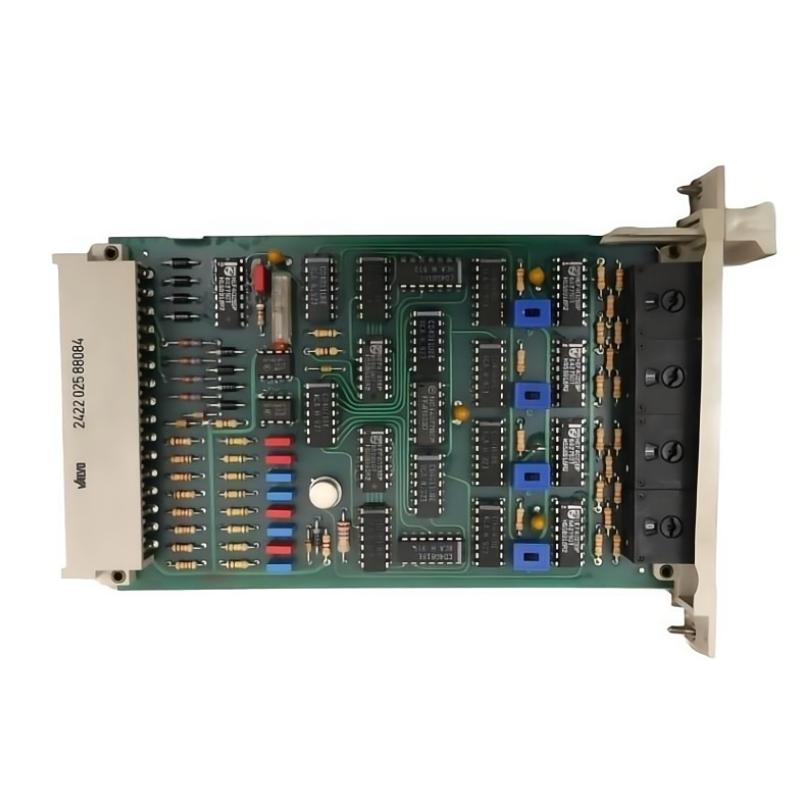

Hima F2102 Security-Related Application Modules (Planar F System)

Overview

The Hima F2102 is a security-related application module for the Planar F safety and automation system. It ensures fail-safe processing of critical safety functions, providing reliable signal handling and enhanced operational security in industrial automation applications.

General Information

Part Number: F2102

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Security-Related Application Module / Safety Controller

Mounting: DIN rail or cabinet installation within Planar F system

Technology: Safety-rated signal processing, diagnostic support, fail-safe operation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via Planar F system backplane

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, module status, and fault detection

Communication & Interface

Interface Ports: Backplane connection to Planar F system

Module Role: Executes safety-related functions, handling critical signals for secure system operation

Diagnostics: Channel supervision, fault detection, and operational status monitoring

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports system and module-level reset

I/O & Channels: Module-level safety processing; designed for critical security-related applications

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 150 × 30 × 100 mm

Weight: 0.4 kg
