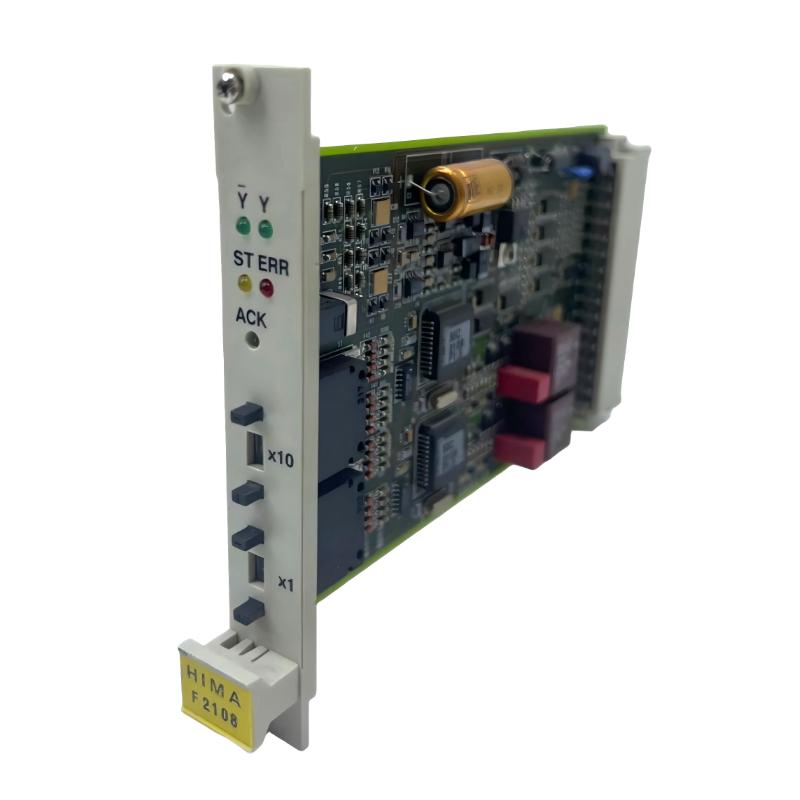

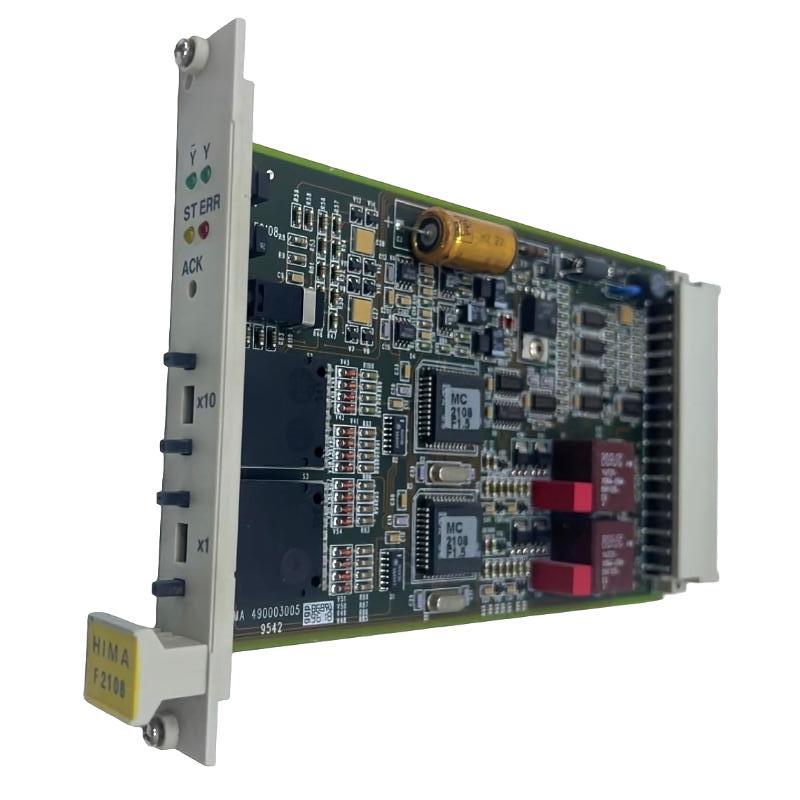

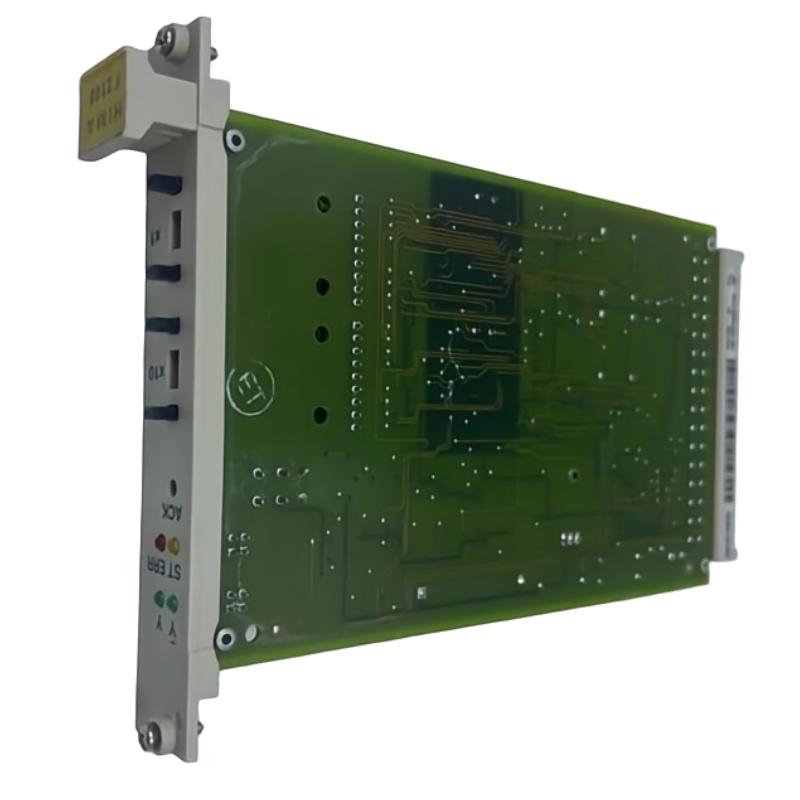

Hima F 2108 Safety-Related Multi-Functional Delay Module (Planar F System)

Overview

The Hima F 2108 is a safety-related multi-functional delay module for the Planar F automation system. It provides precise timing and delay functions for safety-critical processes, supporting flexible configuration of safety sequences and fail-safe operations in industrial environments.

General Information

Part Number: F 2108

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Multi-Functional Delay Module / Safety Controller

Mounting: DIN rail or cabinet installation within Planar F system

Technology: Safety-rated timing and delay functions, diagnostic support, fail-safe operation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via Planar F system backplane

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, module status, and fault detection

Communication & Interface

Interface Ports: Backplane connection to Planar F system

Module Role: Executes multi-functional delay and timing operations for safety-related outputs

Diagnostics: Channel supervision, fault detection, and operational status monitoring

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports system and module-level reset

I/O & Channels: Configurable delay outputs for safety functions; designed for precise sequencing

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 150 × 30 × 100 mm

Weight: 0.231 kg
