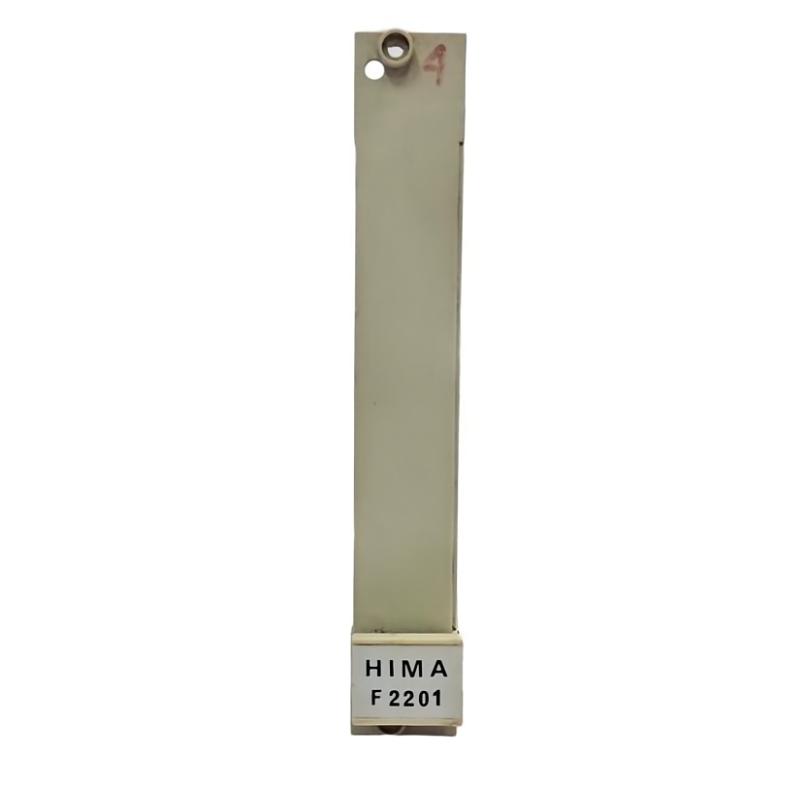

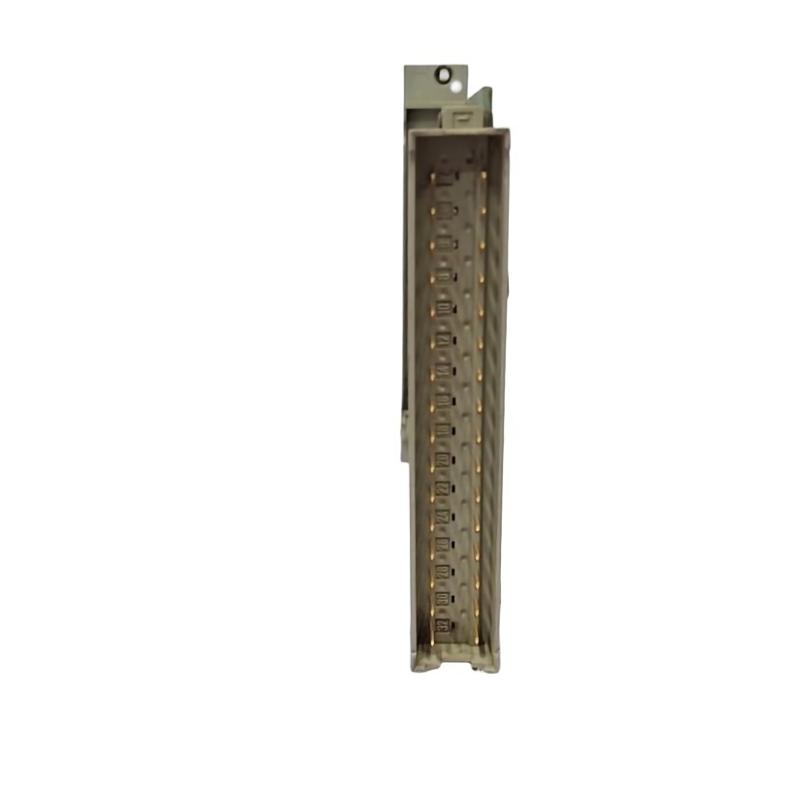

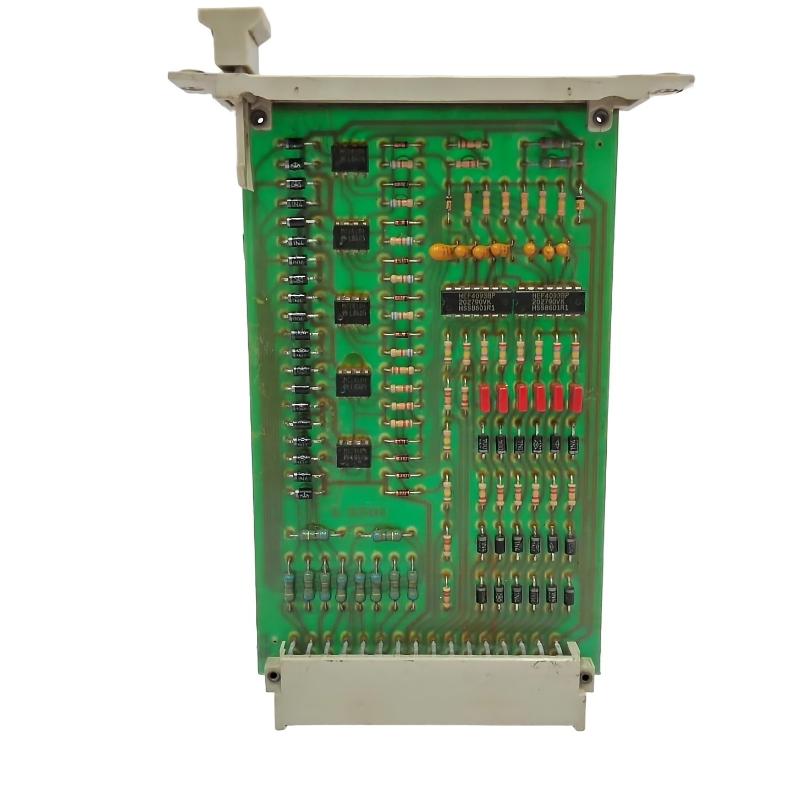

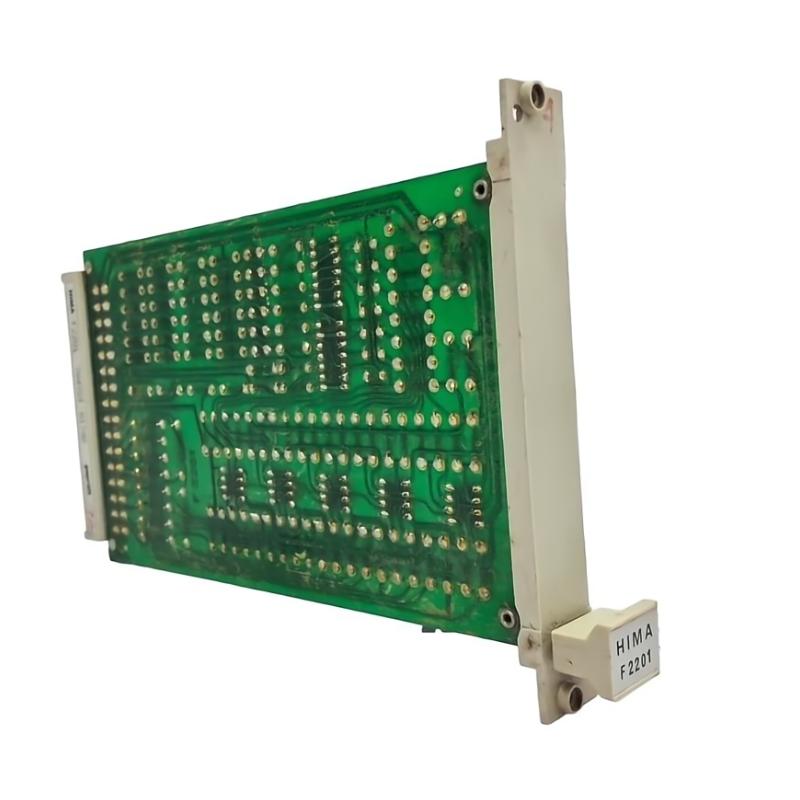

Hima F 2201 Safety-Related Controller Module (Planar F System)

Overview

The Hima F 2201 is a safety-related controller module designed for the Planar F automation and safety system. It provides reliable fail-safe control of critical processes, ensuring secure operation and system integrity in industrial safety applications.

General Information

Part Number: F 2201

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Safety-Related Controller Module / Digital Output

Mounting: DIN rail or cabinet installation within Planar F system

Technology: Safety-rated digital control, diagnostic support, fail-safe operation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via Planar F system backplane

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, module status, and fault detection

Communication & Interface

Interface Ports: Backplane connection to Planar F system

Module Role: Provides fail-safe control of critical outputs and system logic

Diagnostics: Channel supervision, fault detection, and operational status monitoring

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports system and module-level reset

I/O & Channels: Configurable outputs for safety-related applications

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 150 × 30 × 100 mm

Weight: 0.3 kg
