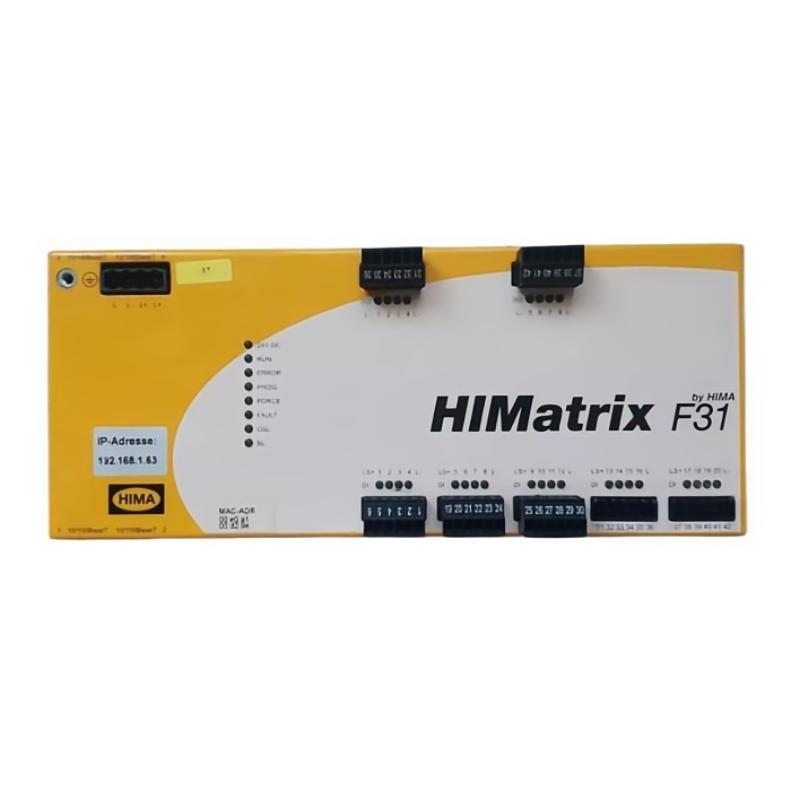

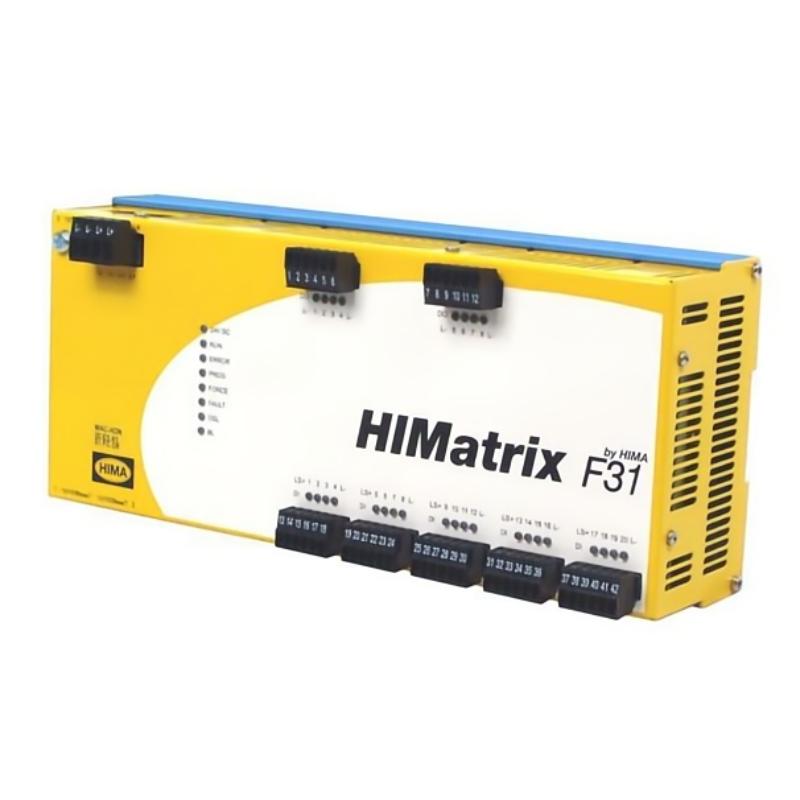

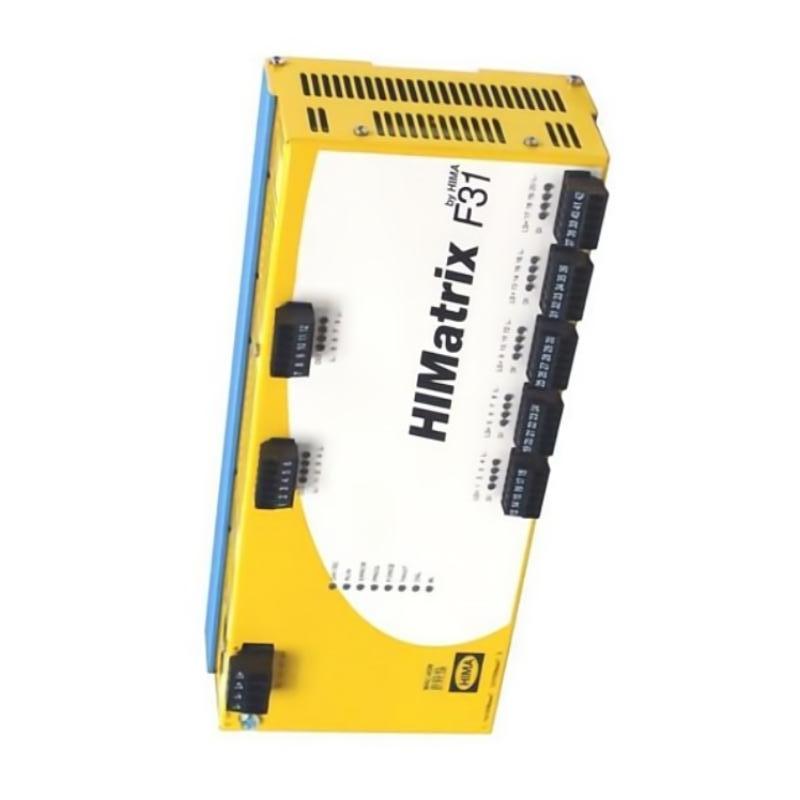

Hima F31 03 Security System Module Card (Planar F System)

Overview

The Hima F31 03 is a security system module card designed for integration into Planar F safety systems. It delivers reliable logic processing and monitoring for safety-critical applications, ensuring secure operation of automation systems. The module supports diagnostics and fault detection to maintain high system availability.

General Information

Part Number: F31 03

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F Module Cards

Type: Security System Module Card

Mounting: DIN rail or control cabinet rack installation

Technology: Safety-rated logic card, compatible with SIL 3 applications

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, system status, and fault

Communication & Interface

Bus Connection: Planar F system backplane interface

Module Role: Monitors and controls safety logic, communicates with other system modules

Diagnostics: Real-time monitoring, fault detection, and status reporting

Operator Interface: LED indicators and configuration via Planar F system software

Reset Features: Supports local and remote reset through the controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Industrial-grade design for harsh environments

Dimensions & Weight

Dimensions (L × W × H): 257 × 114 × 66 mm

Weight: 1.2 kg
