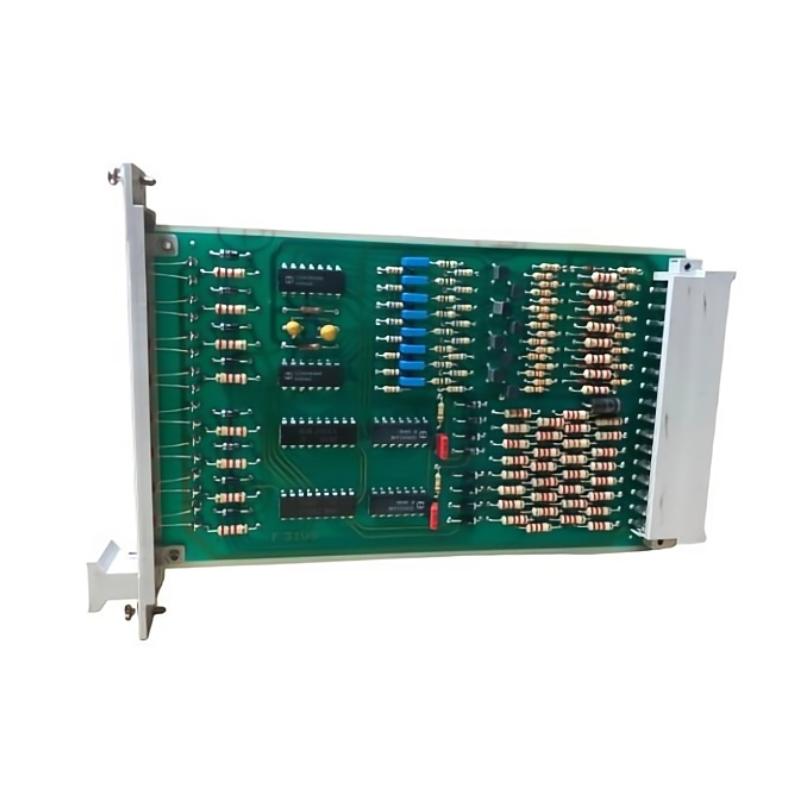

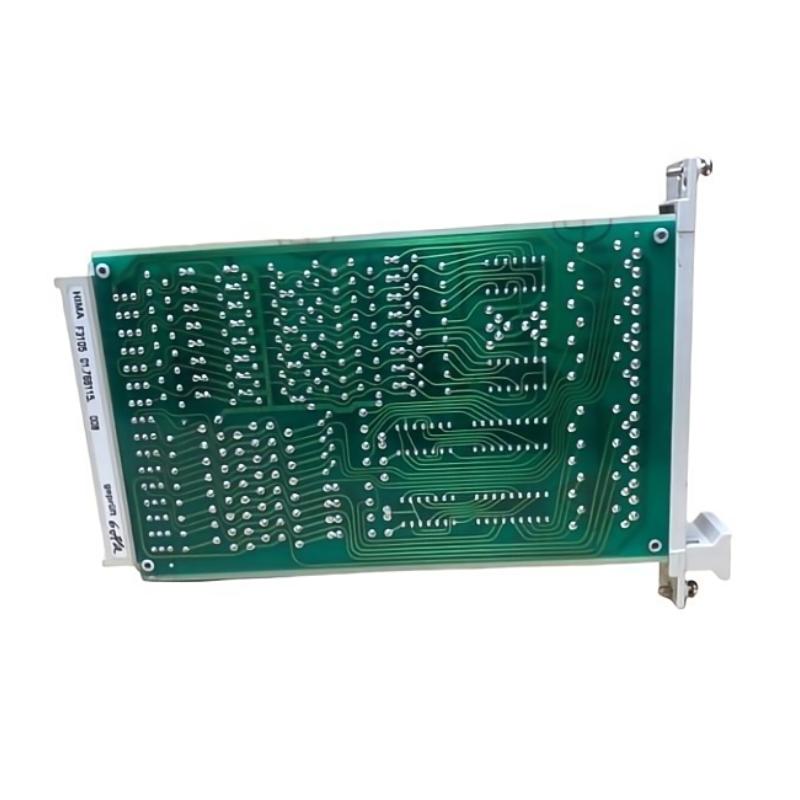

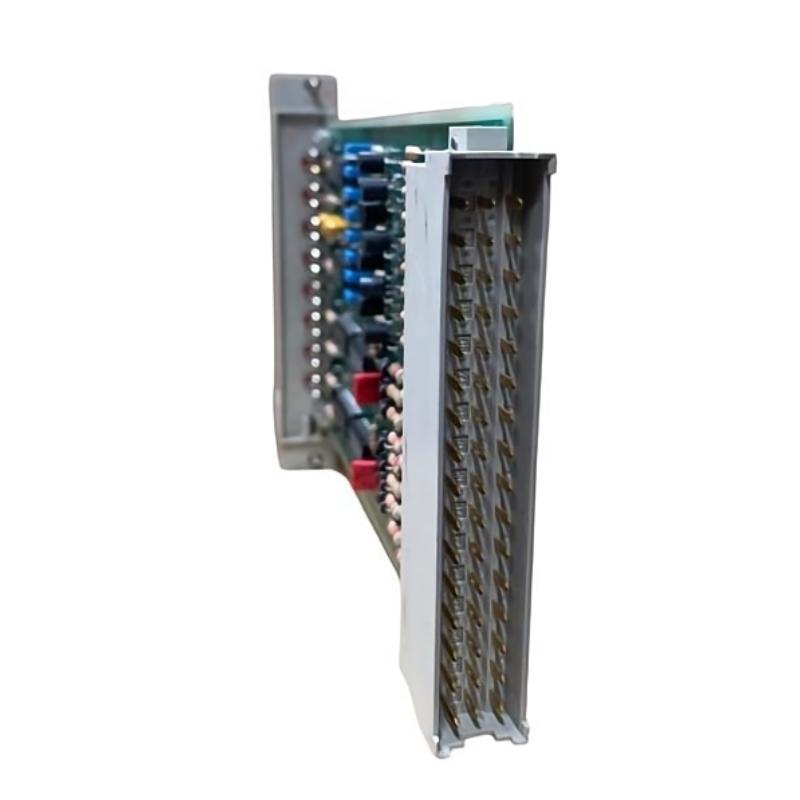

Hima F3105 4-Channel Relay Module (Planar F System)

Overview

The Hima F3105 is a 4-channel relay module designed for the Planar F safety system. It provides reliable switching of field devices in safety-critical applications. The module ensures fast response times, robust operation, and seamless integration with Planar F controllers and I/O modules, supporting real-time diagnostics and monitoring.

General Information

Part Number: F3105

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F Relay Modules

Type: 4-Channel Digital Relay Module

Mounting: DIN rail or control cabinet rack installation

Technology: Safety-rated relay output module, compatible with SIL 3 applications

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Output Current per Channel: 0.5 A max

Protection: Short-circuit and overvoltage protection

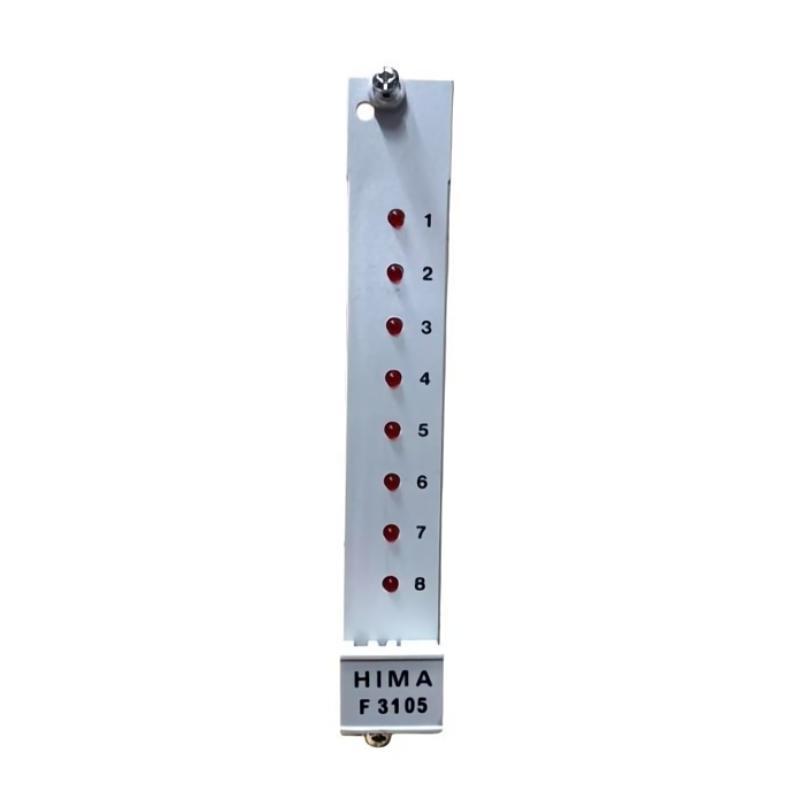

Indicators: LED status per channel for ON/OFF and fault

Communication & Interface

Bus Connection: Planar F system backplane interface

Module Role: Provides 4 relay outputs to control actuators or other field devices

Diagnostics: Channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators and system diagnostics via Planar F software

Reset Features: Supports local and remote reset via controller commands

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Designed to meet industrial-grade standards

Dimensions & Weight

Dimensions (L × W × H): 100 × 25 × 120 mm

Weight: 0.65 kg
