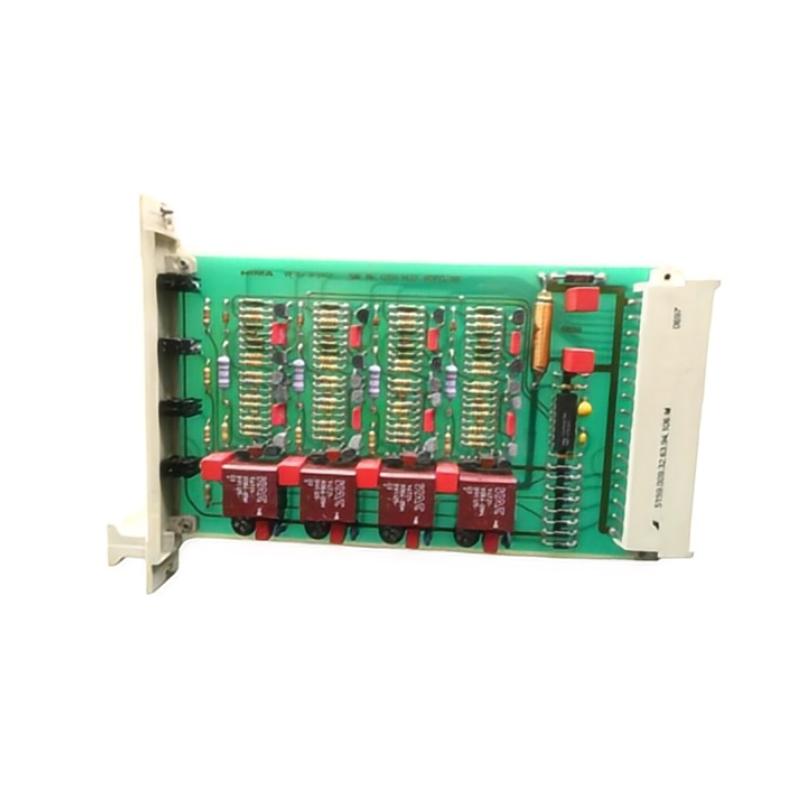

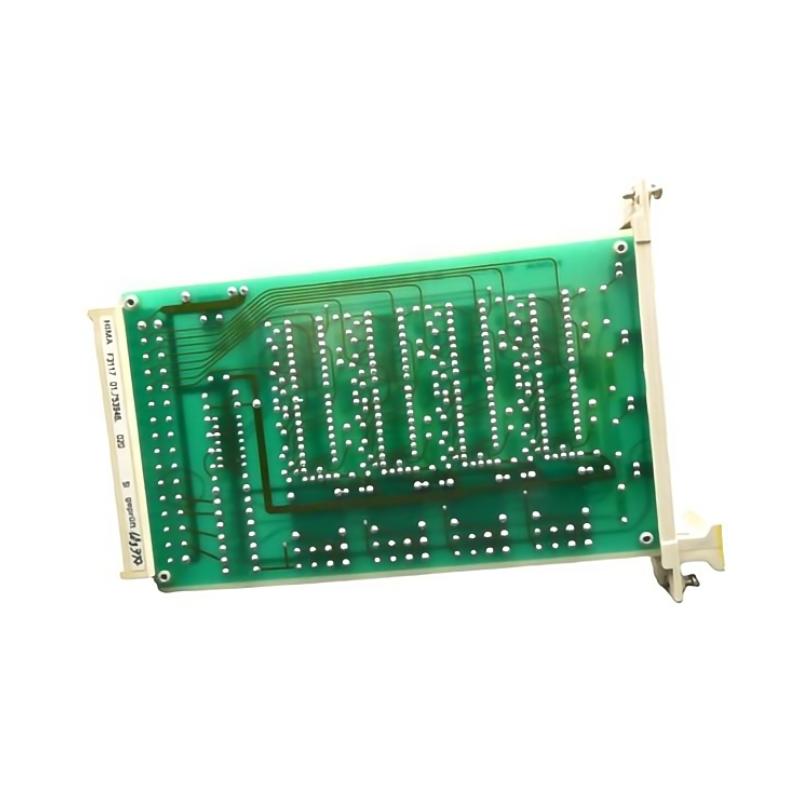

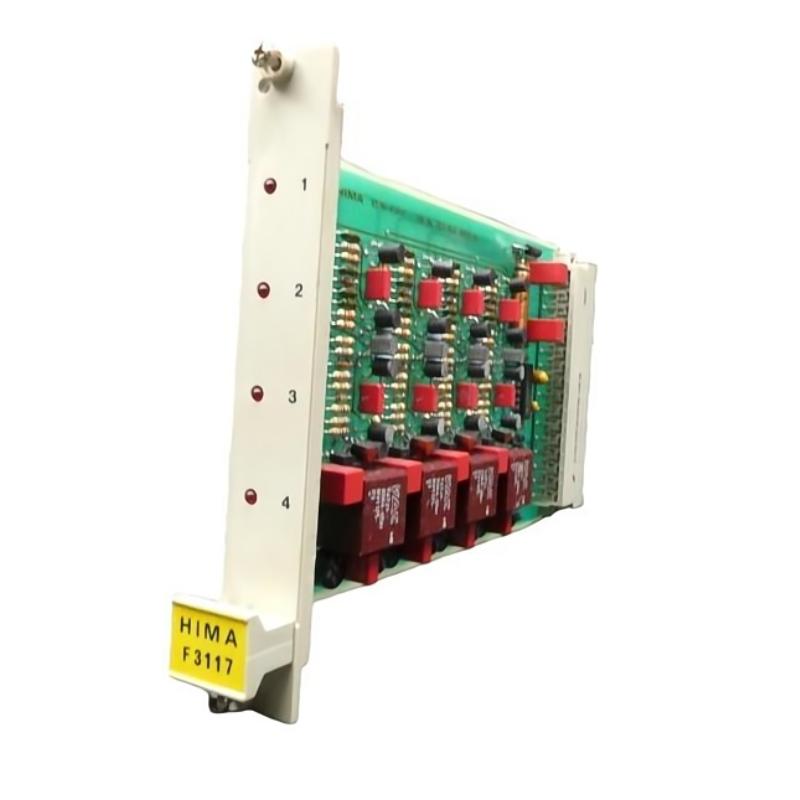

Hima F3117 4-Channel Safety Relay Amplifier Switch Module (Planar F System)

Overview

The Hima F3117 is a 4-channel safety relay amplifier switch module designed for the Planar F system. It provides safe and reliable amplification of relay signals, ensuring secure operation of safety-critical field devices. The module supports fast switching, clear diagnostics, and seamless integration with Planar F controllers and I/O modules.

General Information

Part Number: F3117

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F Relay Modules

Type: 4-Channel Safety Relay Amplifier Module

Mounting: DIN rail or control cabinet rack installation

Technology: Safety-rated relay amplification, compatible with SIL 3 systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Output Current per Channel: 0.5 A max

Protection: Short-circuit and overvoltage protection

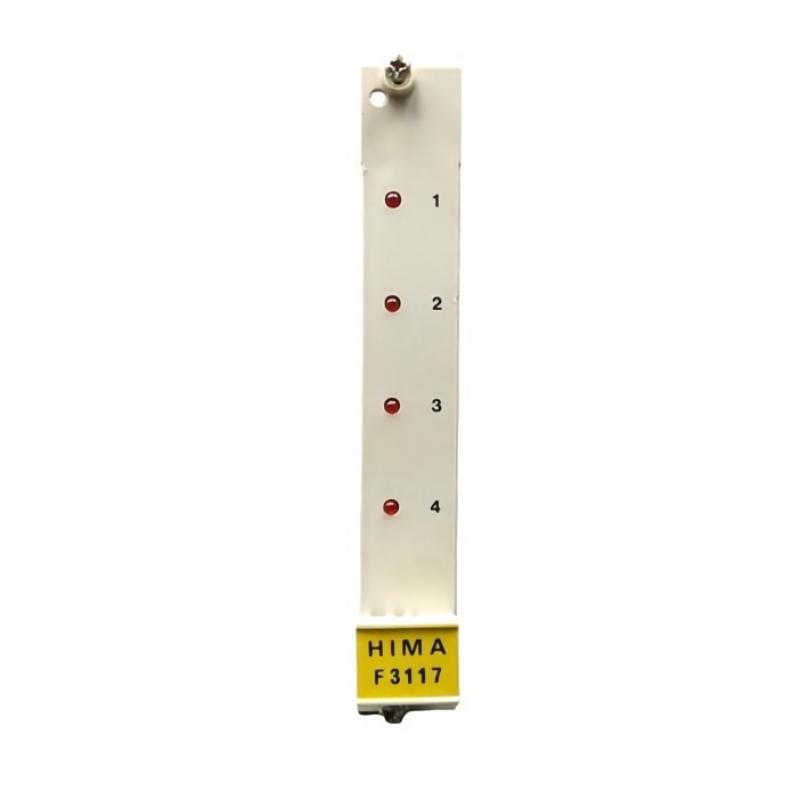

Indicators: LEDs for power, communication, and channel status

Communication & Interface

Bus Connection: Planar F system backplane interface

Module Role: Amplifies relay outputs for safety-critical devices

Diagnostics: Channel monitoring, fault detection, and system status reporting

Operator Interface: LED indicators and configuration via Planar F software

Reset Features: Supports local and remote reset through controller commands

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Industrial-grade design for harsh environments

Dimensions & Weight

Dimensions (L × W × H): 130 × 25 × 120 mm

Weight: 0.37 kg
