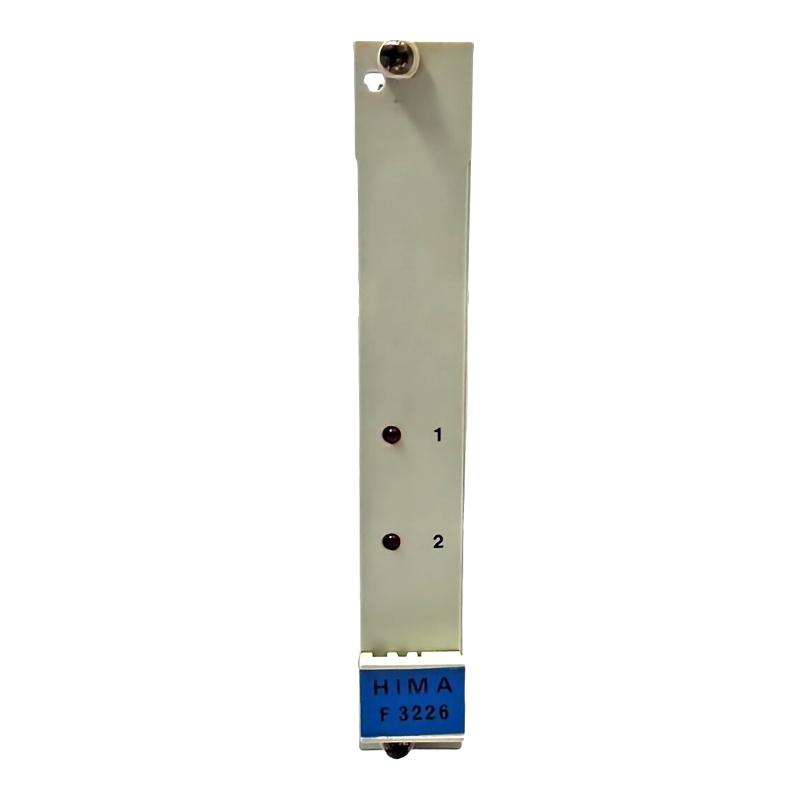

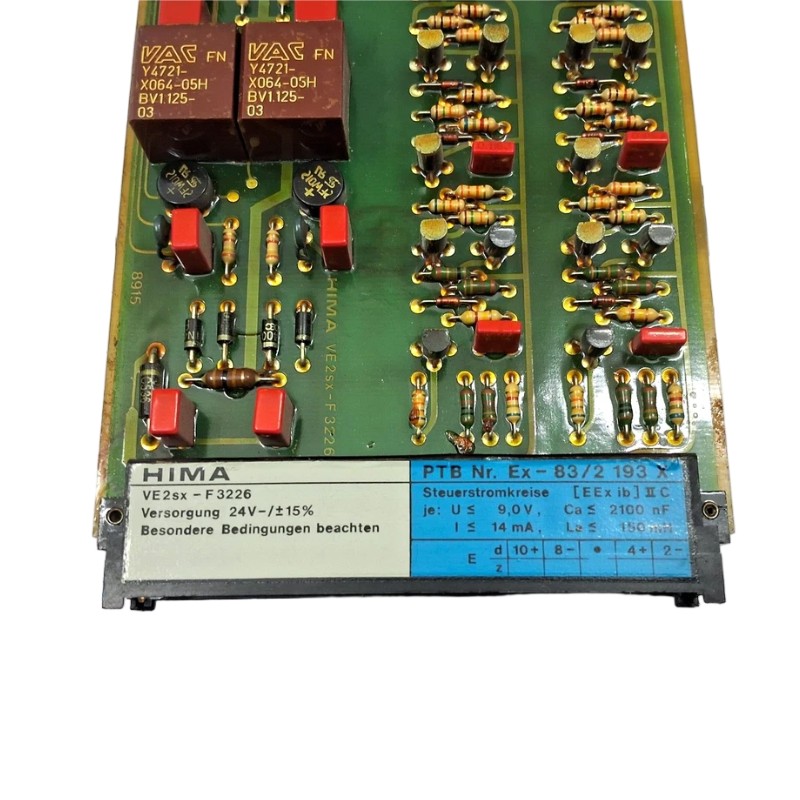

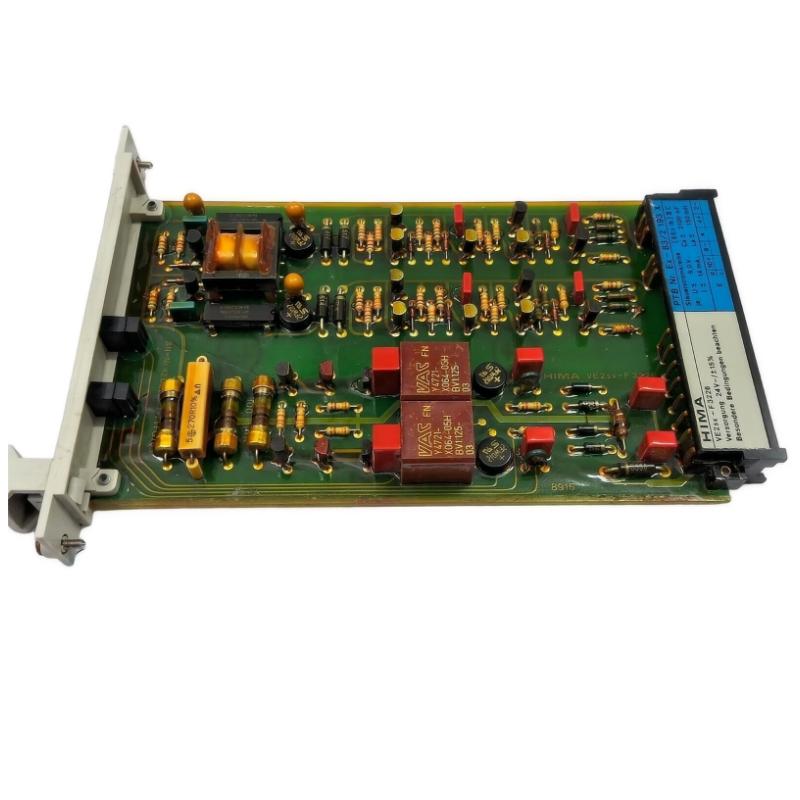

Hima F3226 2-Channel Safety-Related Switching Amplifier Module (Planar F System)

Overview

The Hima F3226 is a 2-channel safety-related switching amplifier module designed for the Planar F system. It provides reliable amplification and switching of safety signals to drive actuators and field devices in critical applications. The module ensures rapid response, high operational reliability, and full diagnostic monitoring for safety compliance.

General Information

Part Number: F3226

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F Amplifier Modules

Type: 2-Channel Safety-Related Switching Amplifier Module

Mounting: DIN rail or control cabinet rack installation

Technology: Safety-rated switching amplifier, compatible with SIL 3 applications

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Output Current per Channel: Configurable

Protection: Short-circuit and overvoltage protection

Indicators: LEDs for power, channel status, and fault conditions

Communication & Interface

Bus Connection: Planar F system backplane interface

Module Role: Amplifies and switches output signals for safety-critical devices

Diagnostics: Channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators and configuration via Planar F system software

Reset Features: Supports local and remote reset through the controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Designed for industrial-grade environments

Dimensions & Weight

Dimensions (L × W × H): 193 × 117 × 40 mm

Weight: 0.168 kg
