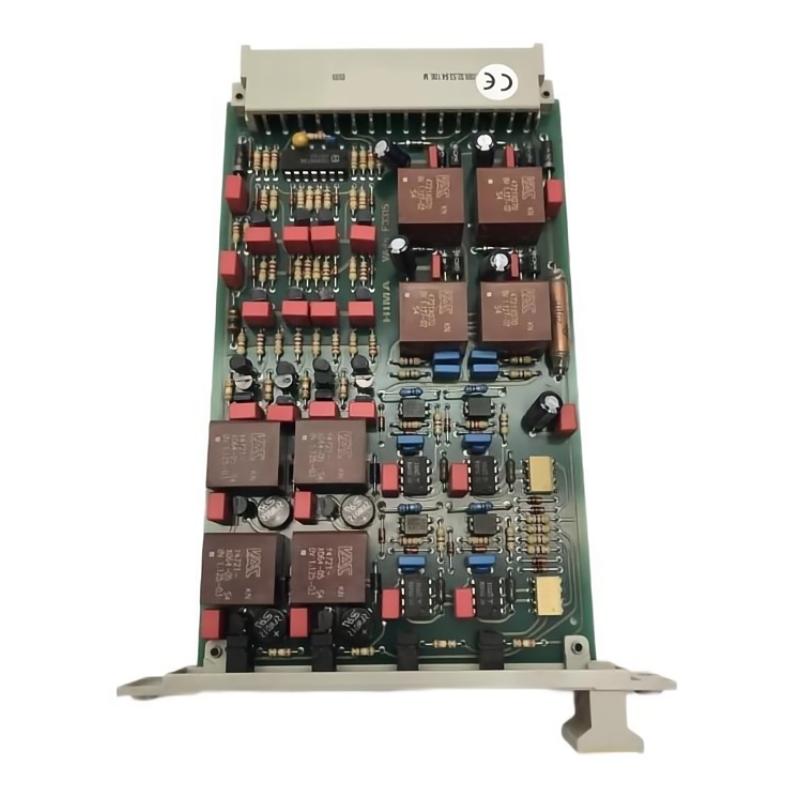

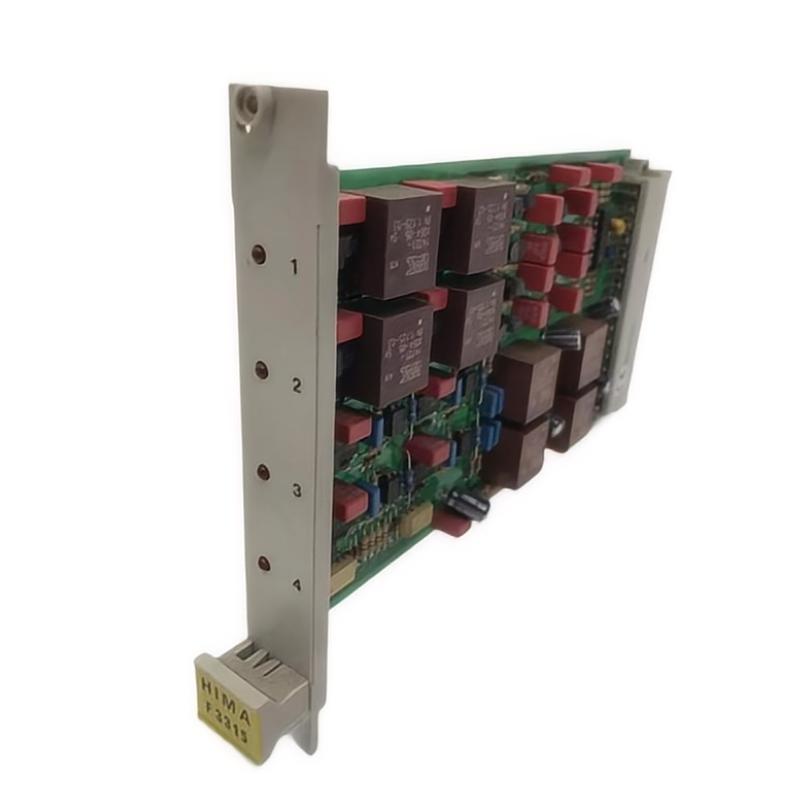

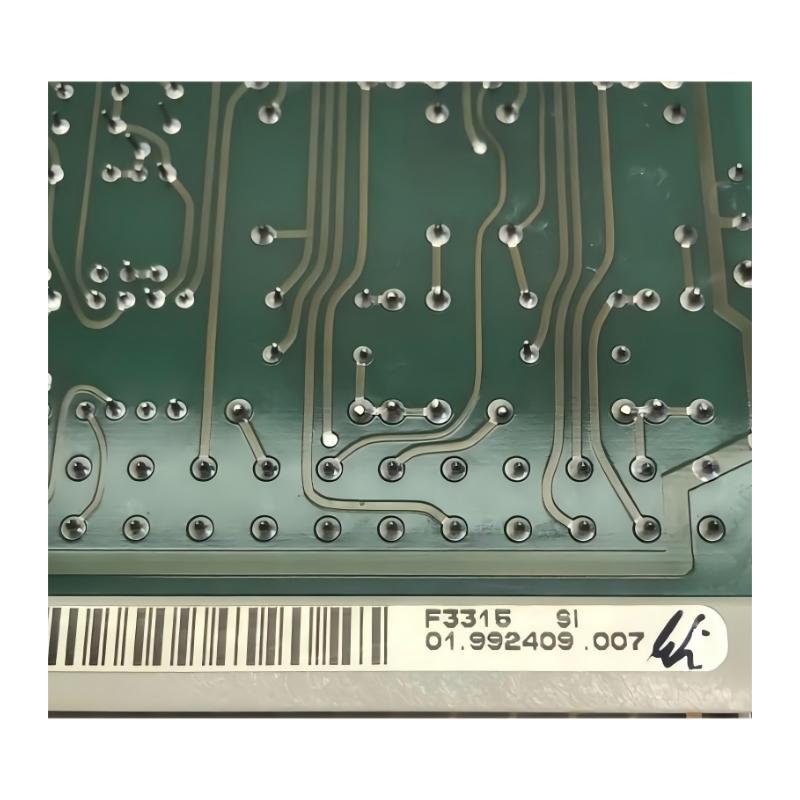

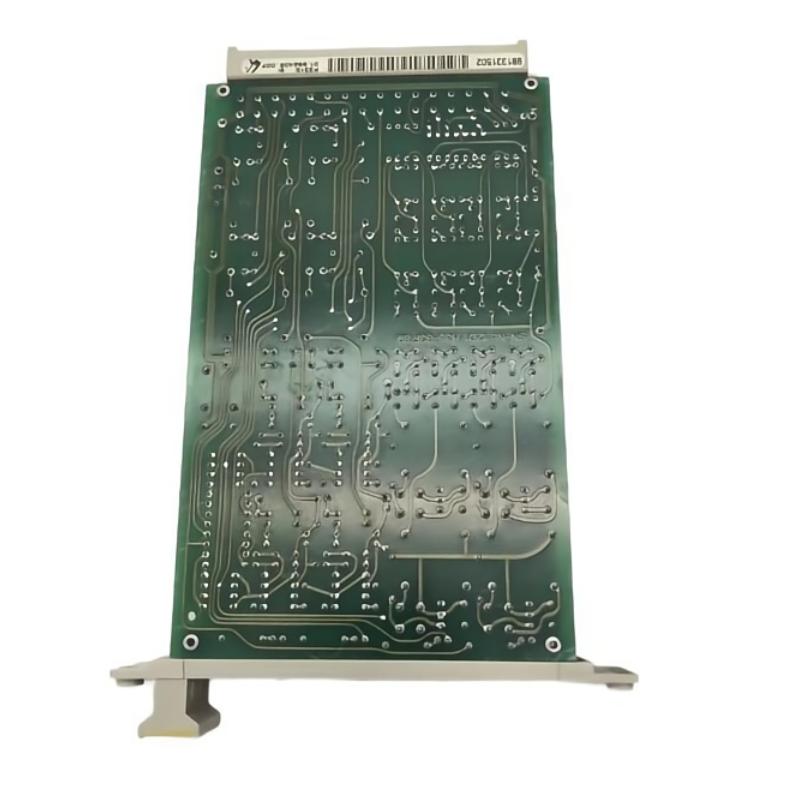

Hima F3315 98 1331502 Switching Amplifier Module (Planar F System)

Overview

The Hima F3315 Switching Amplifier Module is engineered for the Planar F safety system, providing reliable signal amplification and safe transmission from field devices to the safety controller. It ensures precise processing of safety signals and supports high-speed redundancy for uninterrupted operation in critical industrial environments.

General Information

Part Number: 98 1331502

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F-Series Safety Modules

Type: Switching Amplifier Module

Mounting: DIN rail or backplane mounting within Planar F system racks

Technology: Signal amplification, safety-rated processing, LED diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered directly from the system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Planar F system backplane for signal routing

Input/Output Channels: Configurable for multiple digital input or output signals

Diagnostics: Individual channel monitoring, fault reporting, and system integration alerts

Operator Interface: LED indicators for channel status and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Compliant with IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 200 × 100 × 25 mm

Weight: ~ 0.3 kg
