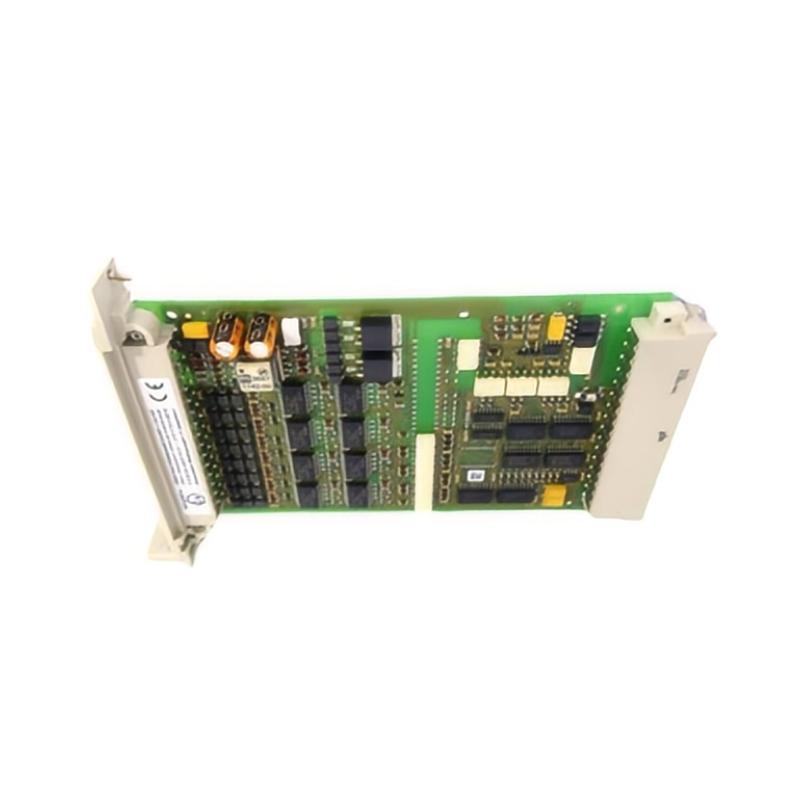

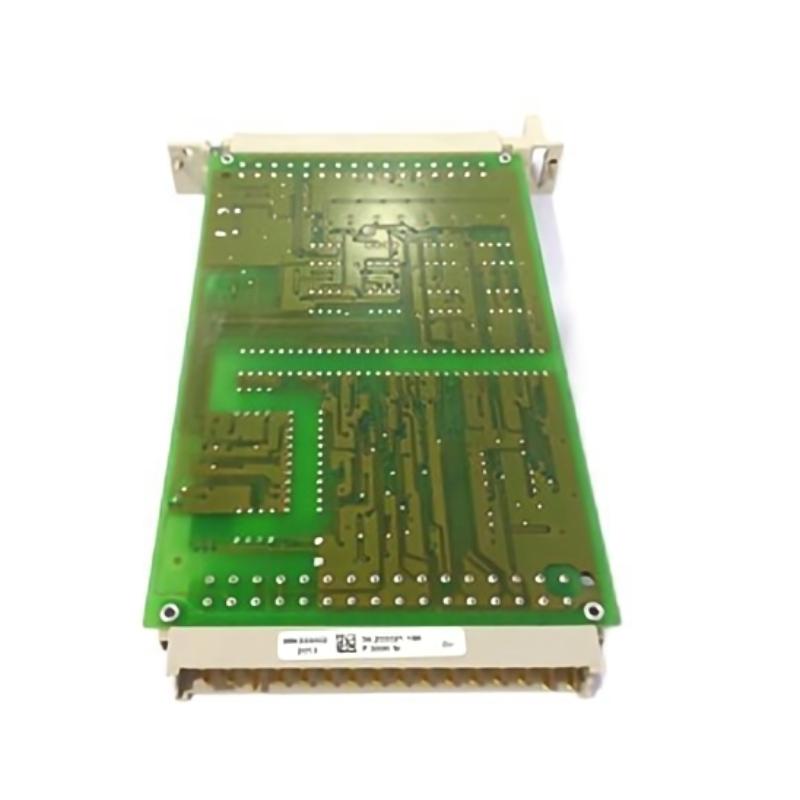

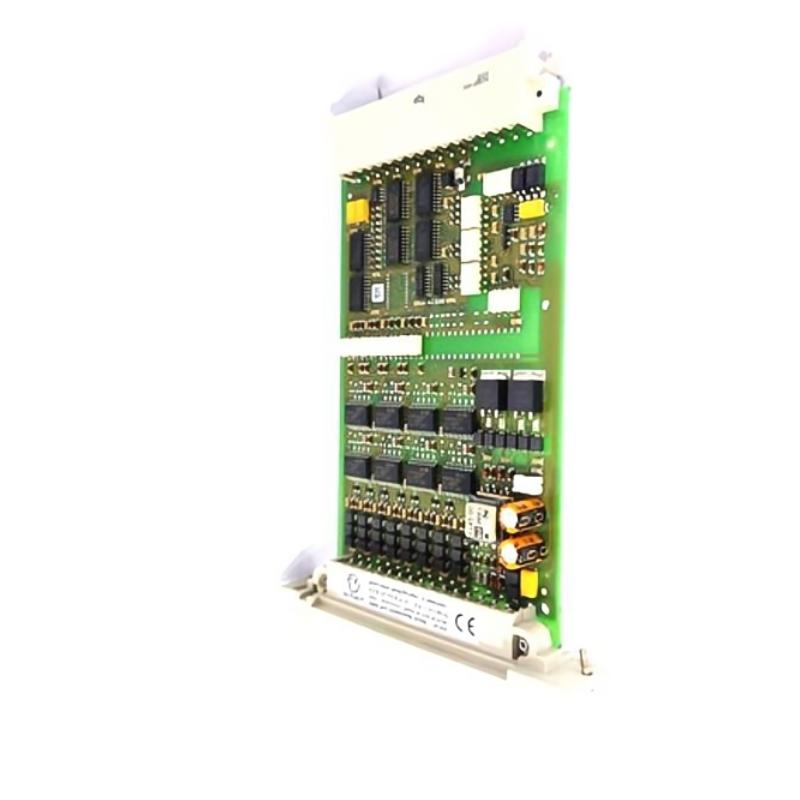

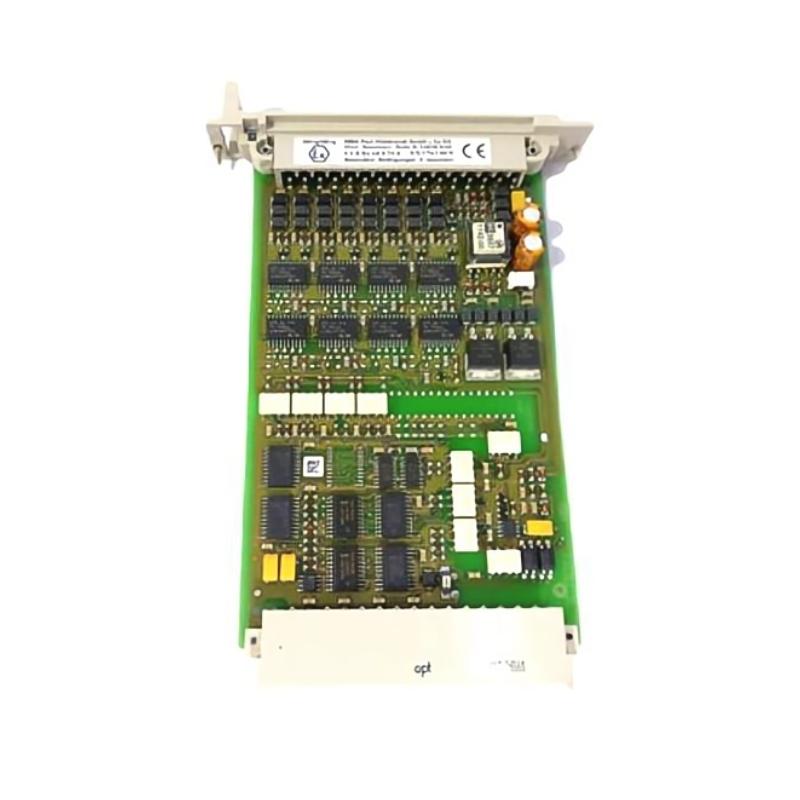

Hima F3316 Switching Amplifier Module (Planar F System)

Overview

The Hima F3316 is a switching amplifier module designed for the Planar F safety system. It provides reliable amplification and safe transmission of signals from field devices to the safety controller, ensuring precise and secure monitoring of critical industrial processes. The module supports high-speed redundancy for uninterrupted safety operation.

General Information

Part Number: F3316

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F-Series Safety Modules

Type: Switching Amplifier Module

Mounting: DIN rail or backplane mounting within Planar F system racks

Technology: Safety-rated signal amplification, LED diagnostics, redundant processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered directly from the system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Planar F system backplane for signal routing

Input/Output Channels: Configurable for multiple digital signals

Diagnostics: Individual channel monitoring, fault signaling, and system integration alerts

Operator Interface: LED indicators for channel and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 200 × 100 × 25 mm

Weight: ~ 0.3 kg
