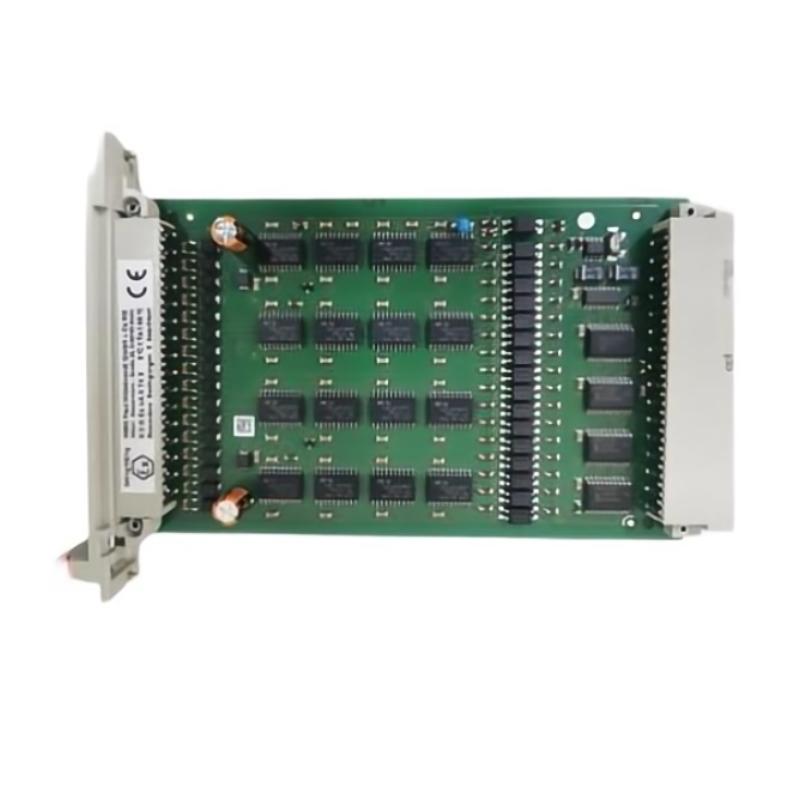

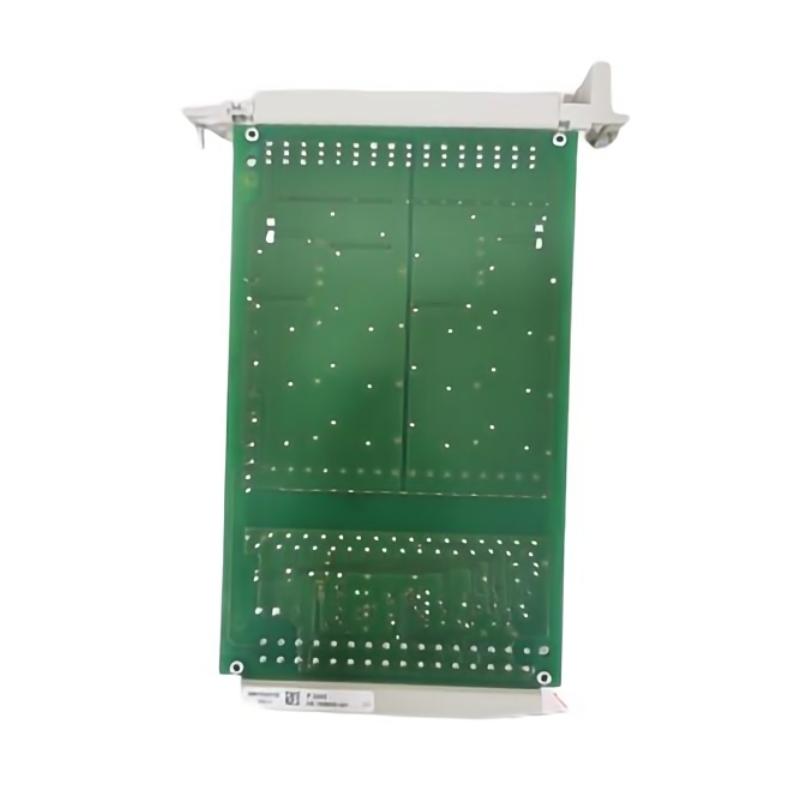

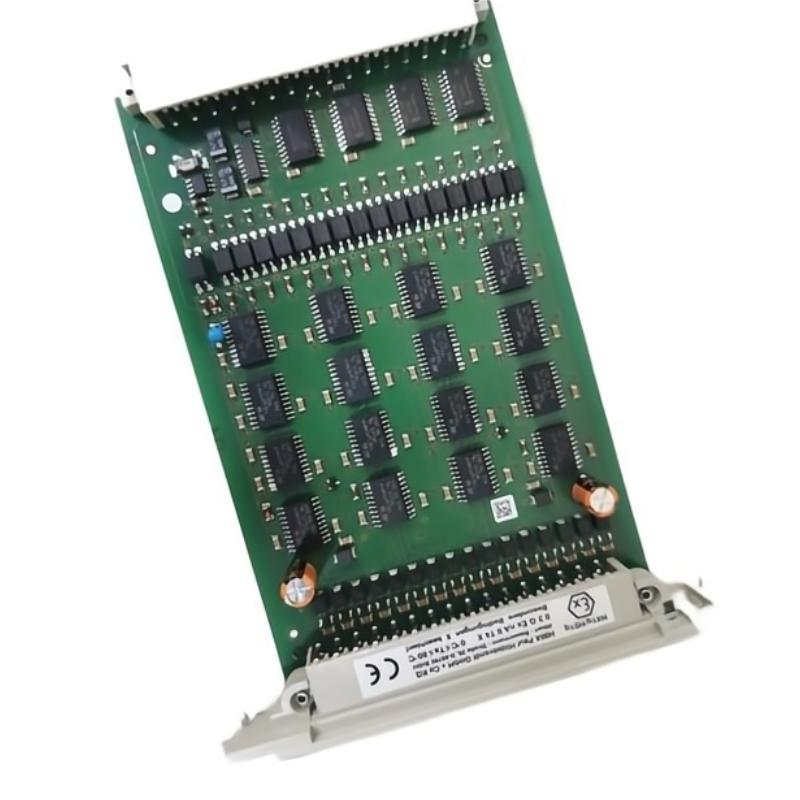

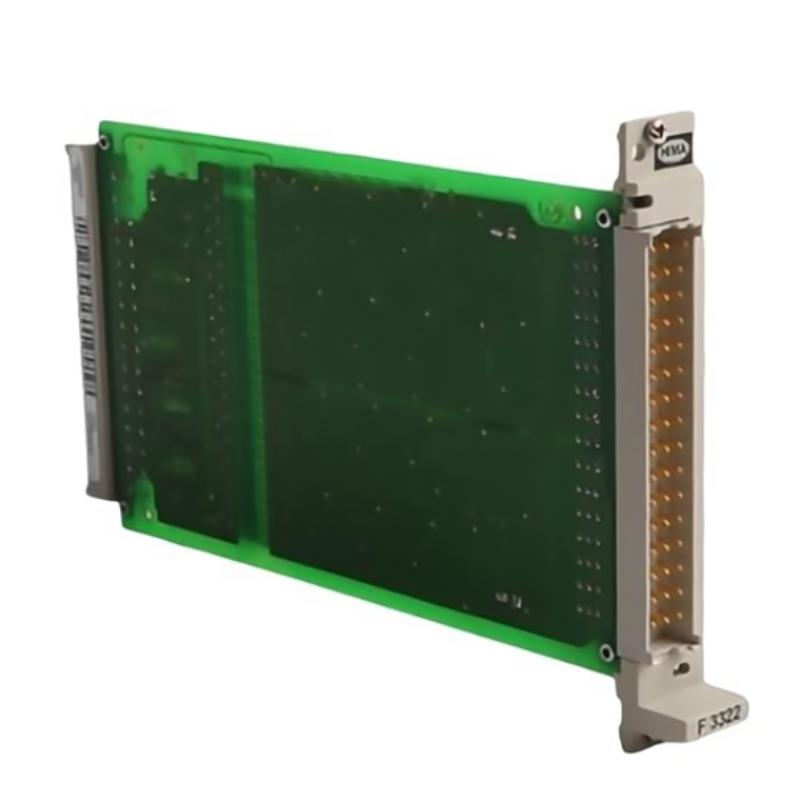

Hima F3322 16-Channel Output Module

Overview

The Hima F3322 is a 16-channel output module designed for industrial safety systems. It enables secure and reliable signal output from the safety controller to field devices, supporting precise operation of actuators and alarms in critical automation processes. The module is engineered for high-speed response and robust redundancy.

General Information

Part Number: F3322

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F-Series Output Modules

Type: Digital Output Module

Mounting: DIN rail or backplane mounting within safety system racks

Technology: Safety-rated output processing, LED status indicators, redundant channel monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for each channel status and module health

Communication & Interface

Bus Interface: Connects to safety system backplane for signal routing

Output Channels: 16 digital outputs configurable for field devices

Diagnostics: Individual channel monitoring, fault signaling, and system integration alerts

Operator Interface: LED indicators for channel activity and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 120 × 160 × 40 mm

Weight: ~ 0.2 kg

New In Stock!
