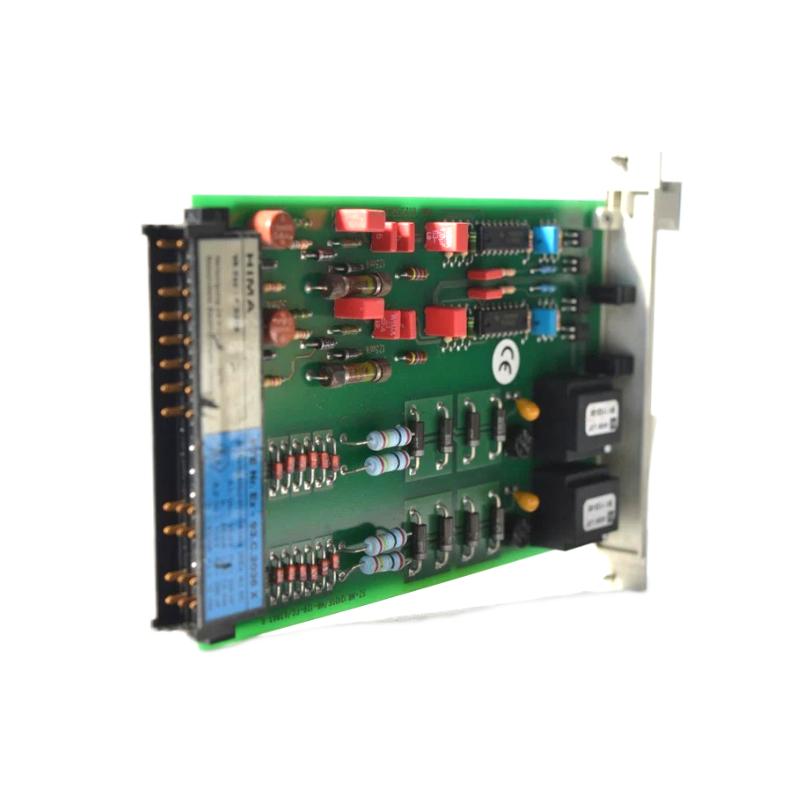

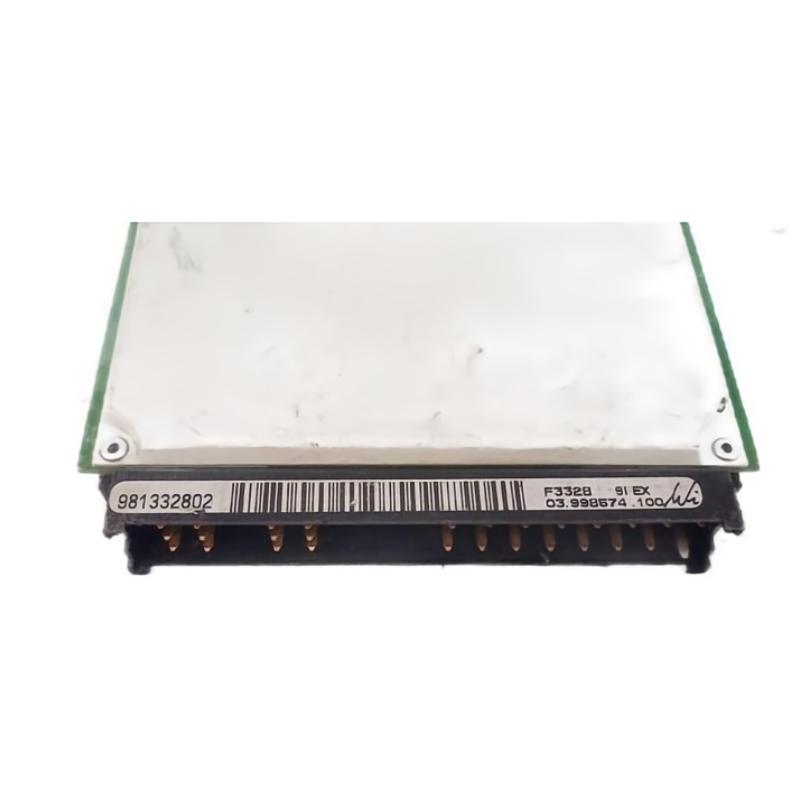

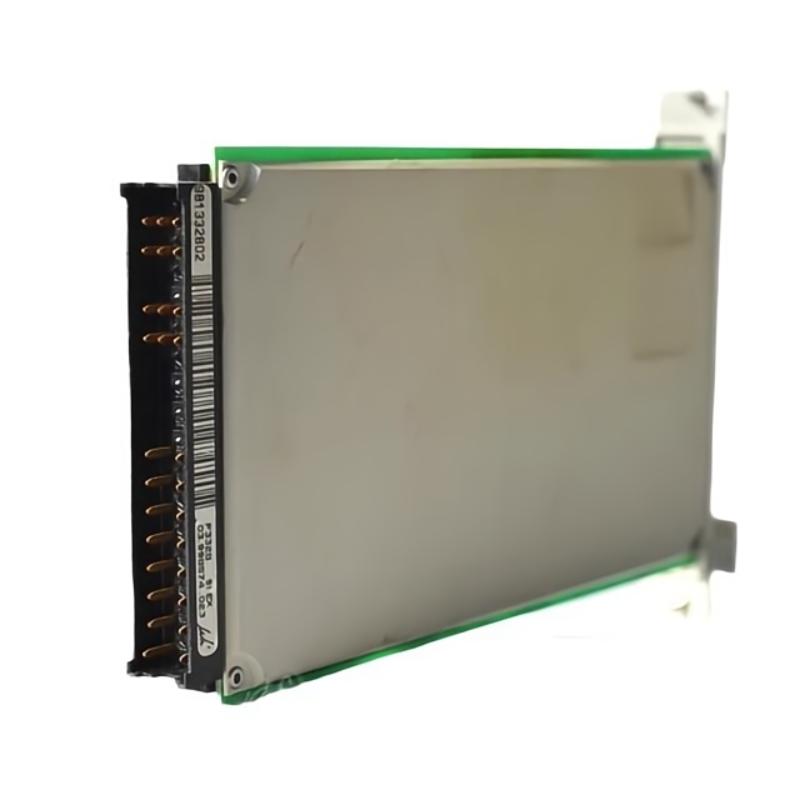

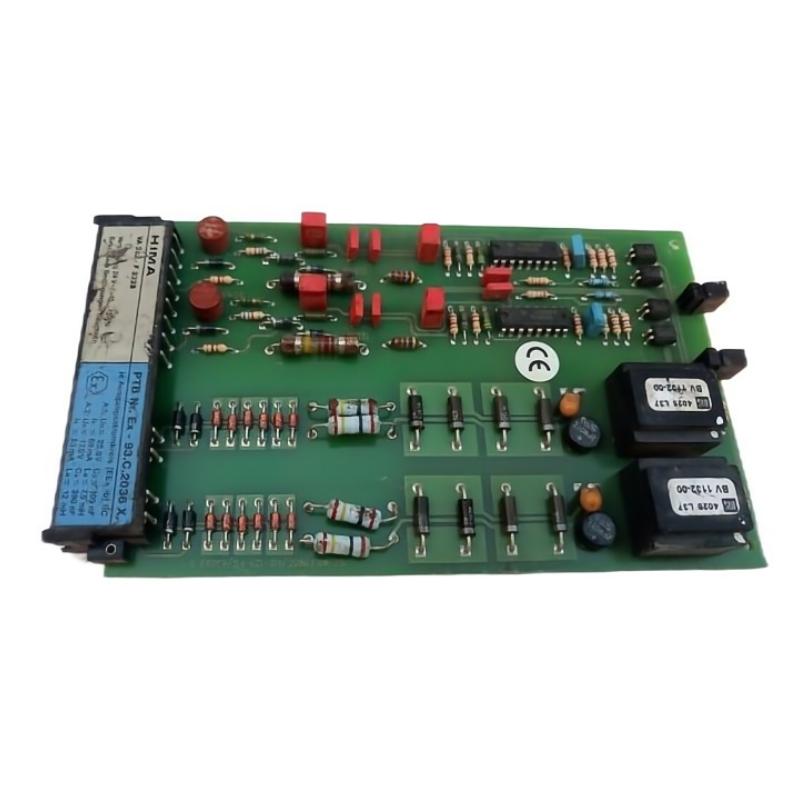

Hima F3328 Safety System Input Module (Planar F System)

Overview

The Hima F3328 is a safety system input module designed for the Planar F system. It provides secure and reliable acquisition of signals from field devices, ensuring accurate monitoring of safety-critical industrial processes. The module supports high-speed redundancy and seamless integration with safety controllers for uninterrupted operation.

General Information

Part Number: F3328

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F-Series Input Modules

Type: Safety System Input Module

Mounting: DIN rail or backplane mounting within Planar F system racks

Technology: Safety-rated input processing, redundant signal acquisition, LED diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 7 W

Input: Powered directly from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Planar F system backplane for signal acquisition

Input Channels: Multiple digital inputs configurable for field devices

Diagnostics: Individual channel monitoring, fault signaling, and system integration alerts

Operator Interface: LED indicators for each channel and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 120 × 160 × 40 mm

Weight: ~ 0.75 kg
