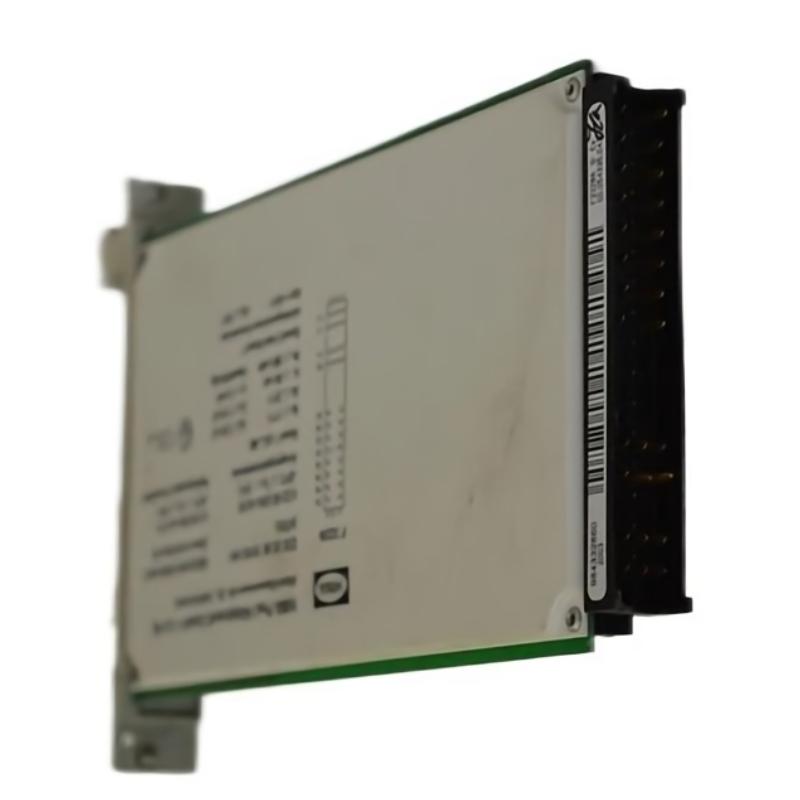

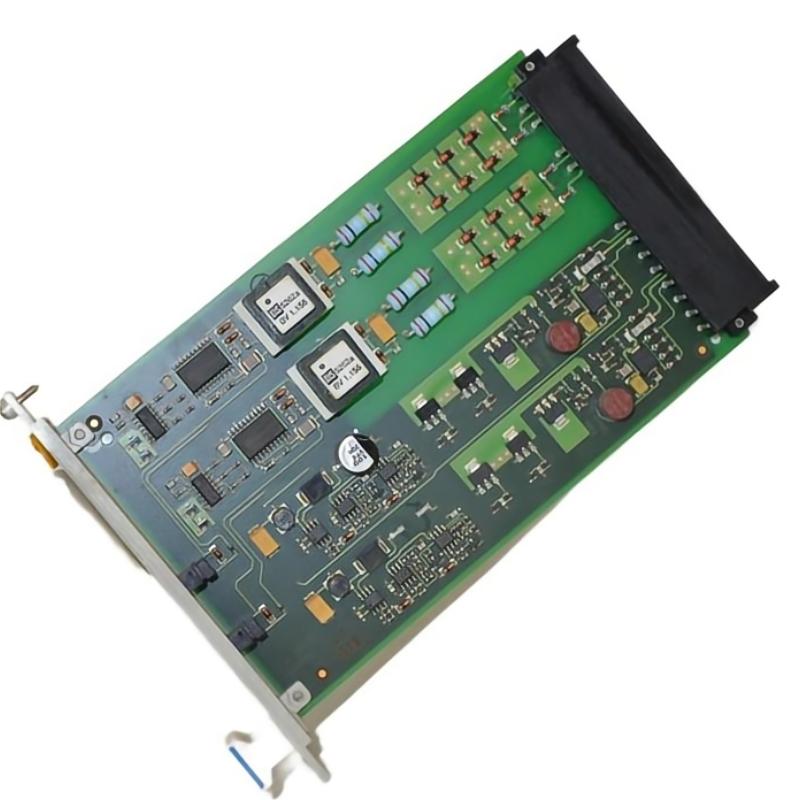

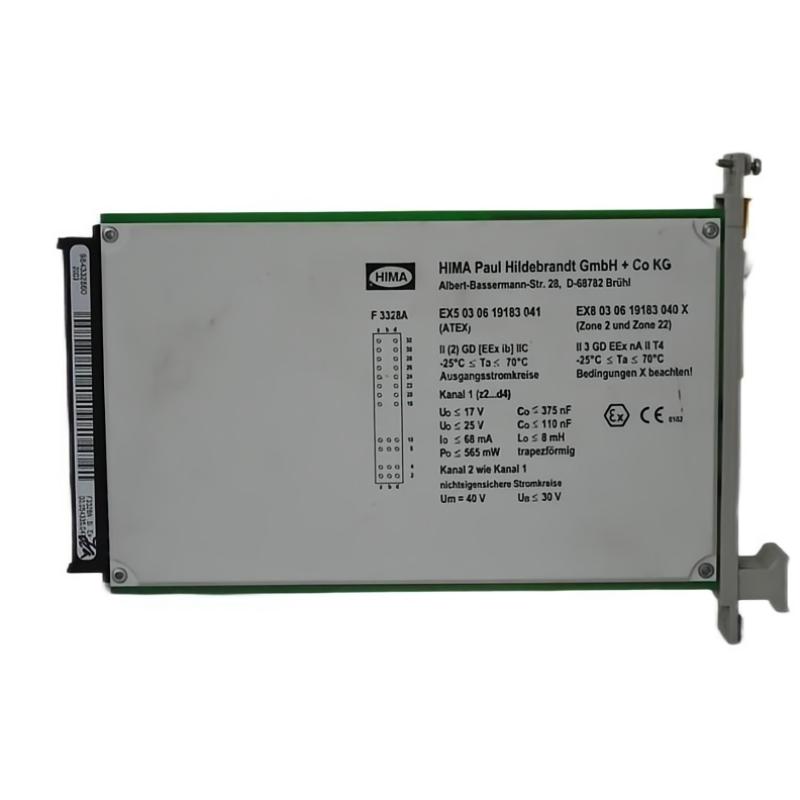

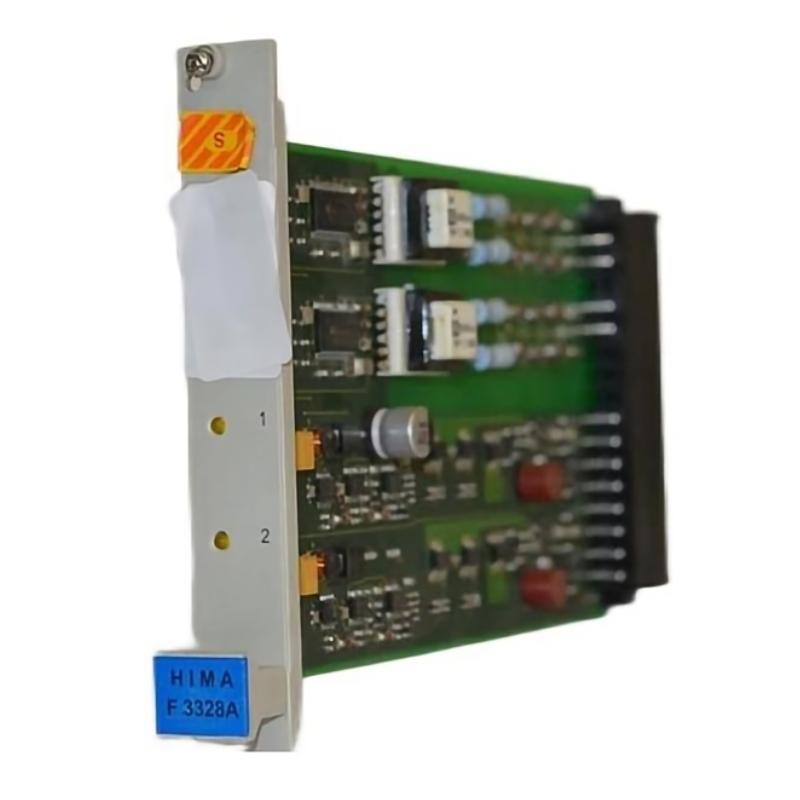

Hima F3328A Safety-Related Switching Amplifier (Planar F System)

Overview

The Hima F3328A is a safety-related switching amplifier module designed for the Planar F system. It provides reliable amplification and transmission of safety signals from field devices to the safety controller, ensuring precise and secure operation in critical industrial applications. The module supports redundancy and high-speed response for uninterrupted safety performance.

General Information

Part Number: F3328A

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: F-Series Safety Modules

Type: Safety-Related Switching Amplifier

Mounting: DIN rail or backplane mounting within Planar F system racks

Technology: Safety-rated signal amplification, redundant processing, LED diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered directly from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Planar F system backplane for signal routing

Input/Output Channels: Configurable for digital signal amplification

Diagnostics: Individual channel monitoring, fault signaling, and system integration alerts

Operator Interface: LED indicators for module health and channel status

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 120 × 160 × 40 mm

Weight: ~ 1 kg
