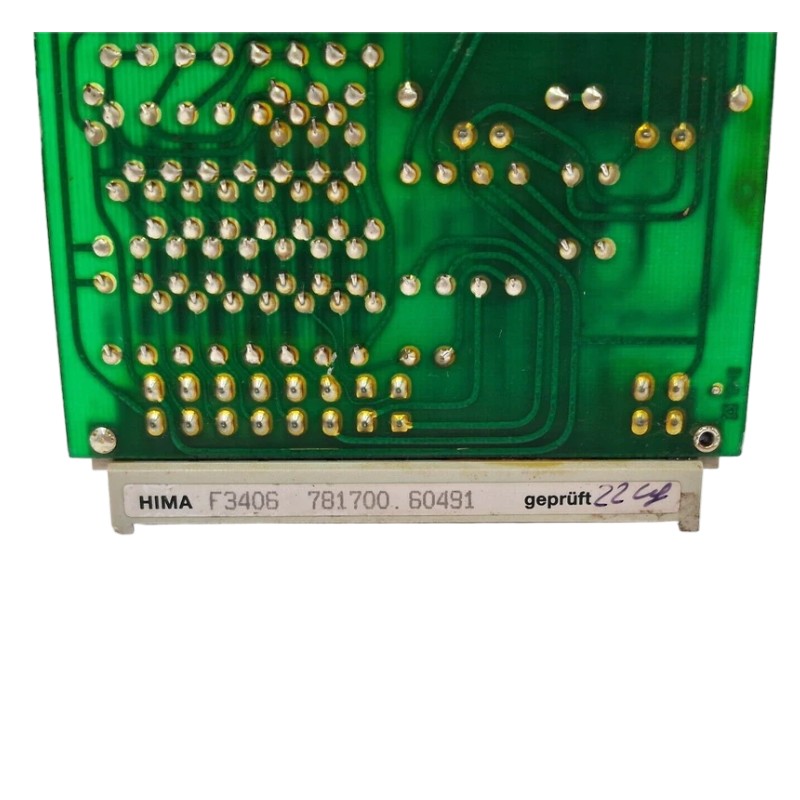

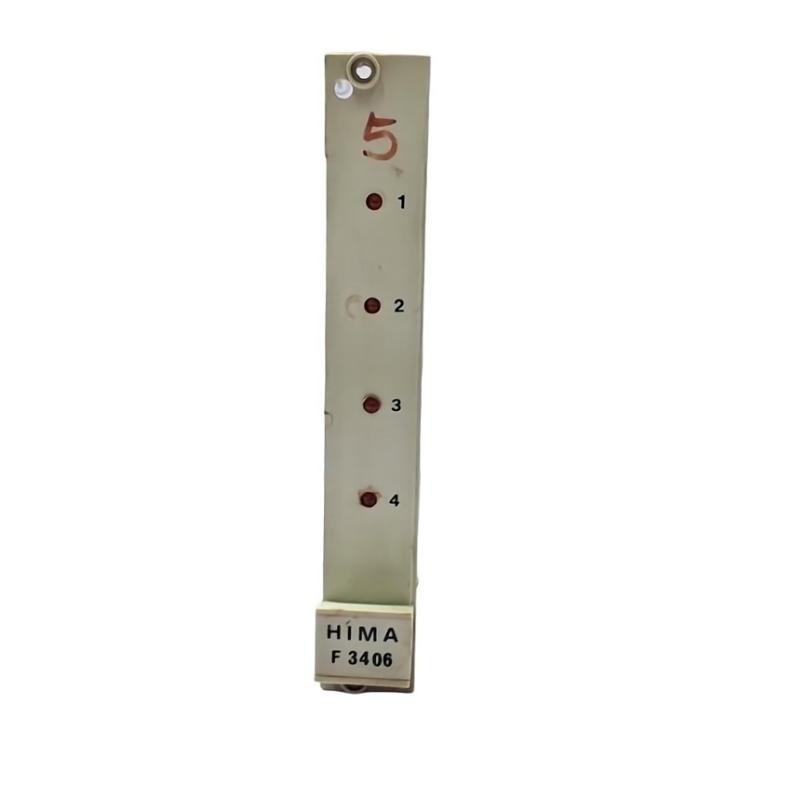

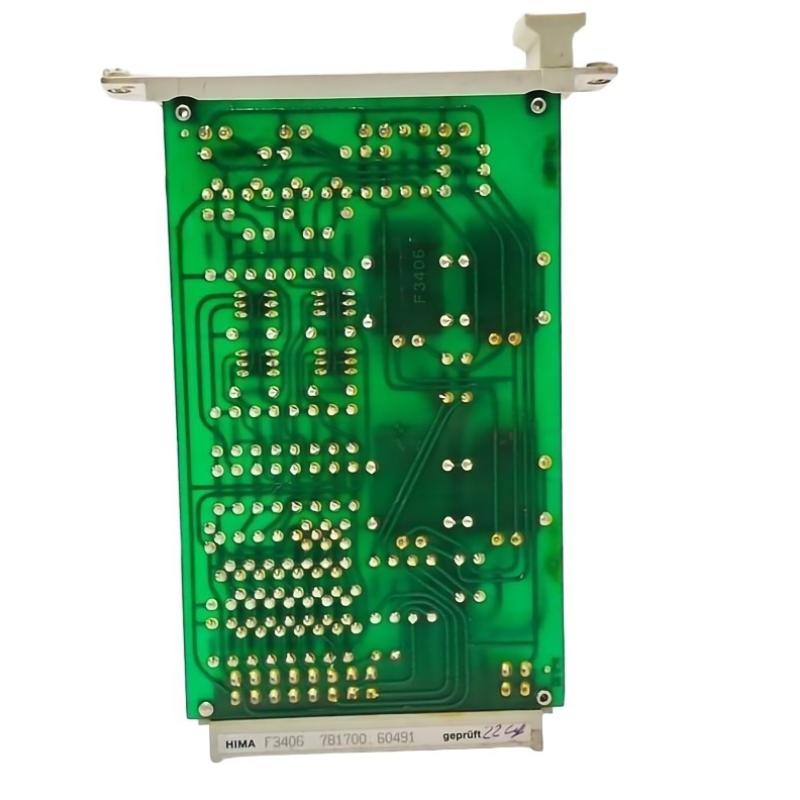

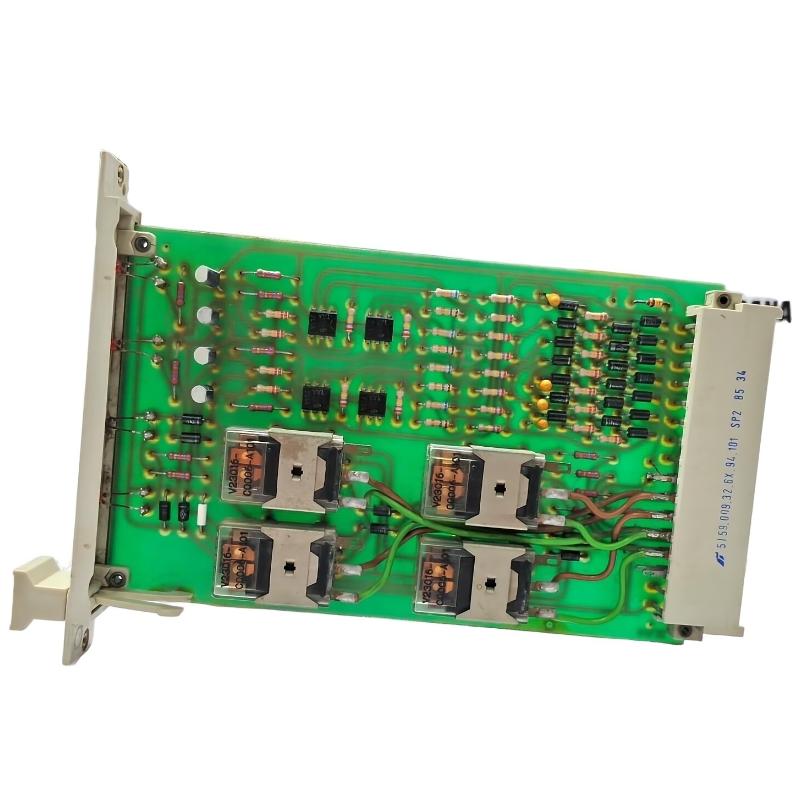

Hima F3406 Safety Relay Module (Planar F System)

Overview

The Hima F3406 is a compact safety relay module for the Planar F System, providing reliable fault-tolerant relay operations for industrial safety applications. It ensures secure monitoring and control of critical processes, meeting international functional safety standards.

General Information

Part Number: F3406

Manufacturer: Hima

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Safety Relay Module

Mounting: DIN rail or chassis mounting within Planar F system

Technology: Safety relay logic, fail-safe design, redundant monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered from system backplane

Protection: Reverse-polarity and surge protection

Indicators: LEDs for power, relay status, and fault

Communication & Interface

Fieldbus / Interface: Integrated Planar F system bus

Role: Interfaces safety relay logic with Planar F control network

Diagnostics: Real-time fault detection, self-diagnostics, and status reporting

Operator Interface: LED indicators for safe state, error, and system readiness

Reset Features: Supports manual and automatic reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 standard for industrial enclosures

Dimensions & Weight

Dimensions (L × W × H): 66 × 155 × 33 mm

Weight: ~ 0.3 kg
