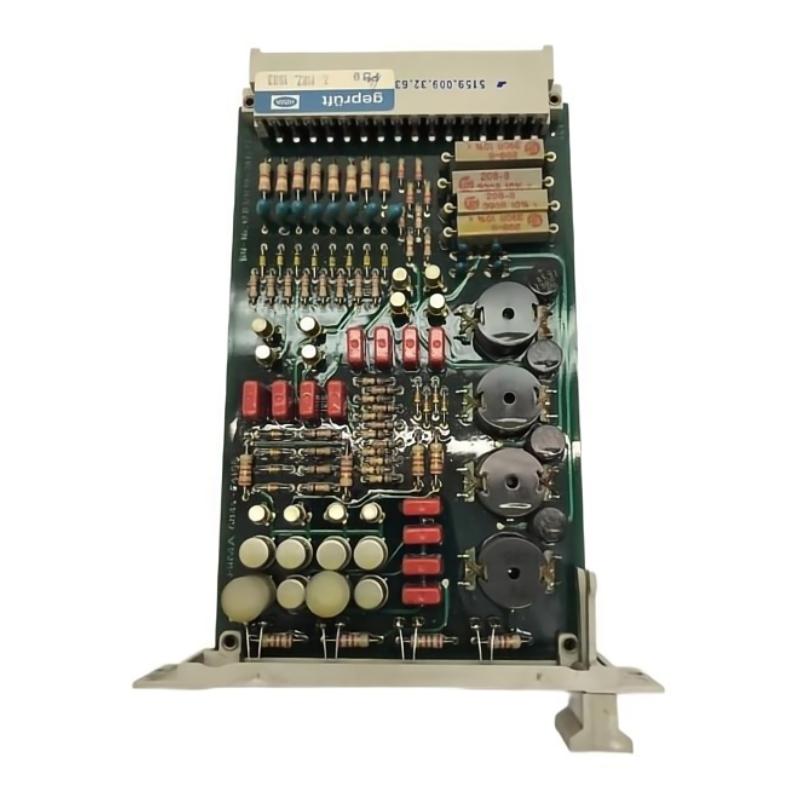

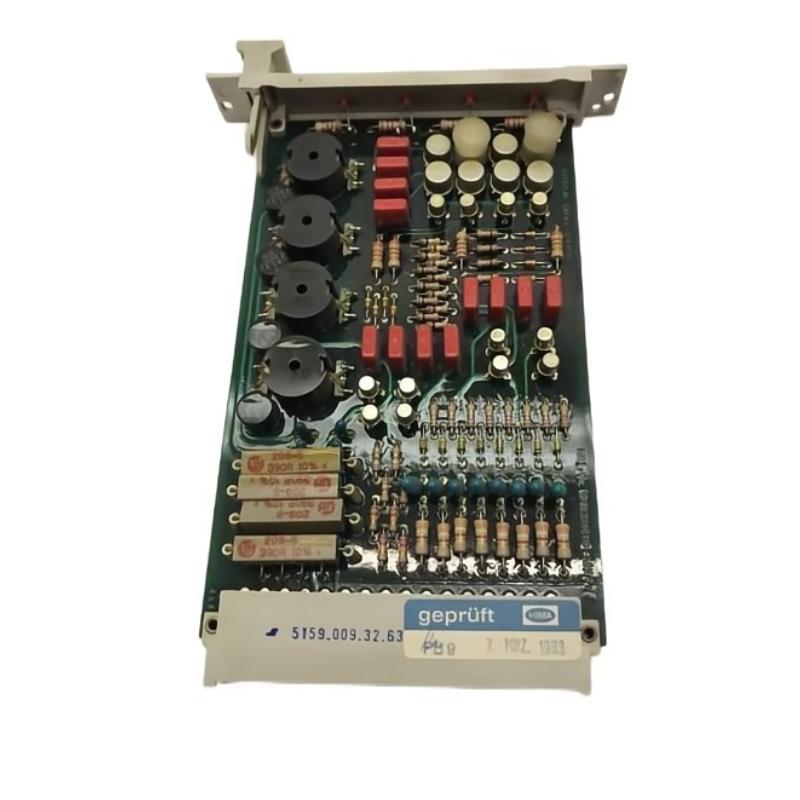

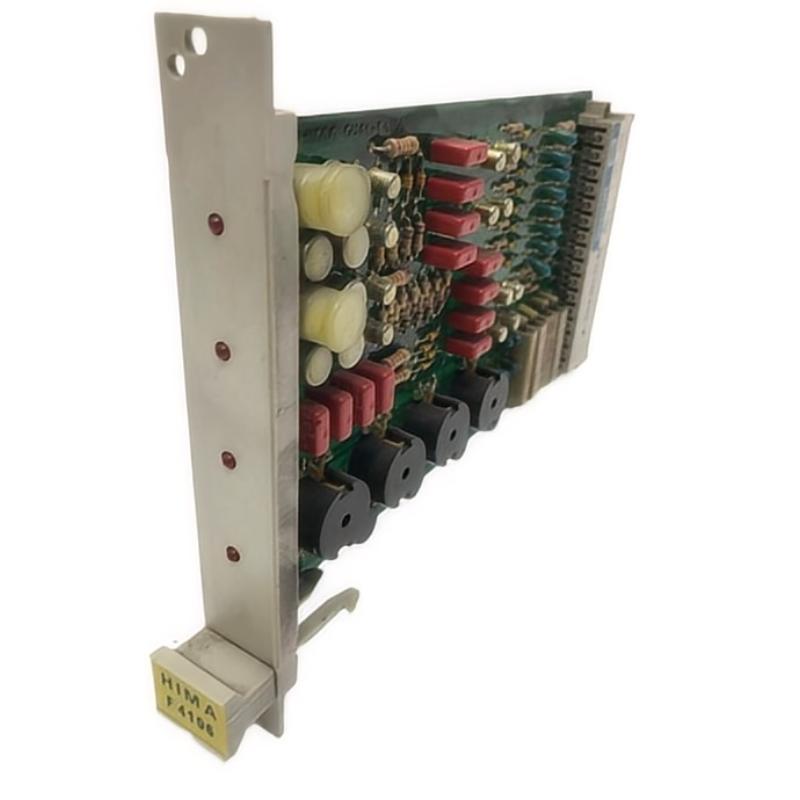

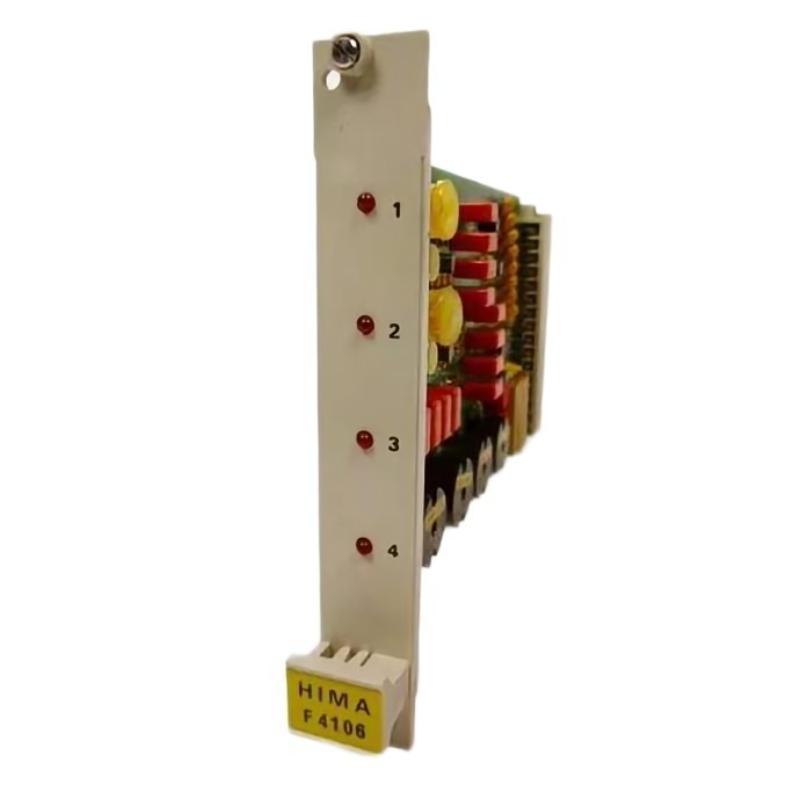

Hima F4106 4-Channel Access Card (Planar F System)

Overview
The Hima F4106 is a 4-channel access card designed for the Planar F System. It provides reliable input/output channel management, supports safety-critical applications, and enables seamless integration with redundant and modular control architectures for industrial automation.

General Information

Part Number: F4106

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: Planar F

Type: 4-Channel Access Card / I/O Module

Mounting: DIN rail or chassis slot installation

Technology: SIL 3 certified, real-time safety I/O processing, modular connectivity

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via backplane

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for channel status and fault detection

Communication & Interface

Fieldbus Support: Planar F System backplane

I/O Connectivity: 4 configurable input/output channels

Diagnostics: Real-time monitoring, fault logging, and status reporting

Operator Interface: LED indicators for each channel

Reset Features: Supports soft reset via system interface

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 257 × 114 × 30 mm

Weight: ~ 0.231 kg
