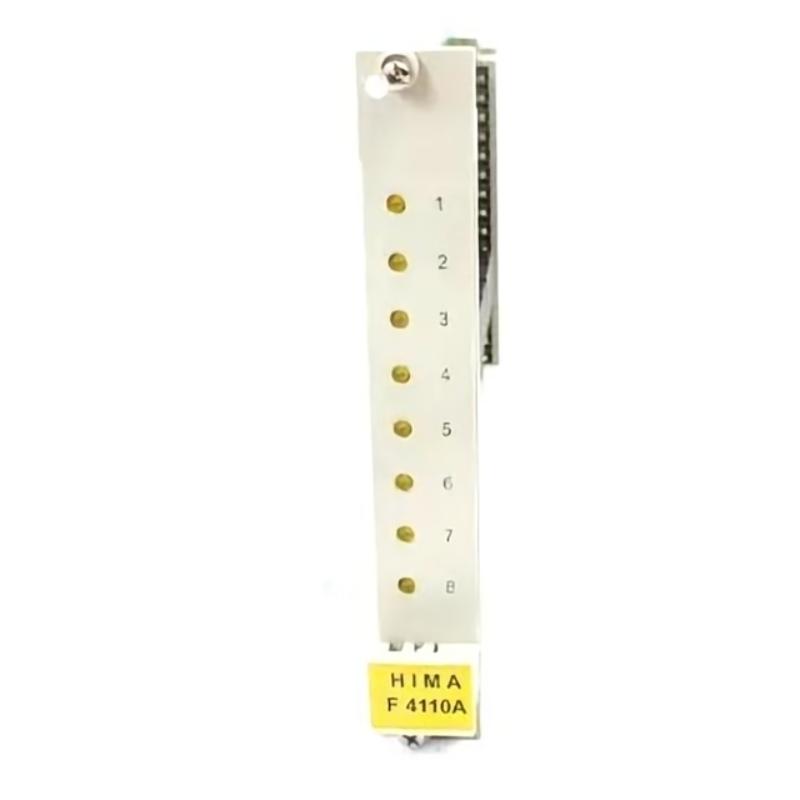

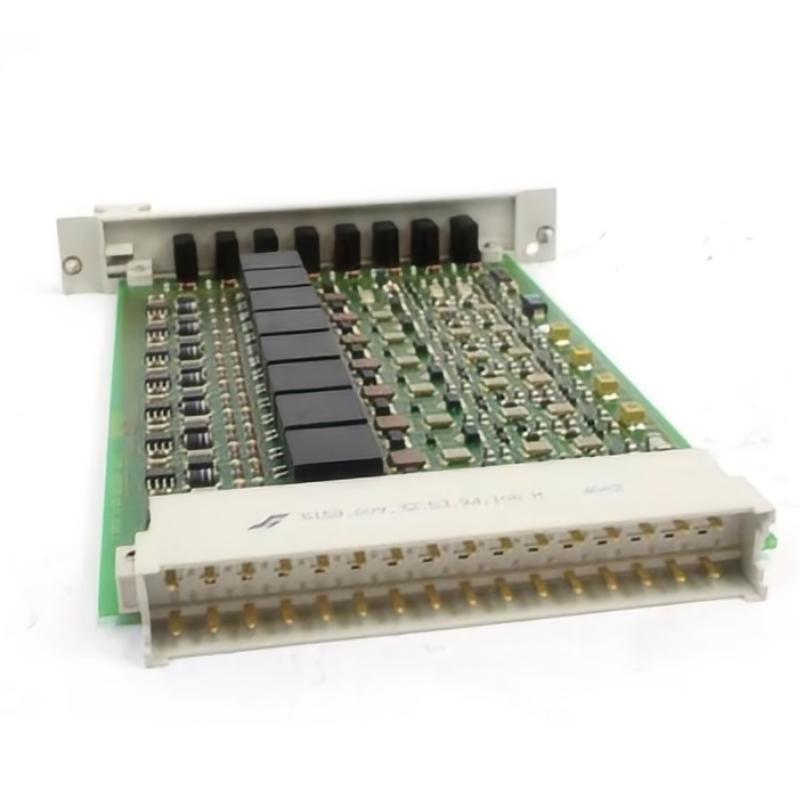

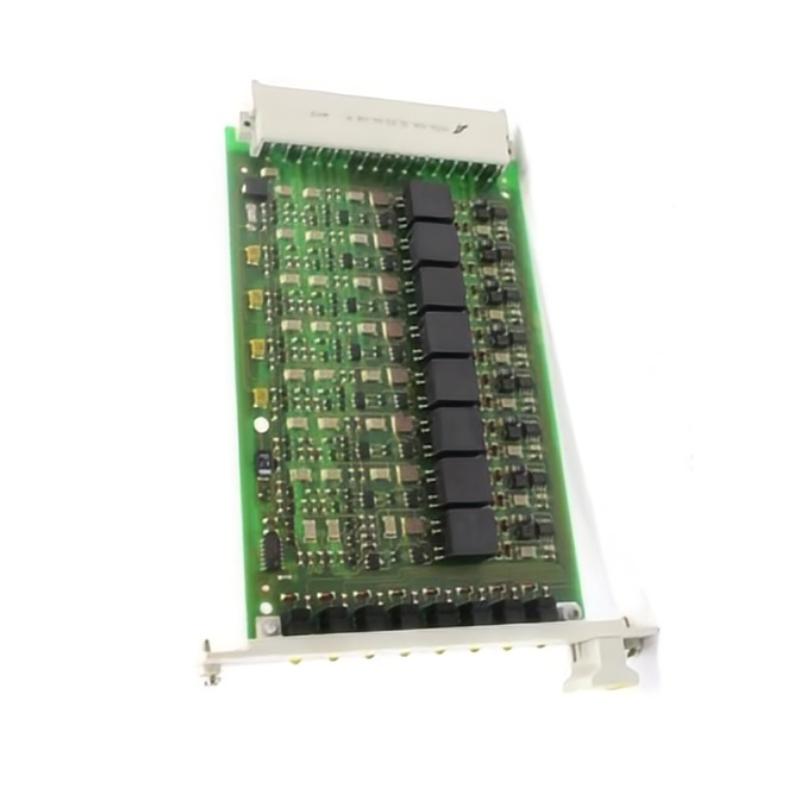

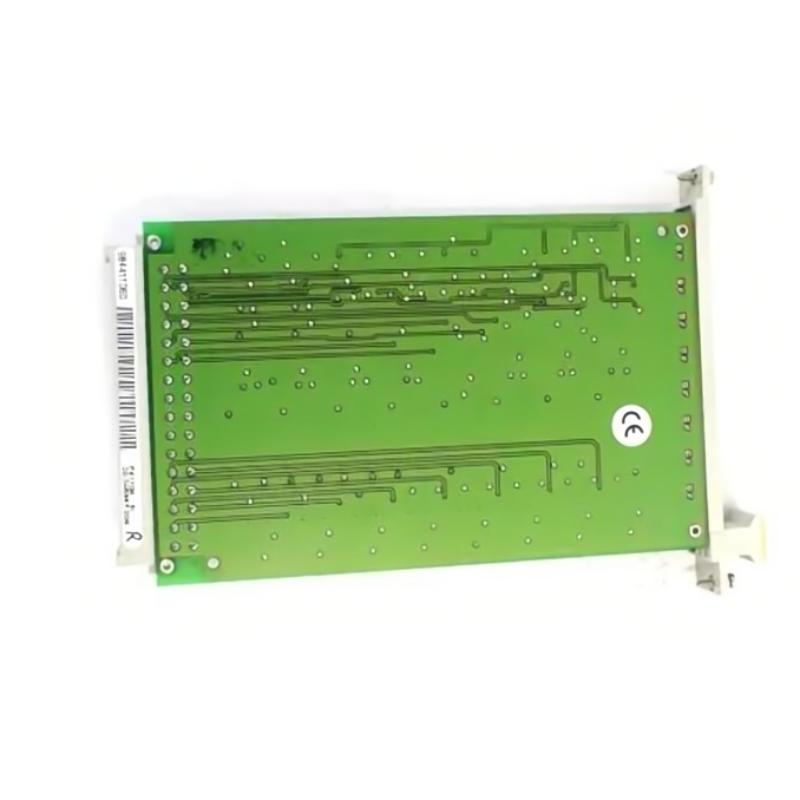

Hima F4110A Security-Related Four-Channel AND Gate Module (Planar F System)

Overview
The Hima F4110A is a security-related four-channel AND gate module for the Planar F System. It provides reliable multi-channel logic operations for safety-critical applications, supporting secure signal processing and integration within modular industrial control systems.

General Information

Part Number: F4110A

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: Planar F

Type: Security-Related AND Gate Module

Mounting: DIN rail or chassis slot installation

Technology: SIL 3 certified, multi-channel logic processing, modular connectivity

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered via backplane

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for channel status and fault detection

Communication & Interface

Fieldbus Support: Planar F System backplane

I/O Connectivity: Four logic input/output channels for secure safety operations

Diagnostics: Real-time monitoring, fault logging, and status reporting

Operator Interface: LED indicators for channel logic states

Reset Features: Supports soft reset via system interface

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 100 × 50 × 30 mm

Weight: ~ 0.159 kg
