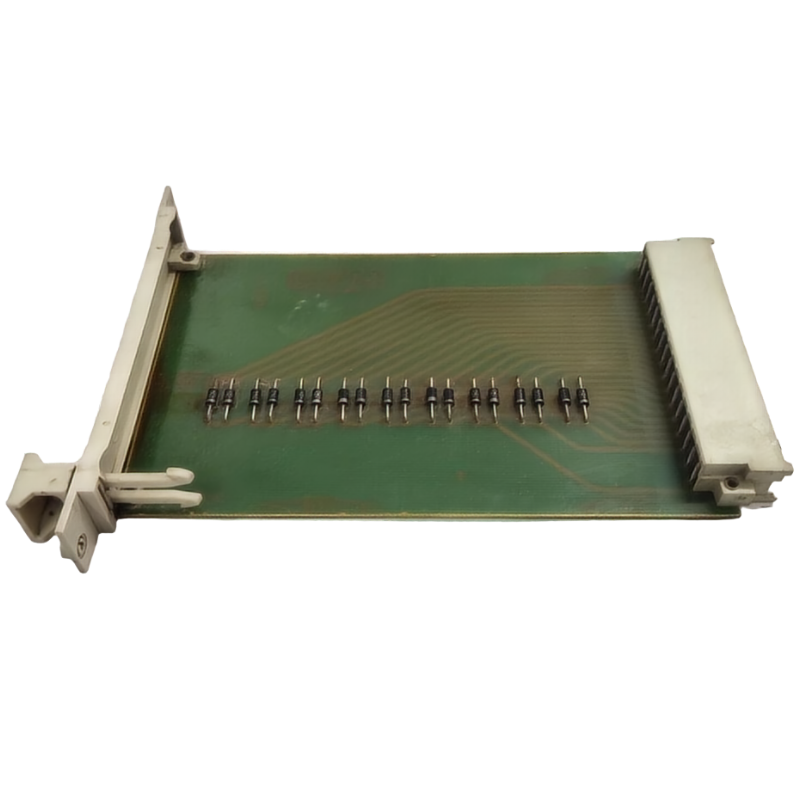

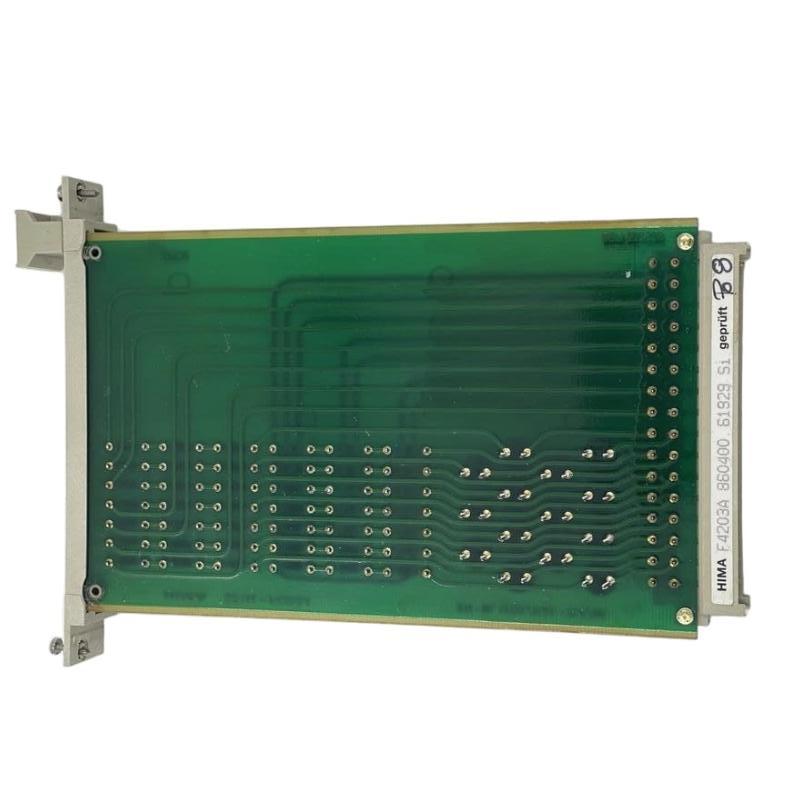

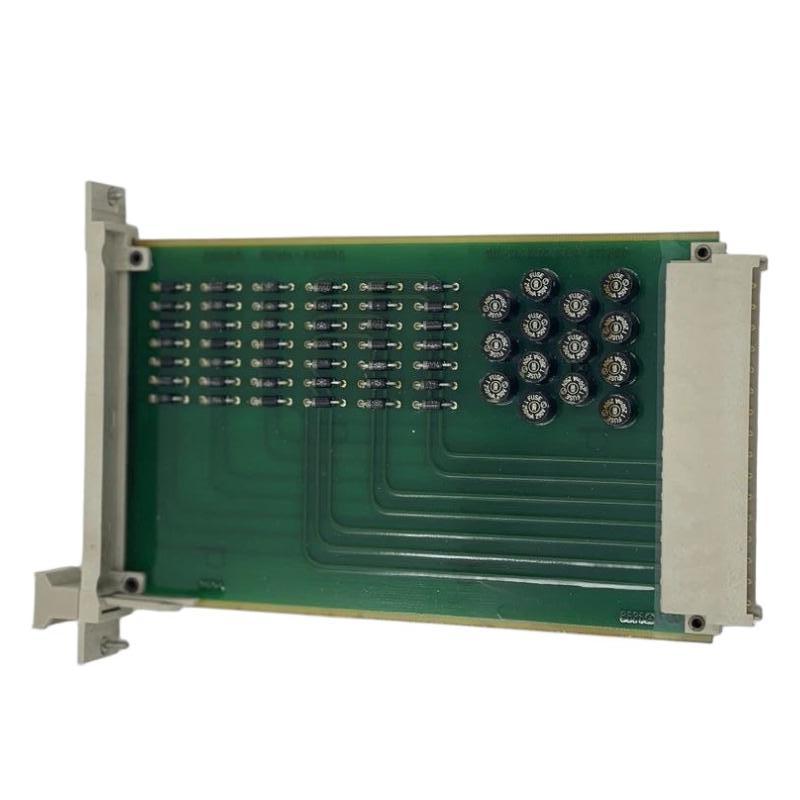

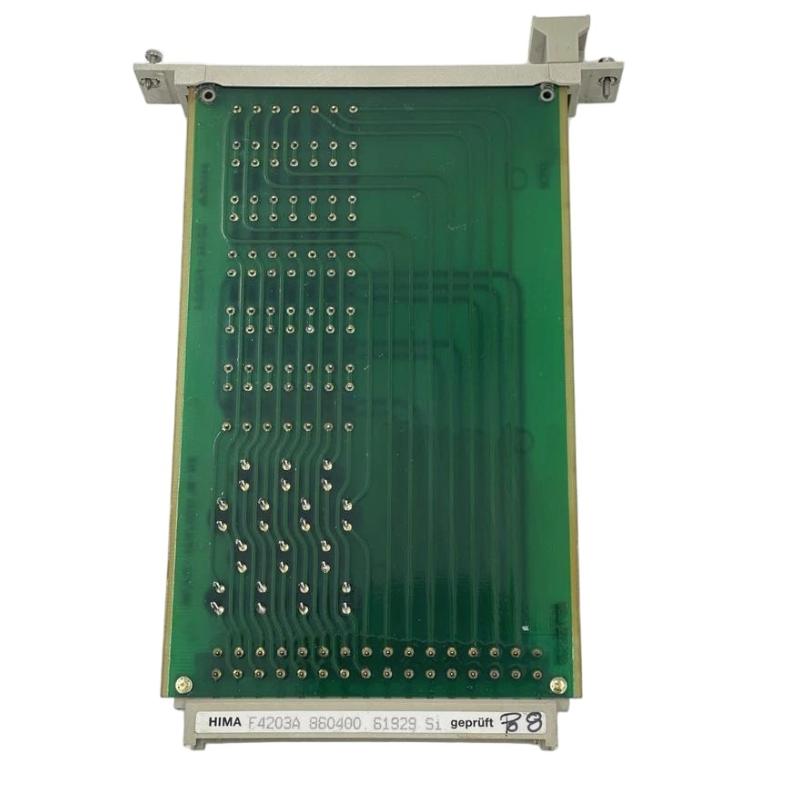

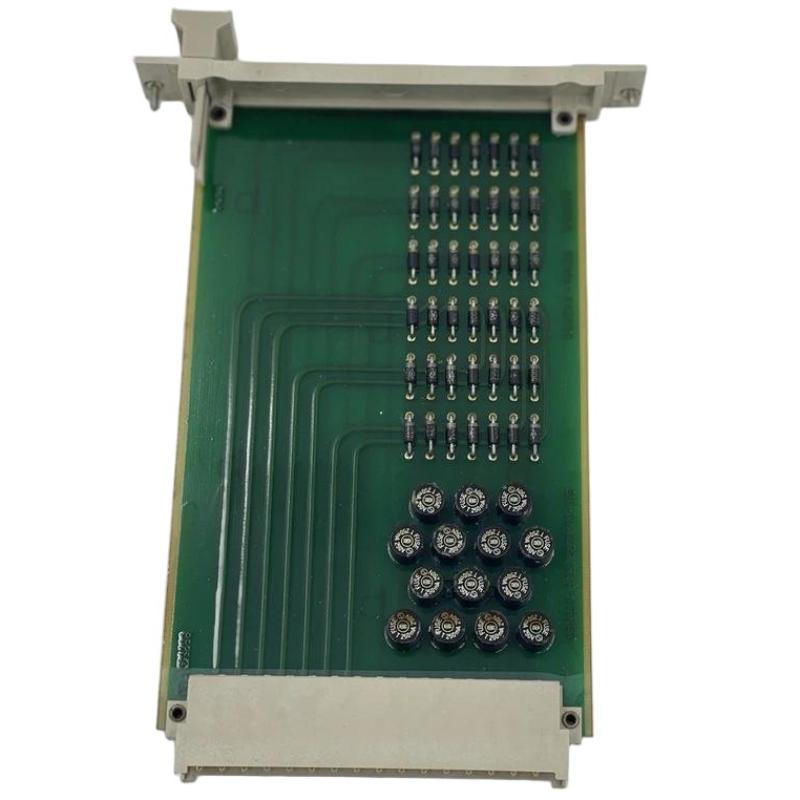

Hima F4203 Safety-Related Diode Pre-Cell (Planar F System)

Overview
The Hima F4203 is a safety-related diode pre-cell designed for the Planar F System. It ensures reliable signal routing and fault isolation for safety-critical applications, providing stable operation and secure integration within modular industrial control architectures.

General Information

Part Number: F4203

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: Planar F

Type: Safety-Related Diode Pre-Cell

Mounting: DIN rail or chassis slot installation

Technology: SIL 3 certified, fault-tolerant signal routing, modular system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Input: Powered via backplane

Protection: Overvoltage and reverse-polarity protection

Indicators: LED for status and fault detection

Communication & Interface

Fieldbus Support: Planar F System backplane

I/O Connectivity: Logic signal routing for safety operations

Diagnostics: Signal integrity monitoring and fault reporting

Operator Interface: LED indicators

Reset Features: Supports soft reset via system interface

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 220 × 100 × 30 mm

Weight: ~ 0.14 kg
