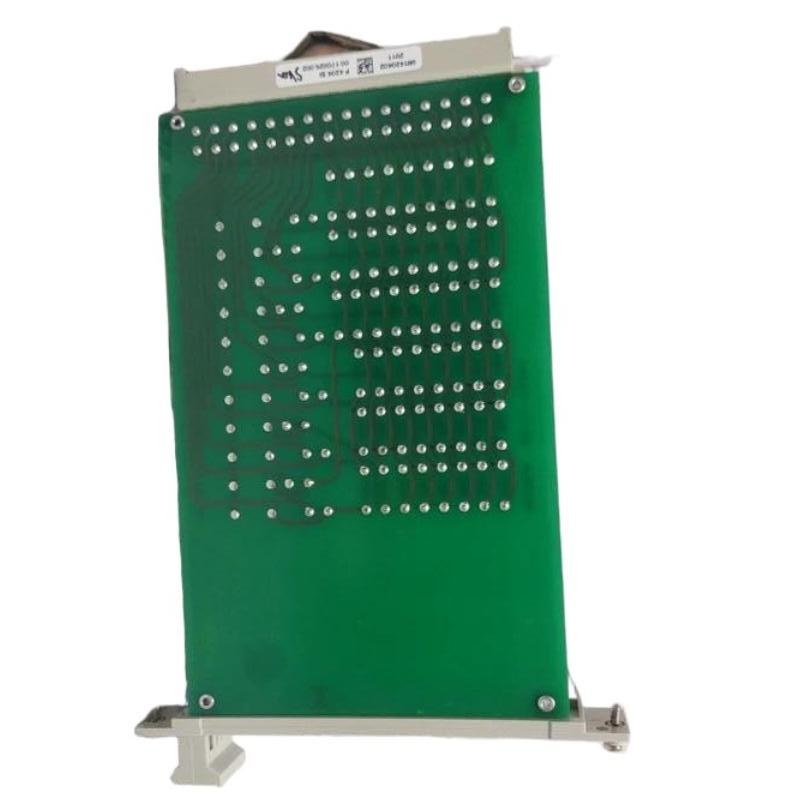

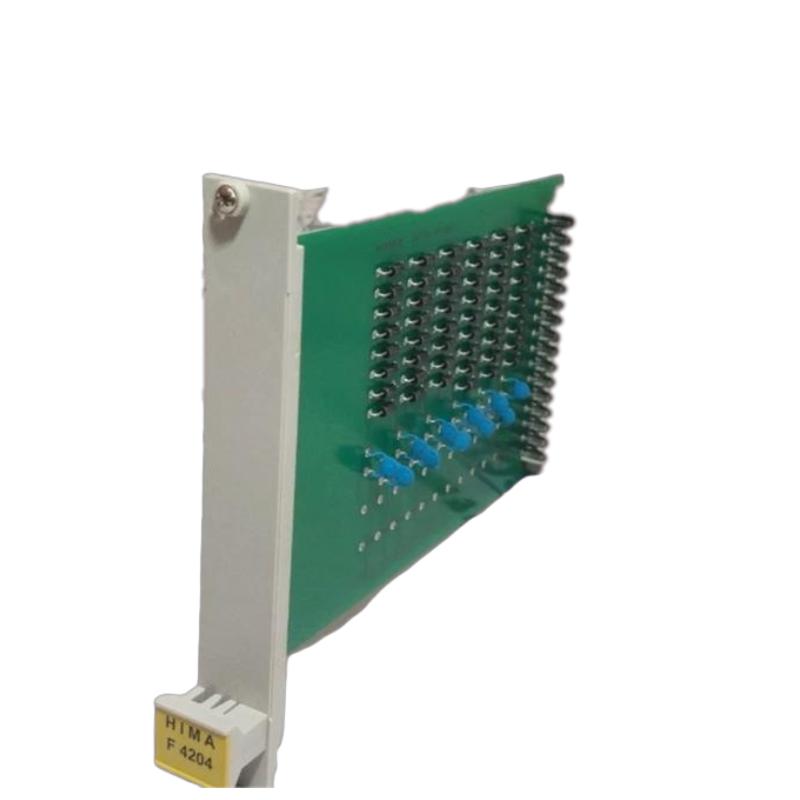

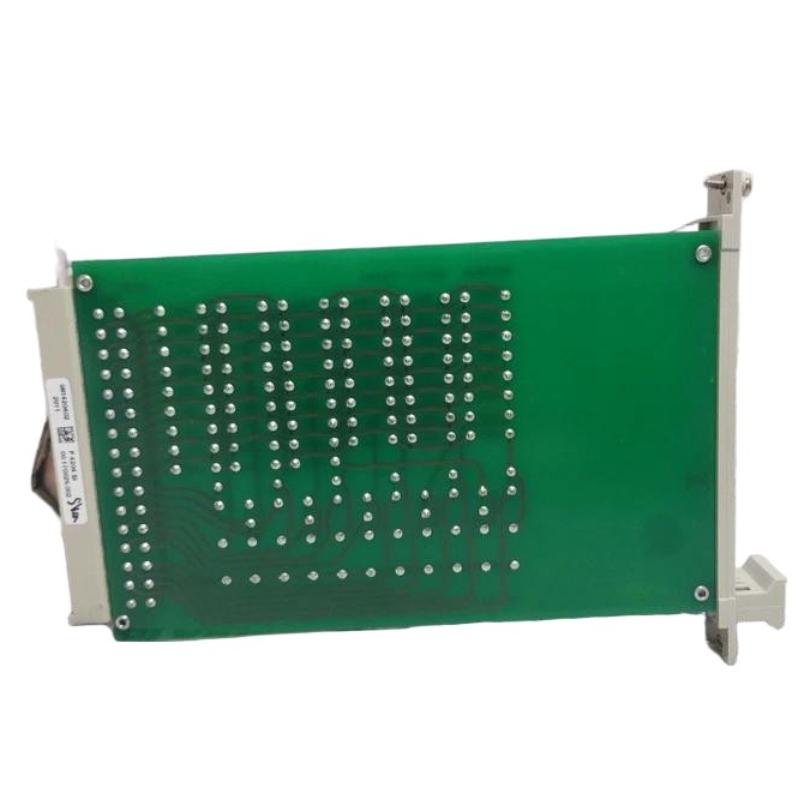

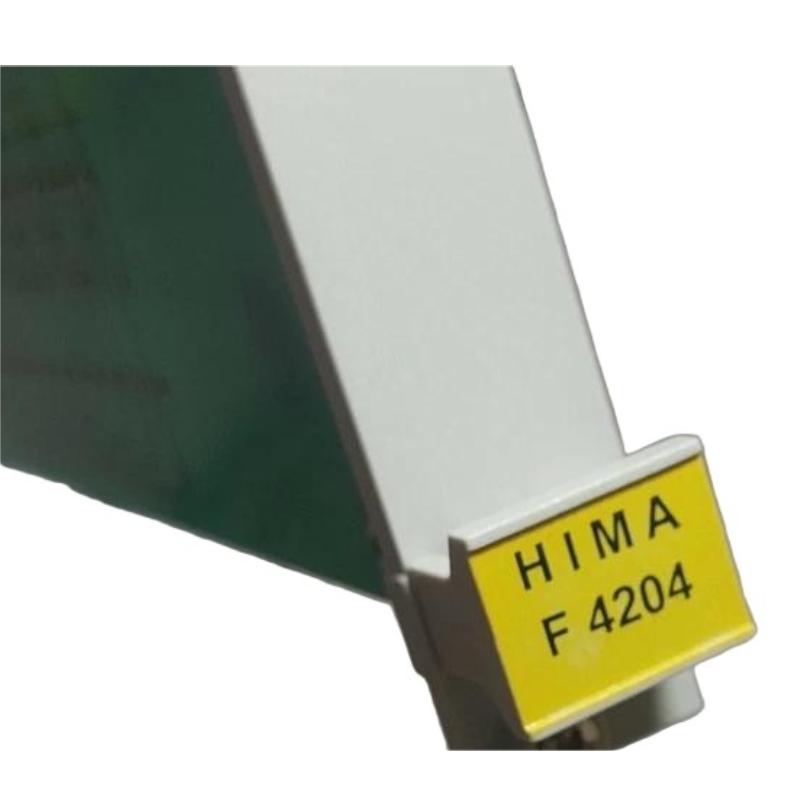

Hima F4204 Safety Relay Module (Planar F System)

Overview

The Hima F4204 is a safety relay module designed for the Planar F safety system. It provides reliable switching for critical control circuits, enabling fast response to faults while maintaining compliance with industrial safety standards. The module integrates seamlessly with other Planar F components to ensure a fully monitored safety loop.

General Information

Part Number: F4204

Manufacturer: Hima GmbH

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Safety Relay Module

Mounting: DIN rail or modular system integration

Technology: Electromechanical relay with safety logic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Input: External safety bus or system voltage

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for operational status and fault detection

Communication & Interface

Interface Type: Safety relay output for control circuits

Diagnostic Support: Continuous loop monitoring, short-circuit and open-circuit detection

Operator Interface: LED indicators for status and fault conditions

Reset Features: Manual or system-triggered reset supported

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (indoor industrial use)

Dimensions & Weight

Dimensions (L × W × H): 120 × 25 × 90 mm

Weight: 0.18 kg
