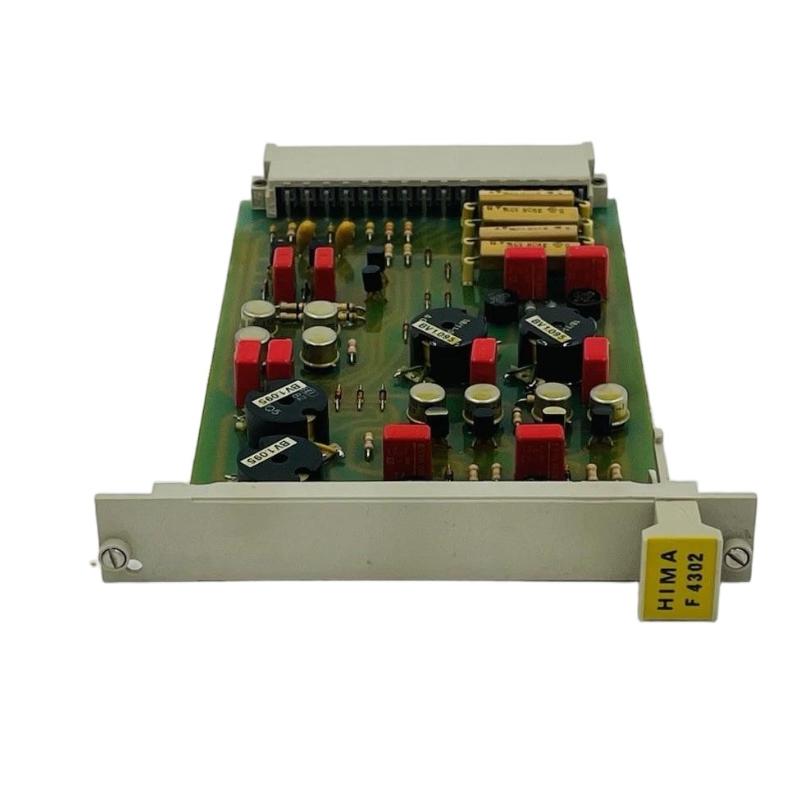

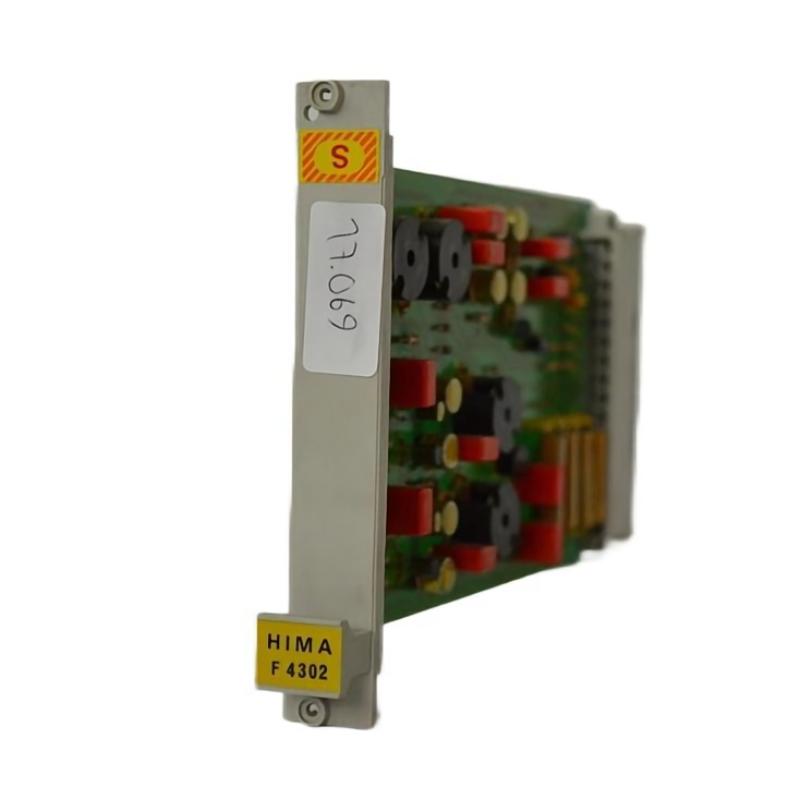

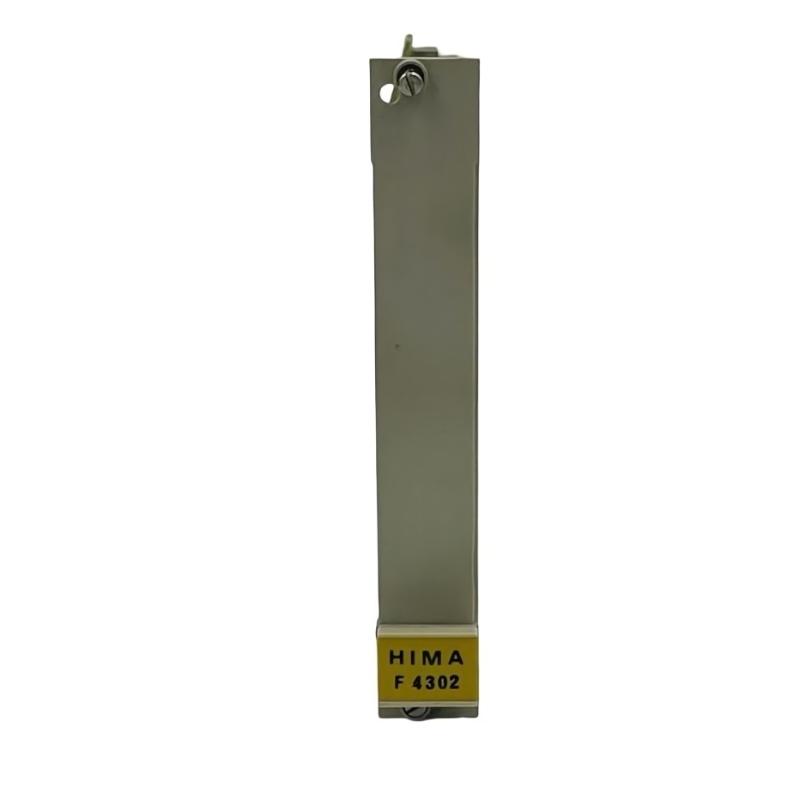

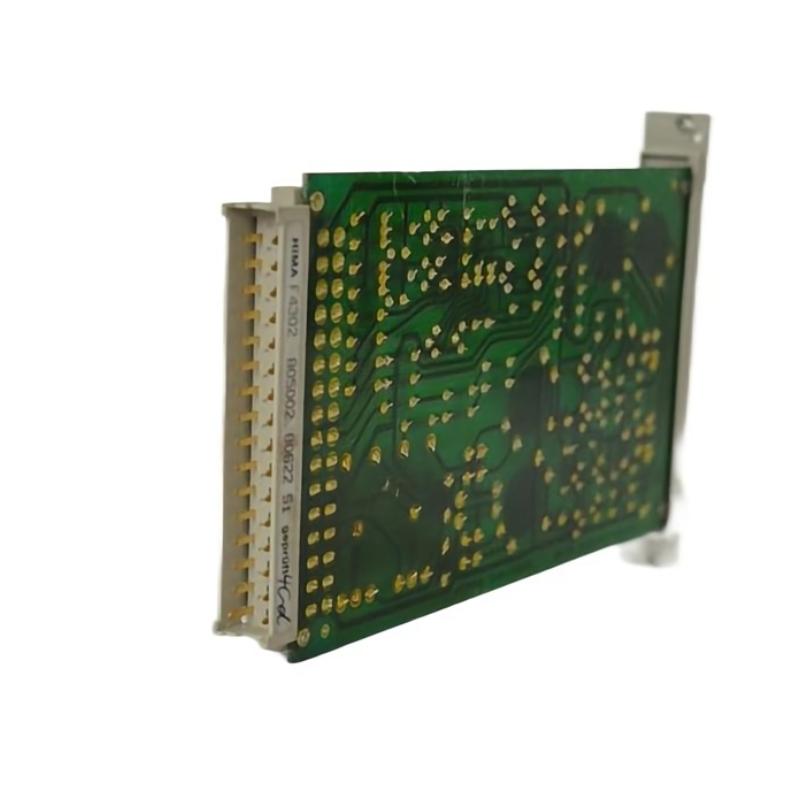

Hima F4302 4-Channel Blocking Gate (Planar F System)

Overview

The Hima F4302 is a 4-channel blocking gate designed for use in the Planar F safety system. It provides reliable signal blocking and channel isolation for safety circuits, ensuring secure and fault-tolerant operation in critical industrial automation applications. The device integrates seamlessly with other Planar F modules to maintain fully monitored safety loops.

General Information

Part Number: F4302

Manufacturer: Hima GmbH

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: 4-Channel Blocking Gate

Mounting: DIN rail or modular system integration

Technology: Solid-state channel isolation with safety monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 1 W

Input: External safety bus or system voltage

Protection: Overvoltage and reverse-polarity protection

Indicators: LED indicators for operational status and fault detection

Communication & Interface

Interface Type: 4-channel signal blocking for safety circuits

Diagnostic Support: Continuous integrity checks, short-circuit and open-circuit detection

Operator Interface: LED indicators for channel status and fault conditions

Reset Features: Manual or system-triggered reset supported

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (indoor industrial use)

Dimensions & Weight

Dimensions (L × W × H): 120 × 25 × 105 mm

Weight: 0.1 kg
