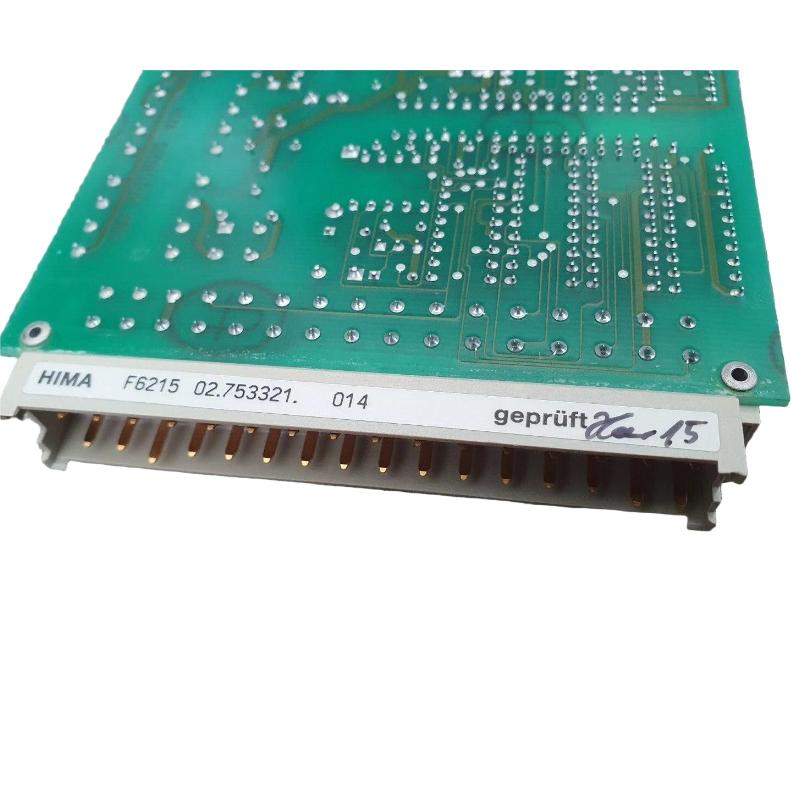

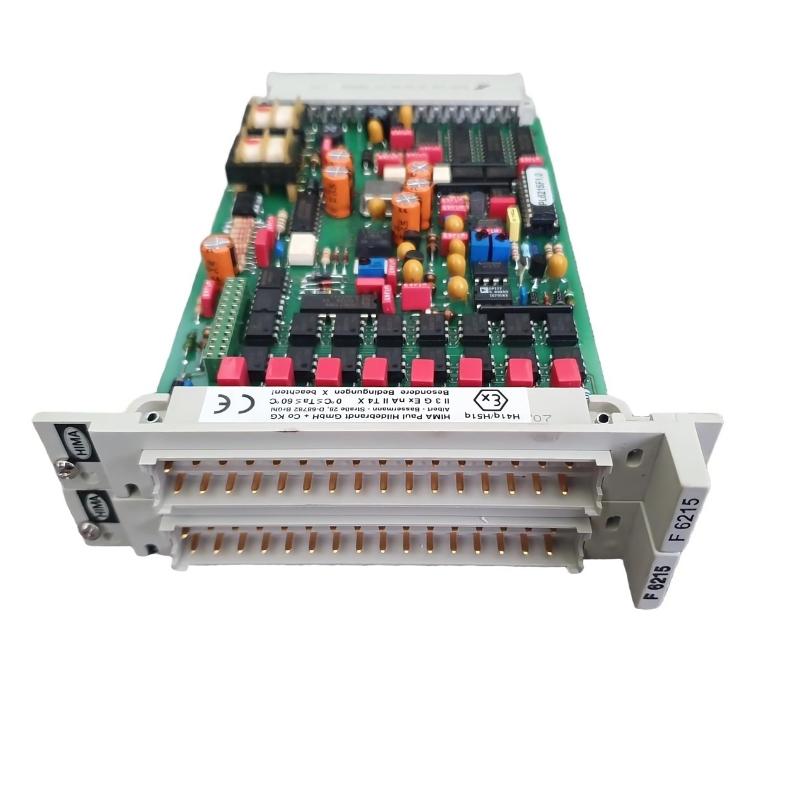

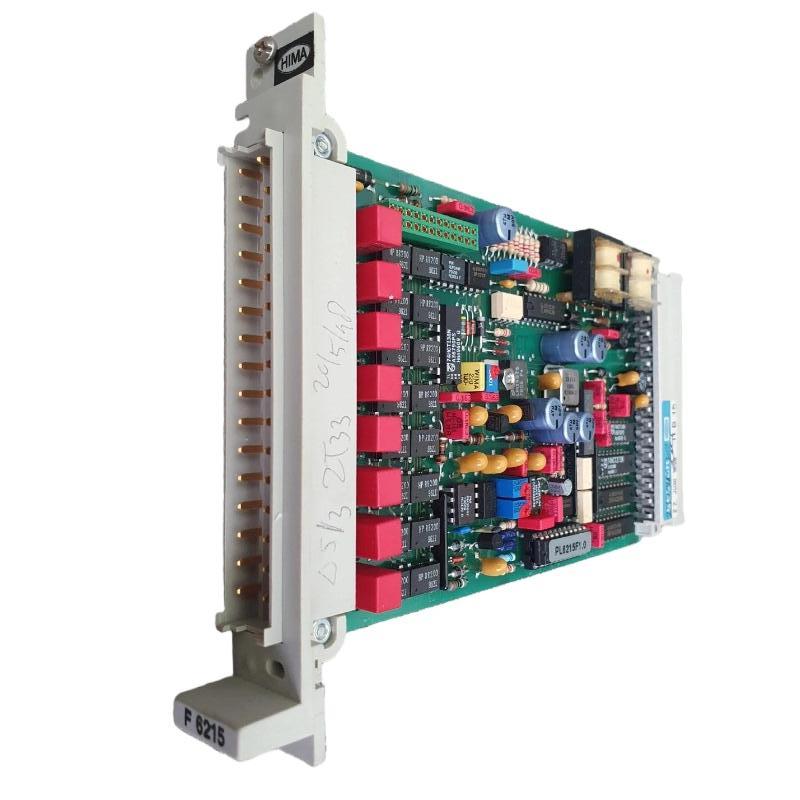

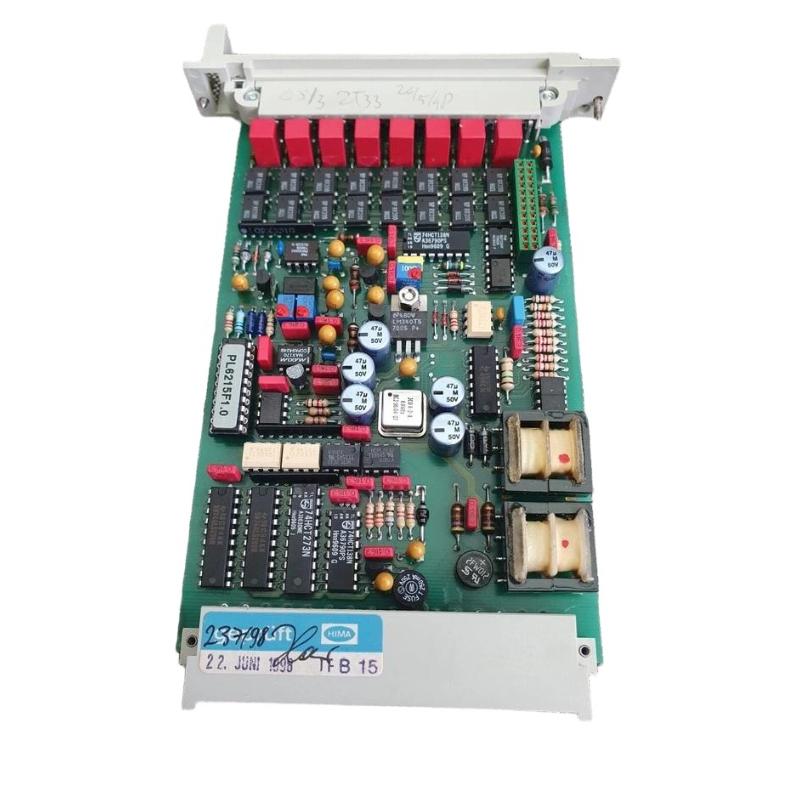

Hima F6215 Analog Input Module

Overview

The Hima F6215 is an advanced analog input module for the Planar F safety system. It accurately converts analog signals from sensors into monitored digital signals, providing precise and reliable data for safety-critical automation processes. The module integrates seamlessly with other Planar F components for full system safety monitoring.

General Information

Part Number: F6215

Manufacturer: Hima GmbH

Brand / Country of Origin: Hima / Germany

Series: Planar F

Type: Analog Input Module

Mounting: DIN rail or modular system integration

Technology: High-precision analog-to-digital conversion with integrated safety monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Analog signals (voltage/current) from field devices

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LED indicators for operational status and fault detection

Communication & Interface

Interface Type: Analog input monitoring for safety loops

Diagnostic Support: Continuous channel integrity checks, open-circuit and short-circuit detection

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Manual or system-triggered reset supported

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (indoor industrial use)

Dimensions & Weight

Dimensions (L × W × H): 151 × 77 × 113 mm

Weight: 0.7 kg
