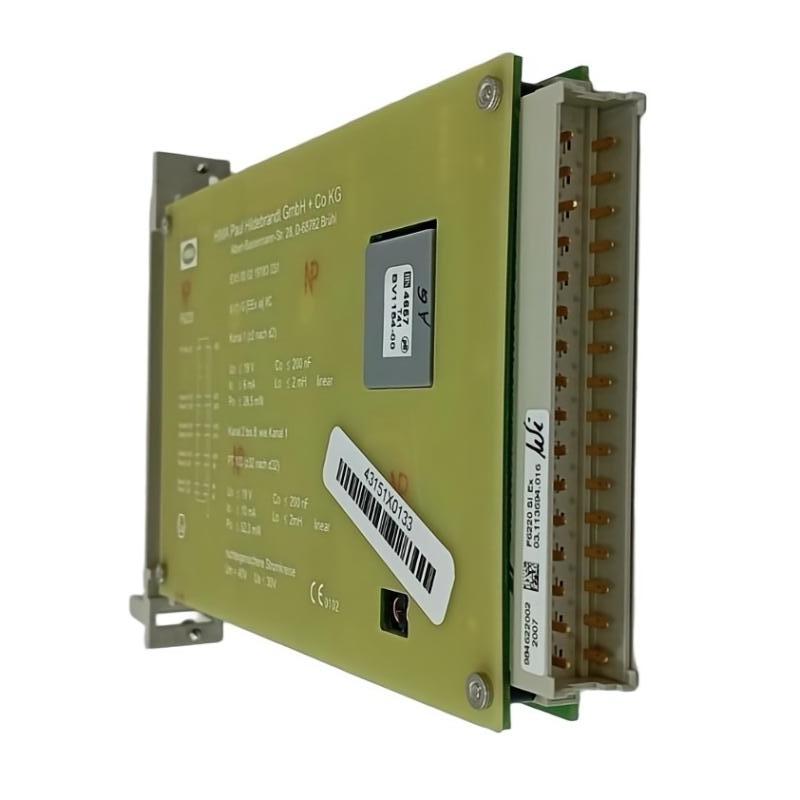

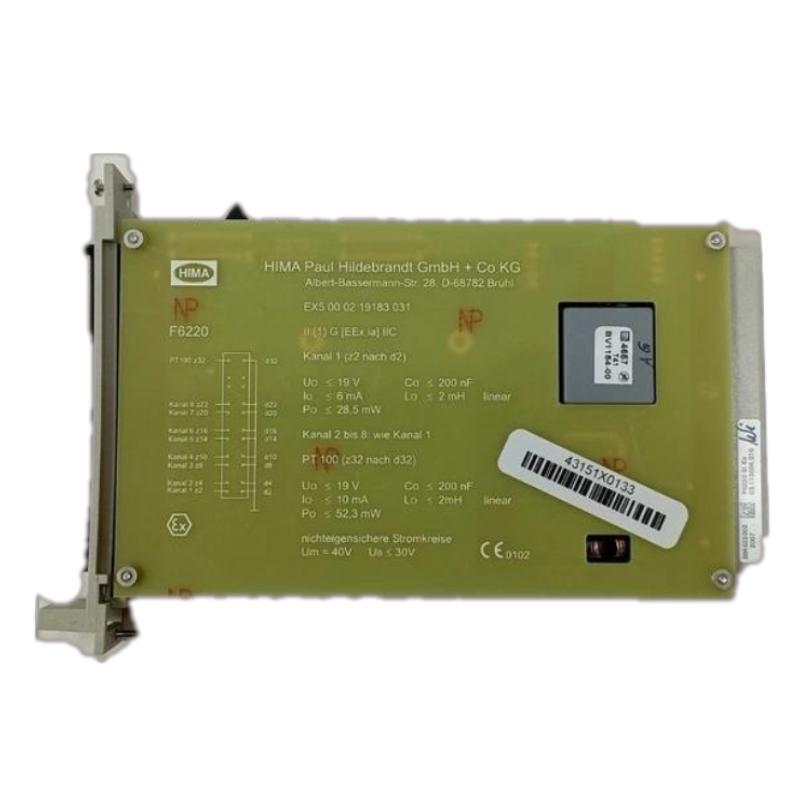

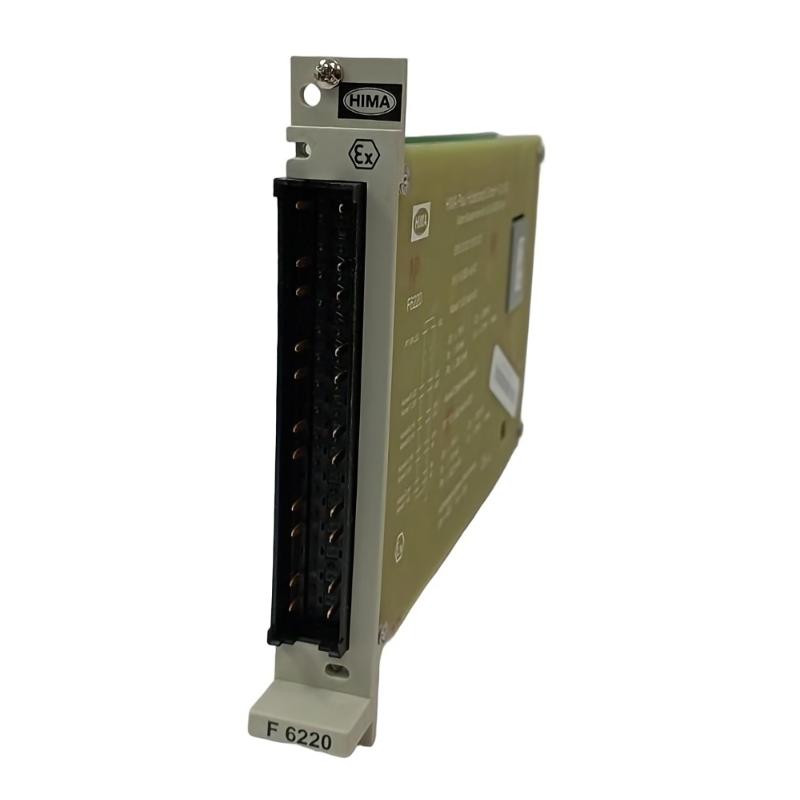

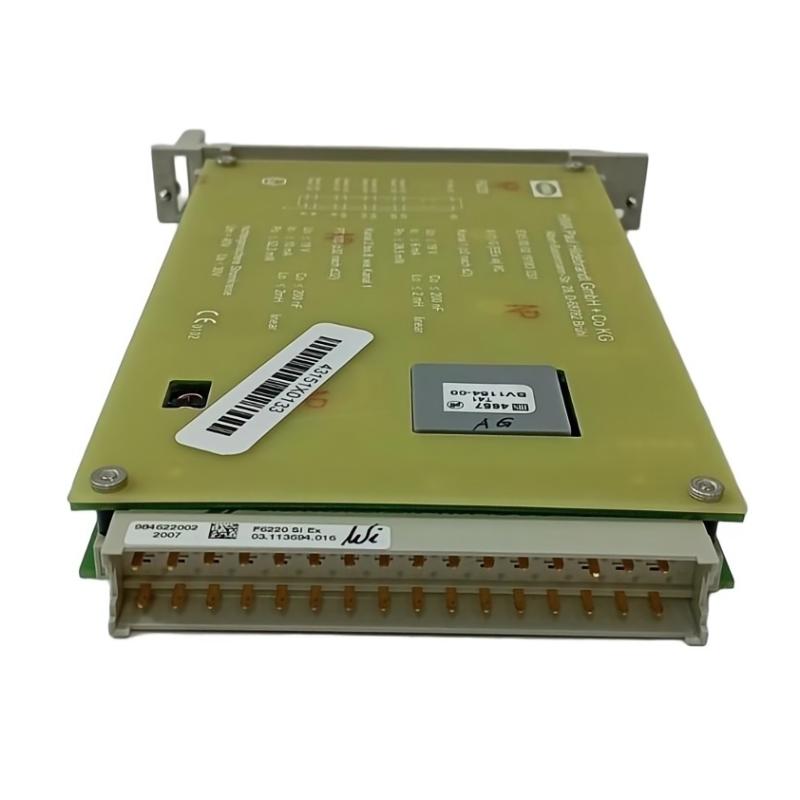

Hima F6220 Thermocouple Input Safety Process Module

Overview

The Hima F6220 is a thermocouple input module designed for HIMA’s HIMax and HIMax Pro safety systems. It enables precise temperature monitoring from thermocouples, providing reliable data for critical safety applications in process automation environments.

General Information

Part Number: F6220

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: F6000

Type: Thermocouple Input Safety Process Module

Mounting: DIN rail or backplane installation in safety control cabinets

Technology: High-accuracy thermocouple signal acquisition, fault-tolerant architecture, industrial-grade components

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via system backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: Status LEDs for module operation, fault, and channel activity

Communication & Interface

Field Interface: Supports various thermocouple types (K, J, T, etc.)

Bus Coupler Role: Integrates with HIMax safety controllers via backplane communication

Diagnostics: Channel monitoring, error detection, range checks, and fault reporting

Operator Interface: LED indicators for status and fault, optional software diagnostics

Reset Features: Supports hardware and software reset for safe operation

I/O & Channels

Thermocouple Input Channels: Up to 8 independent channels

Input Type: Thermocouple type configurable per channel

Signal Accuracy: ±0.1% of full scale

Isolation: Channel-to-channel and channel-to-backplane galvanic isolation

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Designed to meet industrial safety standards

Dimensions & Weight

Dimensions (L × W × H): 100 × 25 × 120 mm

Weight: 0.25 kg
