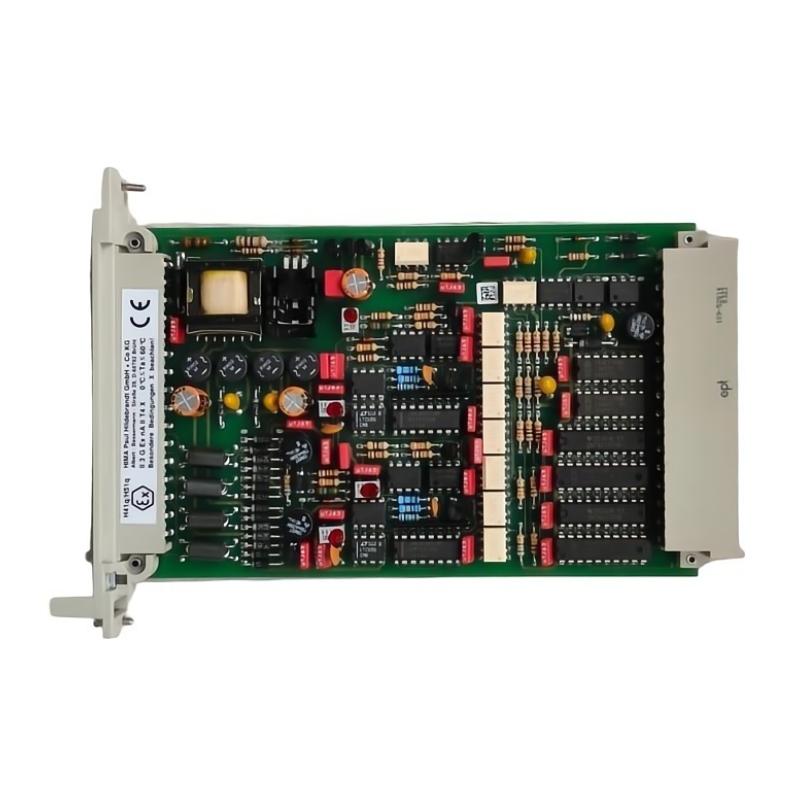

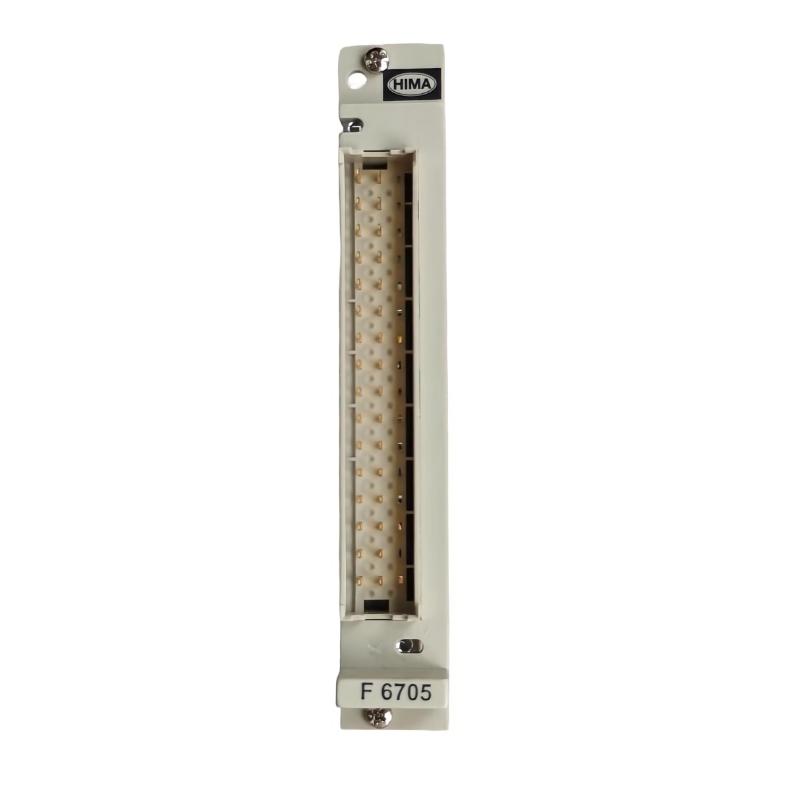

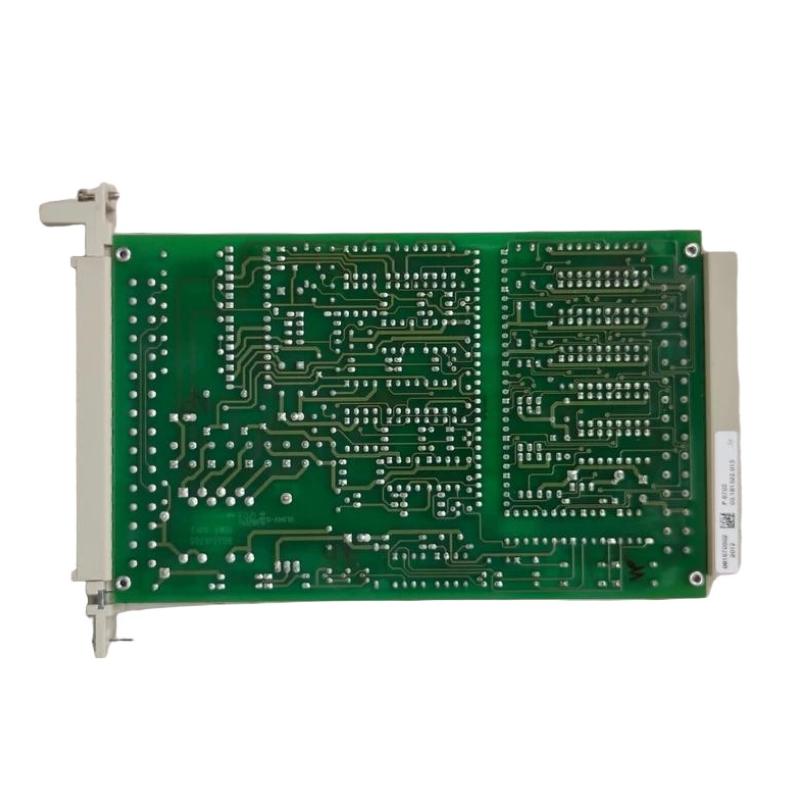

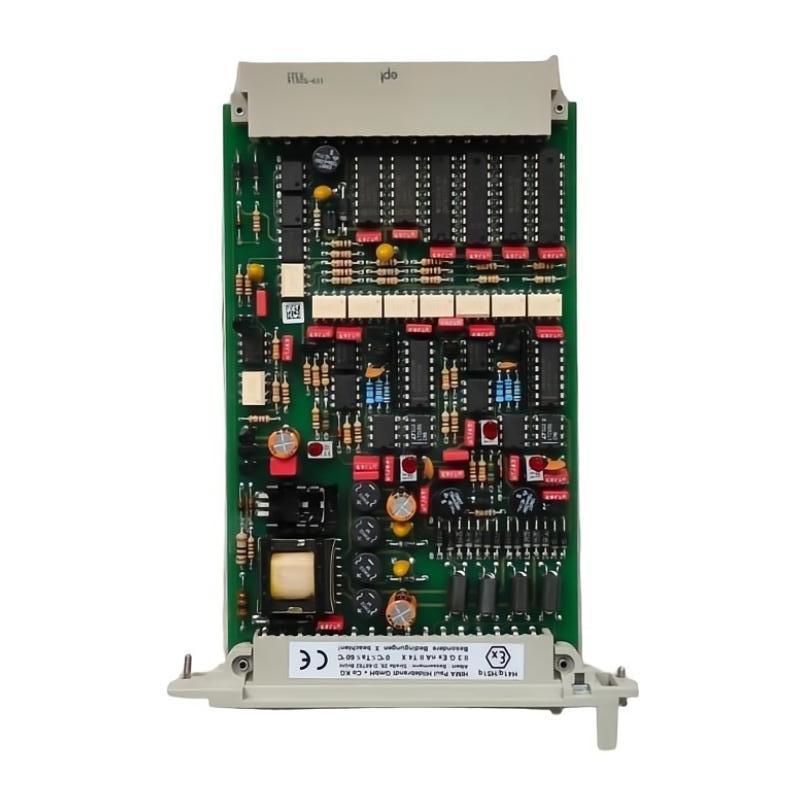

Hima F6705 Analog Output Module

Overview

The Hima F6705 is an analog output module designed for industrial automation and safety applications. It delivers accurate analog signals to actuators or other field devices, ensuring reliable process control and seamless integration within safety systems.

General Information

Part Number: F6705

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: F Series

Type: Analog Output Module

Mounting: DIN rail or control cabinet installation

Technology: High-precision analog signal output with built-in diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input Protection: Reverse polarity and short-circuit protection

Indicators: LED status indicators for module health and channel activity

Communication & Interface

Bus Interface: HIMA safety bus compatible

Signal Outputs: 4–20 mA or 0–20 mA configurable per channel

Diagnostics: Continuous channel monitoring, error detection, and signal verification

Operator Interface: LEDs for channel status, communication, and fault indication

Reset Features: Supports both soft and hardware reset via the control system

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 standard enclosure

Vibration / Shock: Compliant with industrial standards for safe operation

Dimensions & Weight

Dimensions (L × W × H): 160 × 100 × 30 mm

Weight: ~ 0.25 kg
