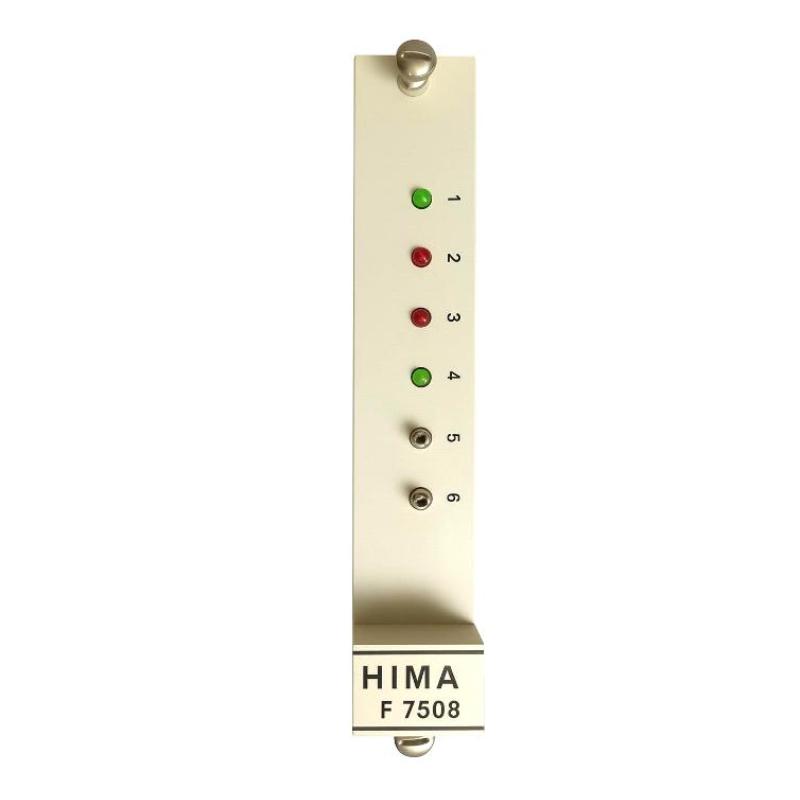

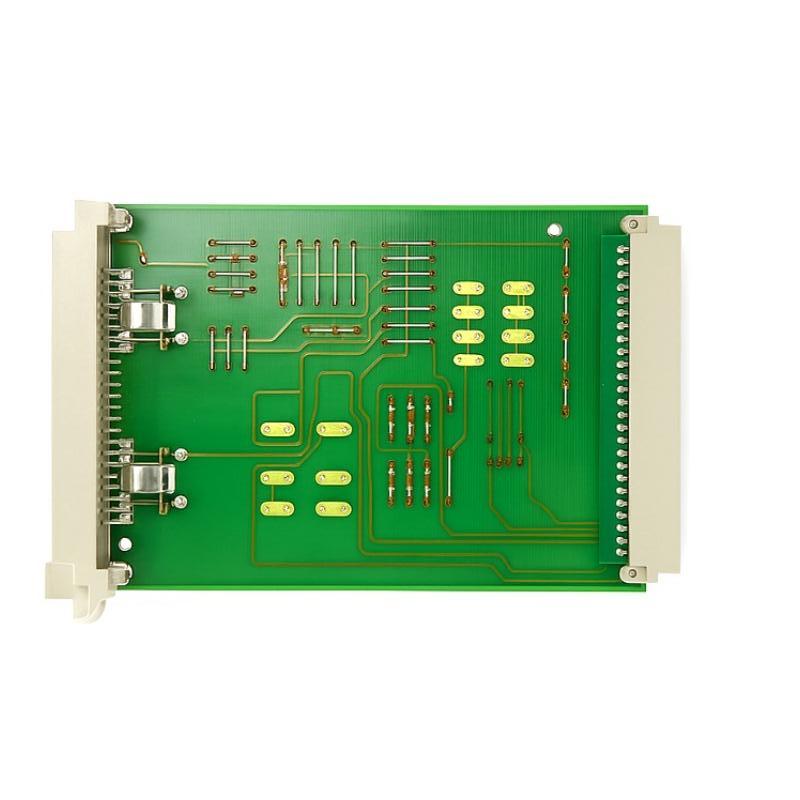

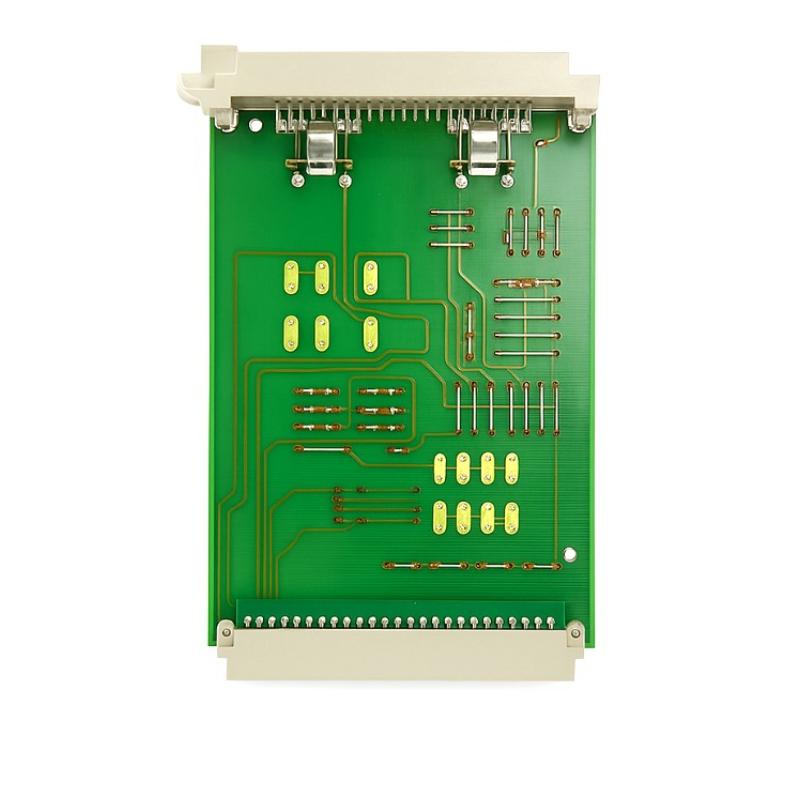

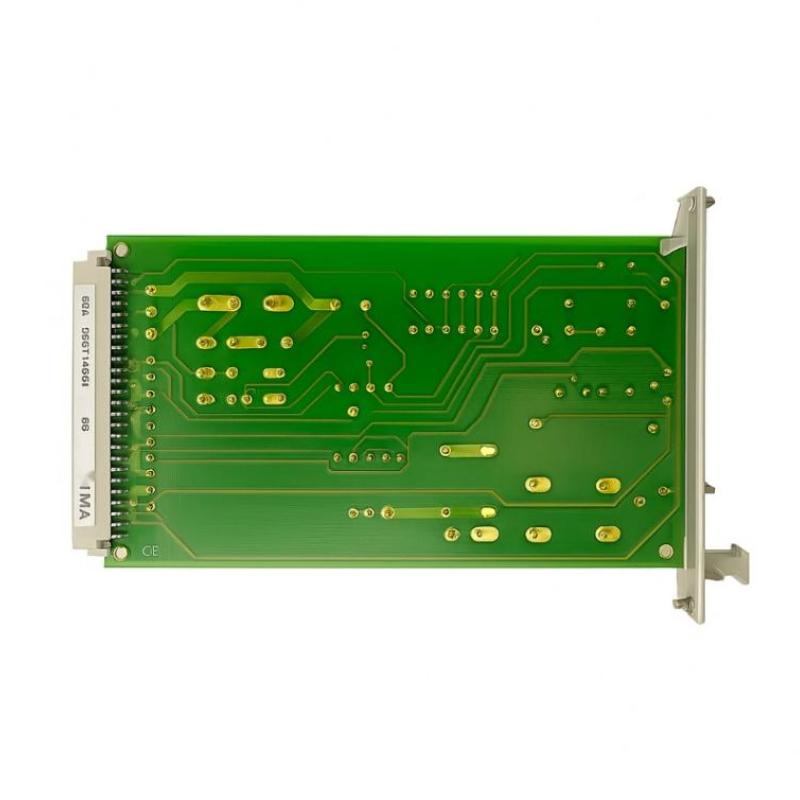

Hima F7508 Bypass Module (Planar F System)

Overview

The Hima F7508 is a bypass module designed for the Planar F System. It allows temporary bypassing of safety functions during maintenance or testing, ensuring safe and controlled operation of the system without compromising overall safety.

General Information

Part Number: F7508

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: Planar F System

Type: Bypass Module

Mounting: DIN rail or control cabinet installation

Technology: Safety-critical bypass with diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Input Protection: Reverse polarity and short-circuit protection

Indicators: LED indicators for module status and bypass activity

Communication & Interface

Bus Interface: Planar F System compatible

Signal Outputs: Monitors and controls bypass status

Diagnostics: Continuous monitoring, error detection, and status reporting

Operator Interface: LEDs for bypass status and faults

Reset Features: Supports soft and hardware reset via control system

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 standard enclosure

Vibration / Shock: Compliant with industrial safety standards

Dimensions & Weight

Dimensions (L × W × H): 100 × 50 × 25 mm

Weight: ~ 0.1 kg
