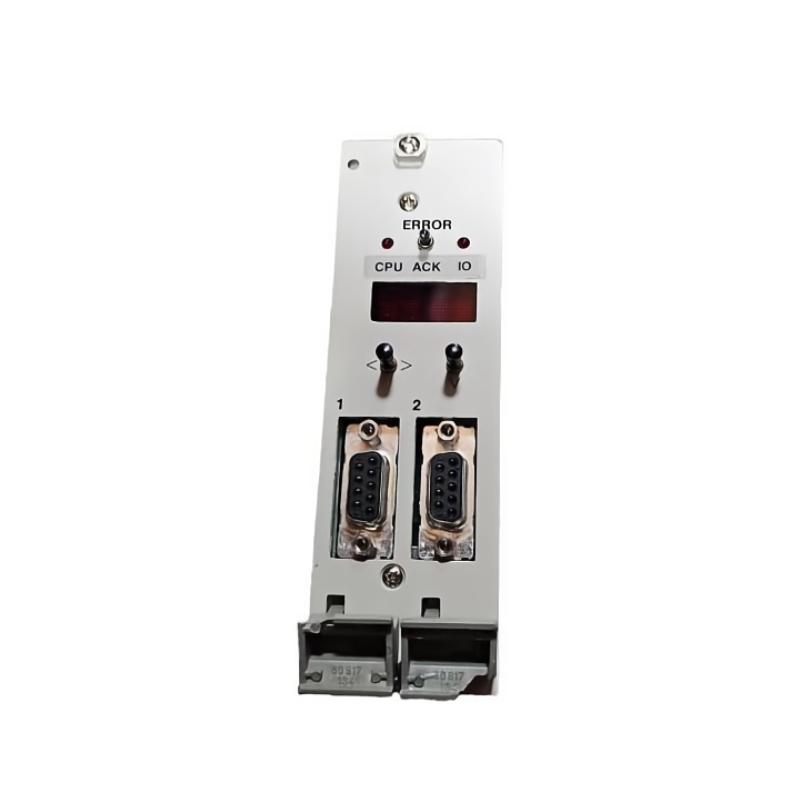

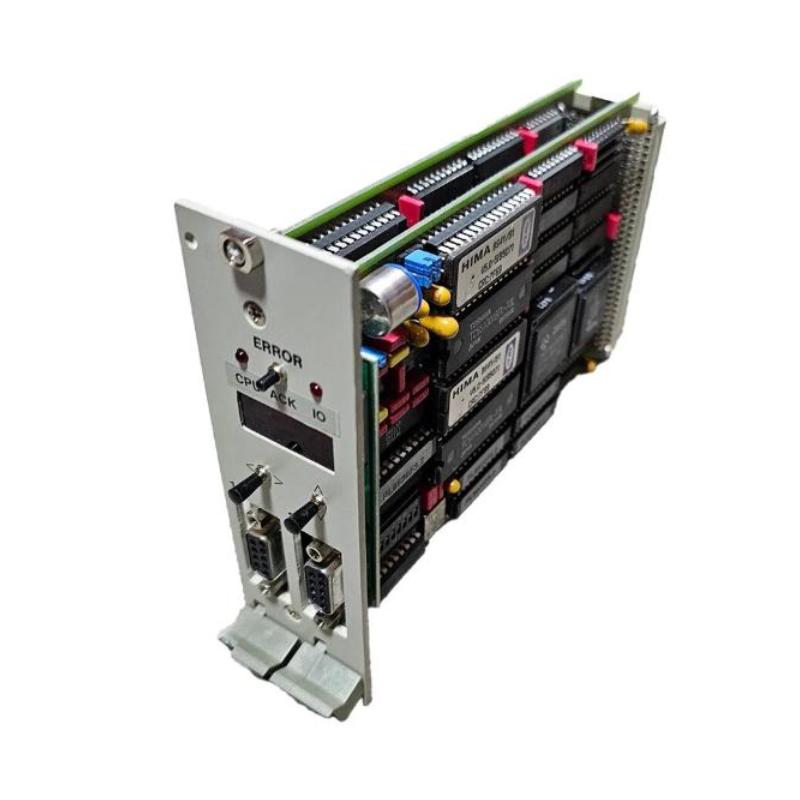

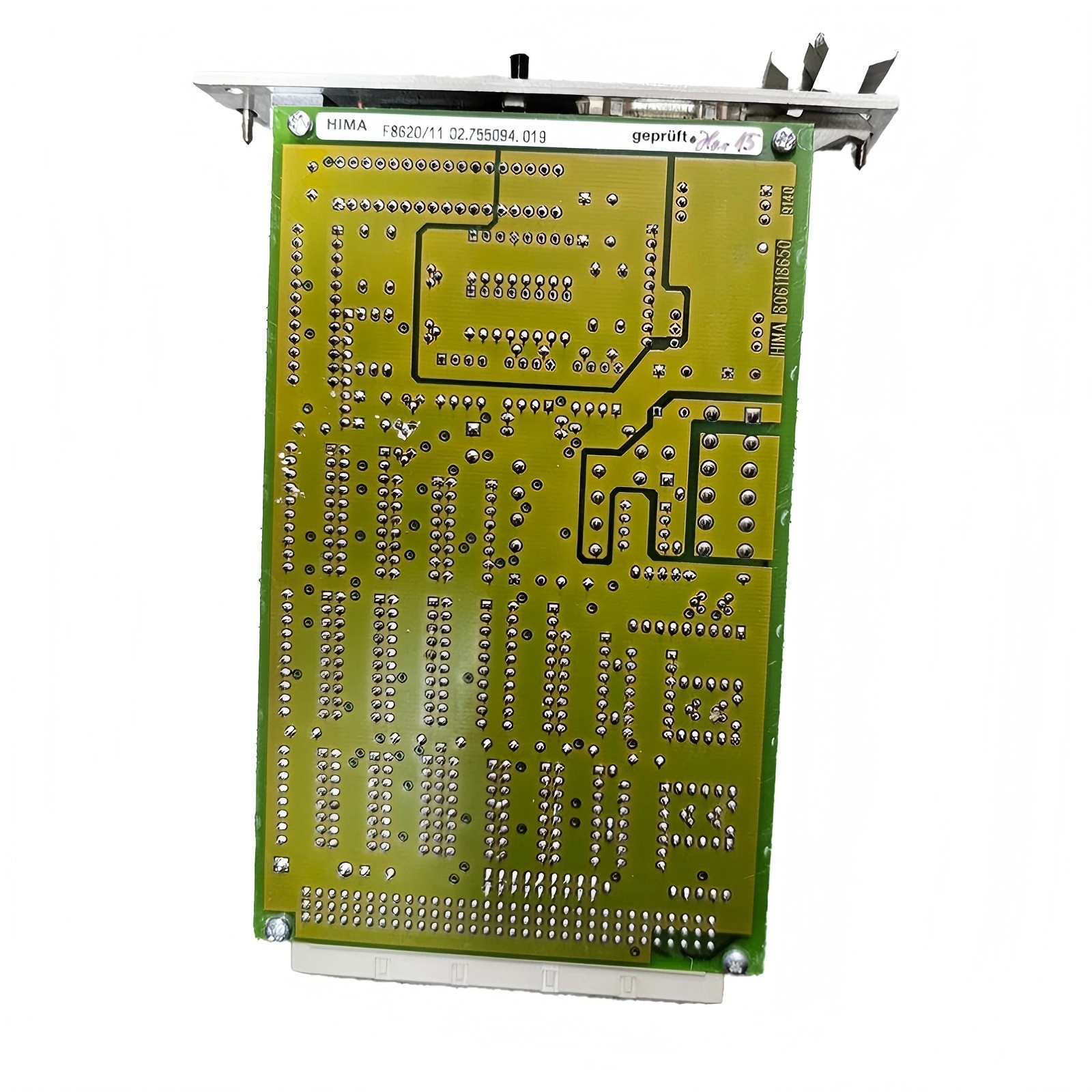

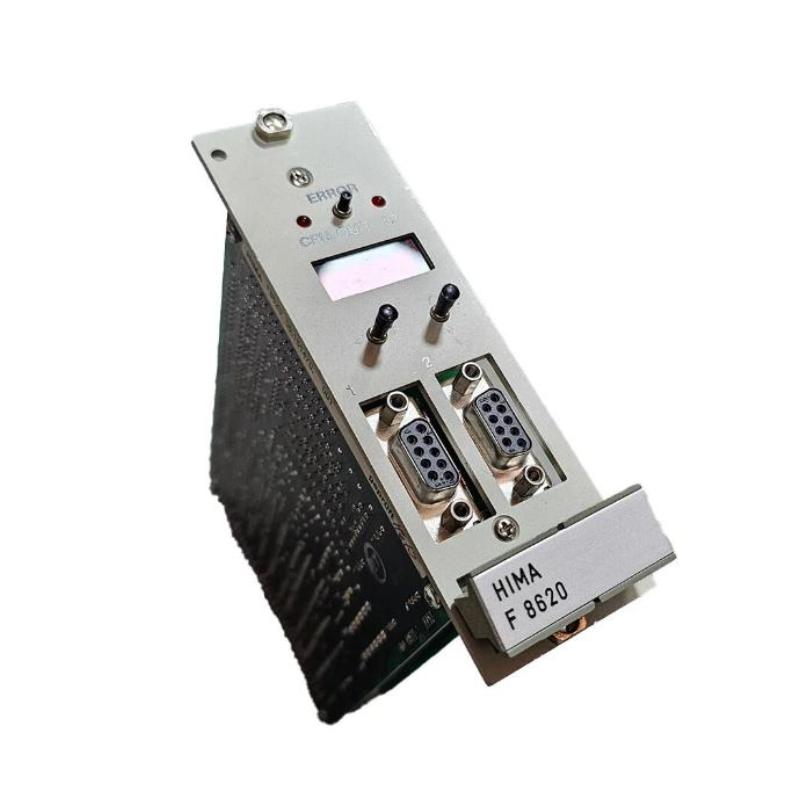

HIMA F8620/11 Central Processing Unit (H41/H51 System)

Overview

The HIMA F8620/11 is a central processing unit (CPU) designed for H41 and H51 safety systems. It provides high-performance processing, reliable monitoring, and precise control of safety-critical industrial applications, ensuring fast response to system events.

General Information

Part Number: F8620/11

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: H41 / H51 CPU Module

Type: Central Processing Unit for Safety-Critical Systems

Mounting: Rack or panel-mounted inside industrial safety cabinets

Technology: High-speed CPU with modular connectivity for safety and automation networks

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered via backplane or dedicated power supply

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, system status, and fault monitoring

Communication & Interface

Interface Ports: Supports HIMA safety I/O modules and fieldbus networks

Data Transfer: High-speed communication for safety signals and system diagnostics

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, communication, and error status

Reset Features: Hardware and software reset supported

I/O & Channels: Supports multiple safety input and output channels

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 145 × 115 × 30 mm

Weight: 0.95 kg
