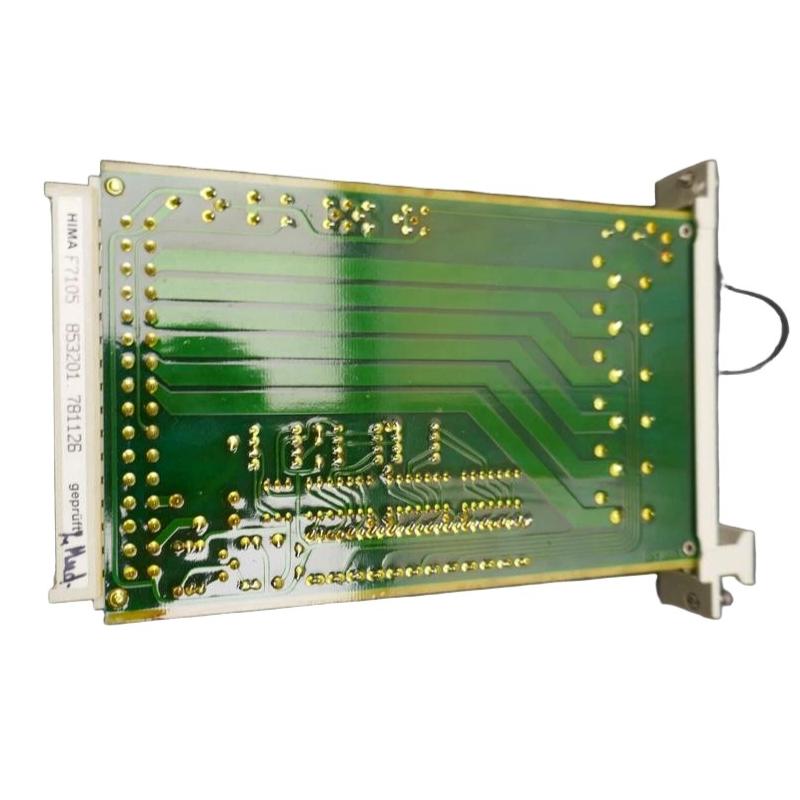

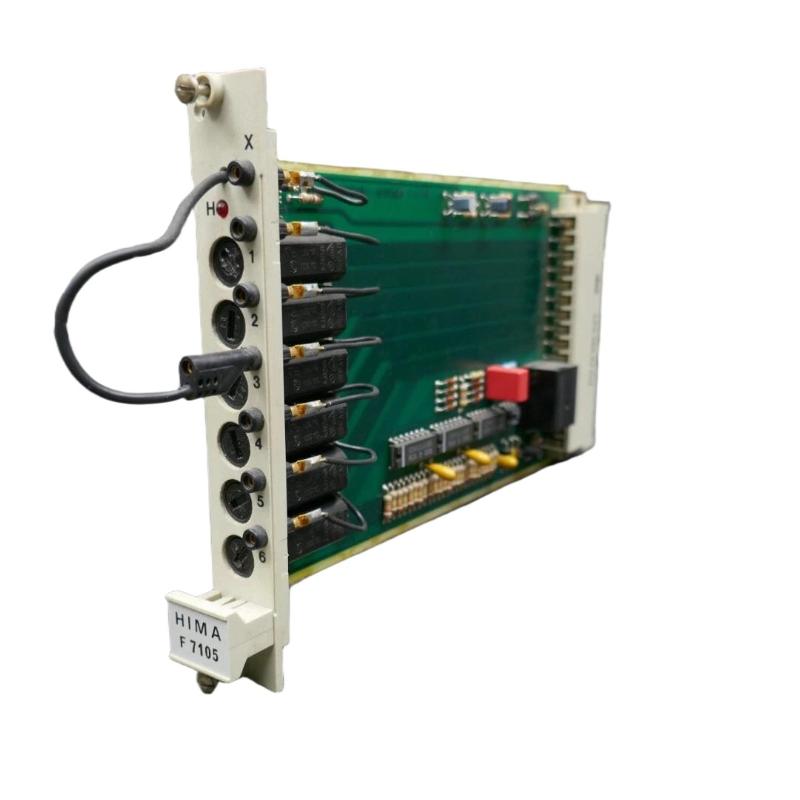

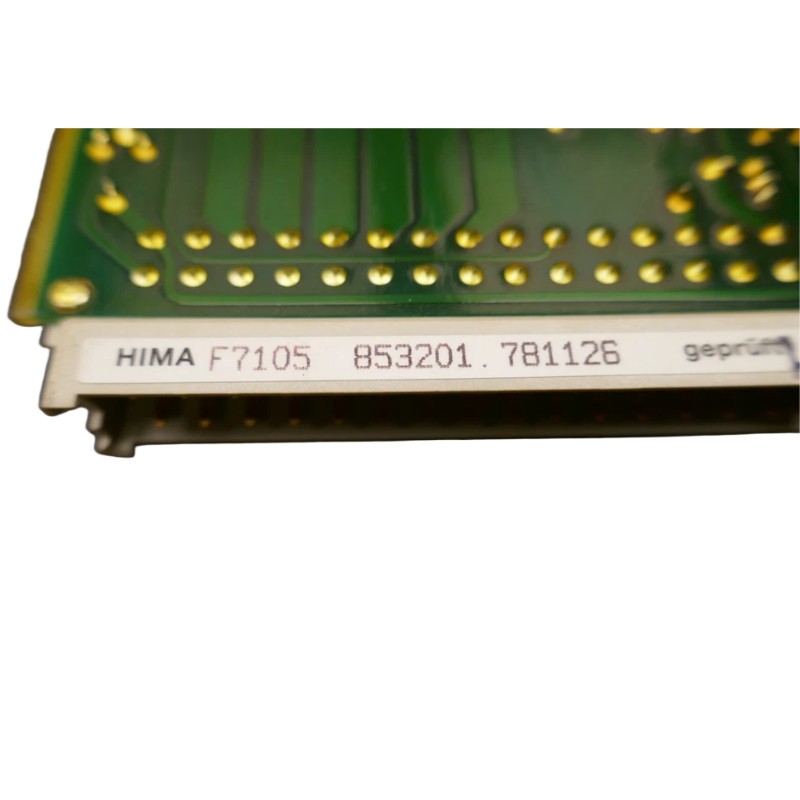

HIMA F7105 Analog Input Processing Module

Overview

The HIMA F7105 is an analog input processing module designed for the HIQuad safety and automation system. It accurately captures and processes analog signals from field devices, enabling real-time monitoring and safety-critical control in industrial environments. The module supports redundancy and diagnostic features for continuous and reliable operation.

General Information

Part Number: F7105

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: F7105

Type: Analog Input Processing Module

Mounting: DIN rail or control cabinet installation

Technology: Safety-critical analog signal processing, real-time monitoring, redundancy capable

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for module status and fault detection

Communication & Interface

Interface Type: Connects to HIQuad control bus

Data Transmission: Processes and transmits analog signals to the controller

Diagnostics: Continuous self-check, channel monitoring, fault reporting

Operator Interface: Status LEDs

Reset Features: Soft and hardware reset supported

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 25 × 127 × 163 mm

Weight: ~ 0.25 kg
