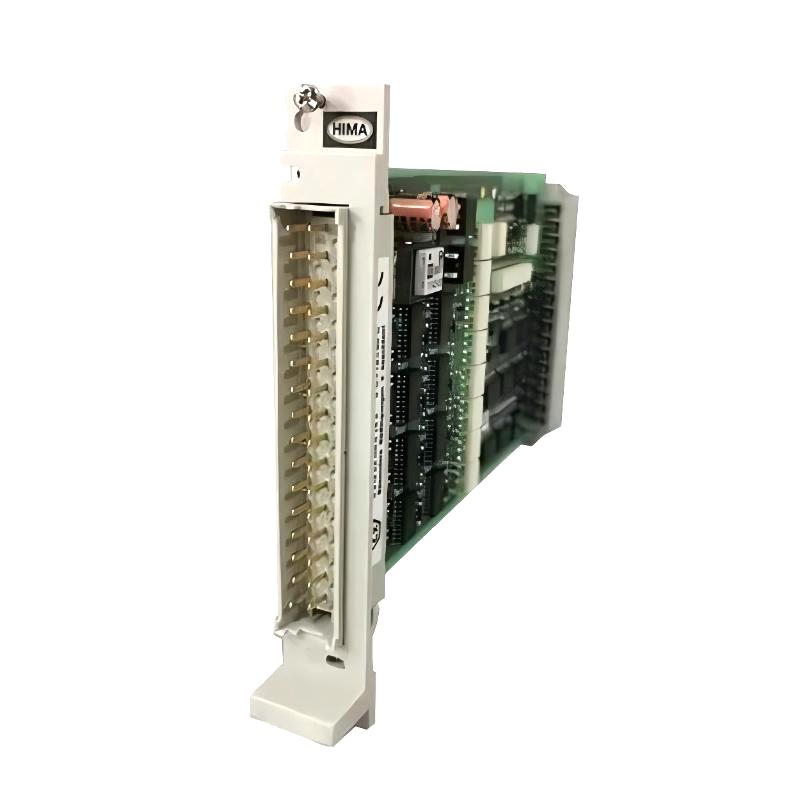

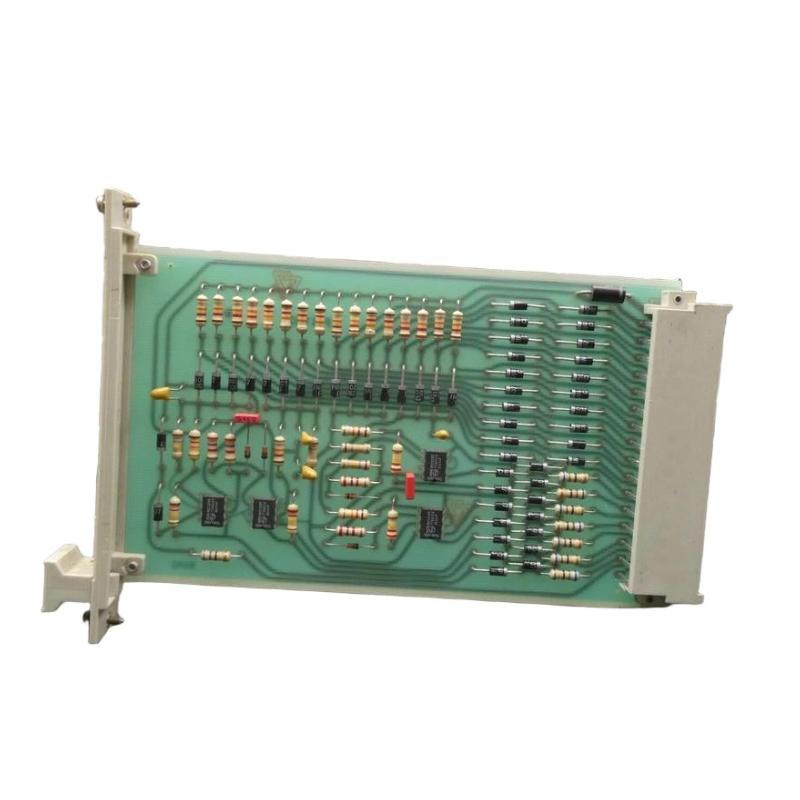

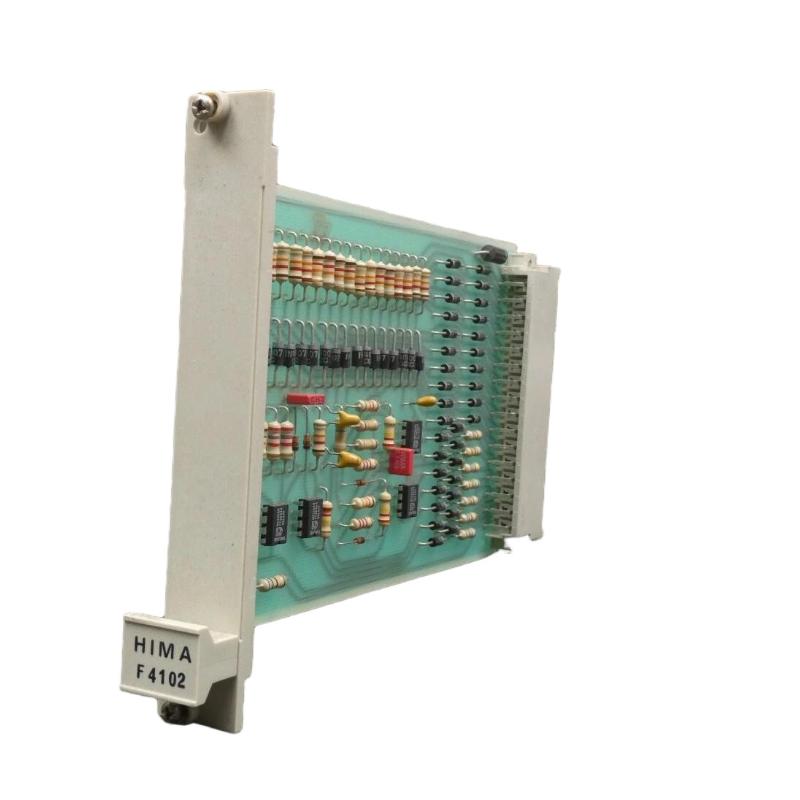

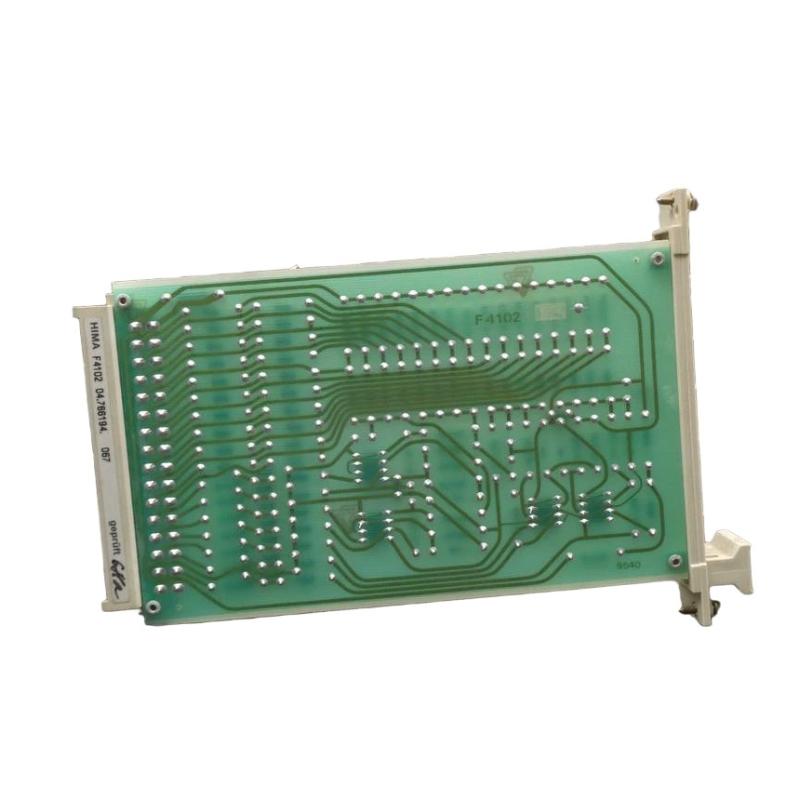

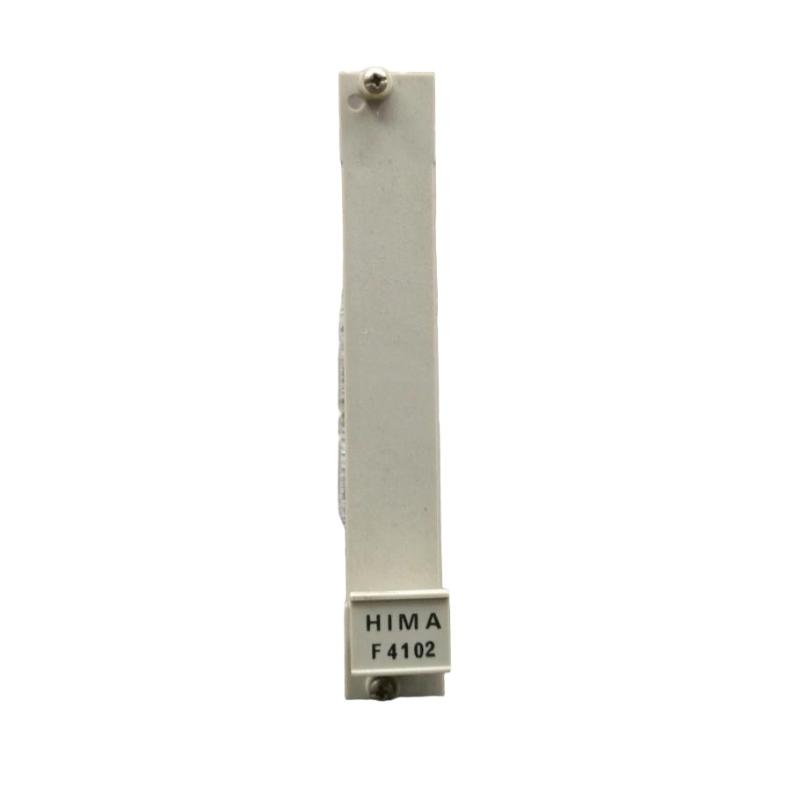

HIMA F 4102 Printed Circuit Board

Overview

The HIMA F 4102 is a printed circuit board (PCB) designed for use in HIQuad safety and automation systems. It provides essential signal processing and control functions within the system, ensuring reliable and accurate operation of connected modules and field devices.

General Information

Part Number: F 4102

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: F 4100

Type: Printed Circuit Board (PCB)

Mounting: Installed within HIQuad module chassis

Technology: Safety-critical signal processing, high-reliability electronics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered through system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: None (status indicated by associated module LEDs)

Communication & Interface

Interface Type: Connects internally to HIQuad control bus

Data Transmission: Processes and routes digital and analog signals within the system

Diagnostics: Module-level fault detection, self-check routines

Operator Interface: None directly on PCB

Reset Features: Controlled via parent module soft or hardware reset

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 within standard industrial cabinet

Dimensions & Weight

Dimensions (L × W × H): 130 × 100 × 60 mm

Weight: ~ 0.6 kg
