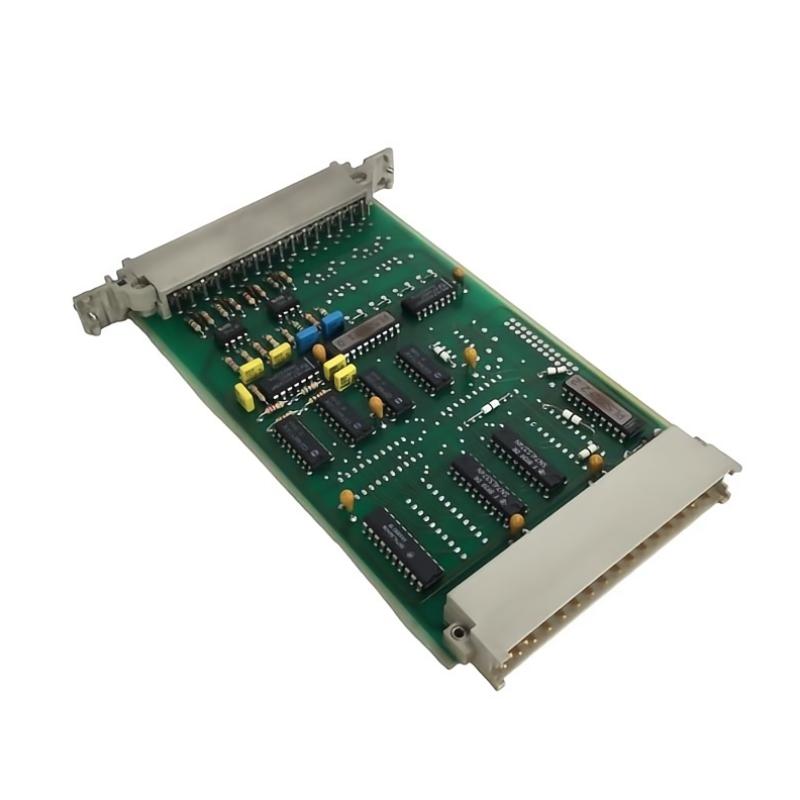

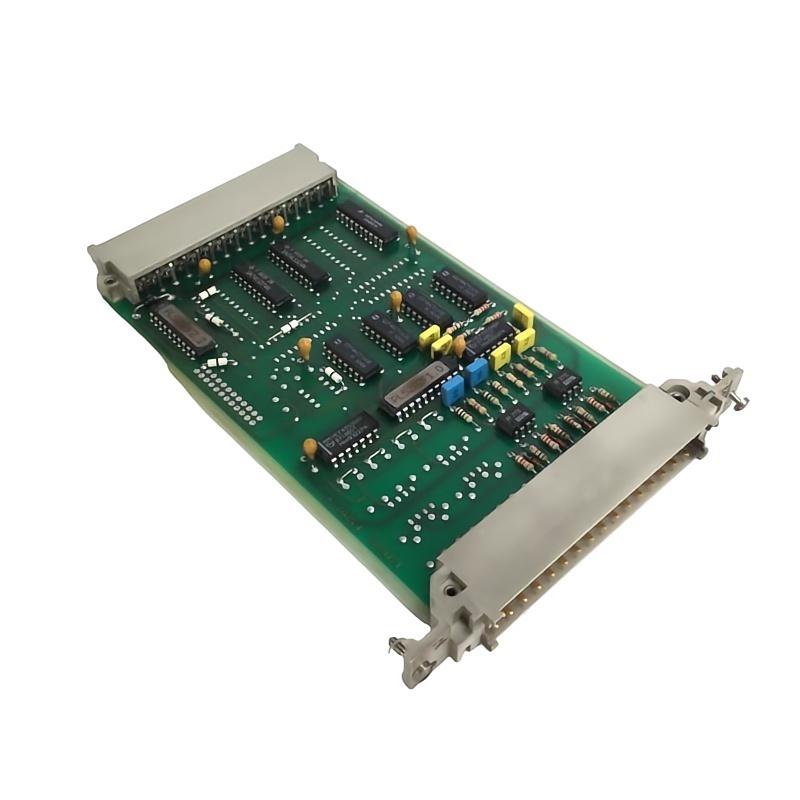

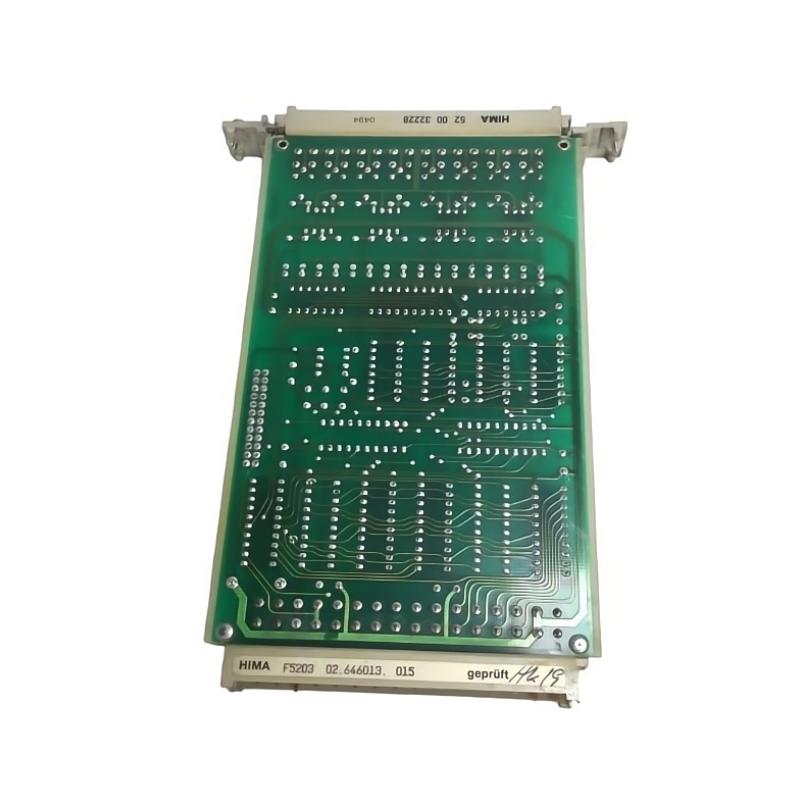

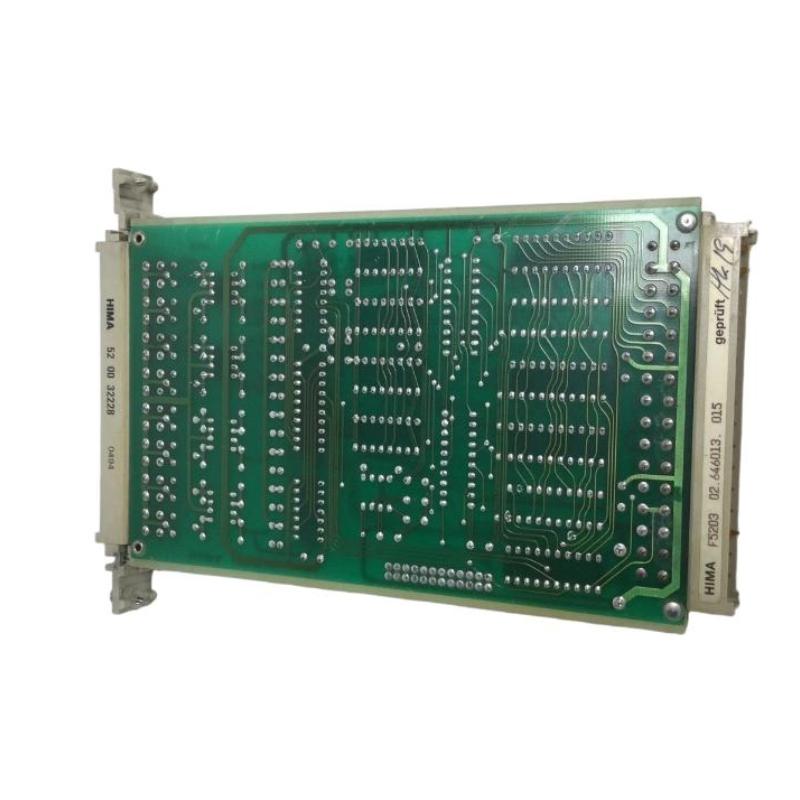

HIMA F5203 Control Panel

Overview

The HIMA F5203 is a compact control panel designed for monitoring and operating safety and automation systems. It provides intuitive interface options for operators, enabling quick status checks and control over critical processes.

General Information

Part Number: F5203

Manufacturer: HIMA

Brand / Country of Origin: HIMA / Germany

Series: F-Series Control Panel

Type: Operator Control Panel

Mounting: Panel or enclosure mounting within control cabinets

Technology: Push-button interface, status indicators, modular integration with safety controllers

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered from control cabinet supply

Protection: Surge and reverse-polarity protection

Indicators: LED indicators for system status, alarms, and operational readiness

Communication & Interface

Interface Ports: Direct connection to safety controller or via fieldbus modules

Diagnostics: Status reporting, error indication, and functional checks

Operator Interface: Push-buttons, LEDs, and configurable display elements

Reset Features: Supports soft and hardware reset via controller integration

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for enclosed industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 200 × 100 × 30 mm

Weight: ~ 0.2 kg

Easy Installation with Instant System Feedback!
