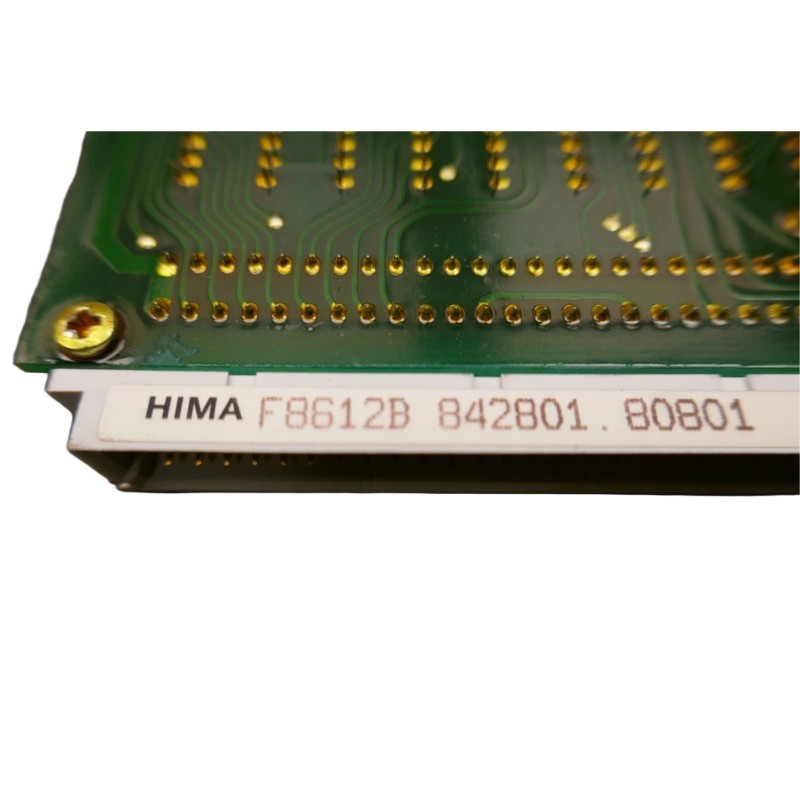

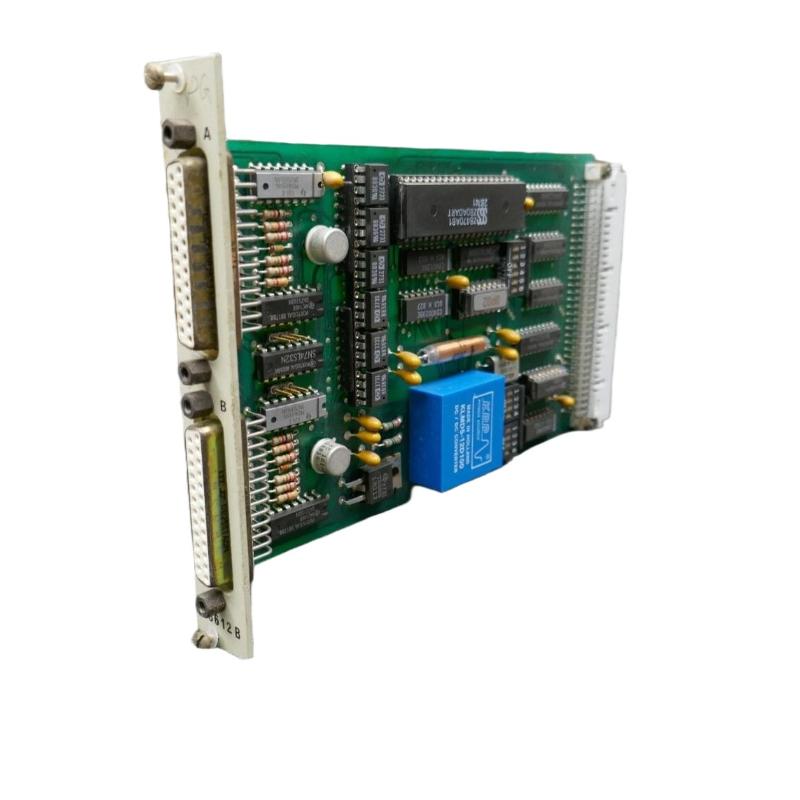

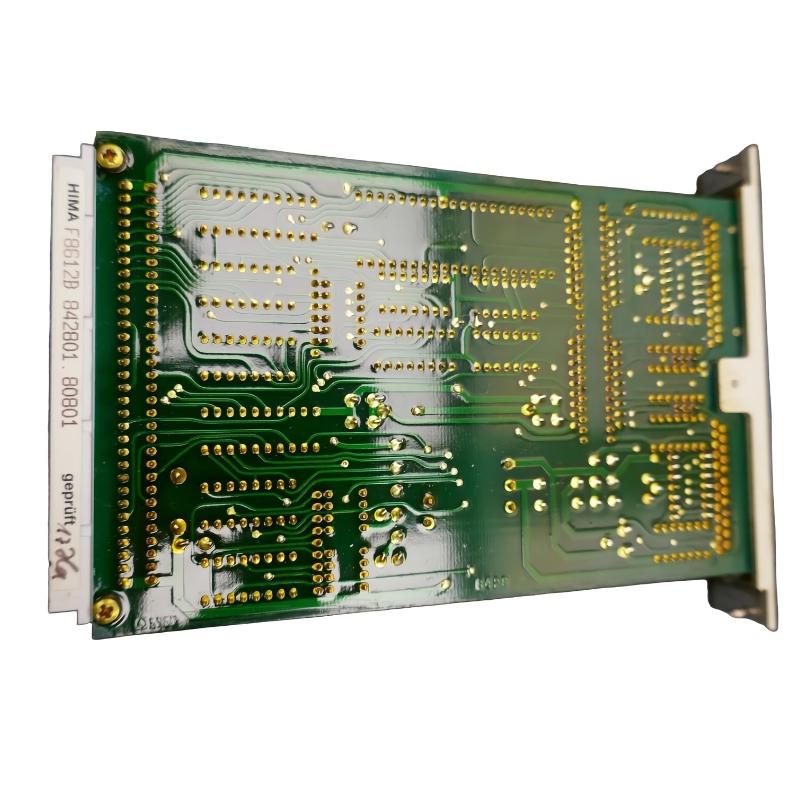

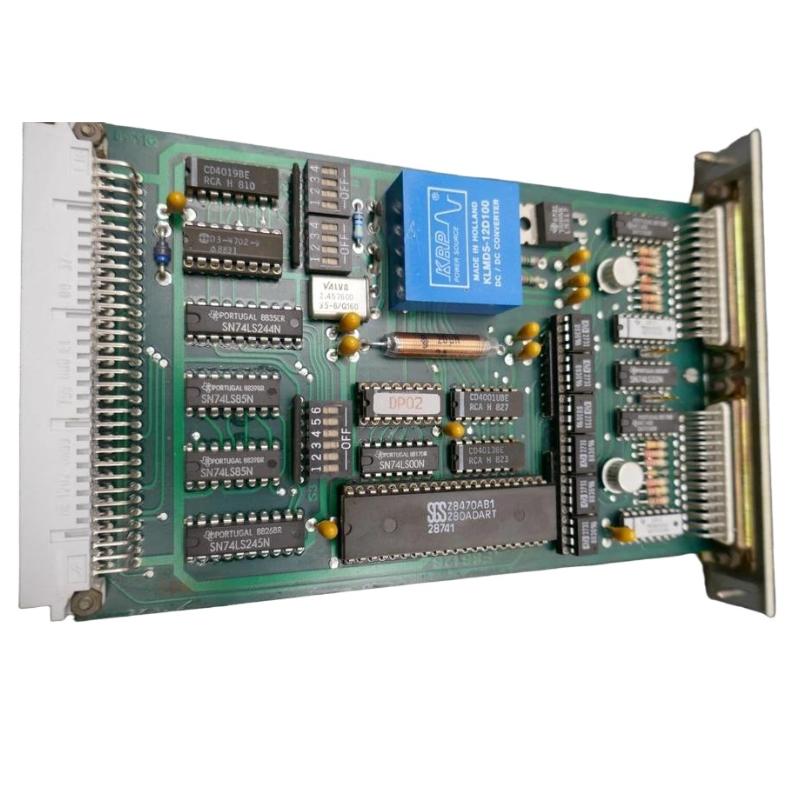

HIMA F8612B Printed Circuit Board Module

The HIMA F8612B is a high-reliability printed circuit board (PCB) module engineered for industrial safety and automation systems. It performs critical safety logic processing, providing rapid and dependable signal management in demanding control environments.

General Information

Part Number: F8612B

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: F-Series Safety Modules

Type: Printed Circuit Board Module

Mounting: Card slot installation within HIMA safety controller chassis

Technology: Digital processing, redundancy support, fault diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via controller backplane

Protection: Surge, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, status, and fault conditions

Communication & Interface

Communication Ports: Backplane interface for controller connectivity

Protocol Support: Proprietary HIMA communication bus

Diagnostics: Module health monitoring, fault signaling, and event logging

Operator Interface: LED indicators for status and diagnostics

Reset Features: Supports hardware and software reset

I/O & Channels

Digital I/O Channels: Configurable based on system setup

External Load Support: Not directly supported; module communicates processed signals

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for standard industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 180 × 30 × 250 mm

Weight: ~ 0.18 kg
