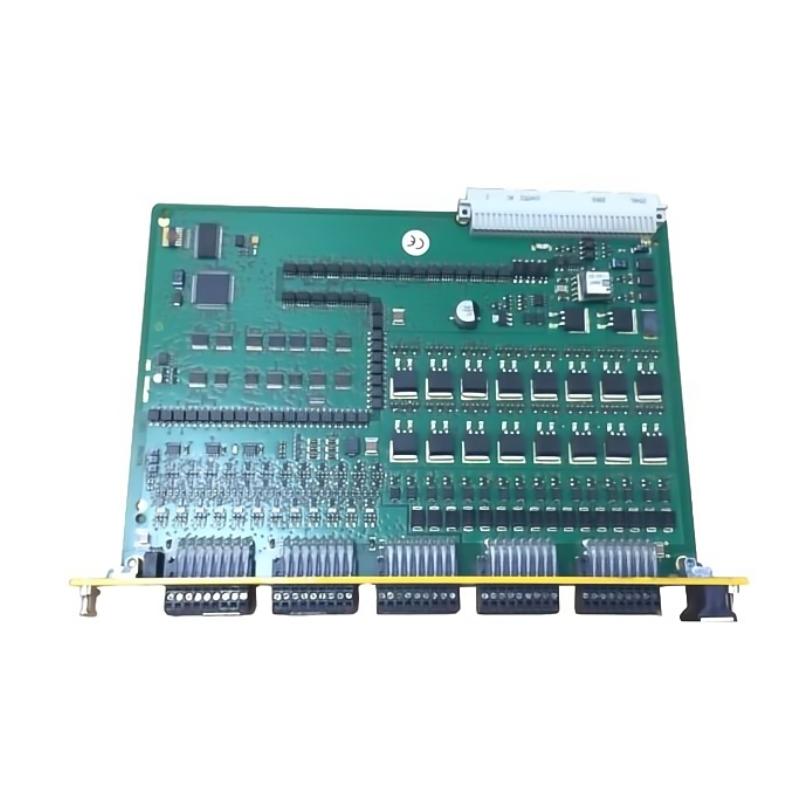

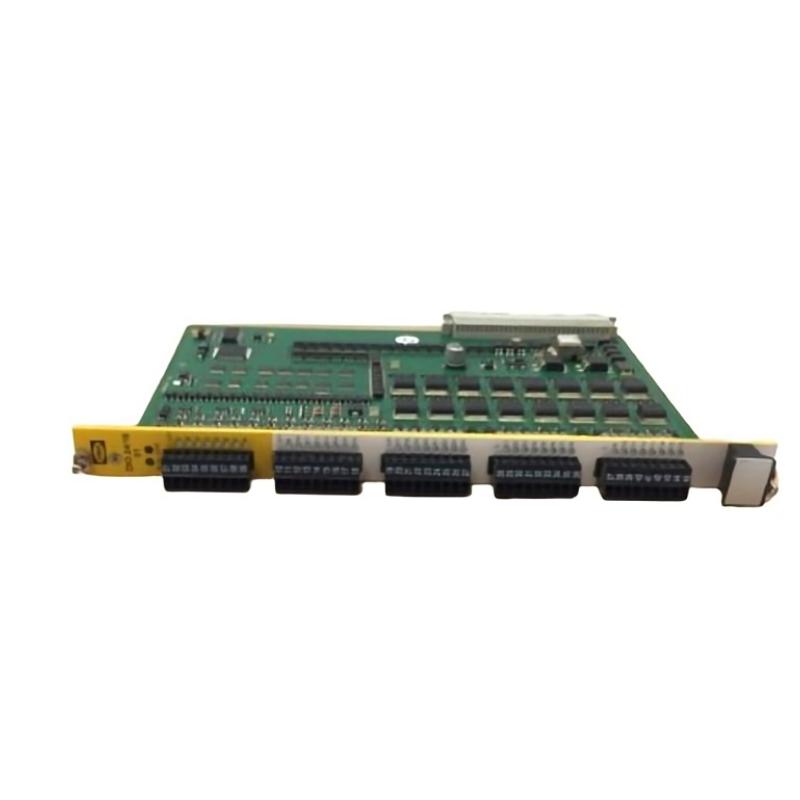

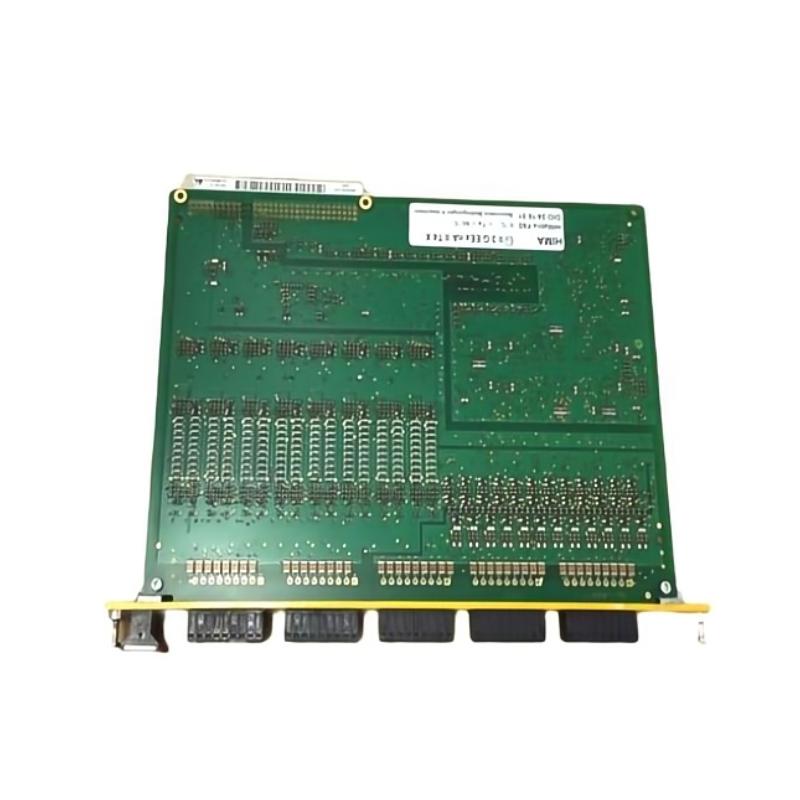

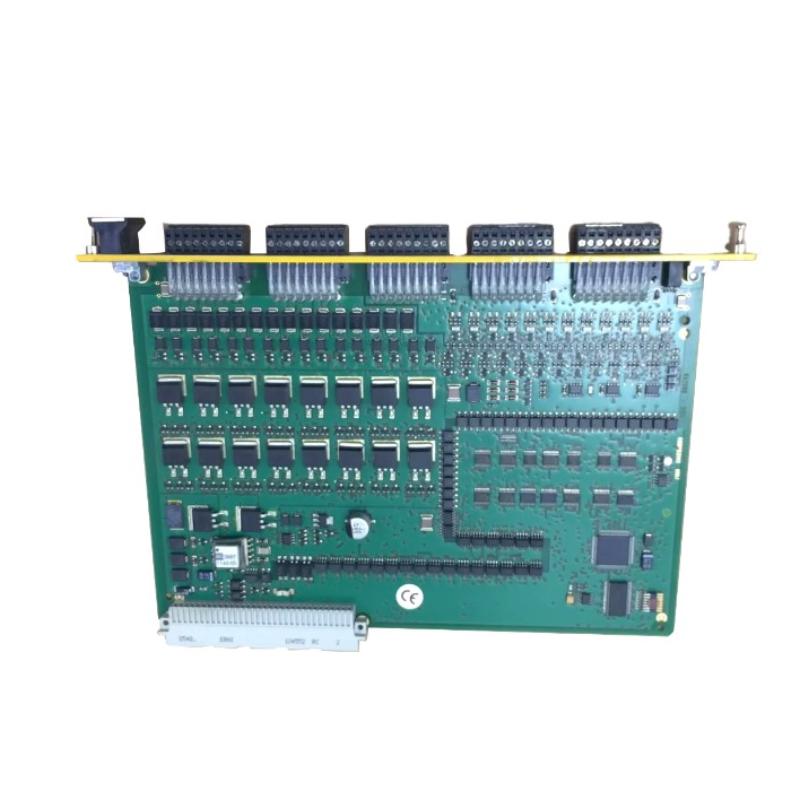

HIMA F60 DIO 24/16 01 Digital Input/Output Module (HIMatrix F60 System)

Overview

The HIMA F60 DIO 24/16 01 is a digital input/output (I/O) module designed for the HIMatrix F60 safety automation system. It provides reliable signal acquisition and output control, enabling safe and efficient interaction between the controller and field devices.

General Information

Part Number: F60 DIO 24/16 01

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: HIMatrix F60 System

Type: Digital Input/Output Module

Mounting: Card slot installation within HIMatrix F60 controller chassis

Technology: Digital signal processing, fault diagnostics, redundant communication support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via controller backplane

Protection: Surge, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, channel status, and fault

Communication & Interface

Communication Ports: Backplane interface for controller connectivity

Protocol Support: Proprietary HIMA communication bus

Diagnostics: Input/output status monitoring, fault detection, event logging

Operator Interface: LED indicators for channel activity and system faults

Reset Features: Supports hardware and software reset

I/O & Channels

Digital Input Channels: 24

Digital Output Channels: 16

External Load Support: Outputs capable of driving standard actuators and field devices

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 100 × 160 × 50 mm

Weight: ~ 0.26 kg
